Theft Deterrent System: Notes

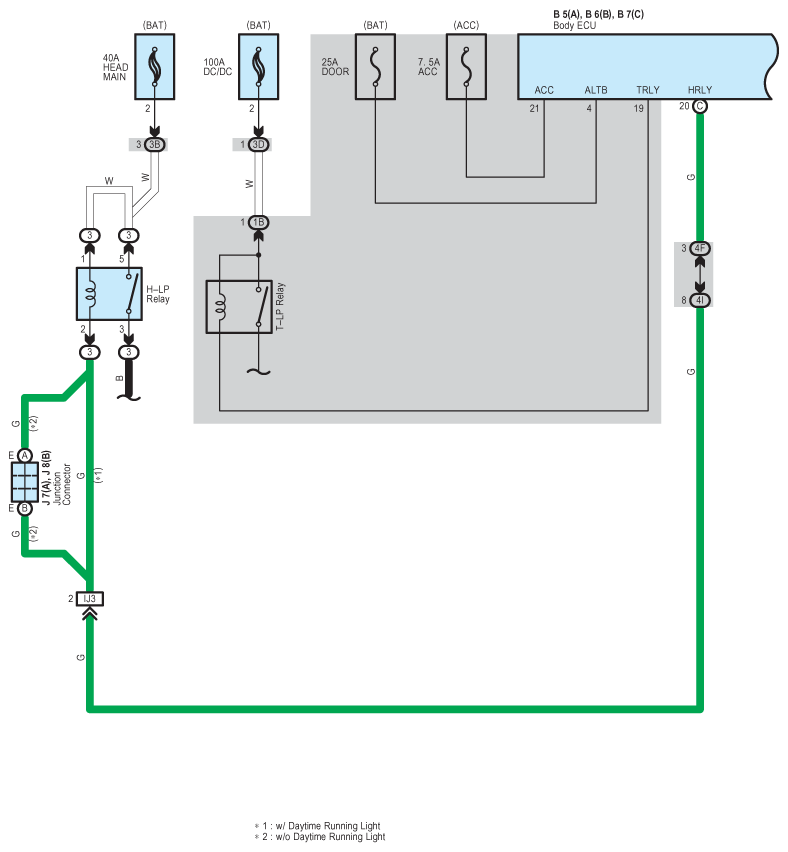

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 7)

G07577058

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

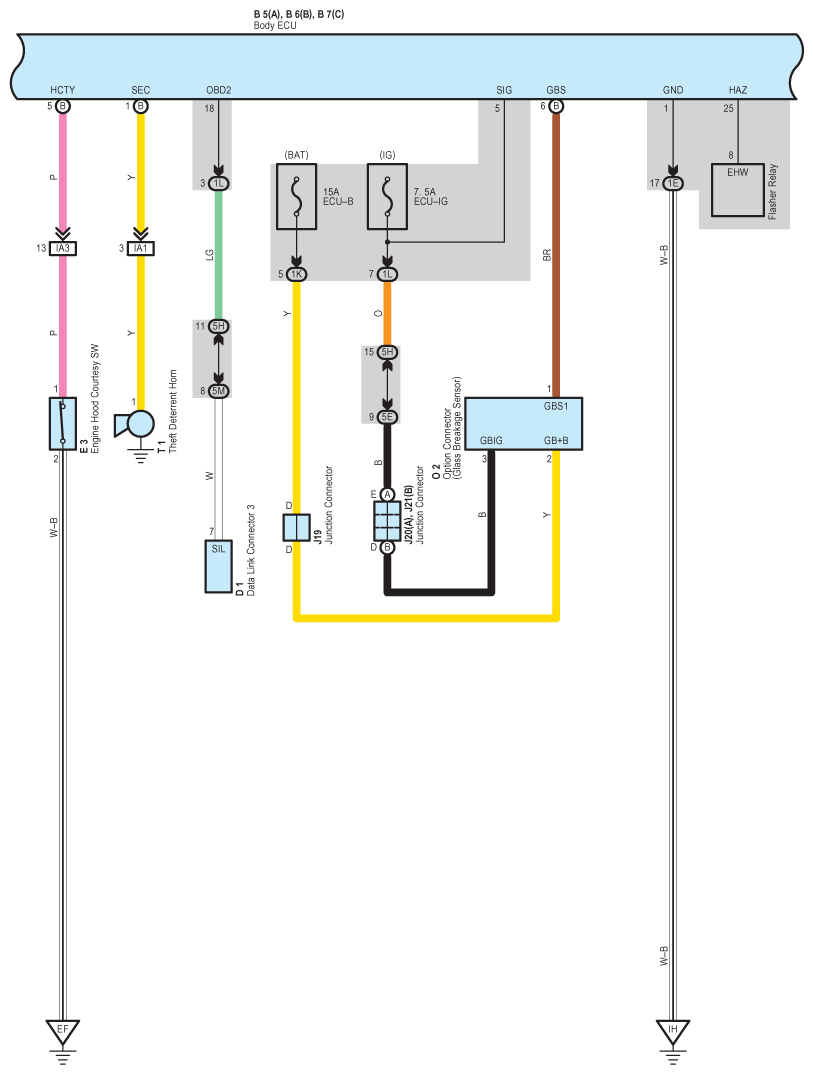

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 7)

G07577059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

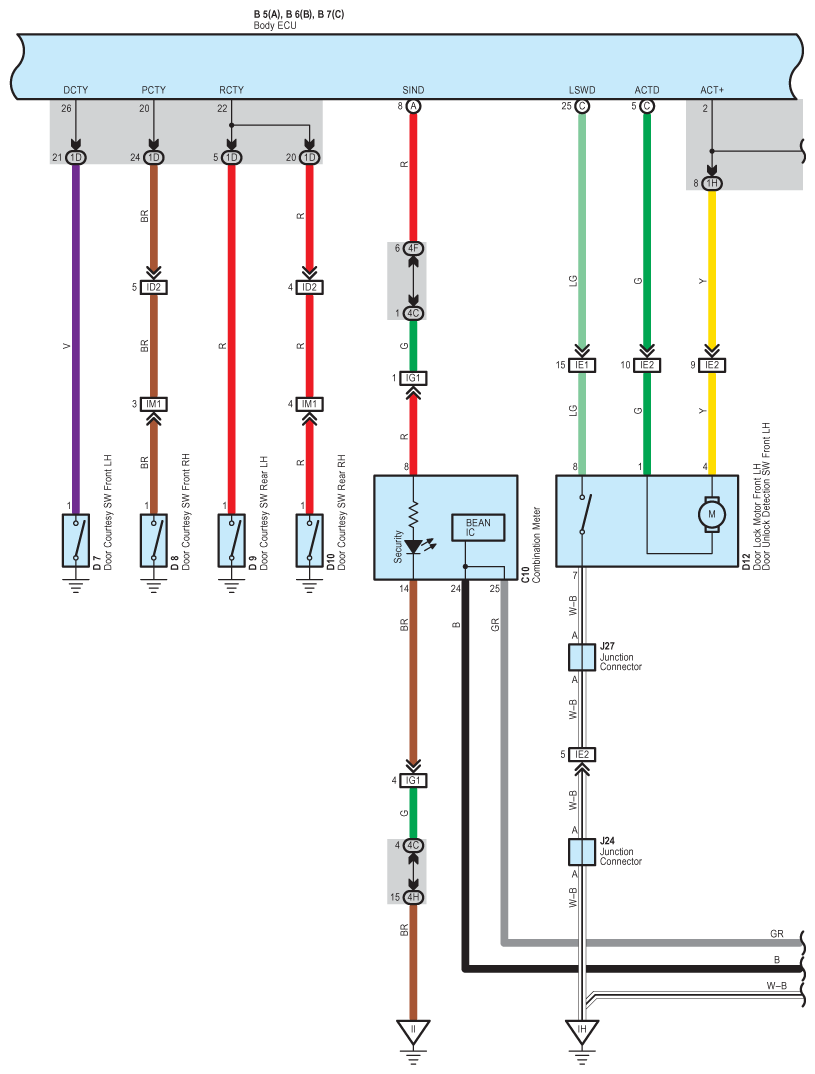

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 7)

G07577060

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

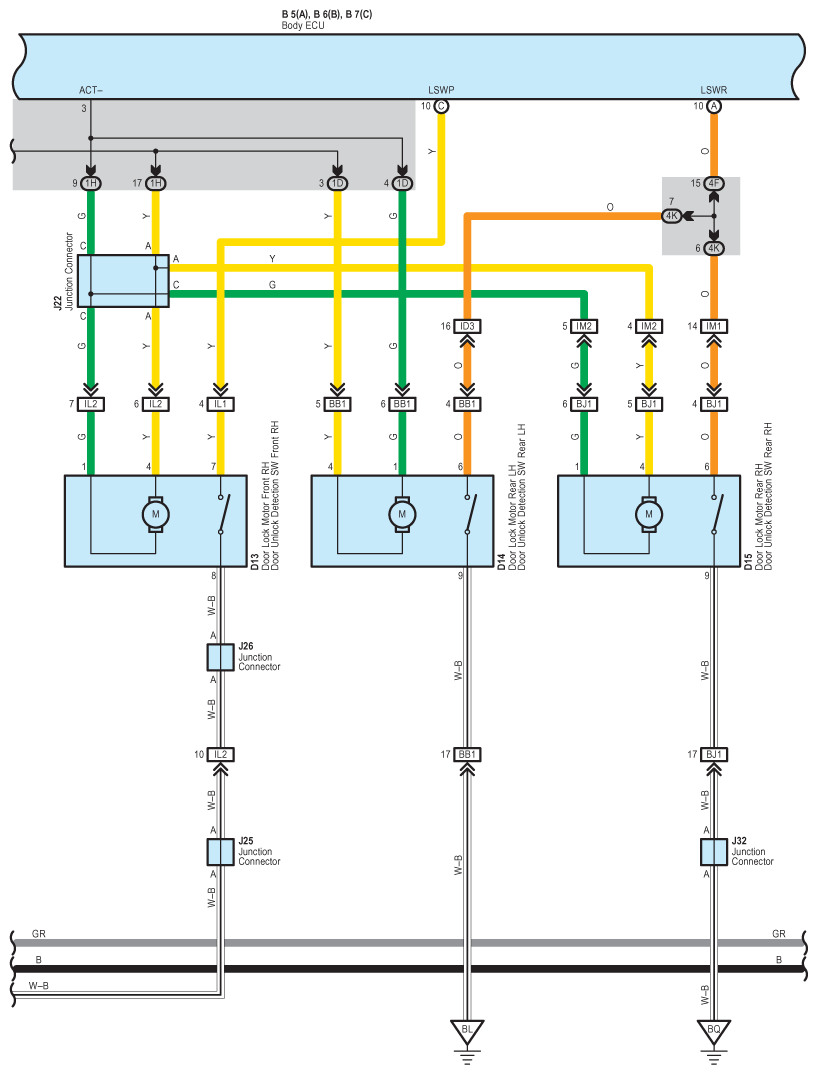

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 7)

G07577061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

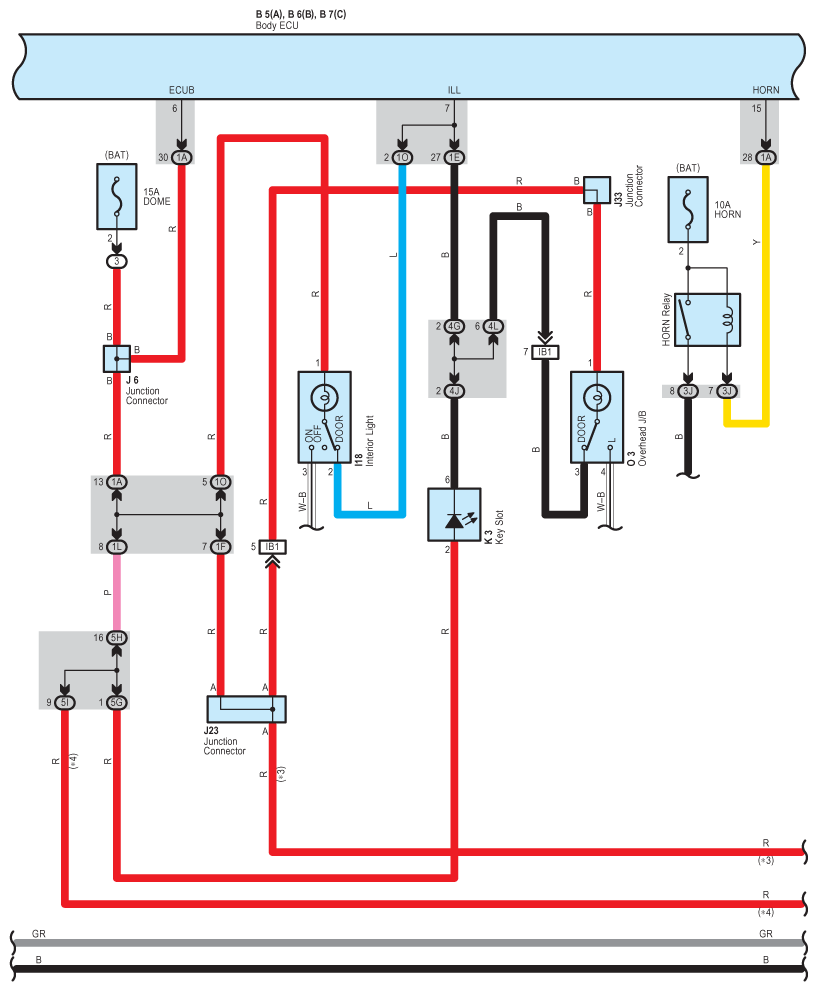

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 7)

G07577062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

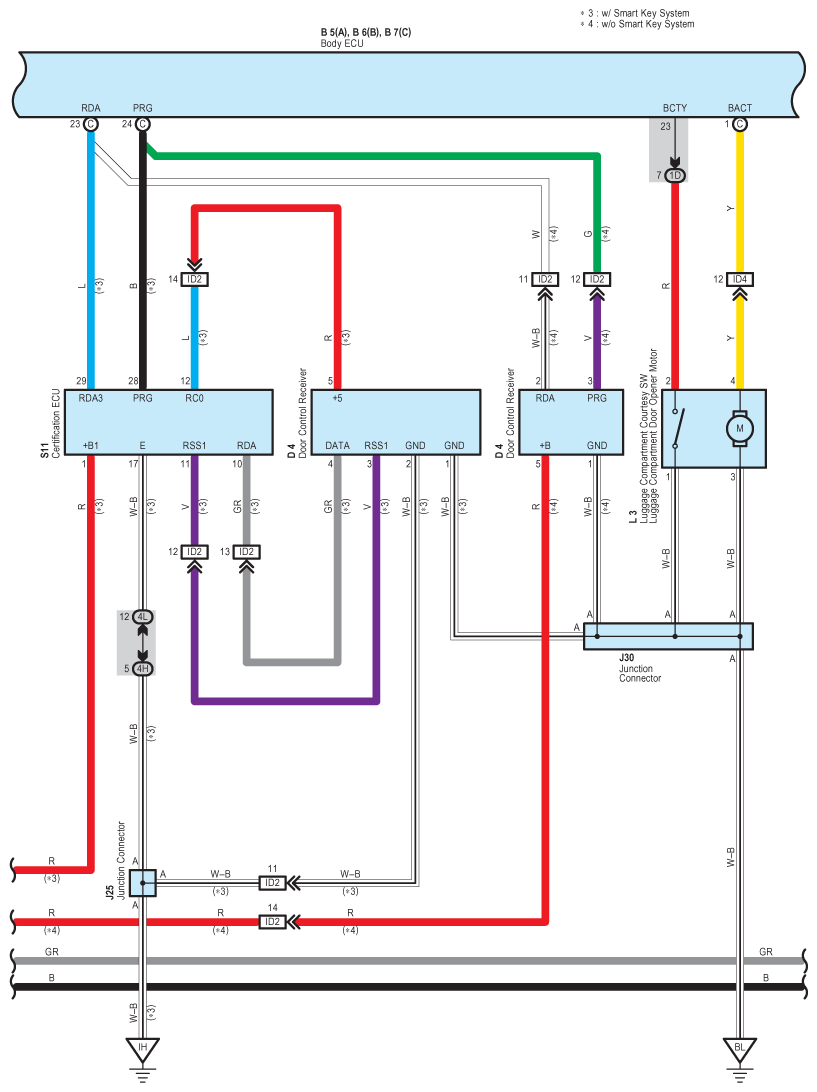

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 7)

G07577063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

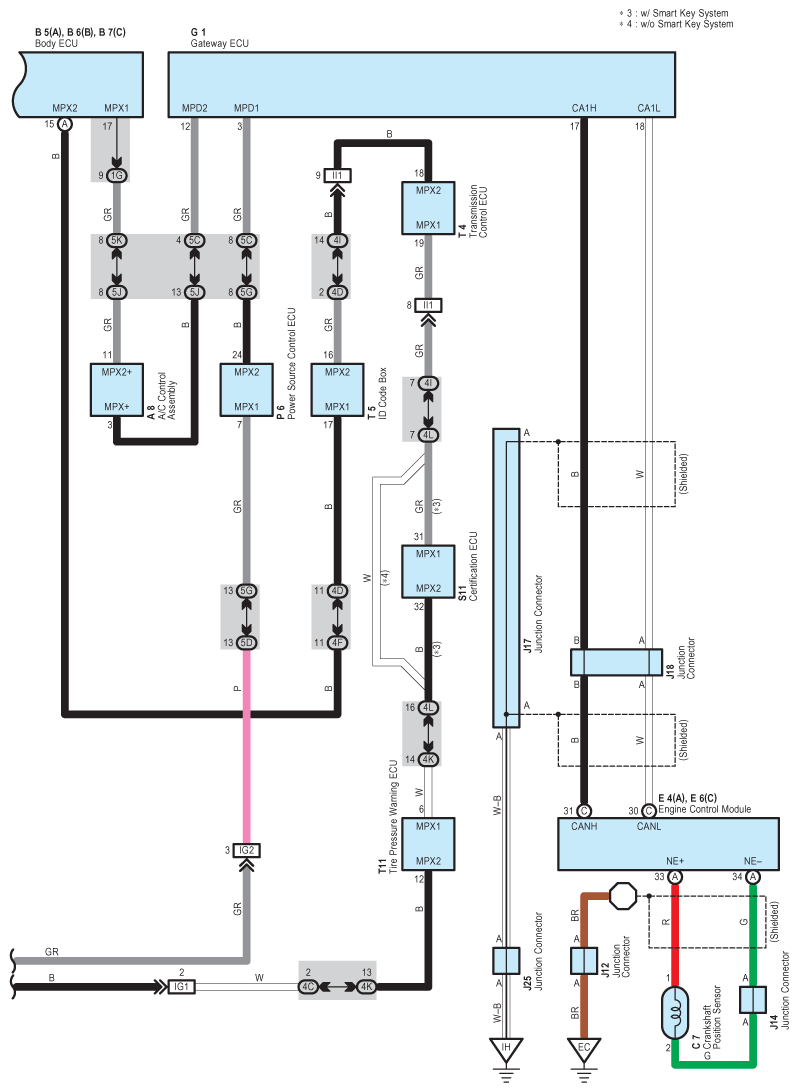

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 7)

G07577064

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
