Wireless Door Lock Control System without Smart Entry System: Notes

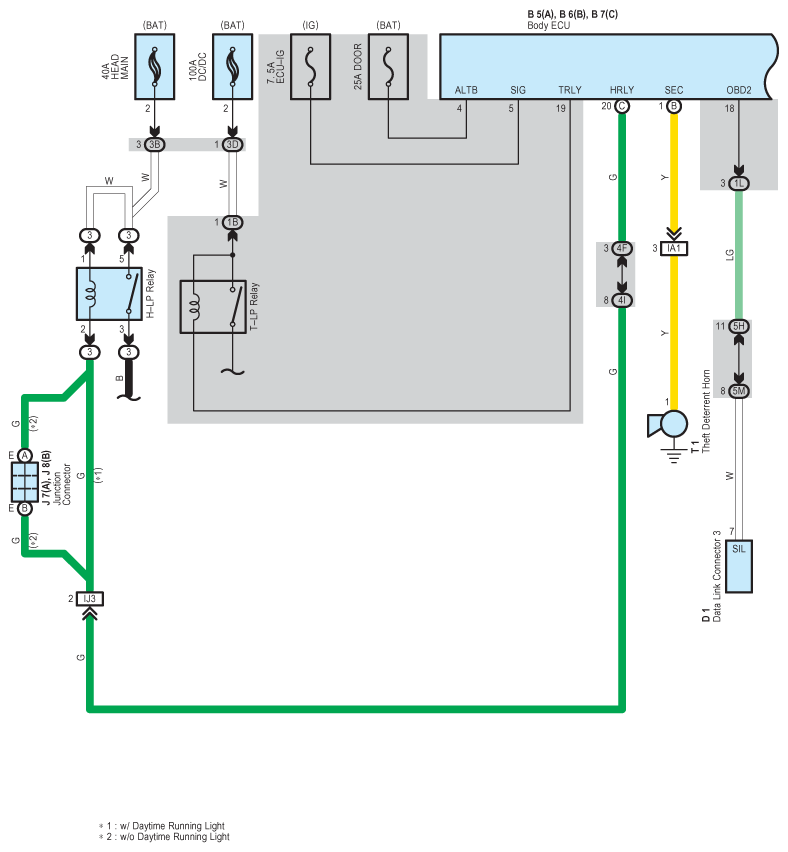

Fig 1: Wireless Door Lock Control Without Smart Entry System - Circuit Diagram (1 Of 5)
G07577051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

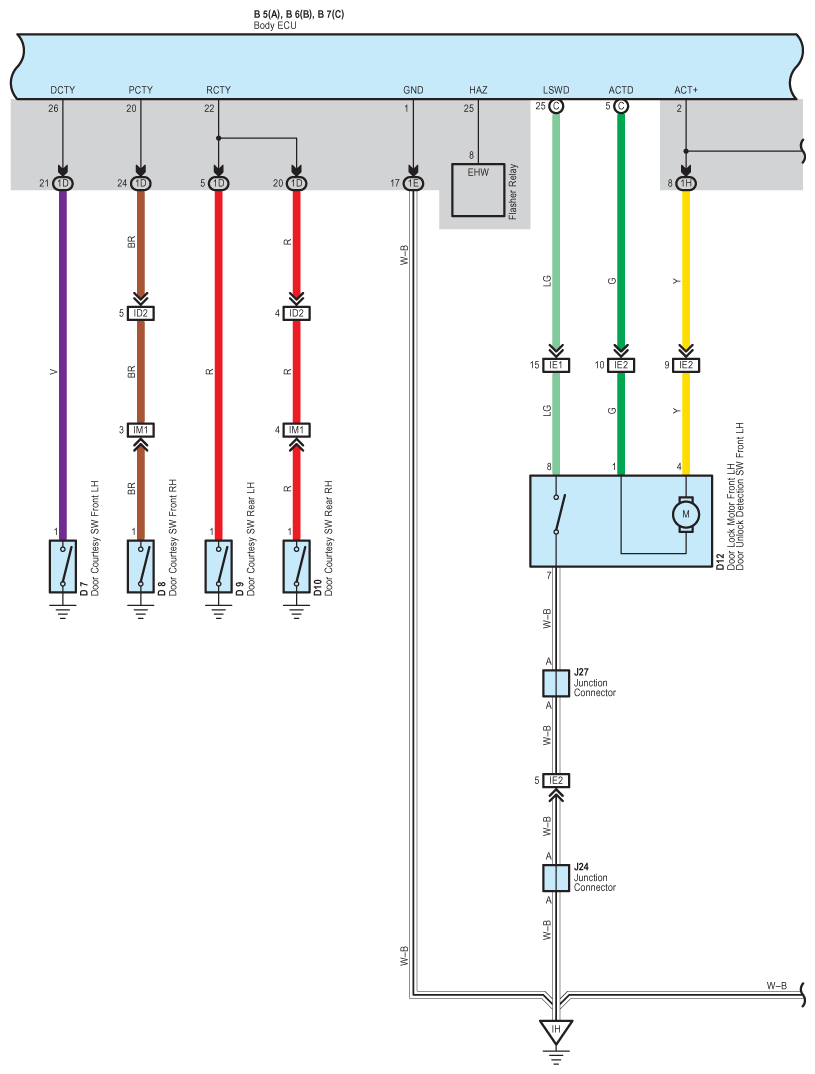

Fig 2: Wireless Door Lock Control Without Smart Entry System - Circuit Diagram (2 Of 5)
G07577052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

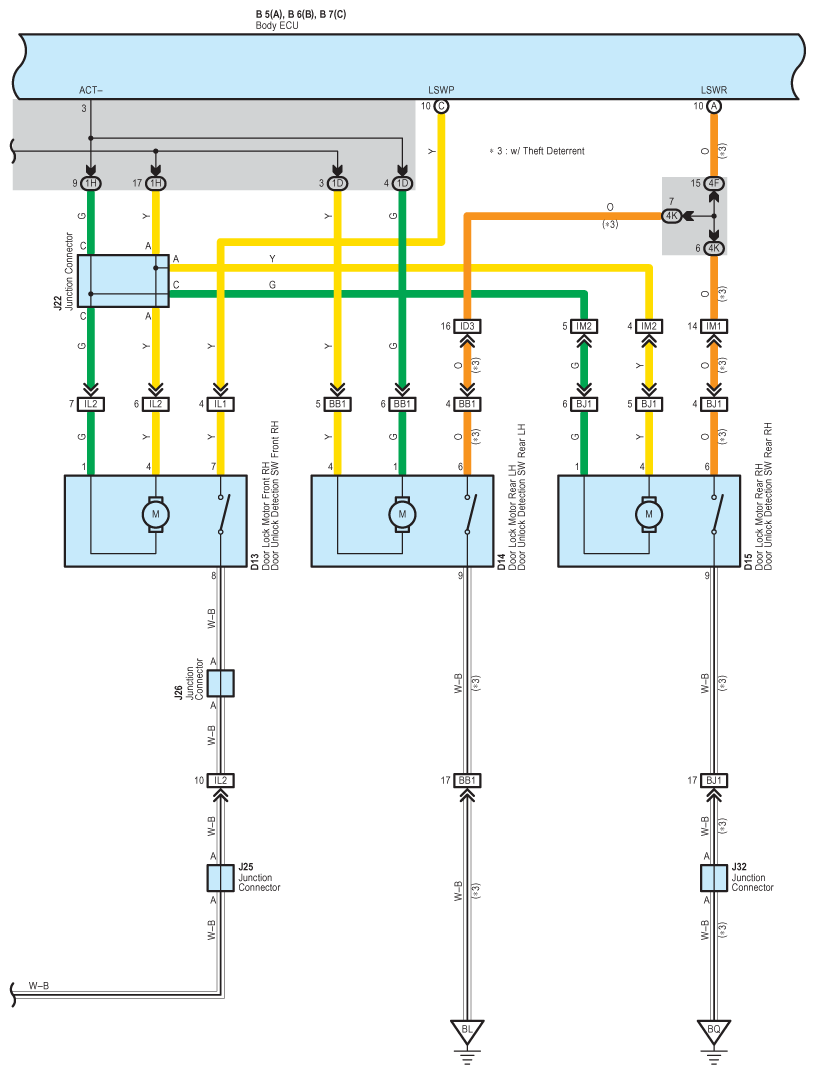

Fig 3: Wireless Door Lock Control Without Smart Entry System - Circuit Diagram (3 Of 5)
G07577053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

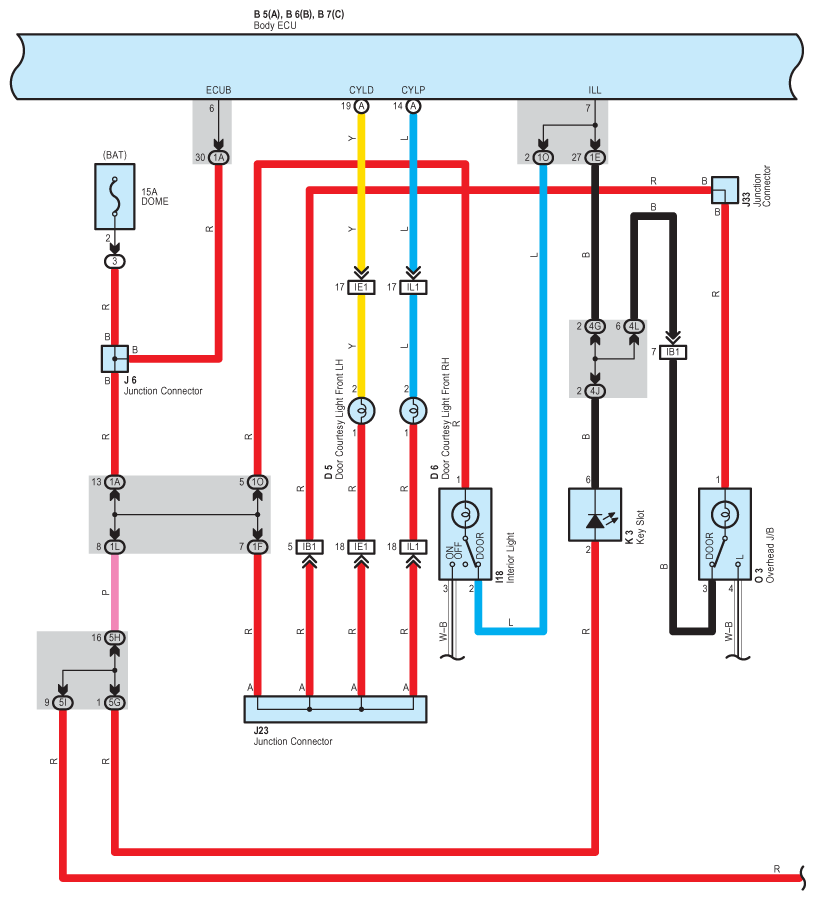

Fig 4: Wireless Door Lock Control Without Smart Entry System - Circuit Diagram (4 Of 5)
G07577054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

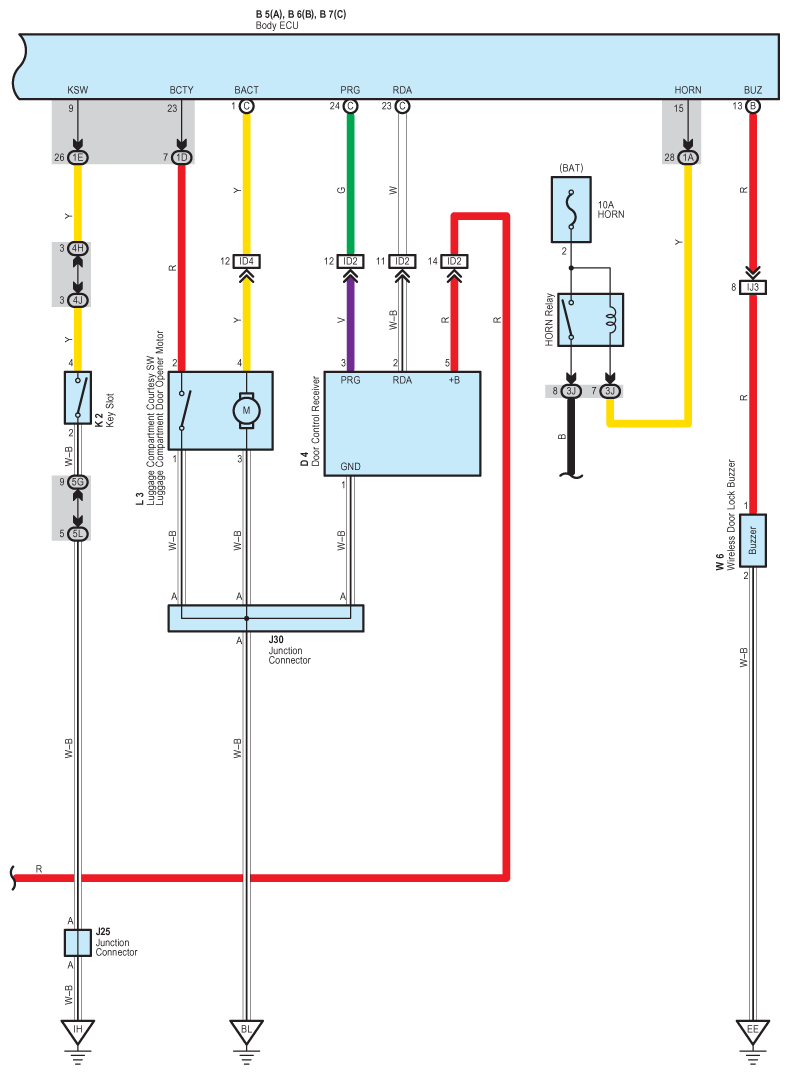

Fig 5: Wireless Door Lock Control Without Smart Entry System - Circuit Diagram (5 Of 5)
G07577055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
