Rear Power Window LH Does Not Operate with Rear Power Window Switch LH: Wiring Diagram

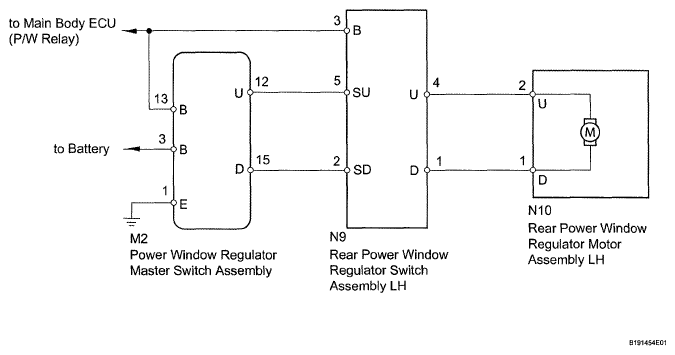

Fig 1: Rear Power Window LH Does Not Operate With Rear Power Window Switch LH Wiring Diagram
G05655809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
