Air Fuel Ratio Sensor: Components

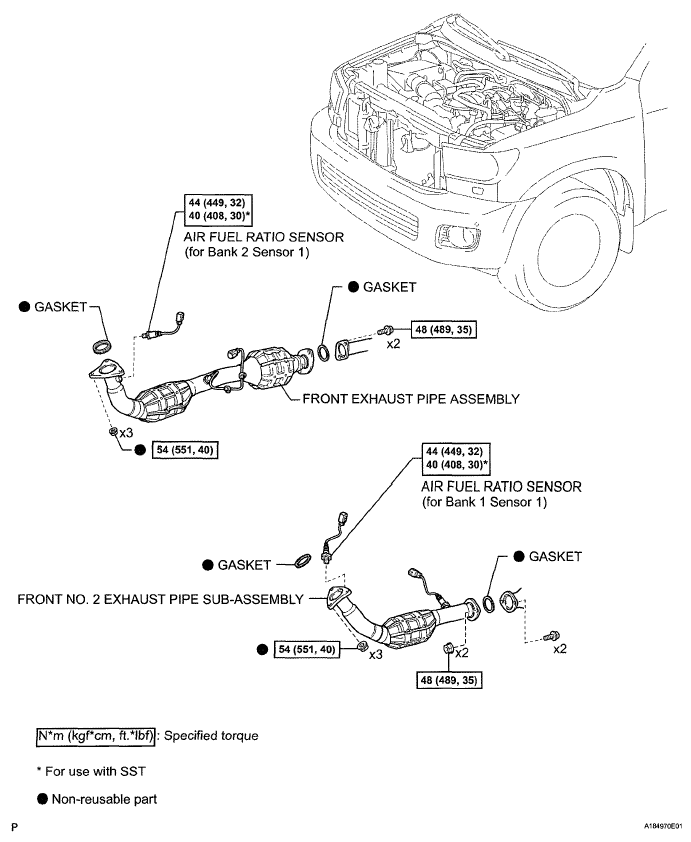

Fig 1: Identifying Air Fuel Ratio Sensor Components
G05644789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
