TC and CG Terminal Circuit: Wiring Diagram

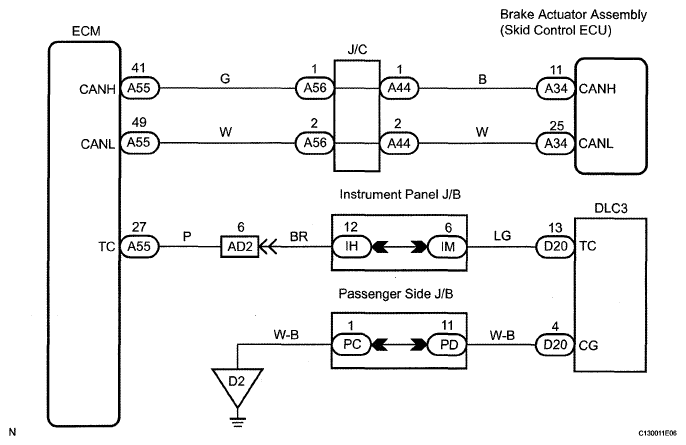

Fig 1: TC And CG Terminal - Wiring Diagram
G05406762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
