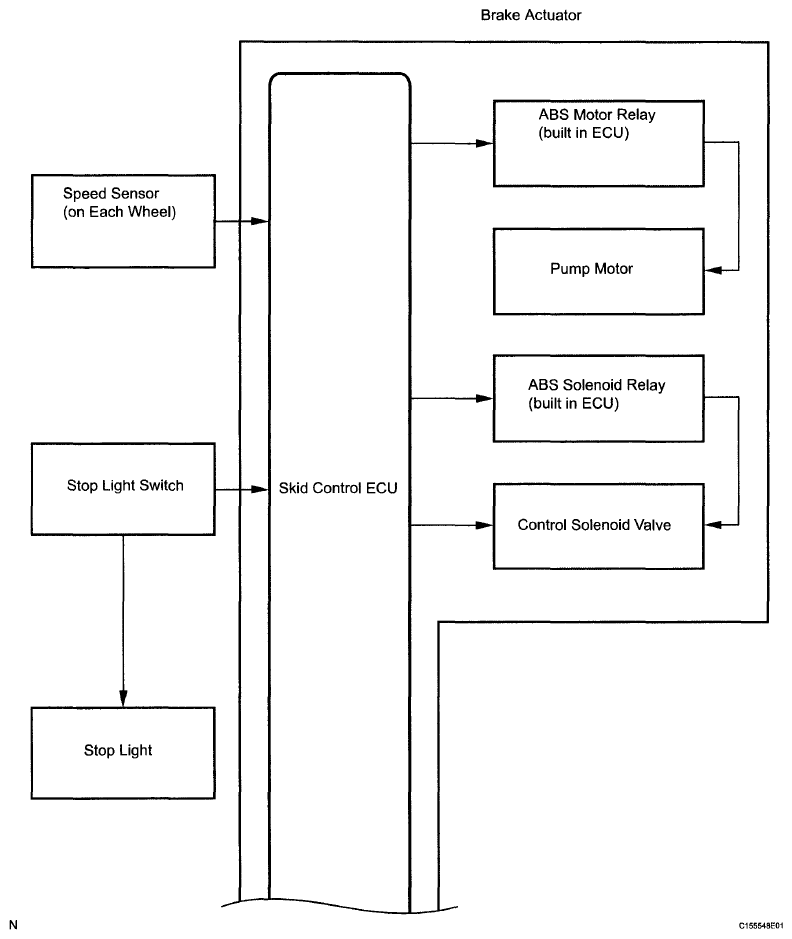

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TRANSMITTING ECU (TRANSMITTER) COMMUNICATION CHART
| Transmitting ECU (Transmitter) |
Receiving ECU |
Signal |
Communication Method |
| ECM |
Skid control ECU |
- Shift position signal
- Throttle position signal
- Engine speed signal
- Diagnosis switch (TC) signal
|
CAN communication system |
| Main body ECU |
Skid control ECU |
Parking brake switch signal |
CAN communication system |
| Skid control ECU |
Combination meter |
- ABS warning light signal
- Brake warning light signal
- Wheel speed signal
|
CAN communication system |
