VSC OFF SWITCH (w/ VSC): Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws to install the VSC off switch.
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK VSC WARNING LIGHT AND VSC OFF INDICATOR LIGHT
(See TEST MODE PROCEDURE )

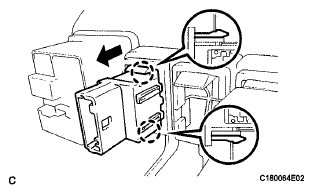

Fig 1: Installing VSC OFF Switch With Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
