Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

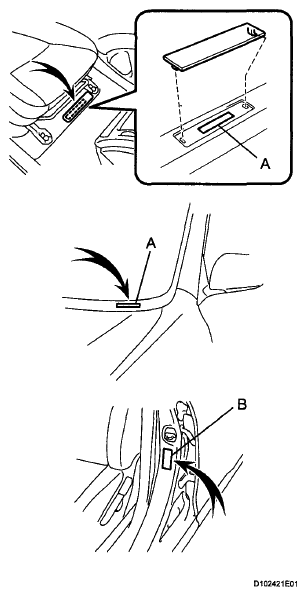

1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  A: Vehicle Identification Number

  B: Certification Label
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

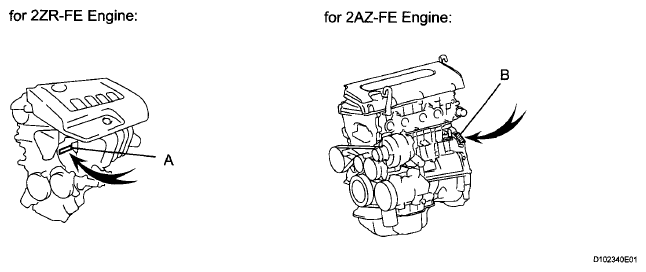

1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

  Fig 1: Identifying Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Identifying Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A: 2ZR-FE Engine Serial Number

  B: 2AZ-FE Engine Serial Number

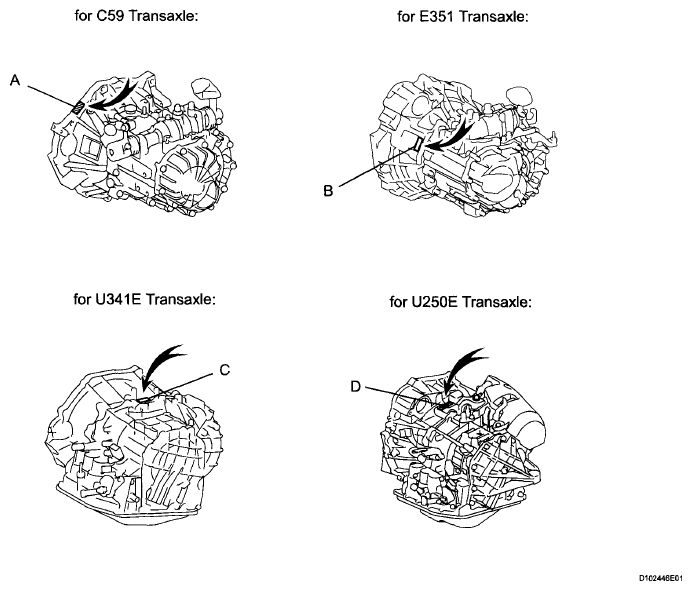

2. The transaxle serial number is stamped on the case as shown in the illustration.

  Fig 3: Identifying Transaxle Serial Number Stamped On Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A: C59 Transaxle Serial Number

  B: E351 Transaxle Serial Number

  C: U341E Transaxle Serial Number

  D: U250E Transaxle Serial Number
