TC and CG Terminal Circuit: Wiring Diagram

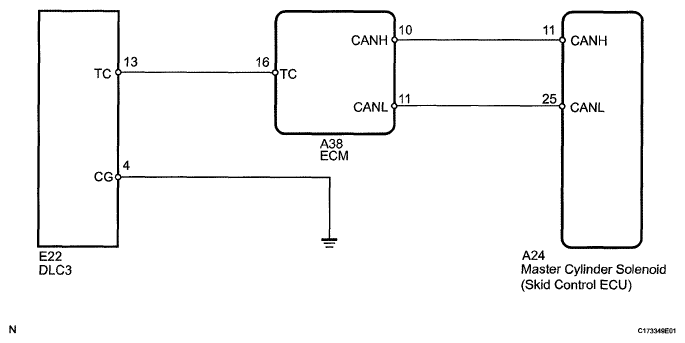

Fig 1: TC And CG Terminal - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

When each warning light stays blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in each ECU is suspected.
