Crankshaft Position Sensor: Components

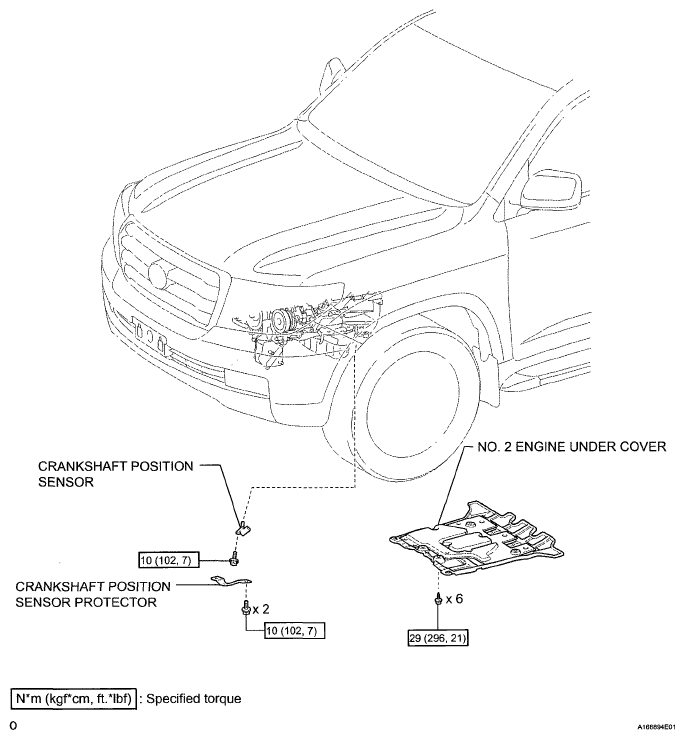

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
G05628252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
