Engine Control System - Diagnostics - Introduction
>>
SFI System
>>
Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location

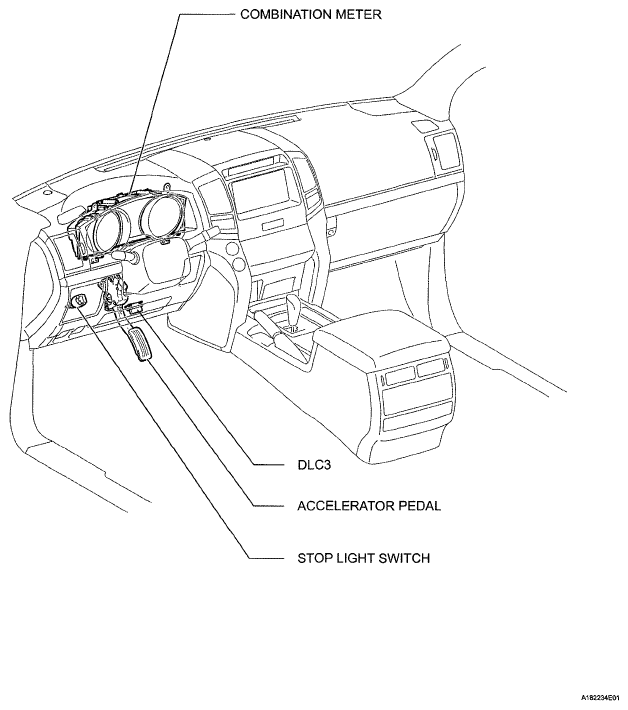

Fig 1: Identifying 3UR-FE Engine Control Components Location (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

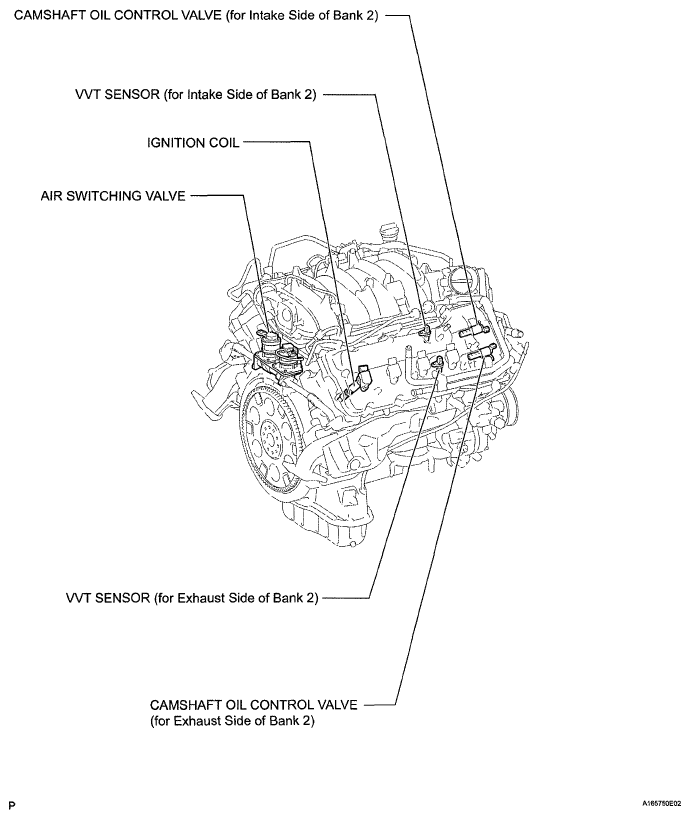

Fig 2: Identifying 3UR-FE Engine Control Components Location (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

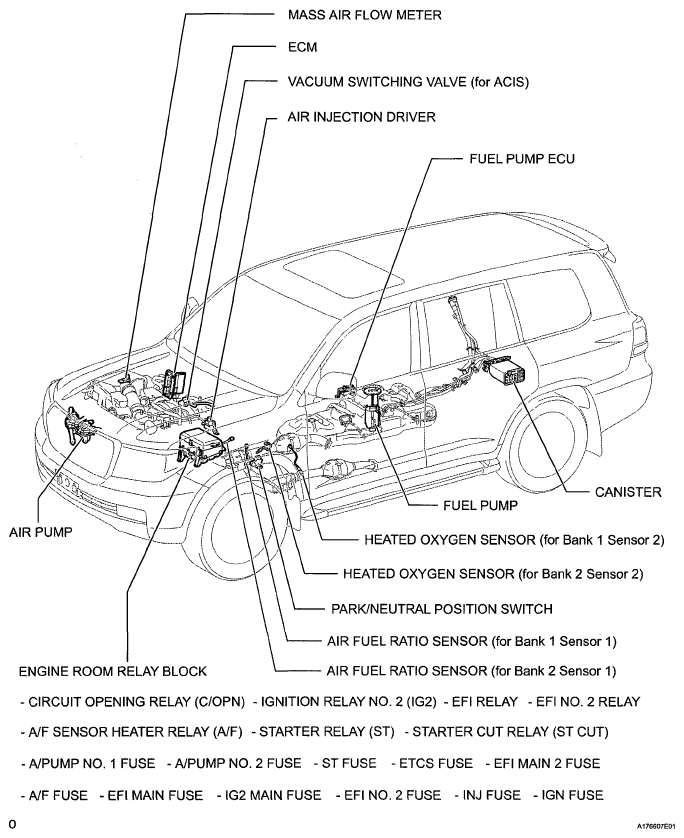

Fig 3: Identifying 3UR-FE Engine Control Components Location (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

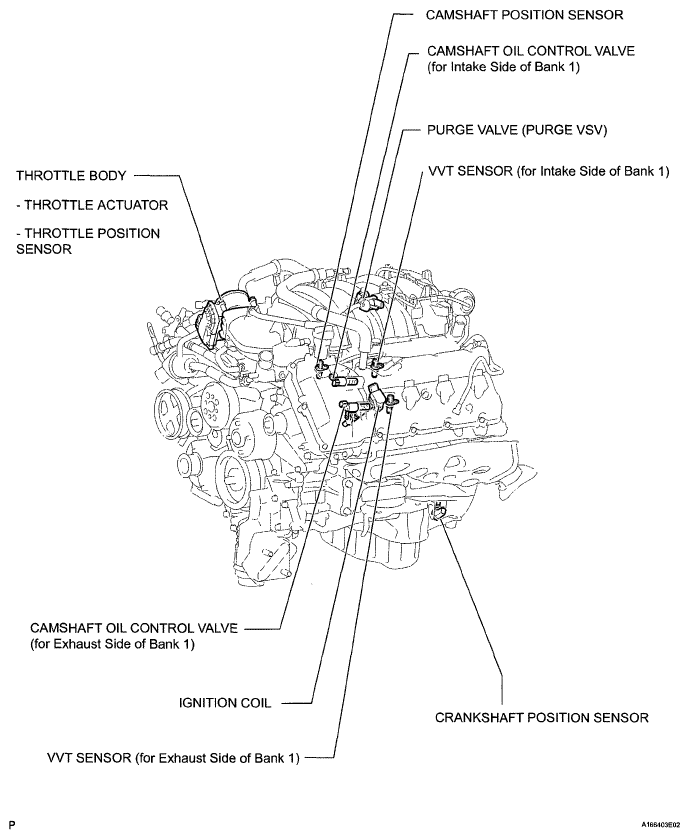

Fig 4: Identifying 3UR-FE Engine Control Components Location (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

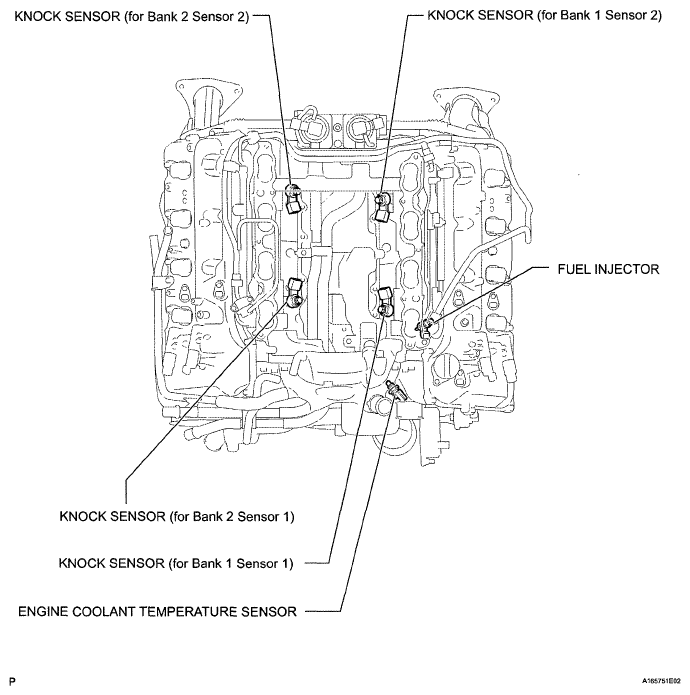

Fig 5: Identifying 3UR-FE Engine Control Components Location (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
