Oil Pan, Engine

OIL PAN

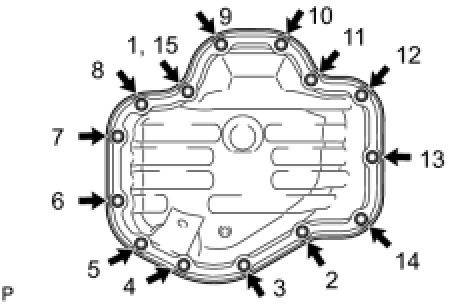

Uniformly tighten the 12 bolts and 2 nuts in the sequence shown in the illustration.
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)
