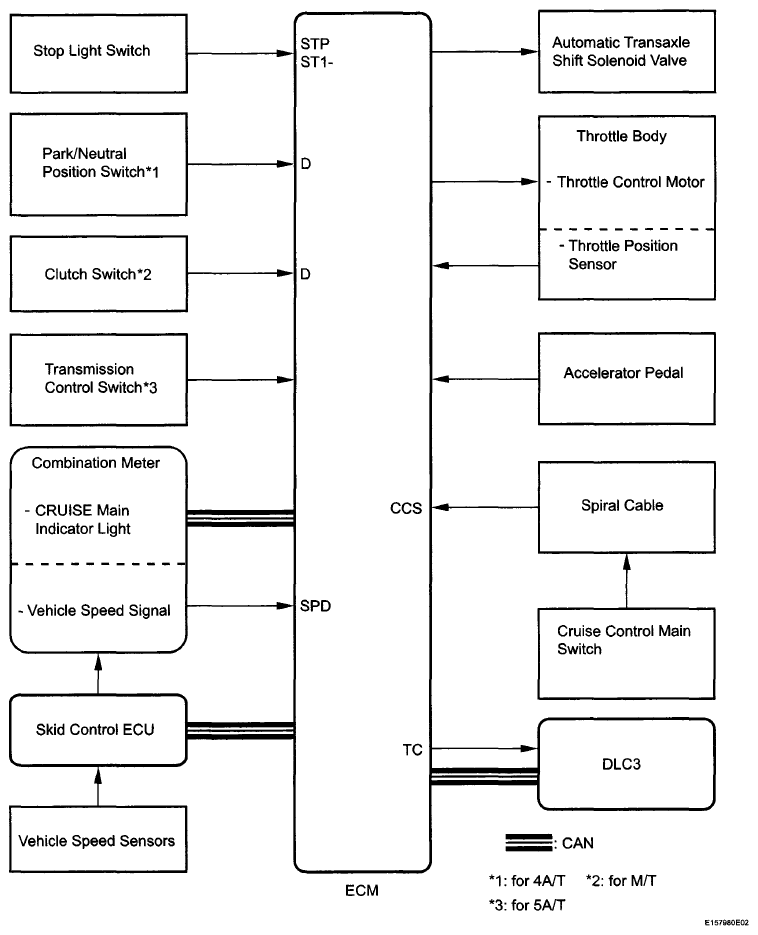

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION CHART
| Sander |
Receiver |
Signal |
Line |
| ECM |
Combination Meter ECU |
CRUISE main indicator operation signal |
CAN |
