Steering Pad Switch: Components

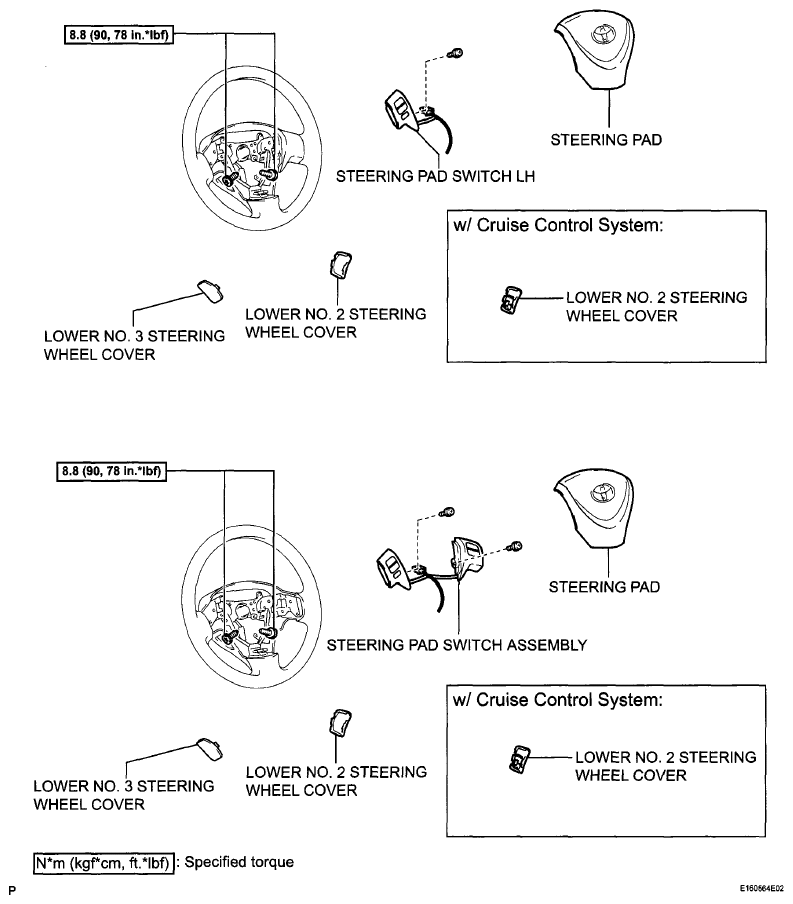

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications
G06035827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
