Toyota
>>
2009
>>
Matrix Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Horn System
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram

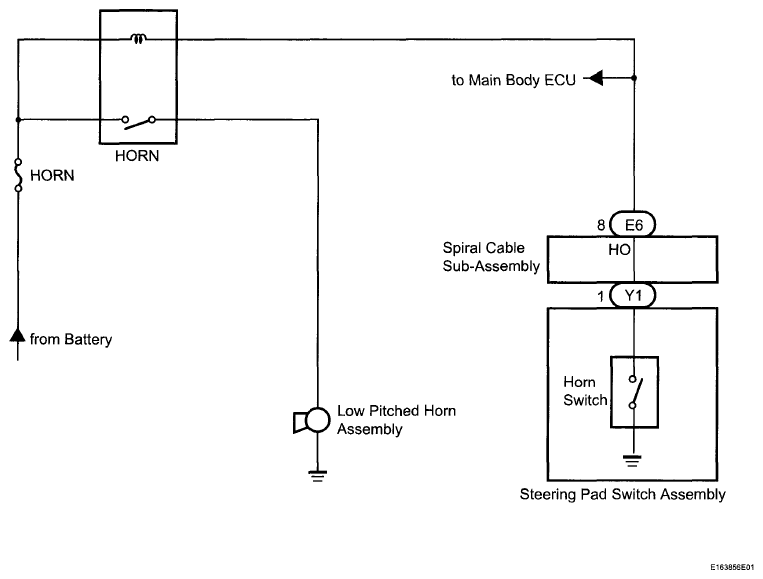

Fig 1: Horn System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
