Components








E351 MANUAL TRANSMISSION / TRANSAXLE: MANUAL TRANSAXLE UNIT: COMPONENTS

COMPONENTS

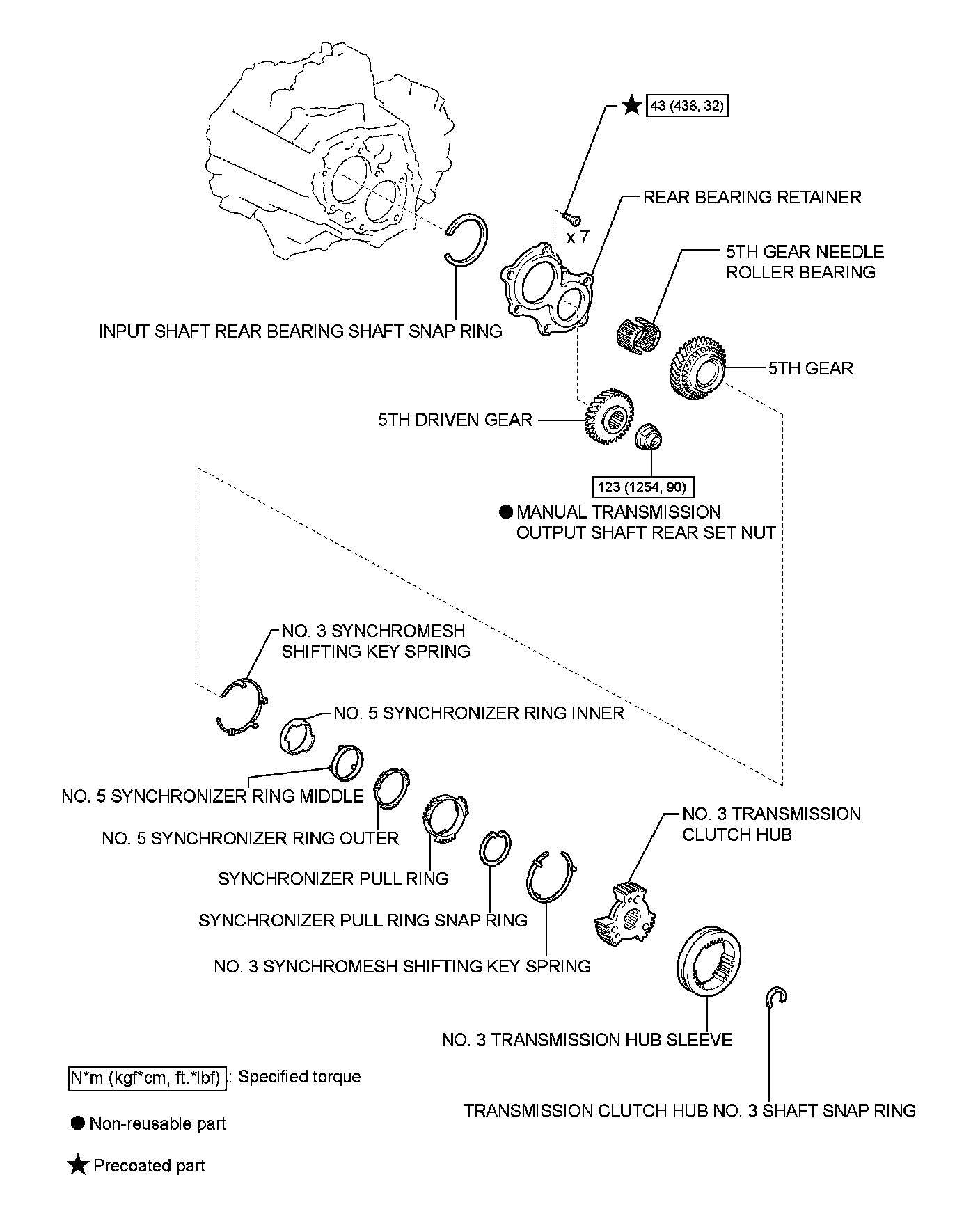

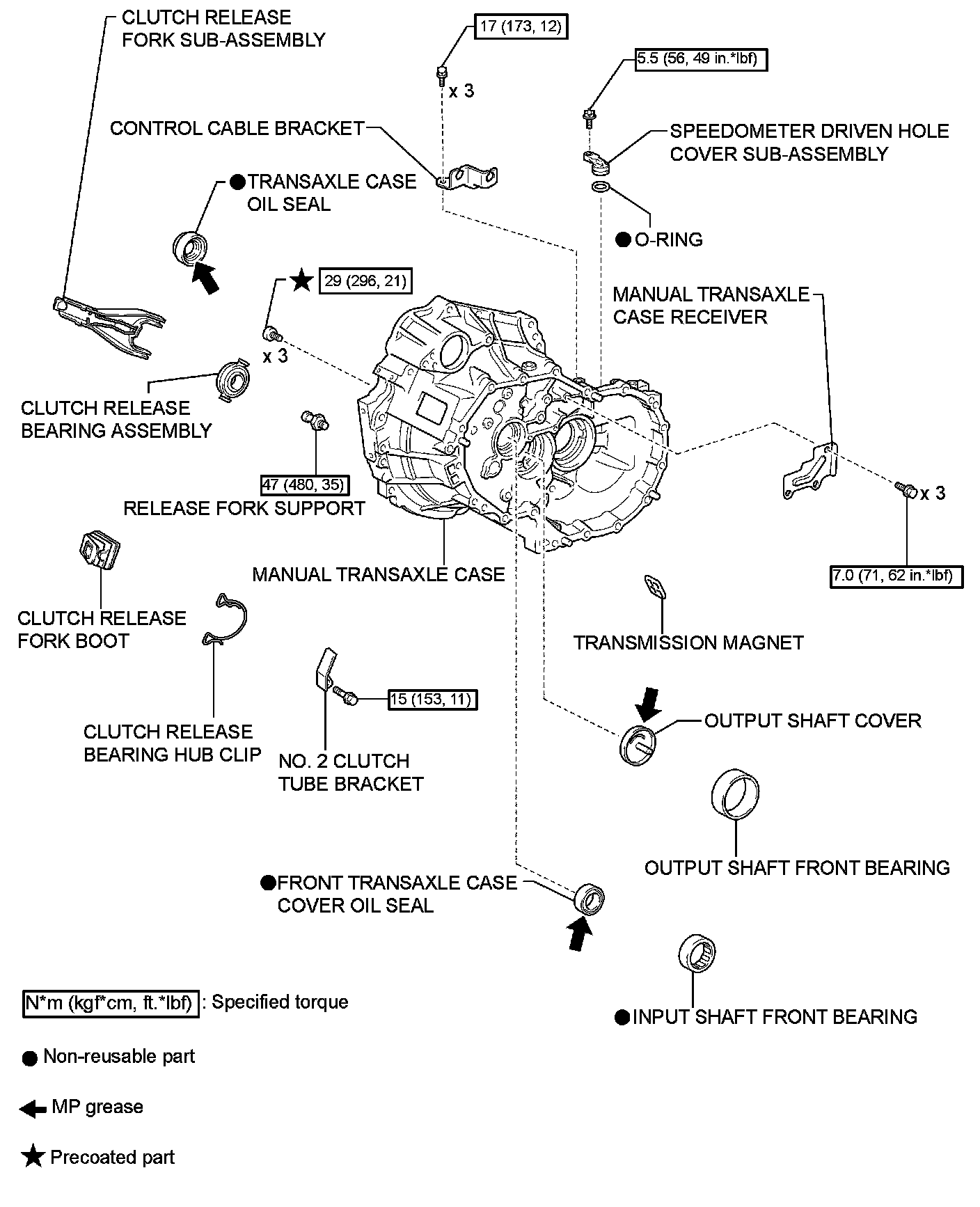

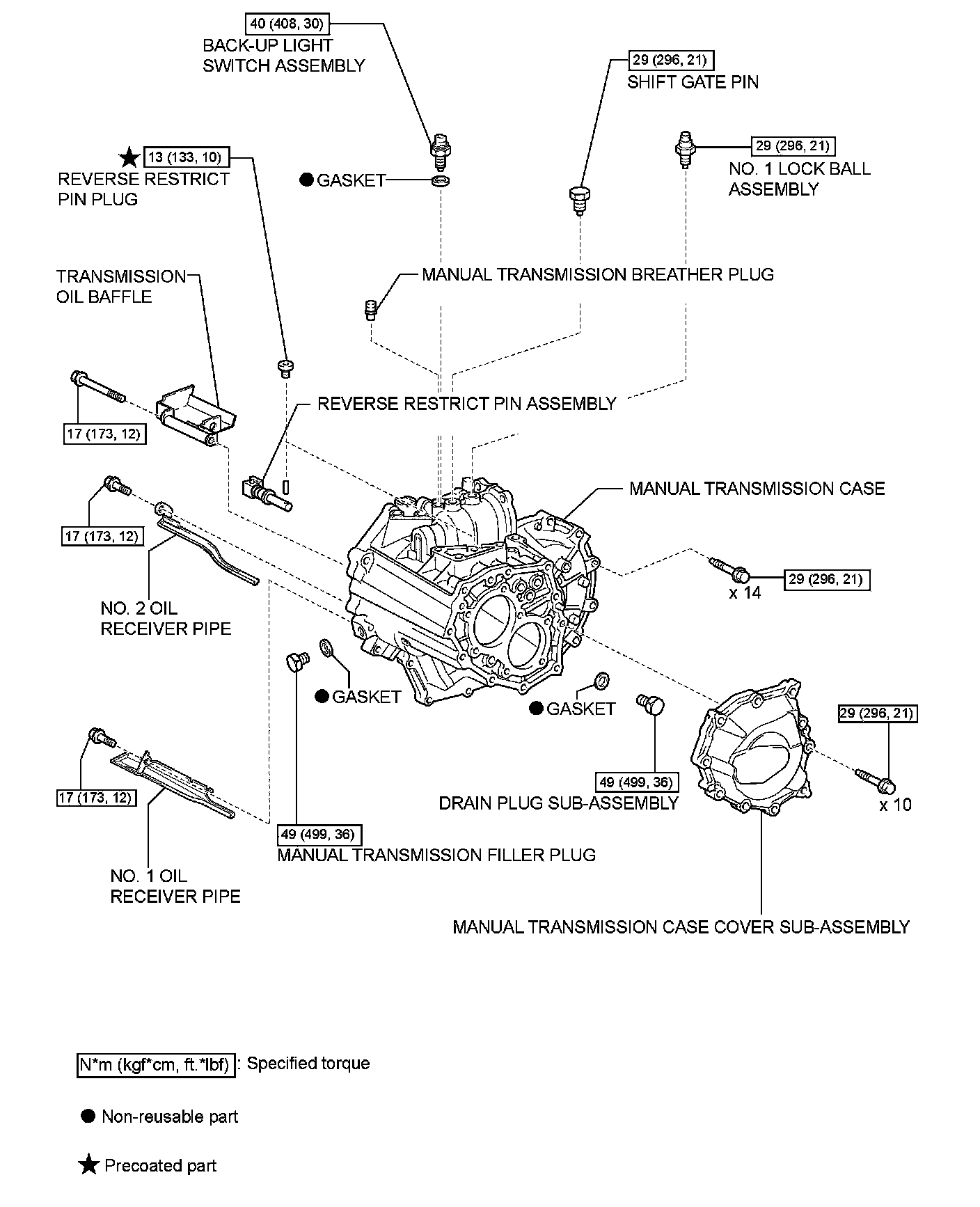

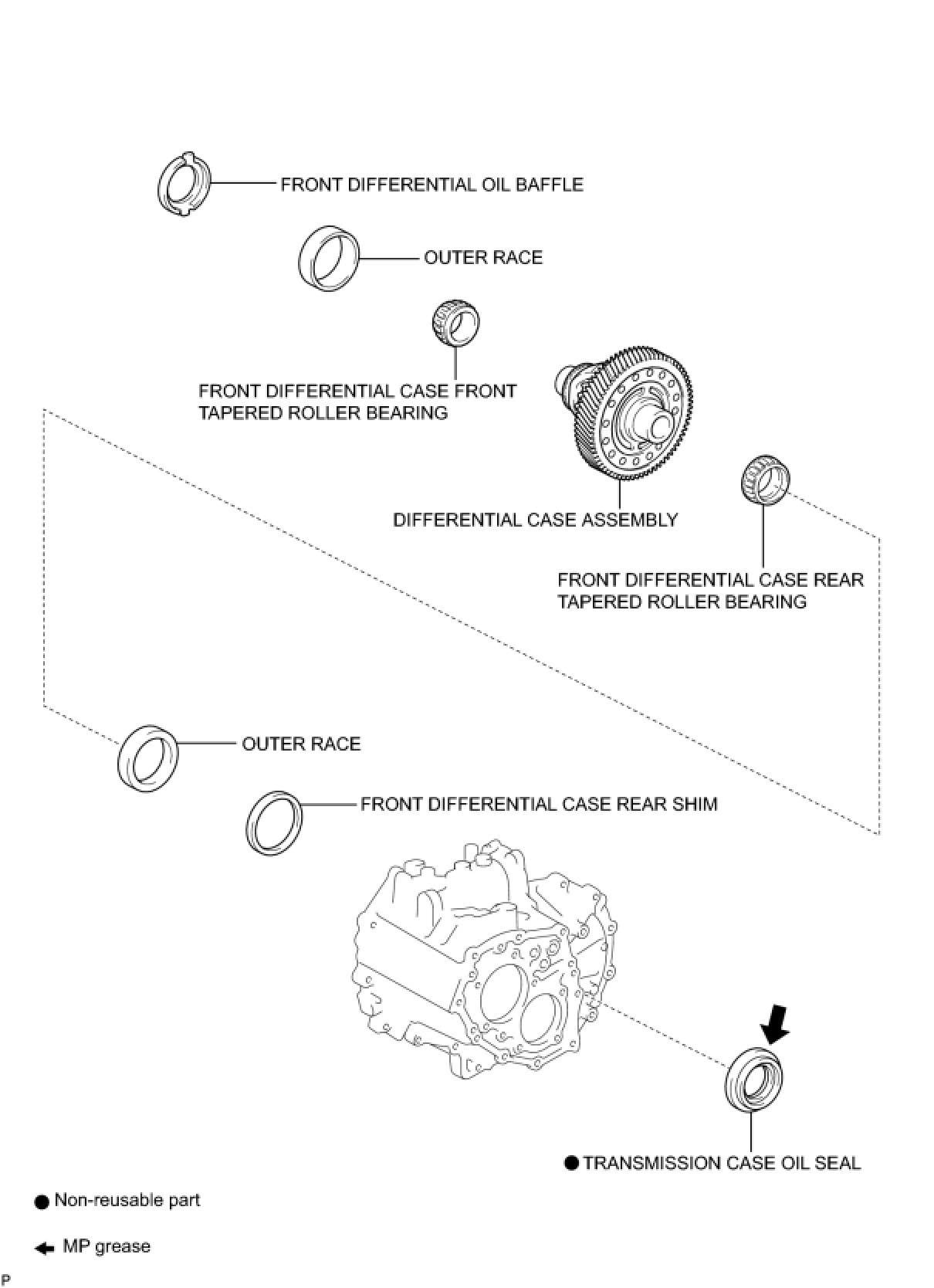

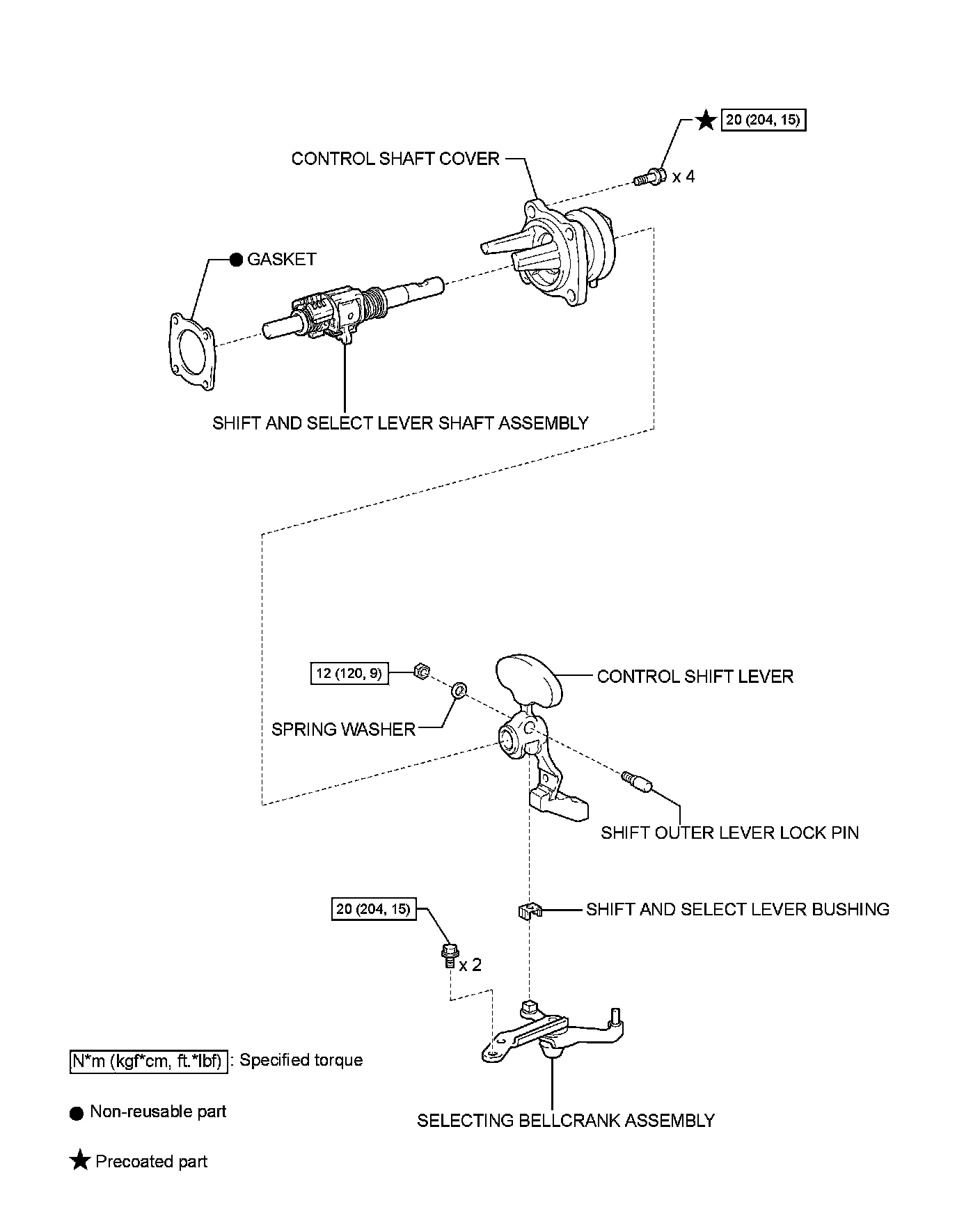

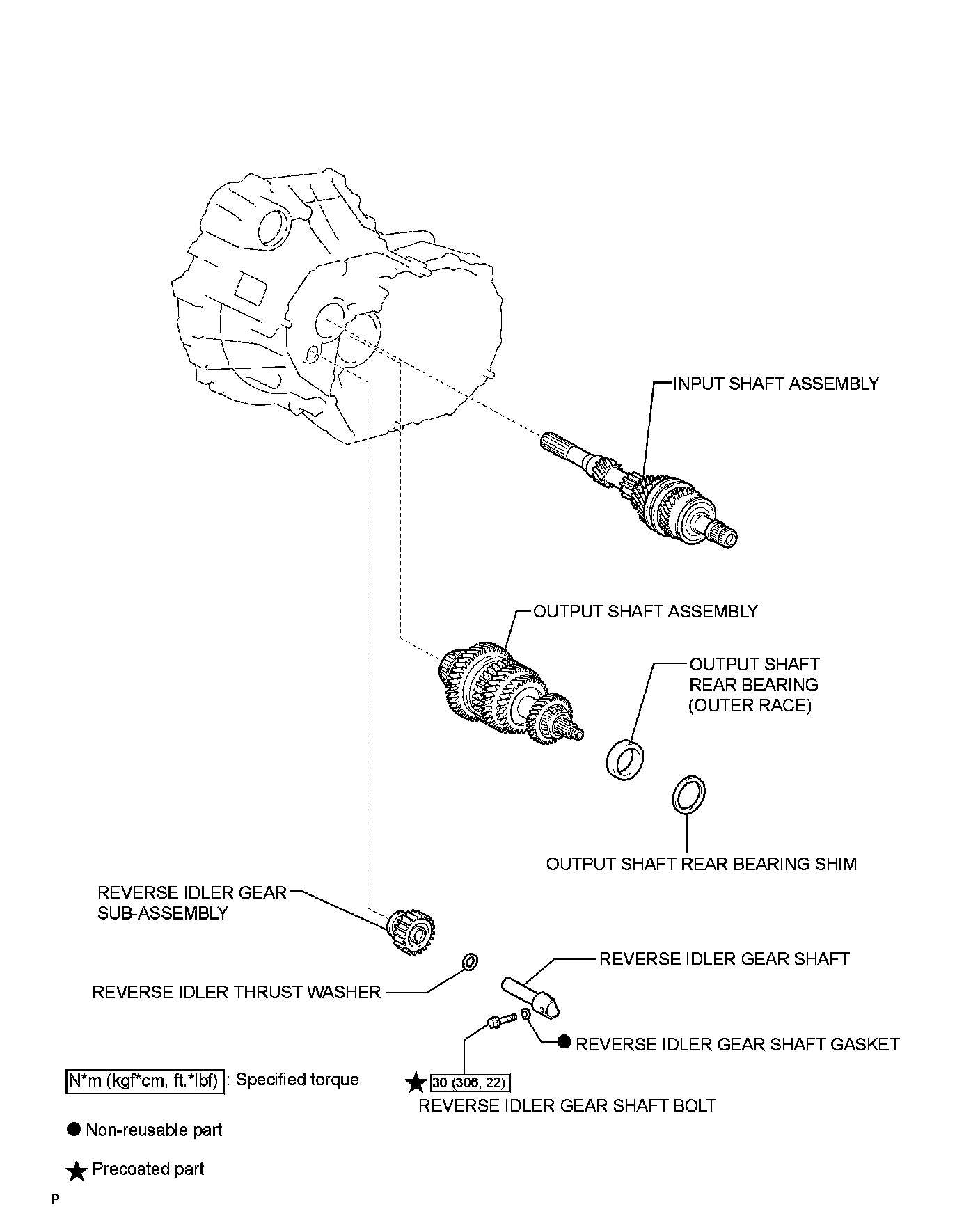

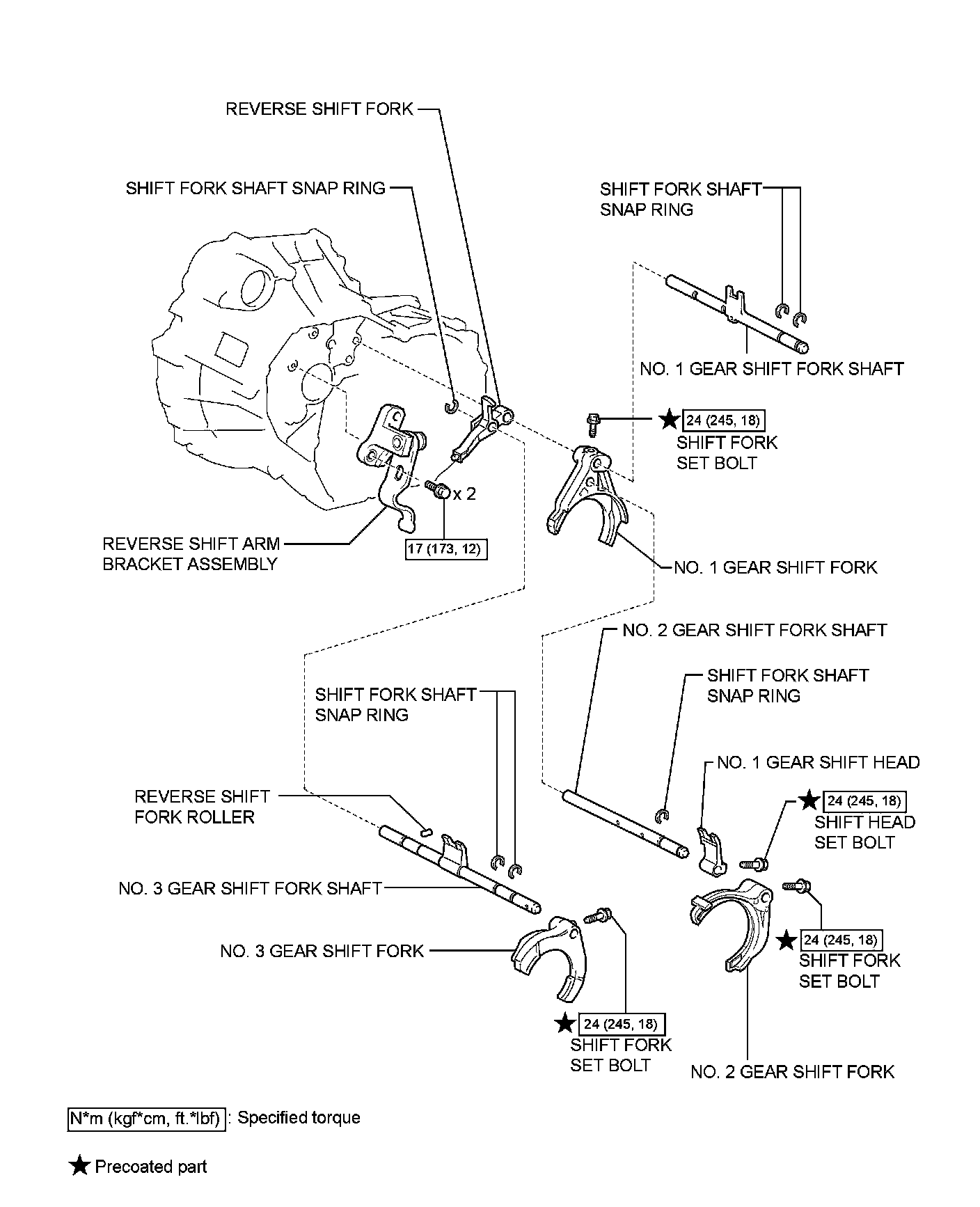

ILLUSTRATION
