Charging System (2AZ-FE): Generator: Components

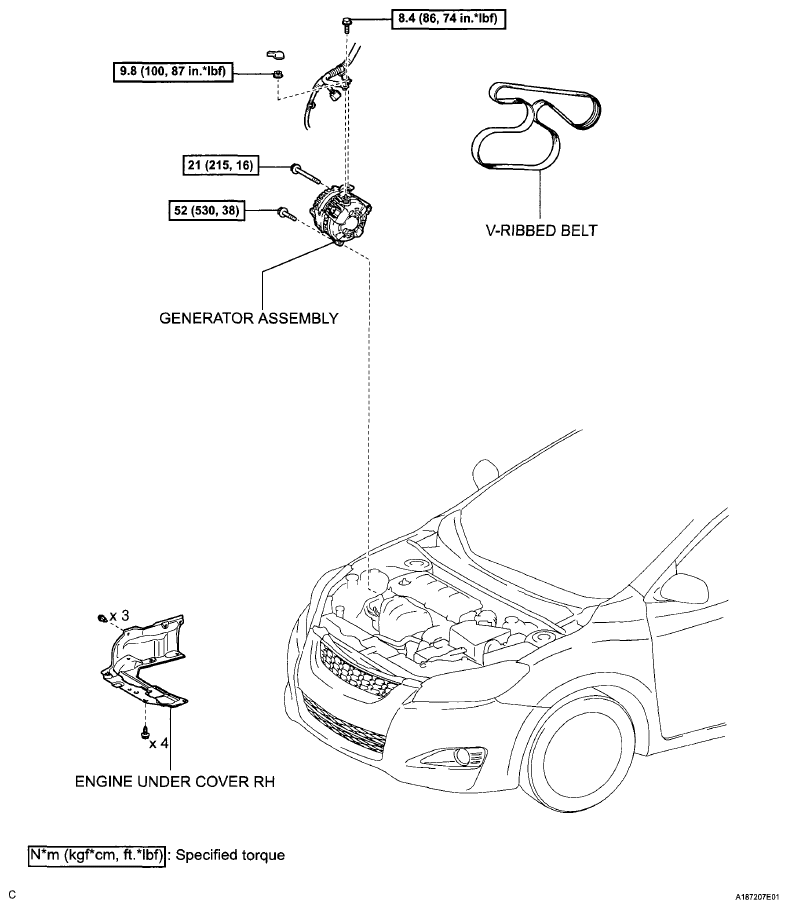

Fig 1: Identifying Generator Components (1 Of 2)
G06036012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

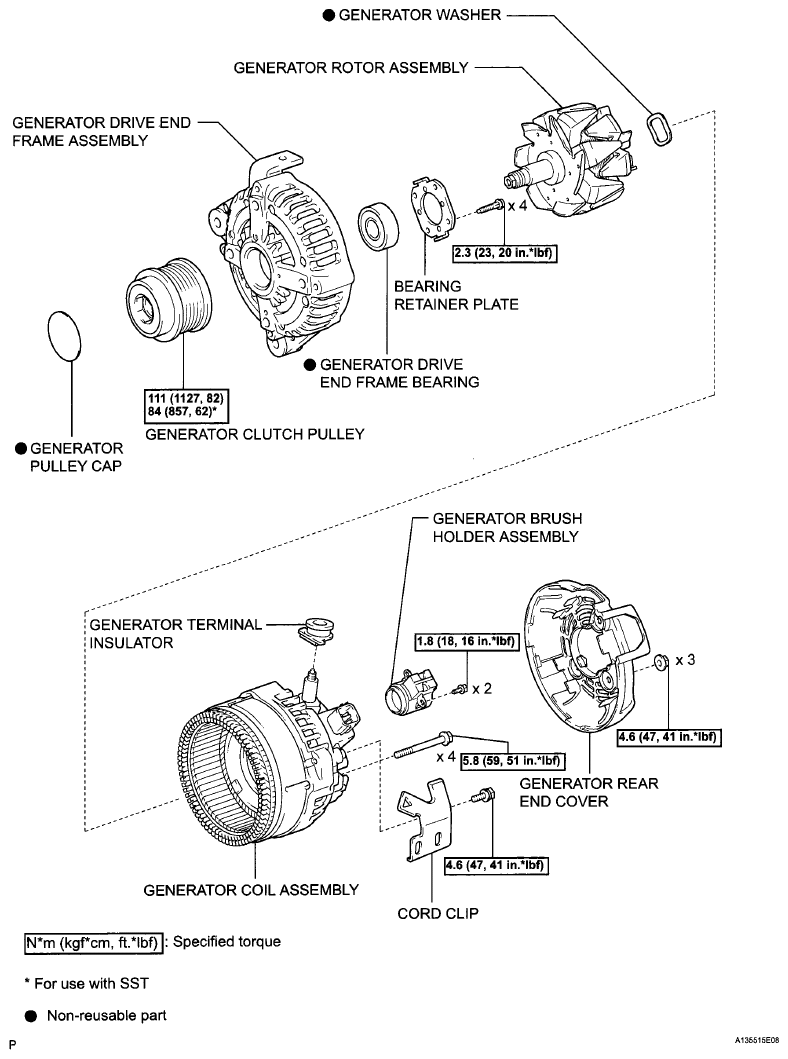

Fig 2: Identifying Generator Components (2 Of 2)
G06036013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
