DTC C0200/31 Front Speed Sensor RH Circuit; DTC C0205/32 Front Speed Sensor LH Circuit; DTC C1271/71 Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272/72 Low Output Signal of Front Speed Sensor LH (Test Mode DTC): Wiring Diagram

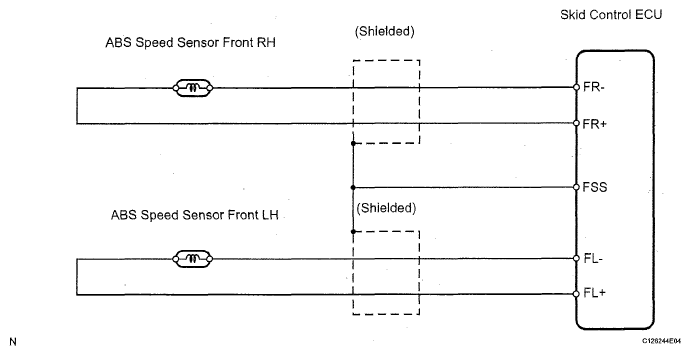

Fig 1: ABS Speed Sensor Front Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
