Front Shock Absorber With Coil Spring: Components

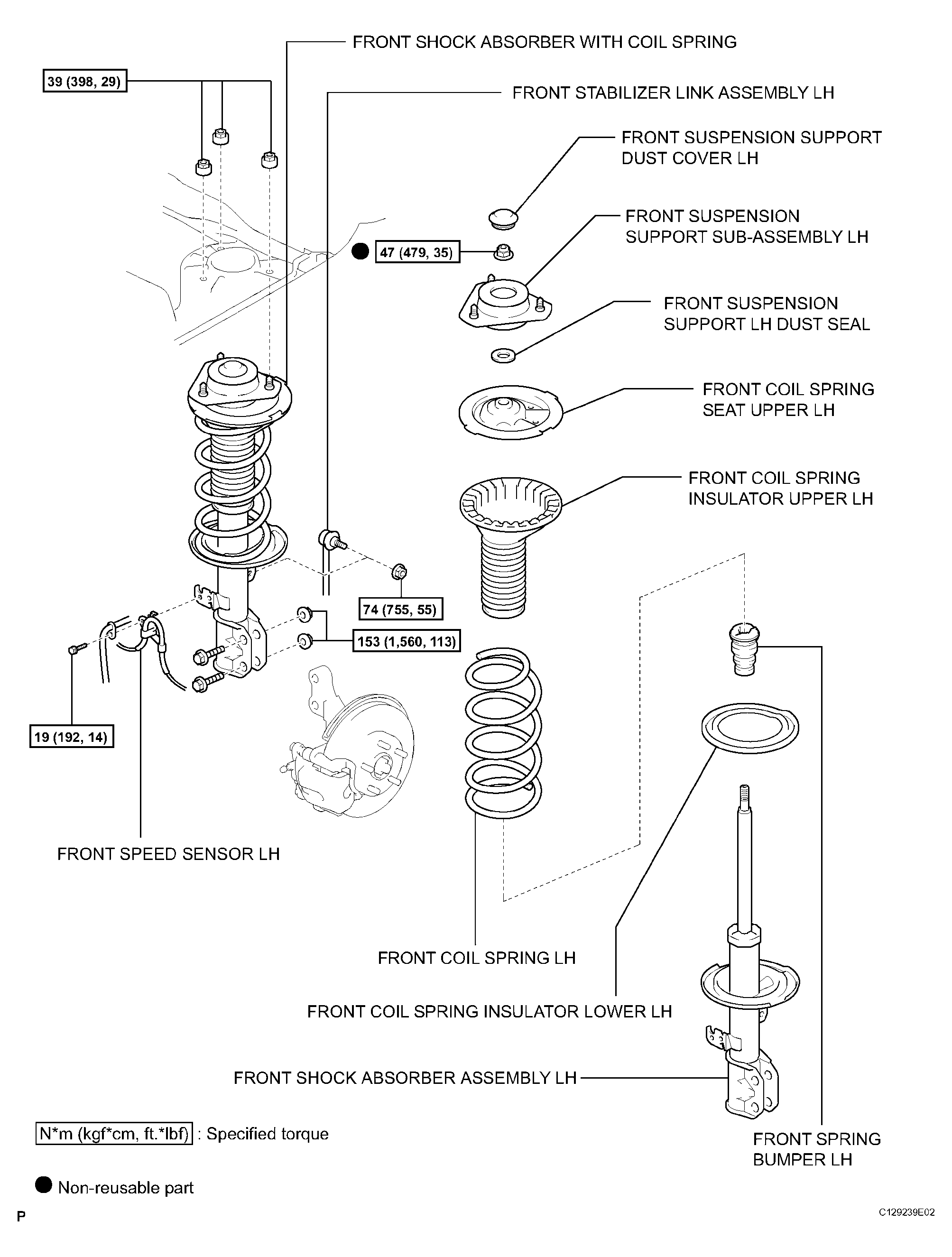

Fig 1: Front Shock Absorber With Coil Spring Replacement Components -- With Torque Specification
G04474395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
