Front Stabilizer Bar: Components

Fig 1: Front Stabilizer Bar Replacement Components -- With Torque Specifications (1 Of 2)
G04474429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

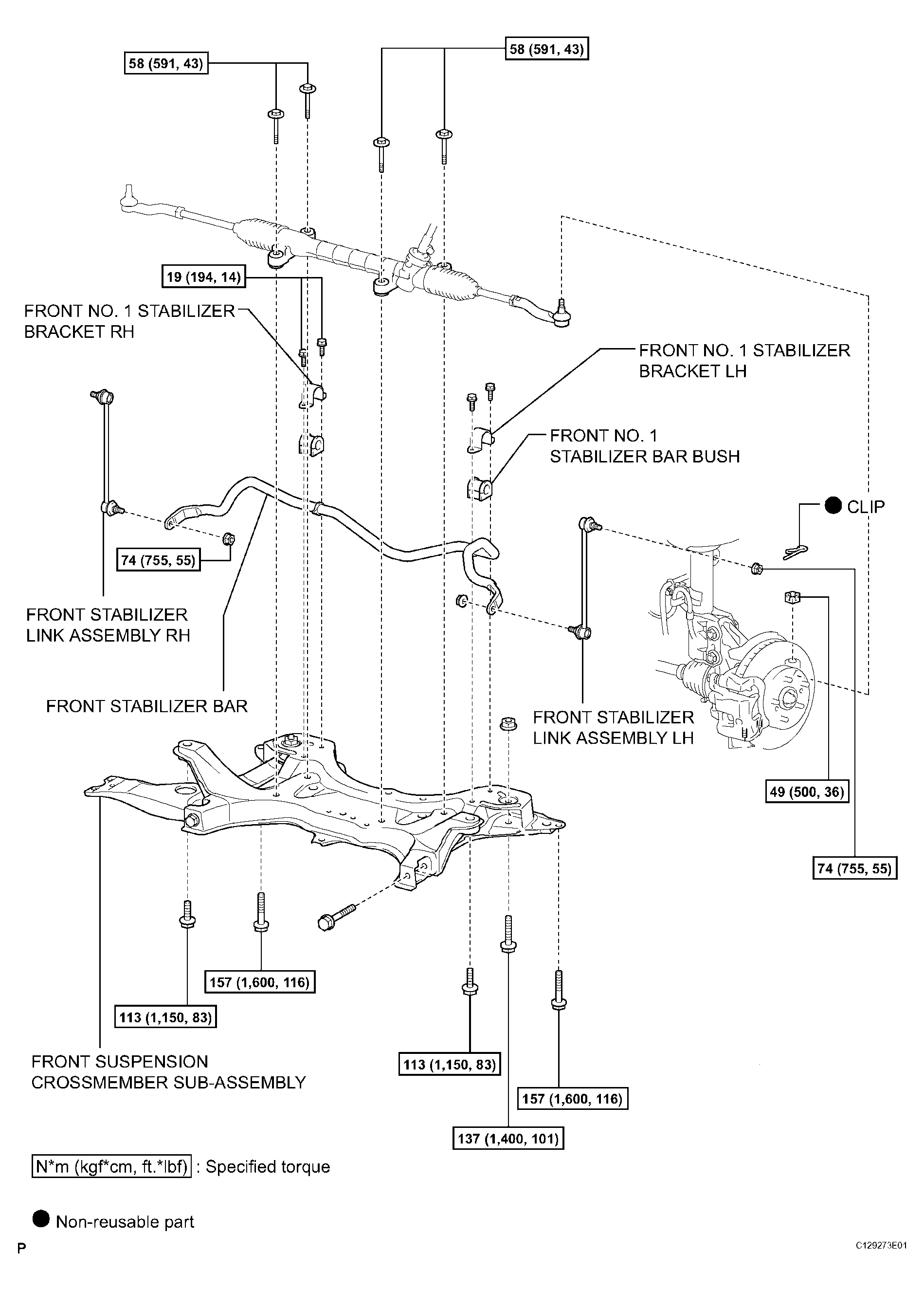

Fig 2: Front Stabilizer Bar Replacement Components -- With Torque Specifications (2 Of 2)
G04474430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
