Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustrations.
  1. Vehicle Identification Number Plate
  2. Certification Label

    Fig 1: Locating Vehicle Identification Number Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustrations.
  1. Engine Serial Number

    Fig 2: Locating Certification Label
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

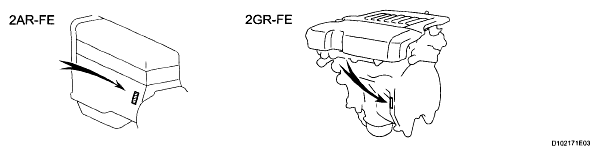

    Fig 3: Locating Engine Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Transaxle Serial Number

    Fig 4: Locating Transaxle Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
