Accelerator Pedal Rod: Components

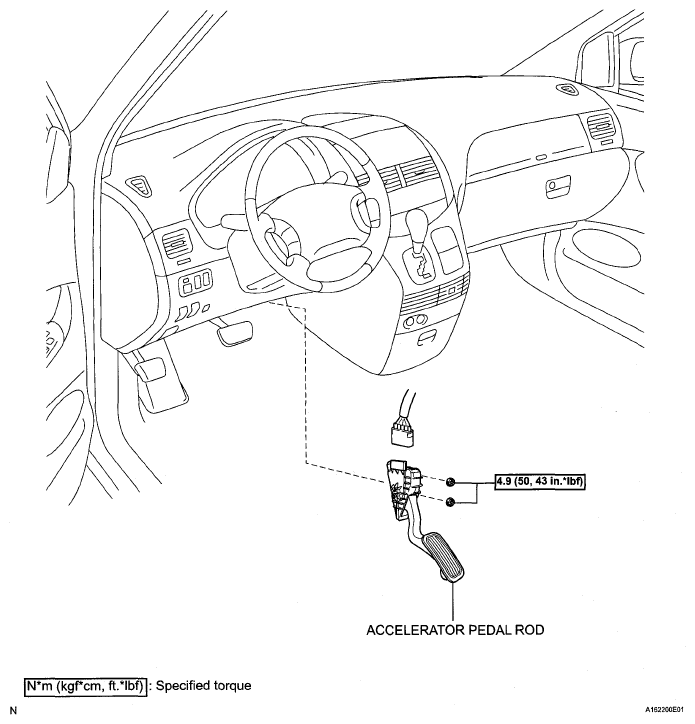

Fig 1: Accelerator Pedal Rod Replacement Components With Torque Specifications
G05136383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
