Parts Location: Illustration

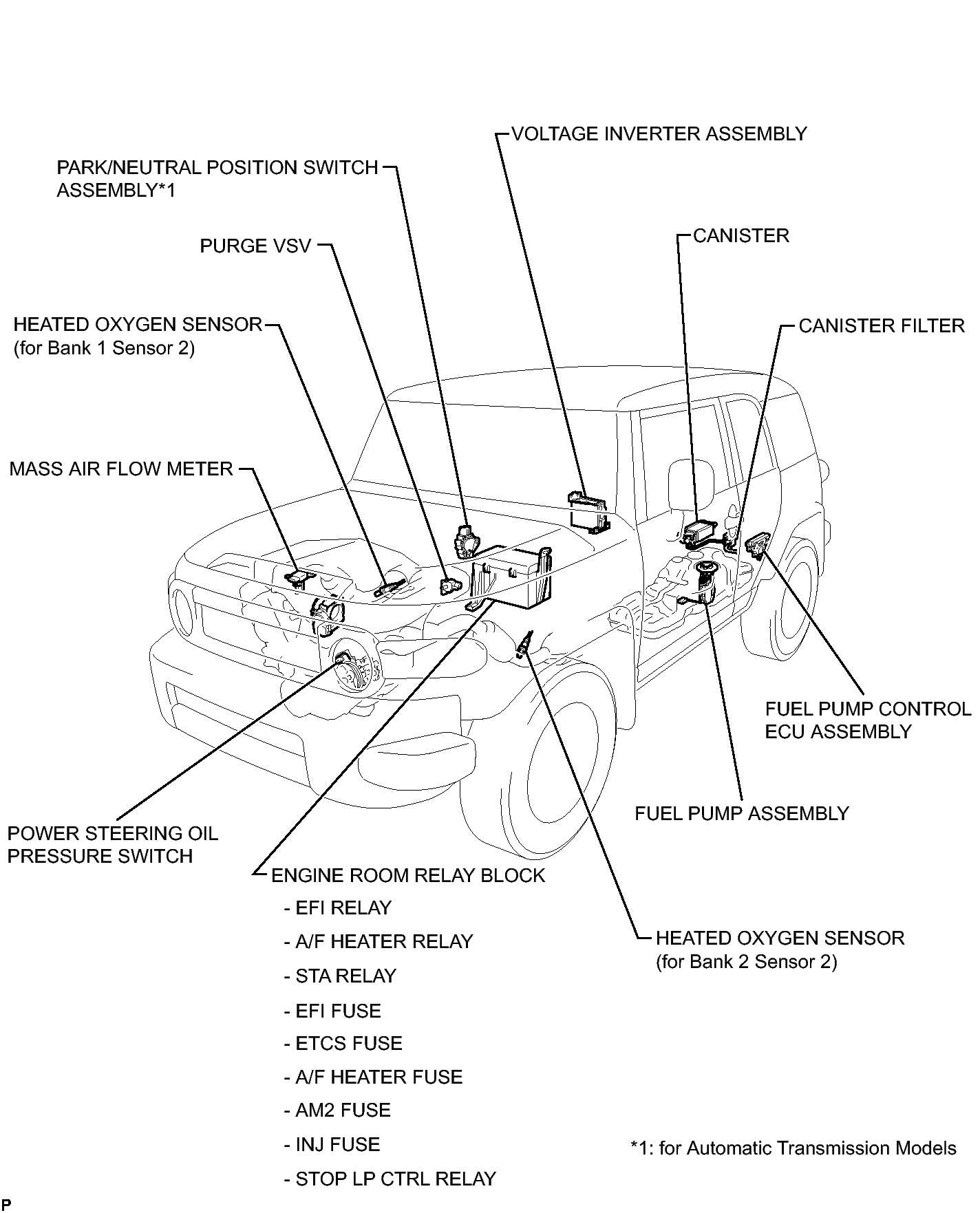

Fig 1: Identifying Engine Control System Components (1 Of 4)
GTY190036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

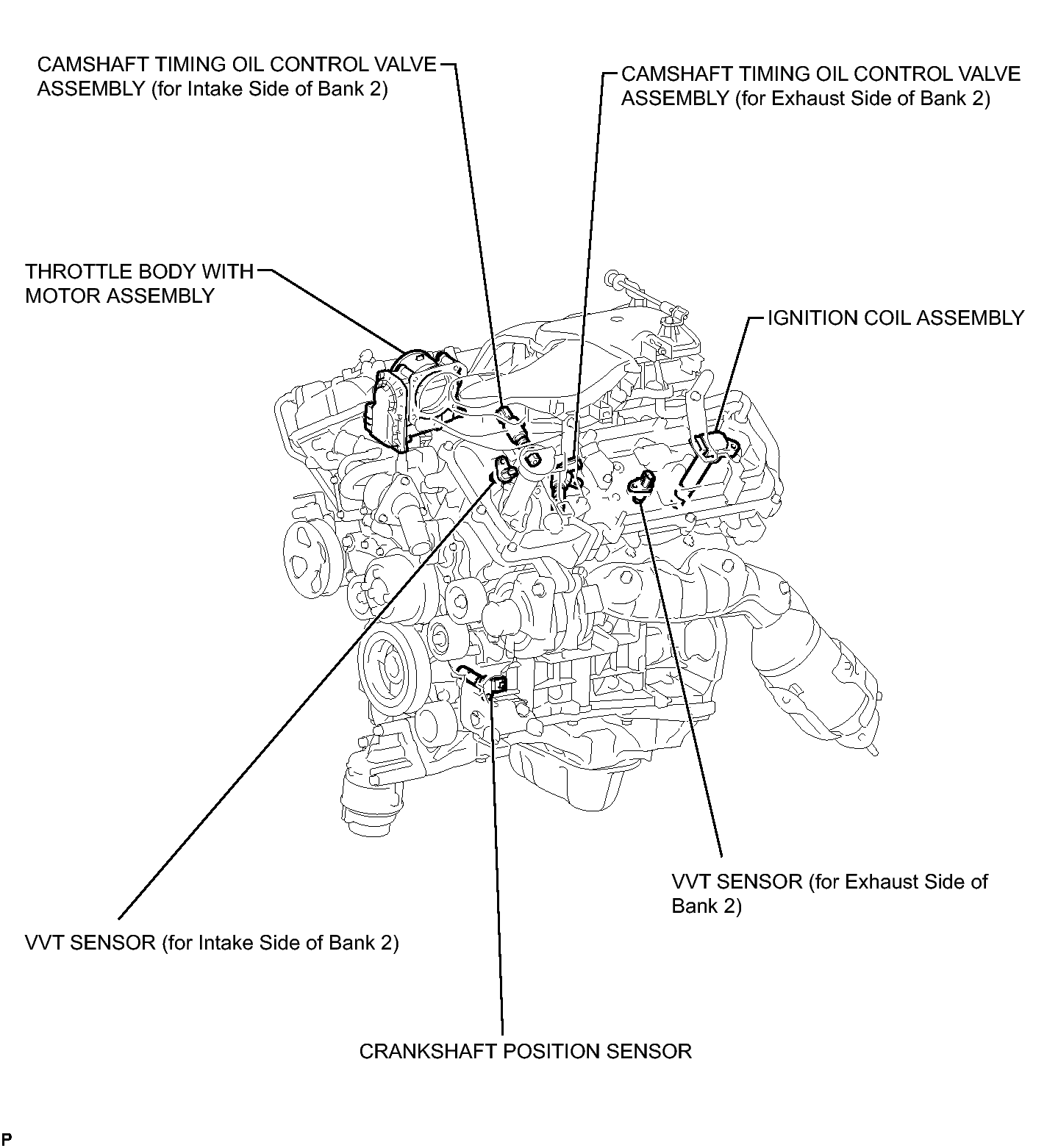

Fig 1: Identifying Engine Control System Components (2 Of 4)
GTY177045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

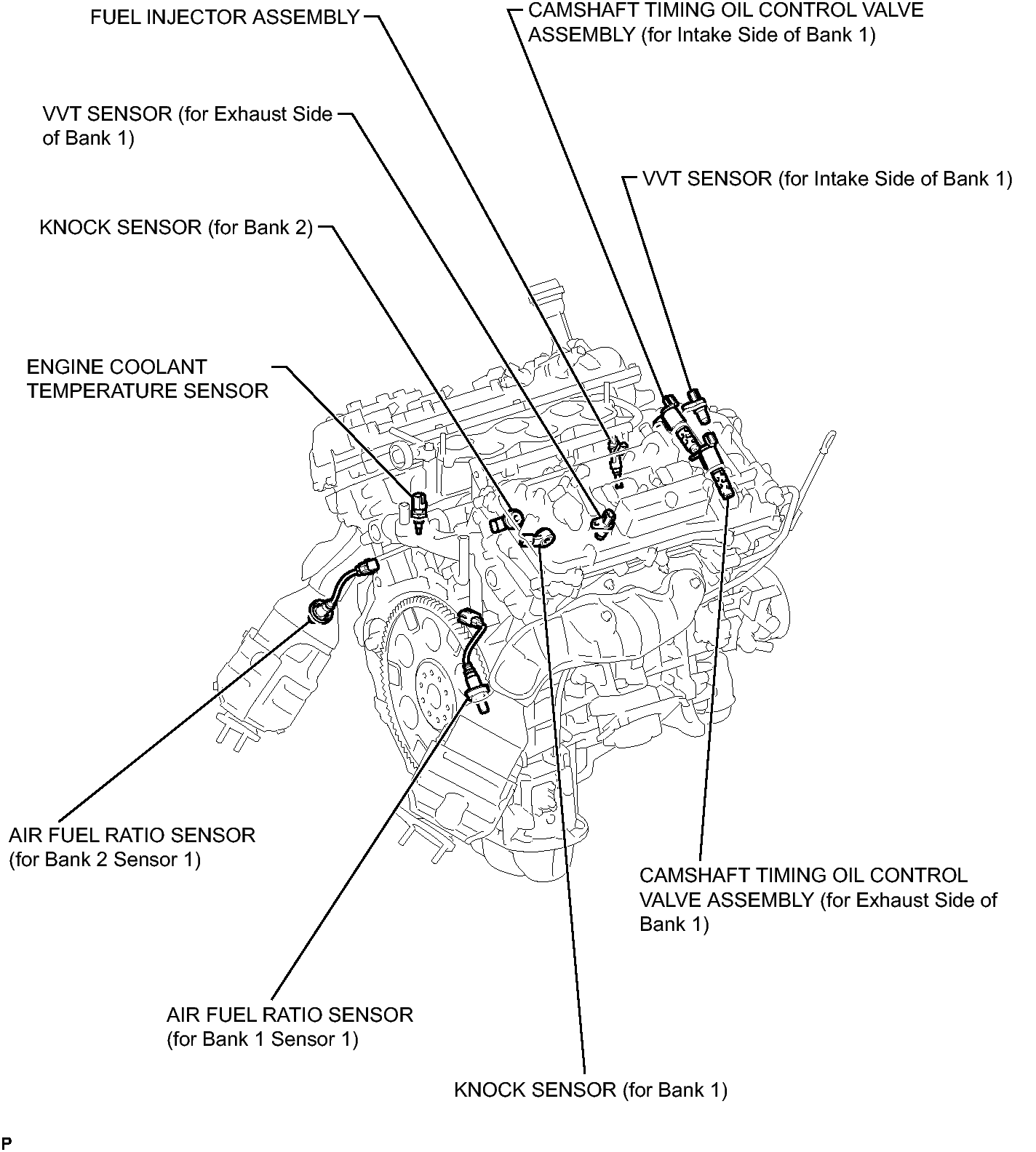

Fig 1: Identifying Engine Control System Components (3 Of 4)
GTY182588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

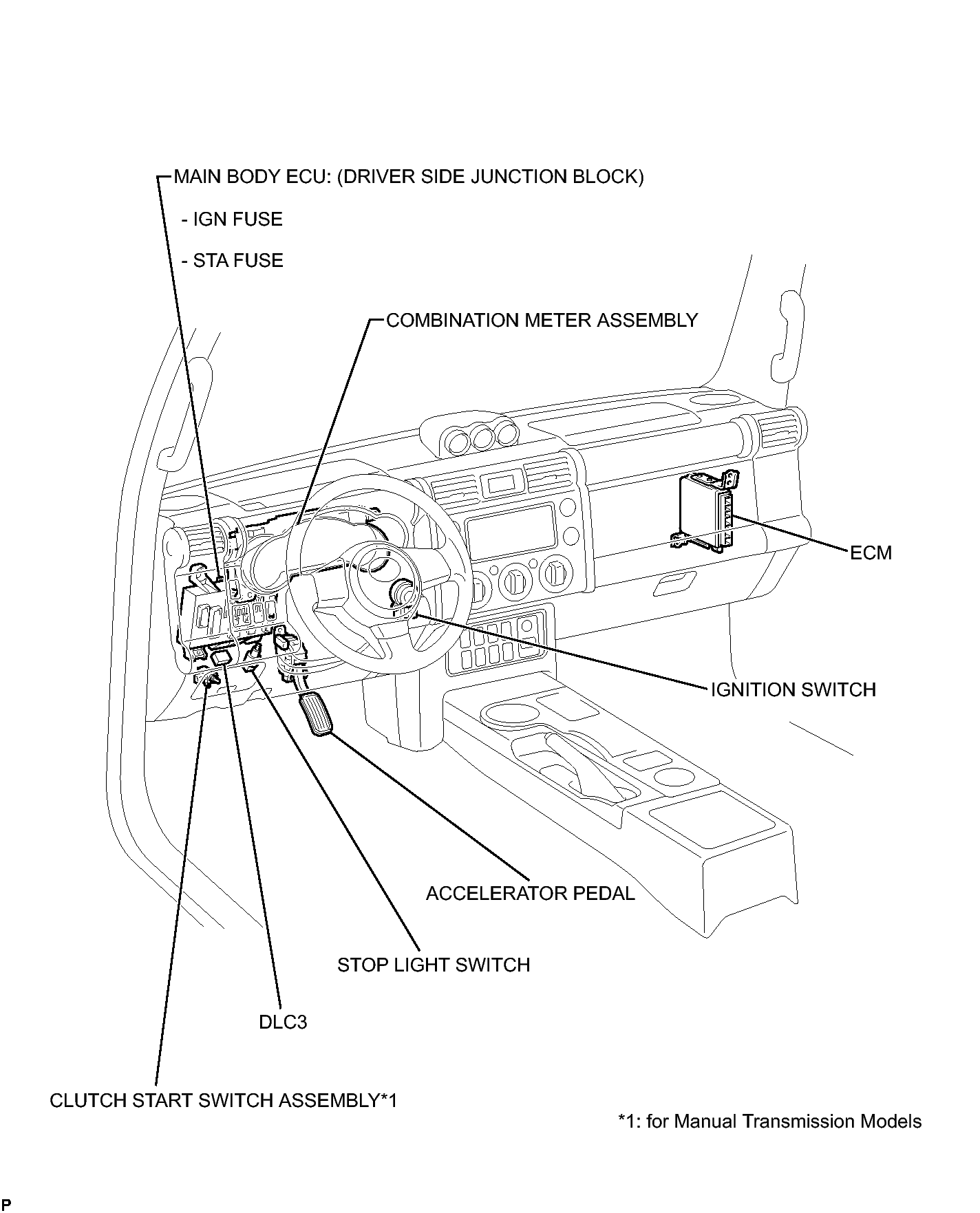

Fig 1: Identifying Engine Control System Components (4 Of 4)
GTY188781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
