Transmission Control Systems

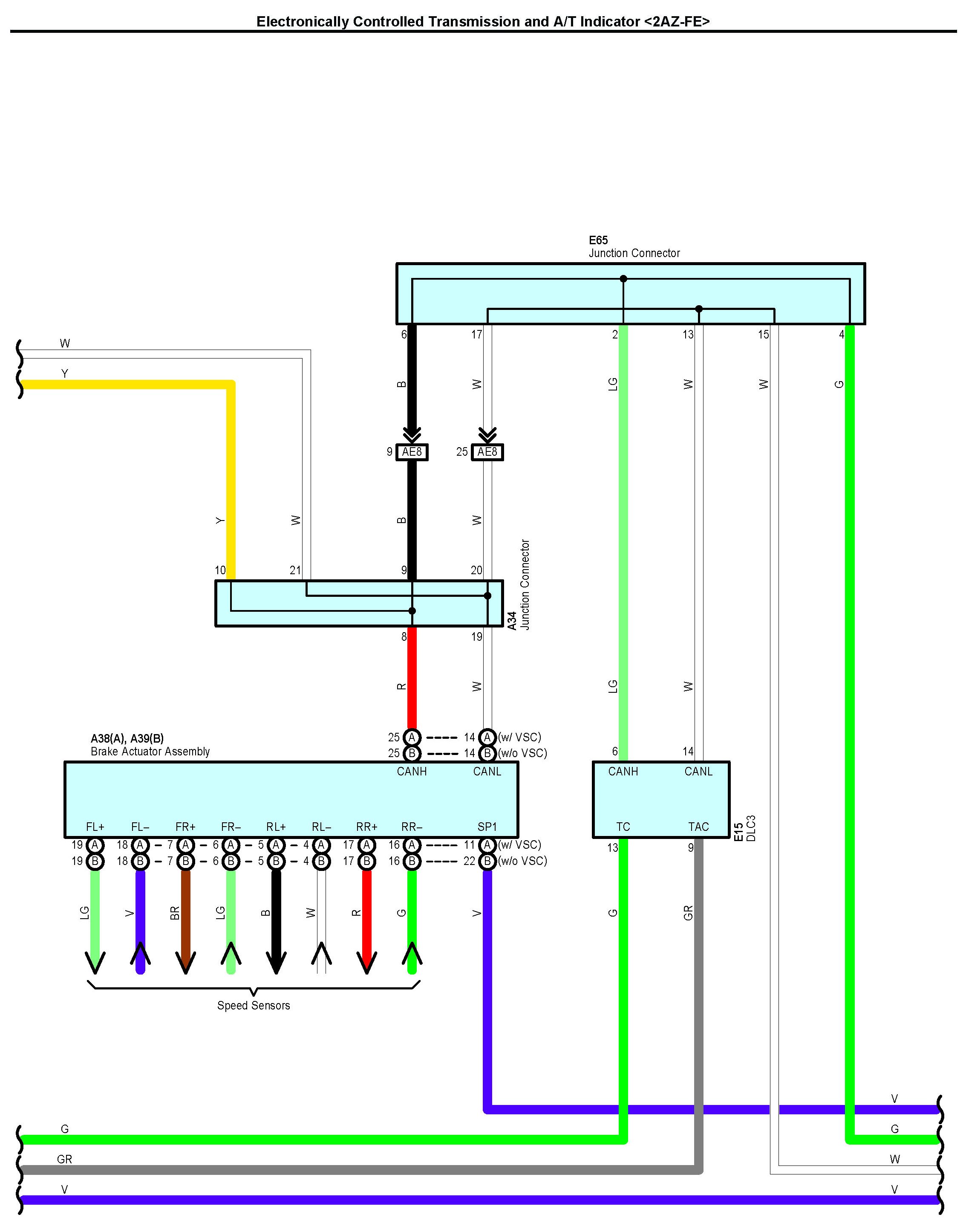

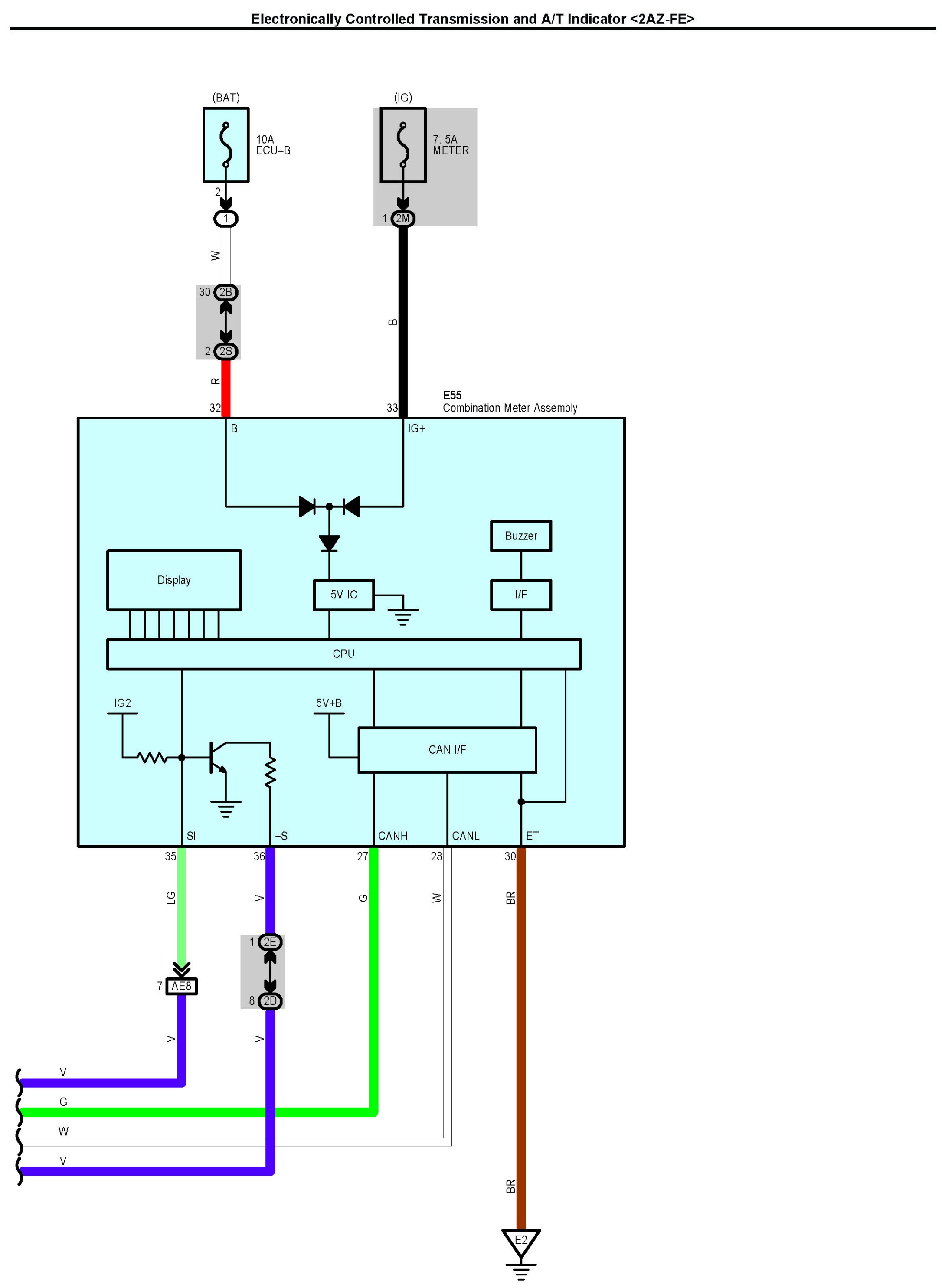

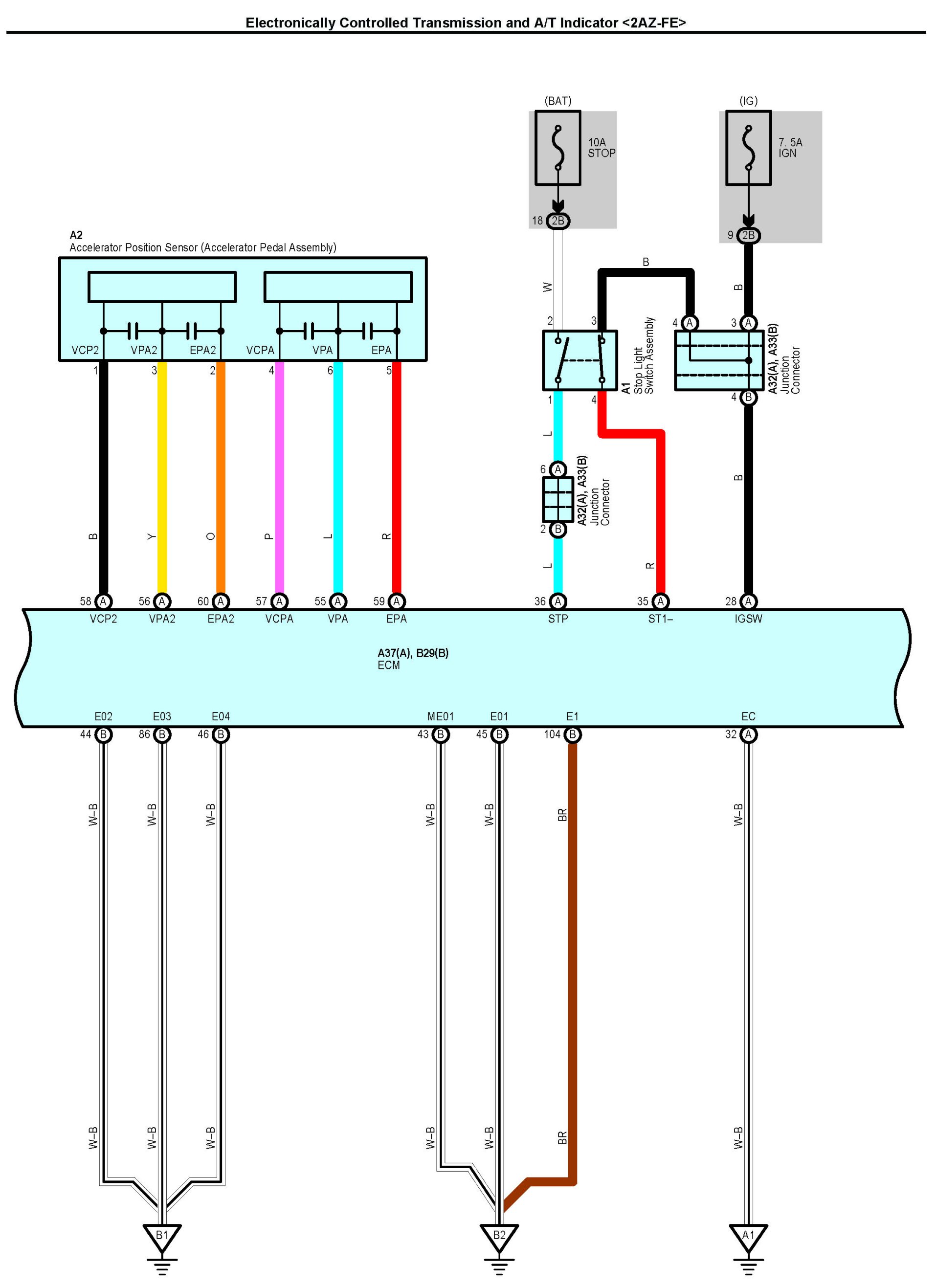

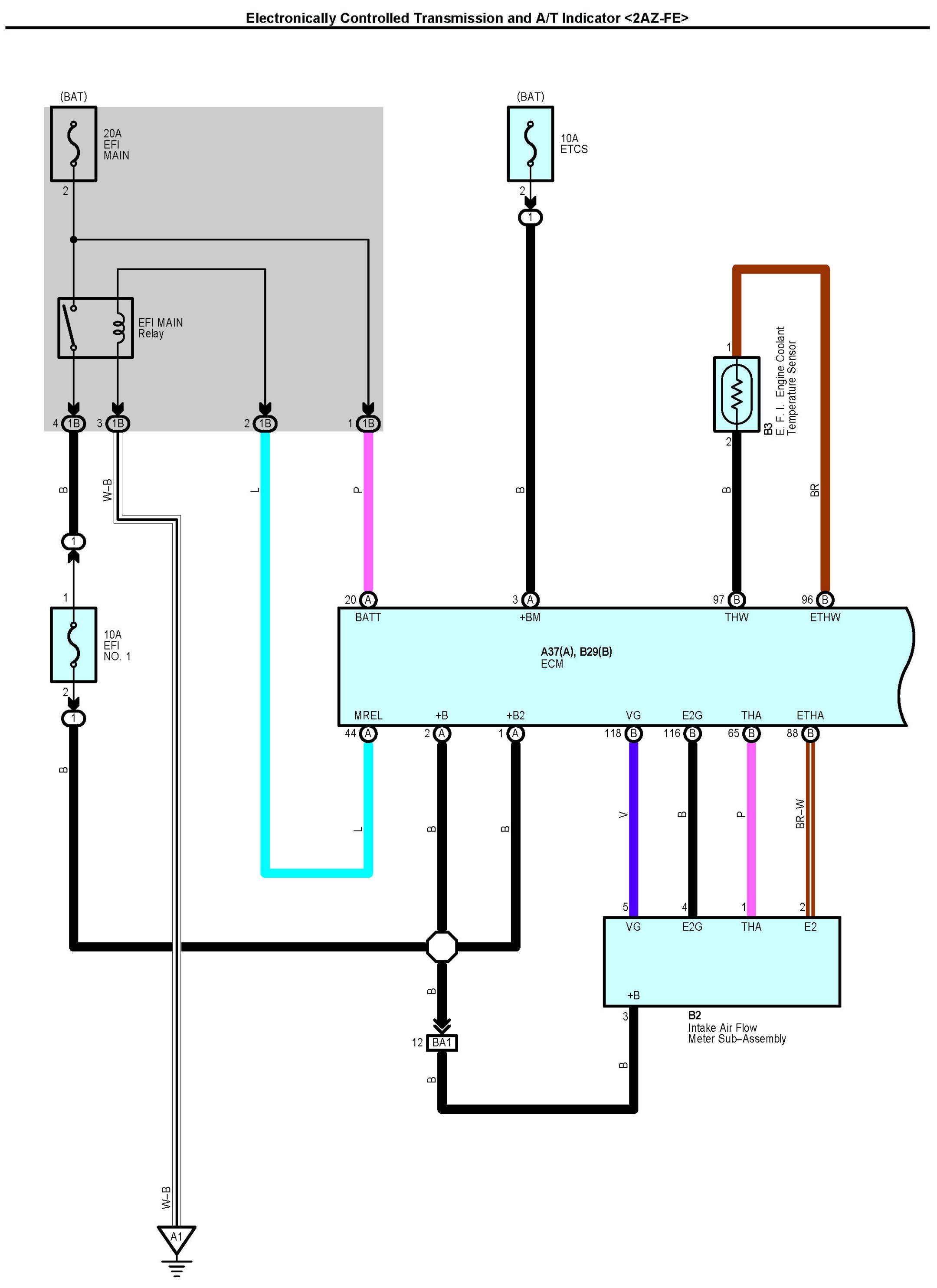

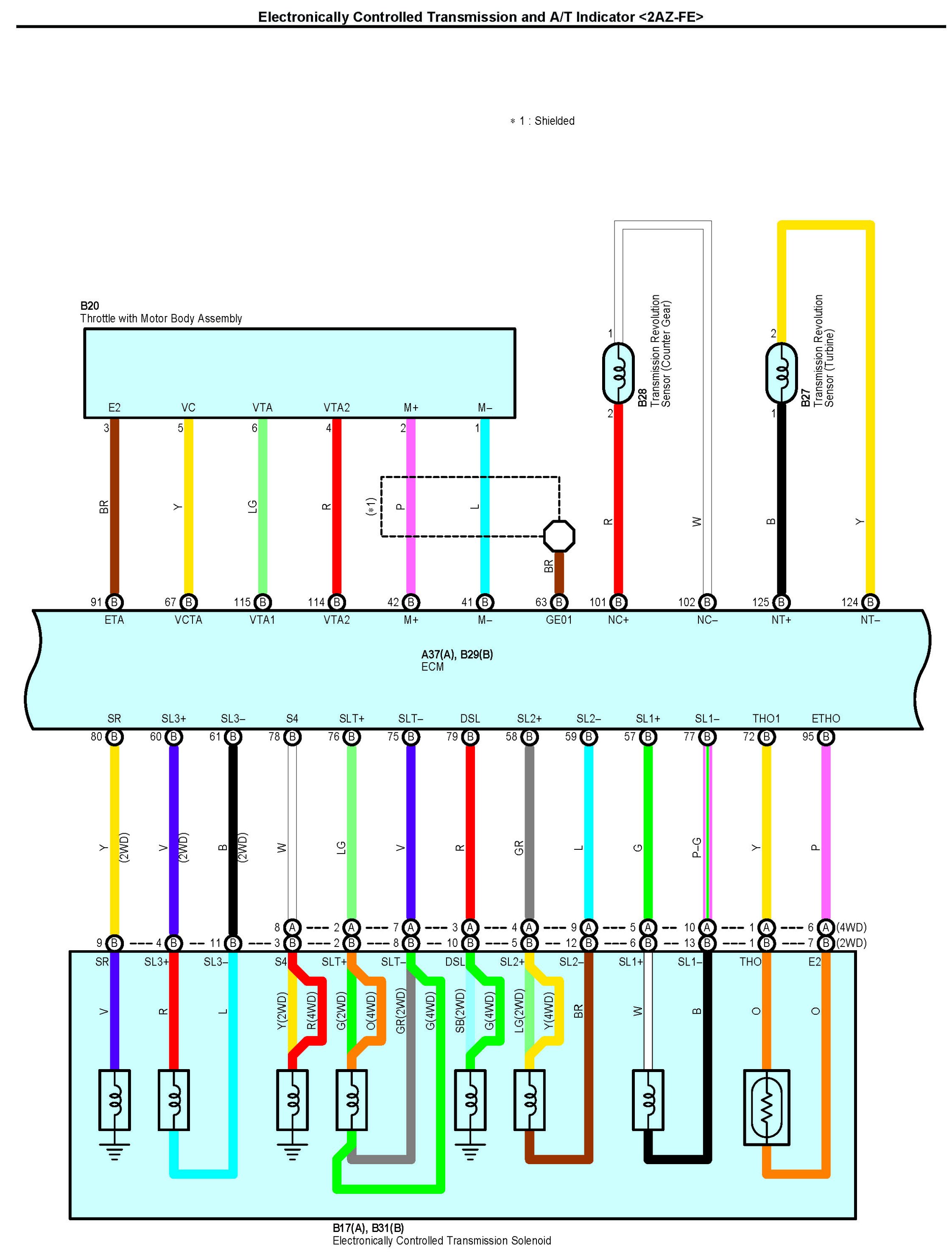

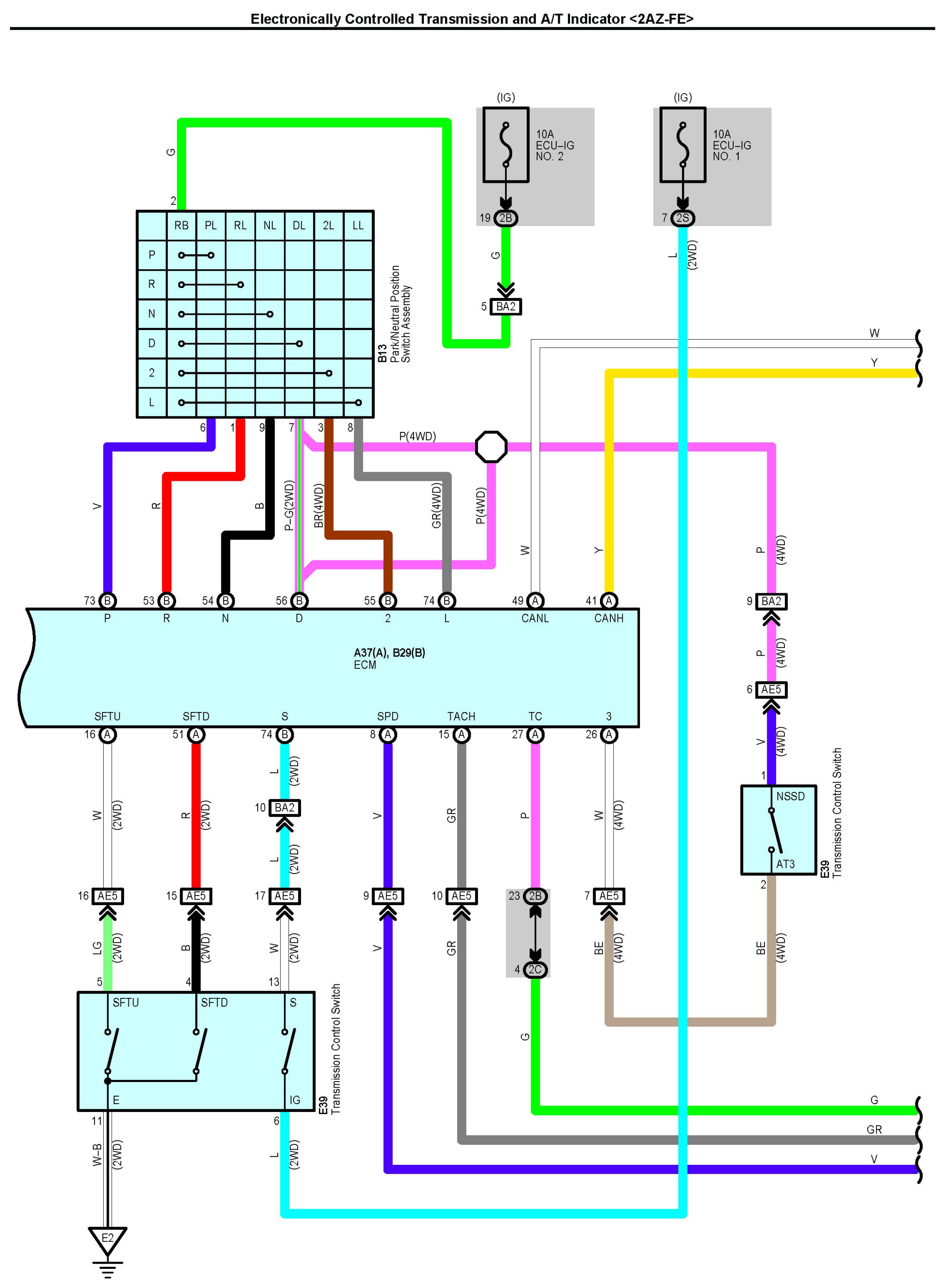

Electronically Controlled Transmission and A/T Indicator Part 1:

Electronically Controlled Transmission and A/T Indicator Part 2:

Electronically Controlled Transmission and A/T Indicator Part 3:

Electronically Controlled Transmission and A/T Indicator Part 4:

Electronically Controlled Transmission and A/T Indicator Part 5:

Electronically Controlled Transmission and A/T Indicator Part 6:

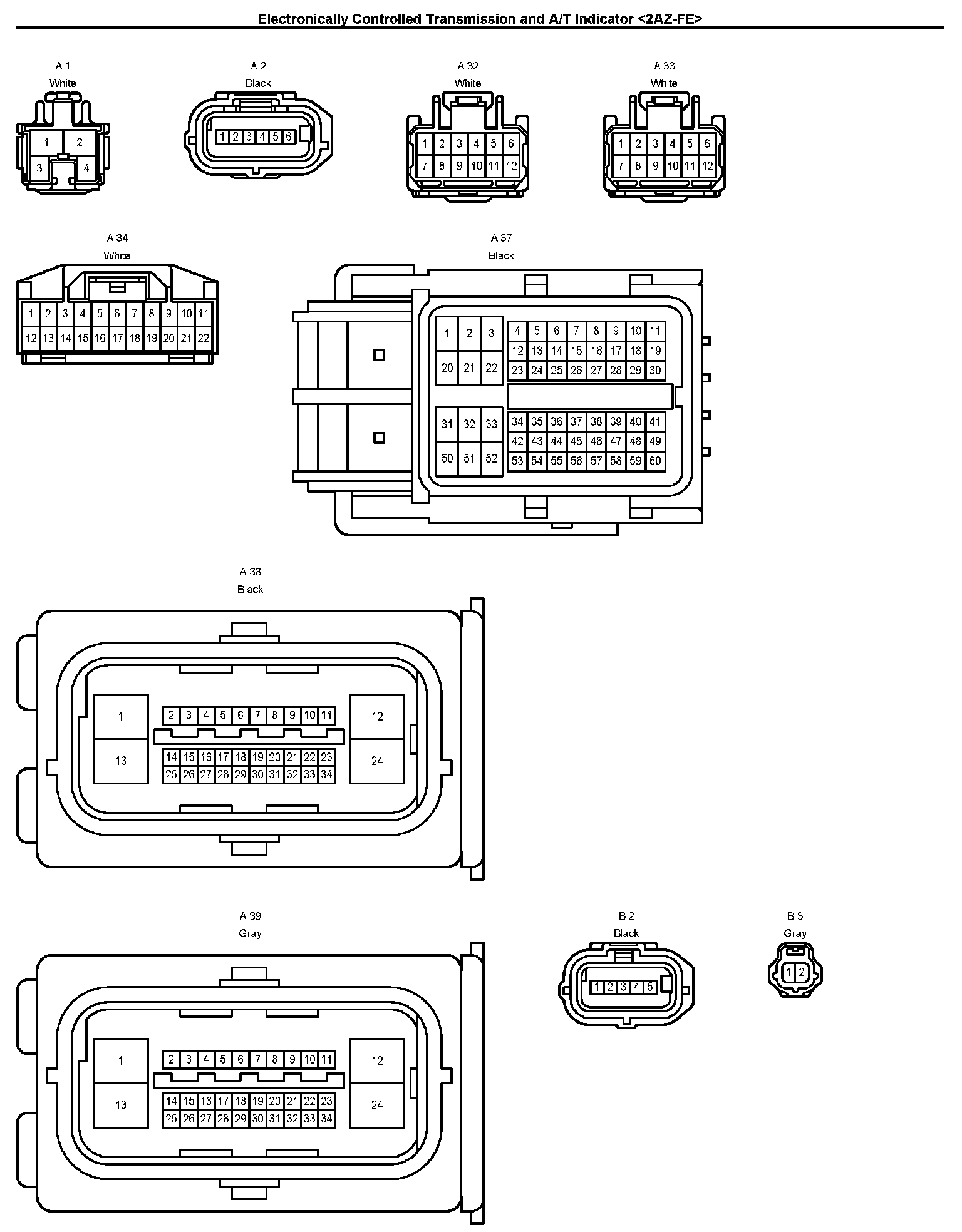

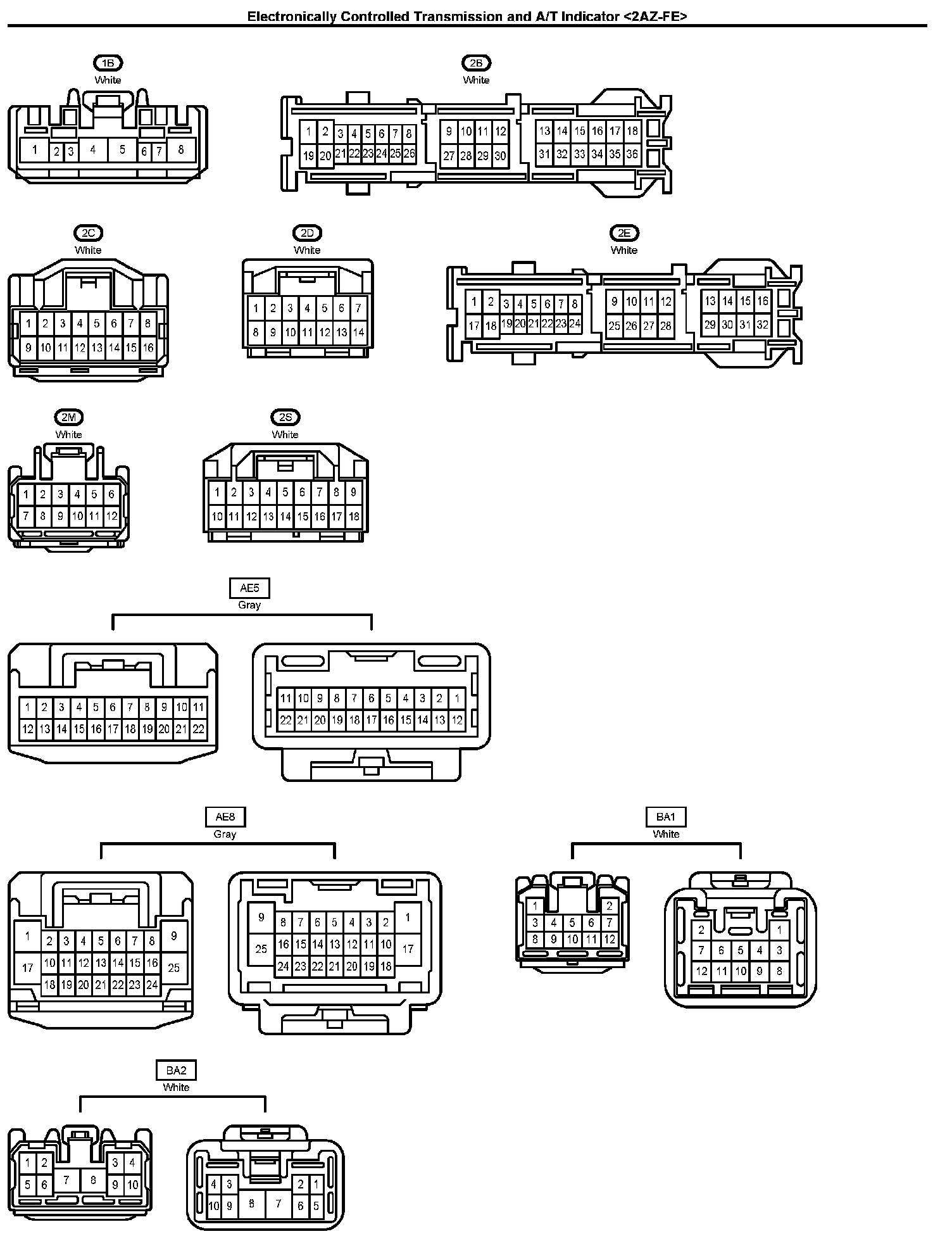

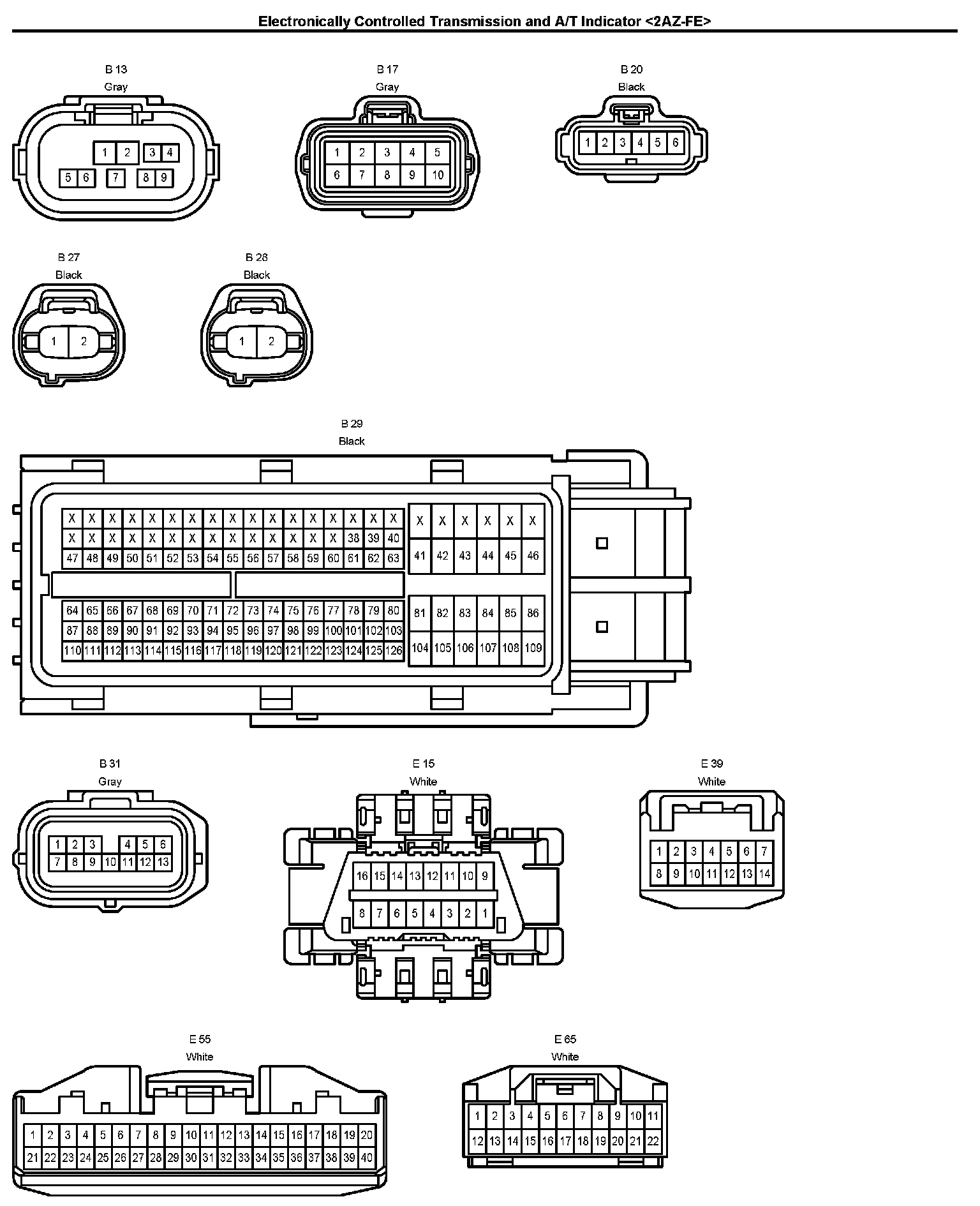

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
