Heated Glass Element: Service and Repair

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM: REPAIR

1. REPAIR REAR WINDOW DEFOGGER WIRE





(a) Clean the broken wire tips with a grease, wax and silicone remover.

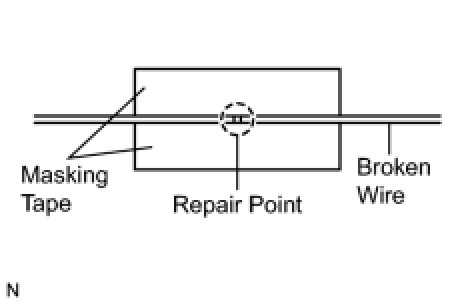

(b) Place the masking tape along both sides of the wire.

(c) Thoroughly mix the repair agent (Dupont paste No. 4817 or equivalent).





(d) Using a fine tip brush, apply a small amount of the agent to the wire.

(e) After a few minutes, remove the masking tape.

NOTICE:
Do not repair the rear window defogger wire again for at least 24 hours.
