Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00475478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Dash & Center Console

G00475479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

G00475480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Seats

G00475481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

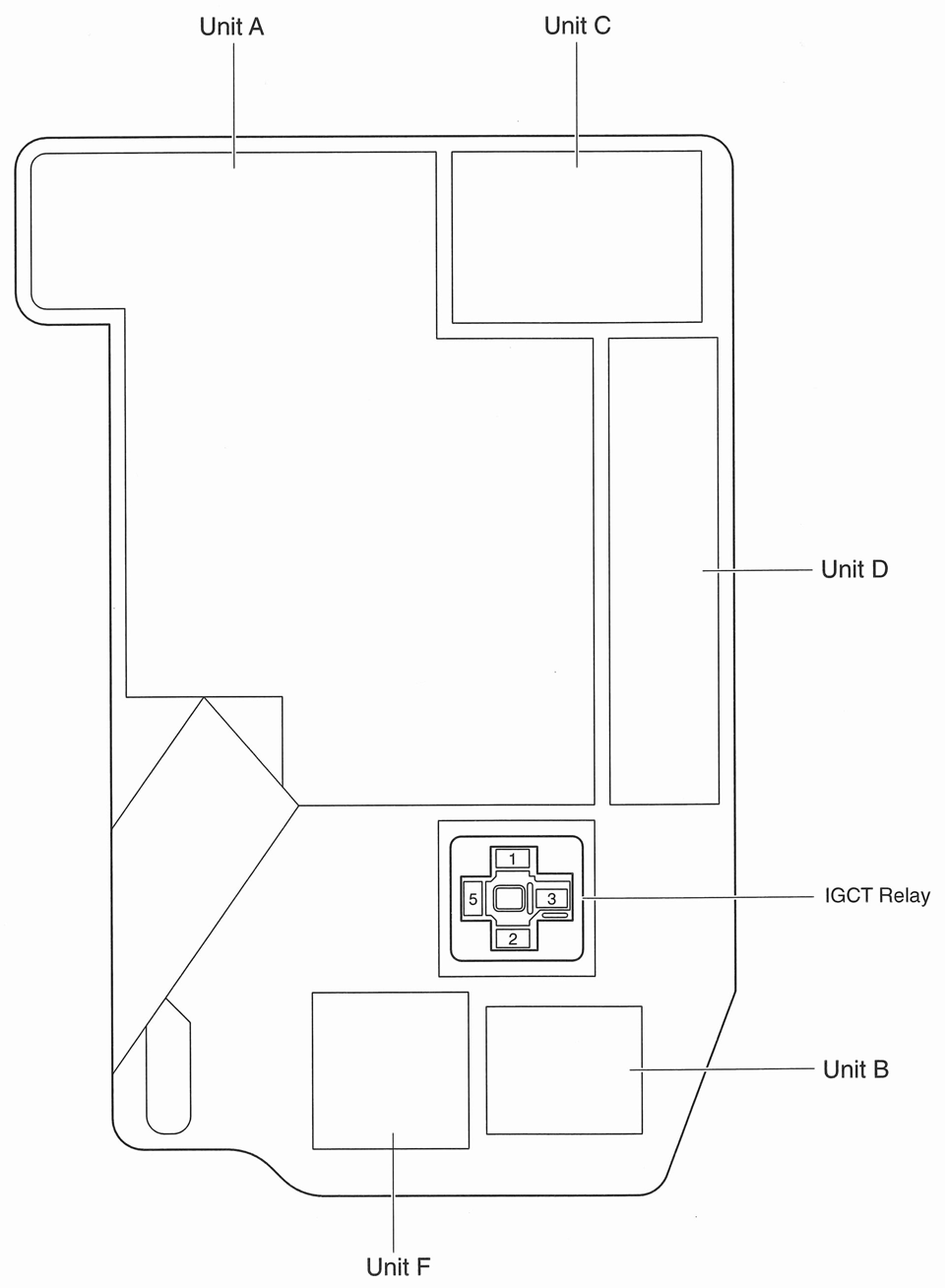

Fig 5: Engine Room Relay/Junction Box

G00475482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

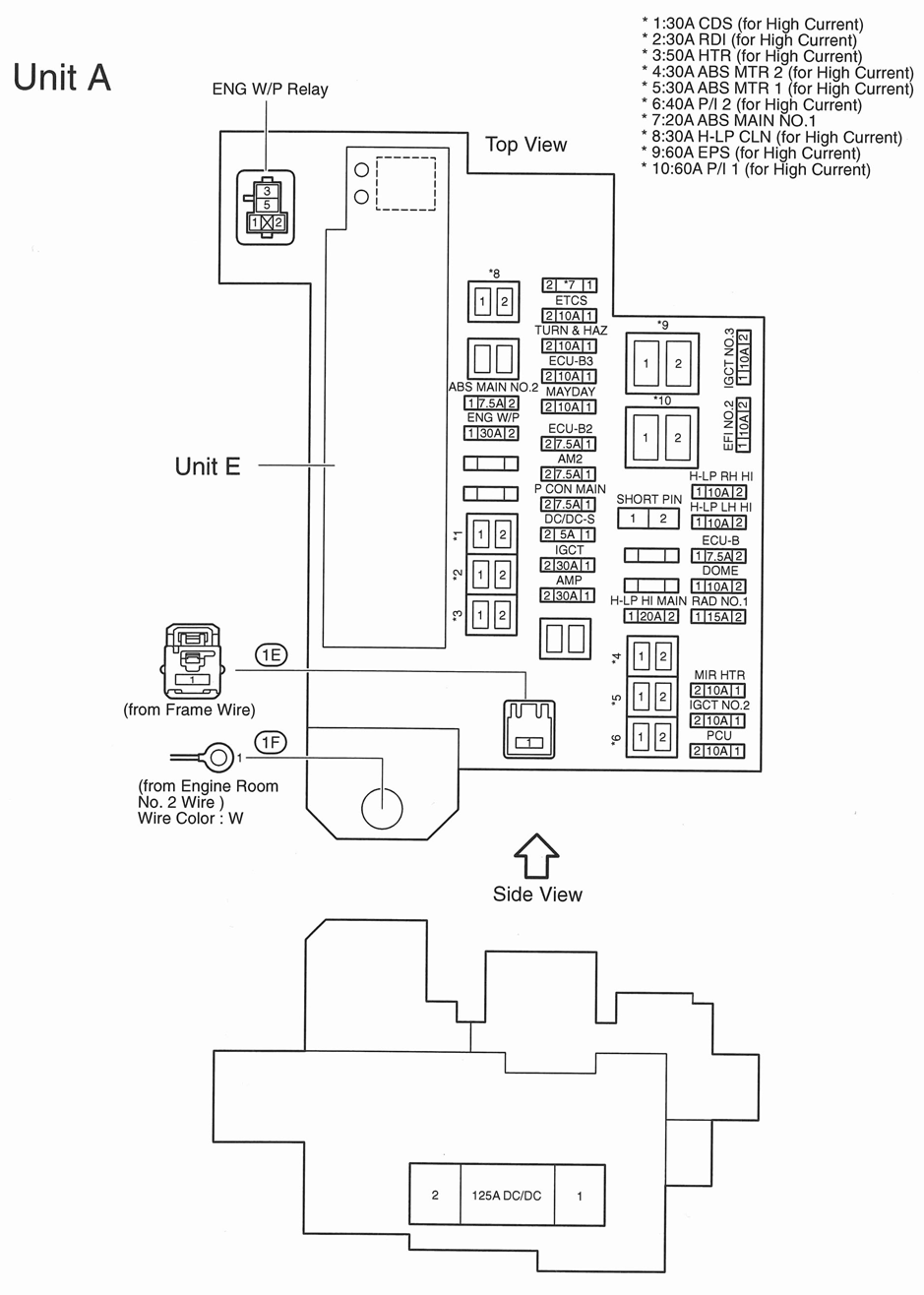

Fig 6: Engine Room Relay/Junction Box Unit A

G00475483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

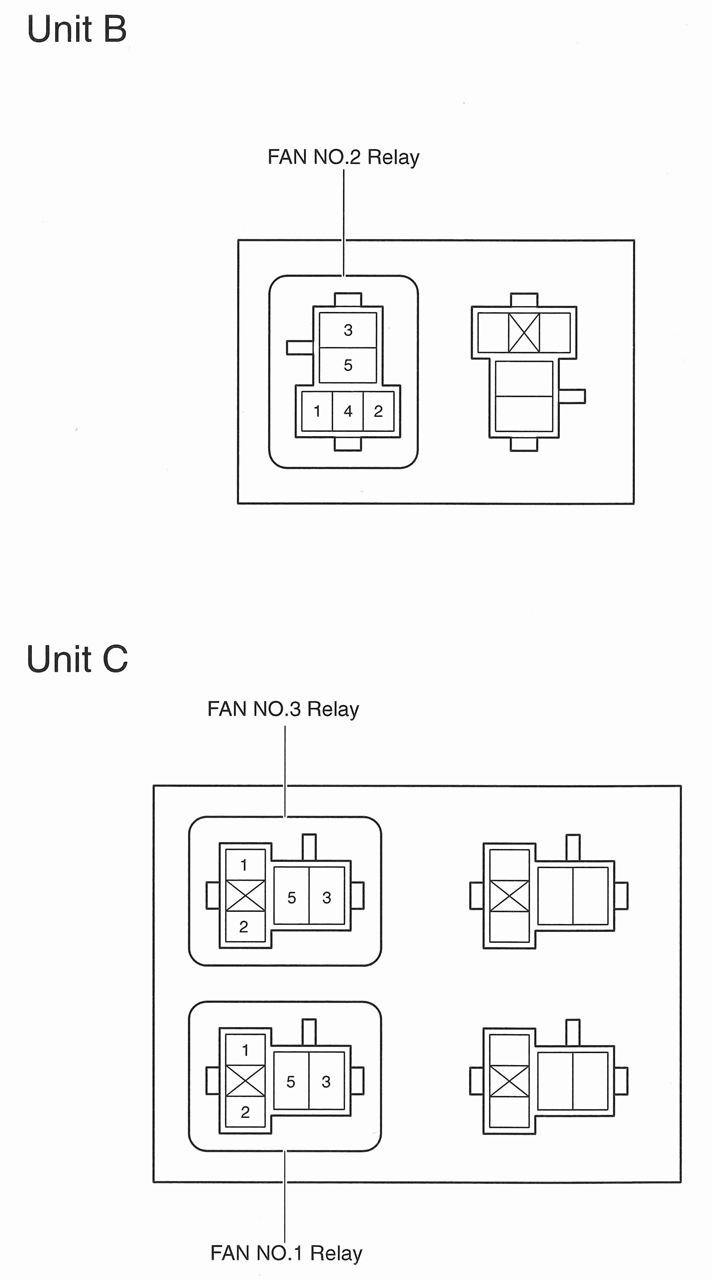

Fig 7: Engine Room Relay/Junction Box Units B & C

G00475484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

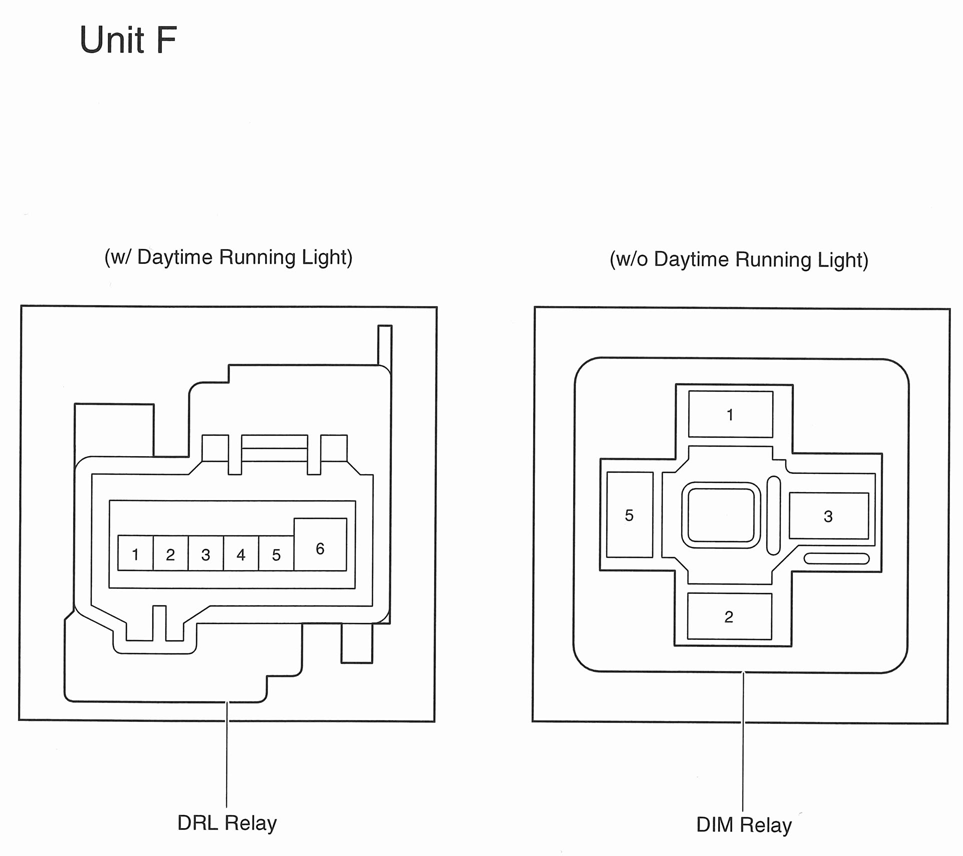

Fig 8: Engine Room Relay/Junction Box Unit F

G00475485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

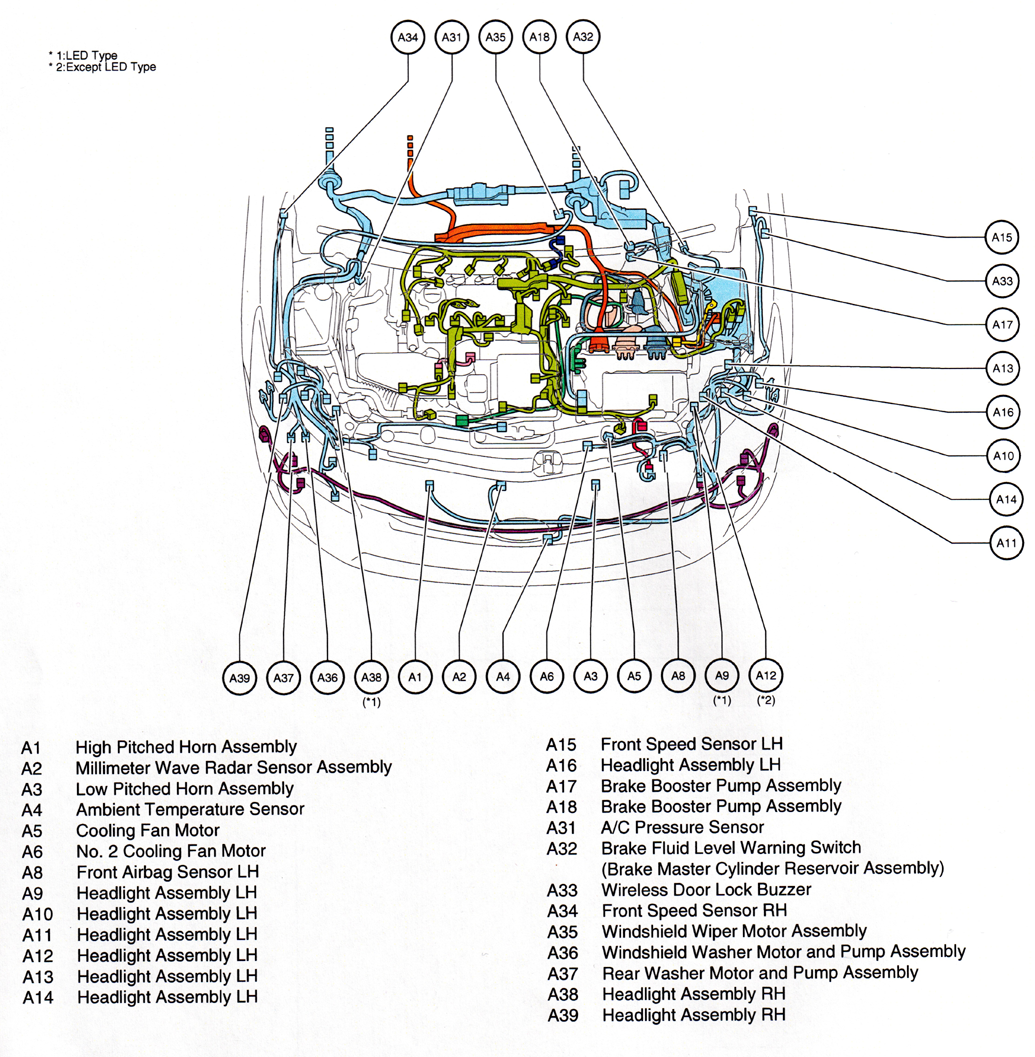

Fig 9: Engine Compartment

G00475486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

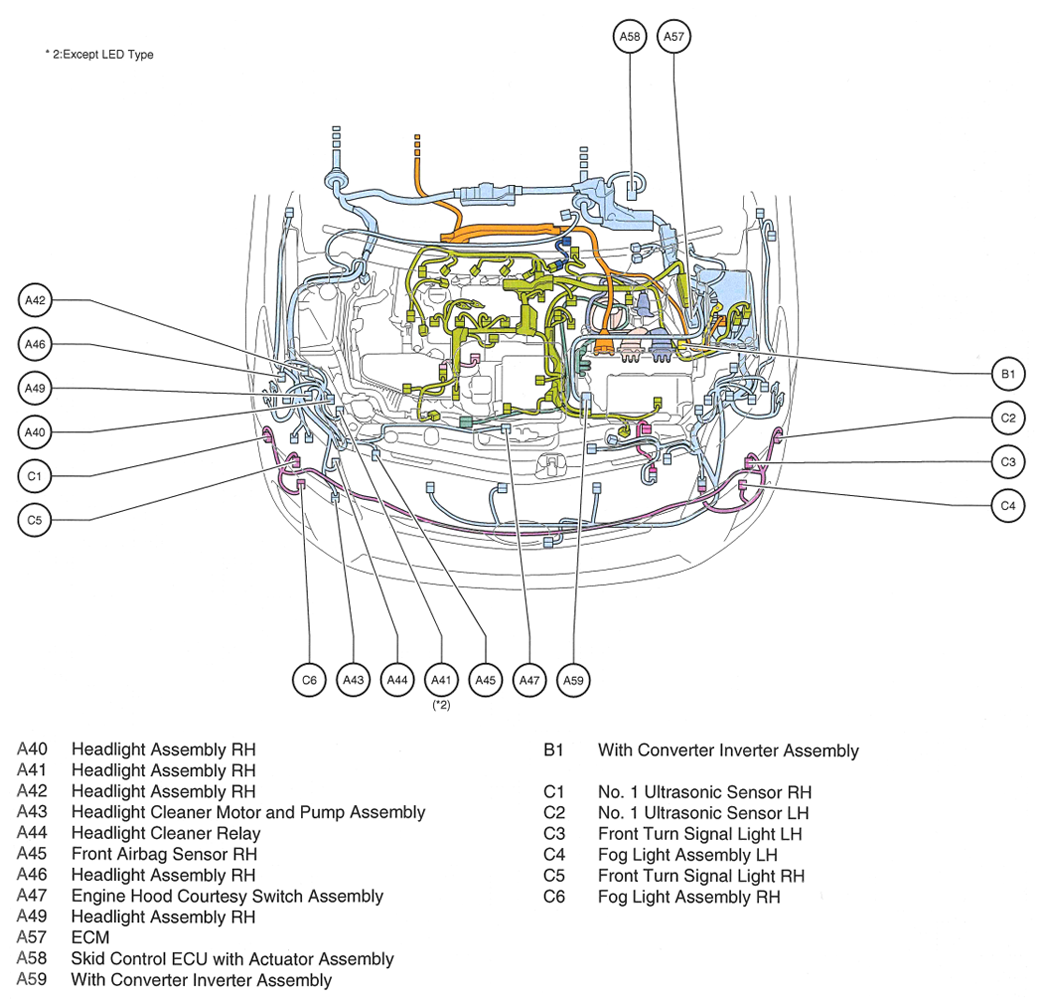

Fig 10: Engine Compartment

G00475487

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

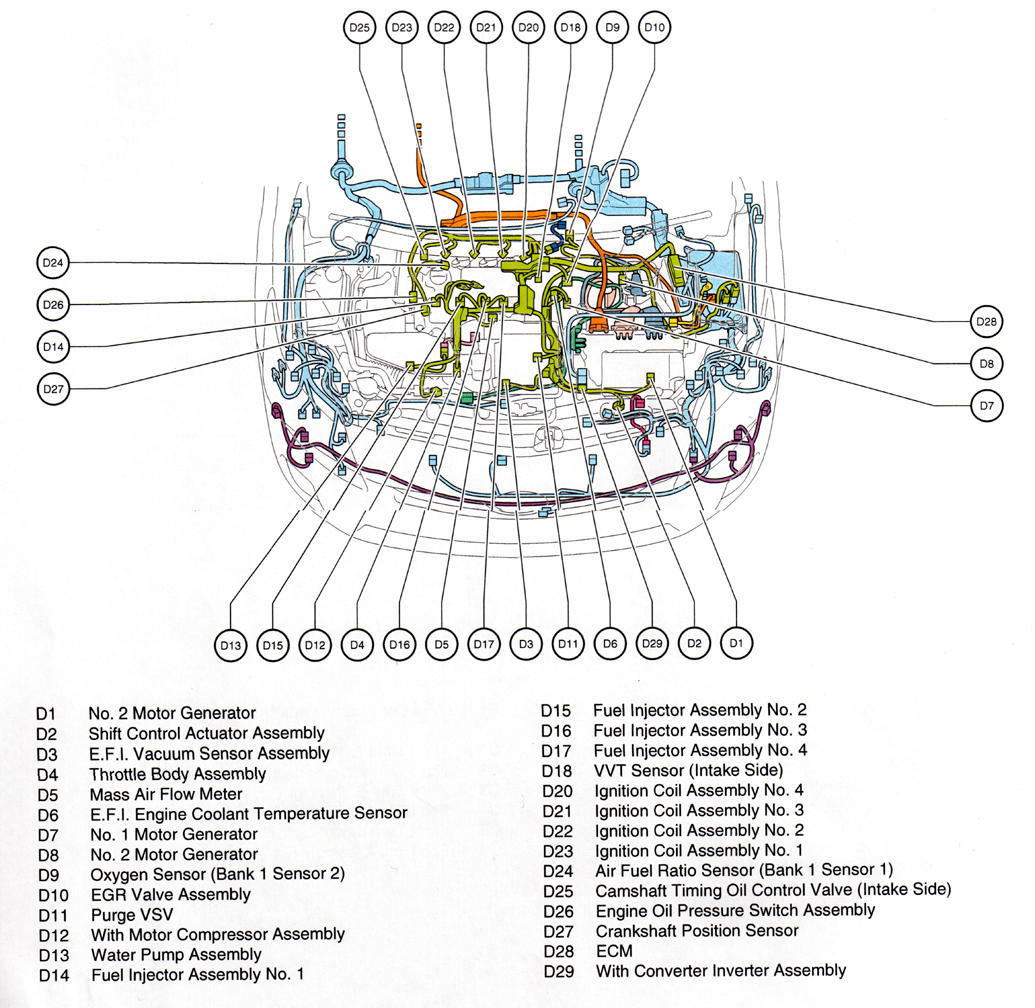

Fig 11: Engine

G00475488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

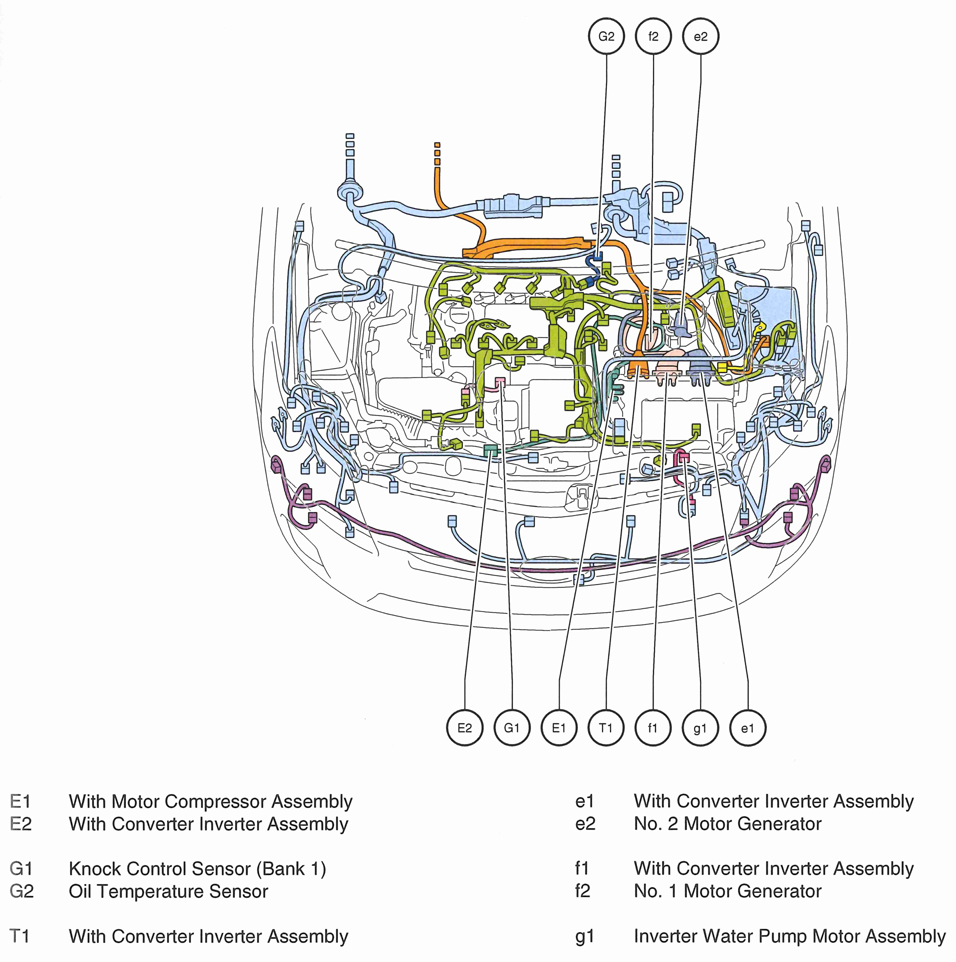

Fig 12: Engine

G00475489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Dash & Center Console

G00475490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

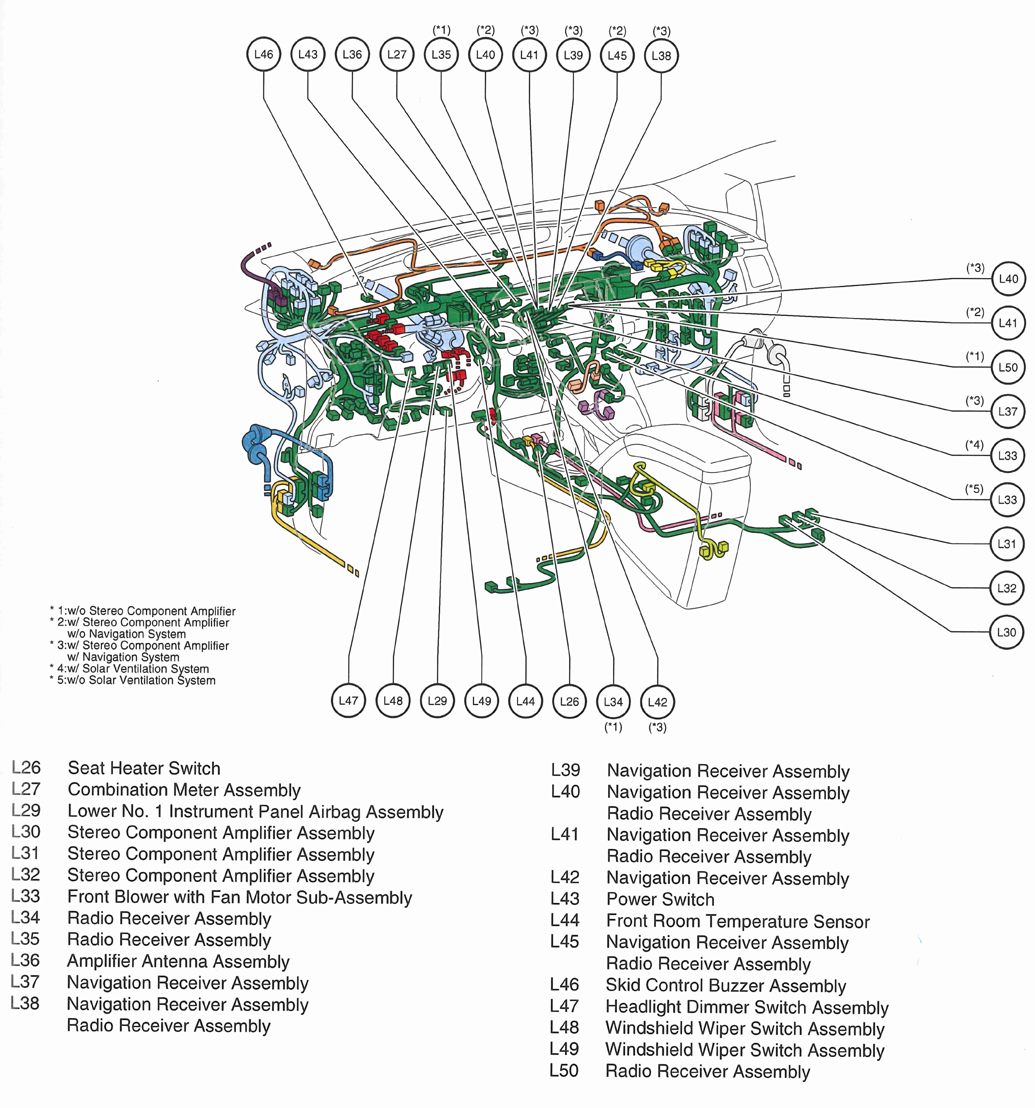

Fig 14: Dash & Center Console

G00475491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

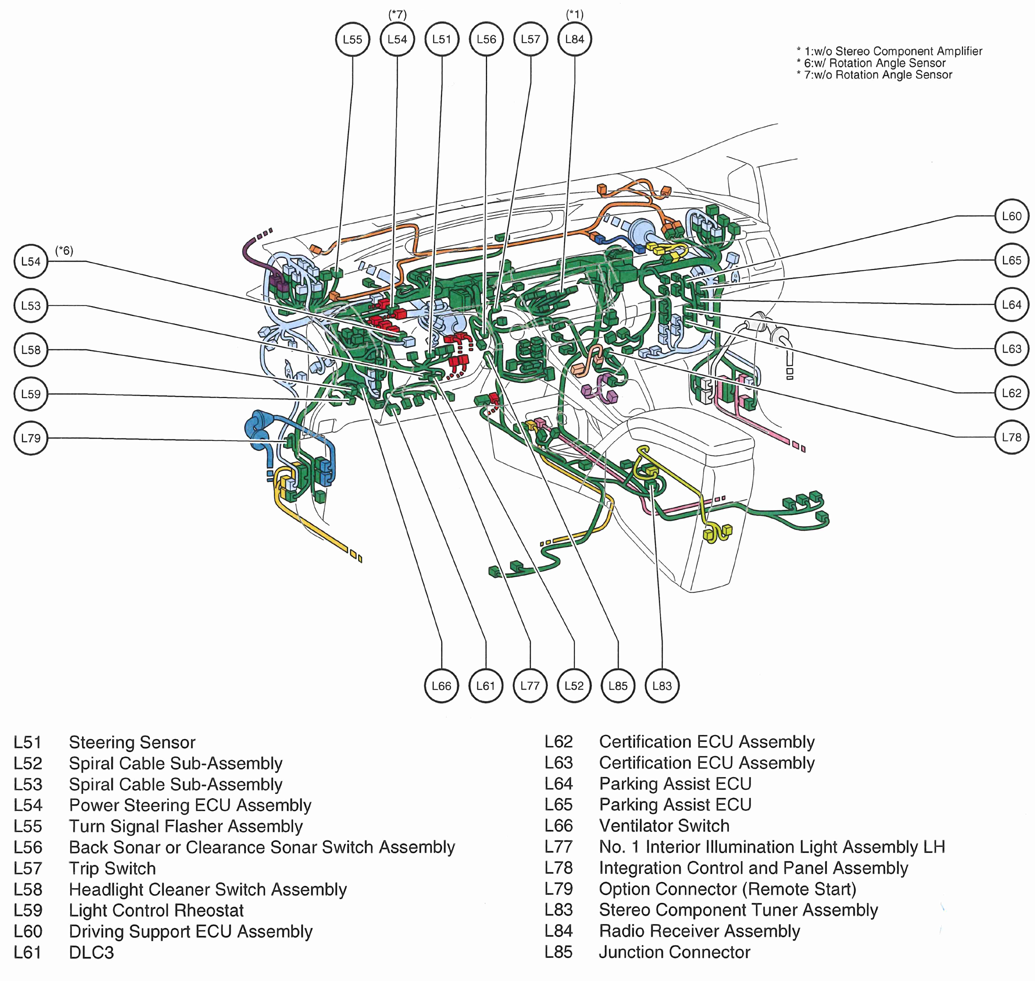

Fig 15: Dash & Center Console

G00475492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

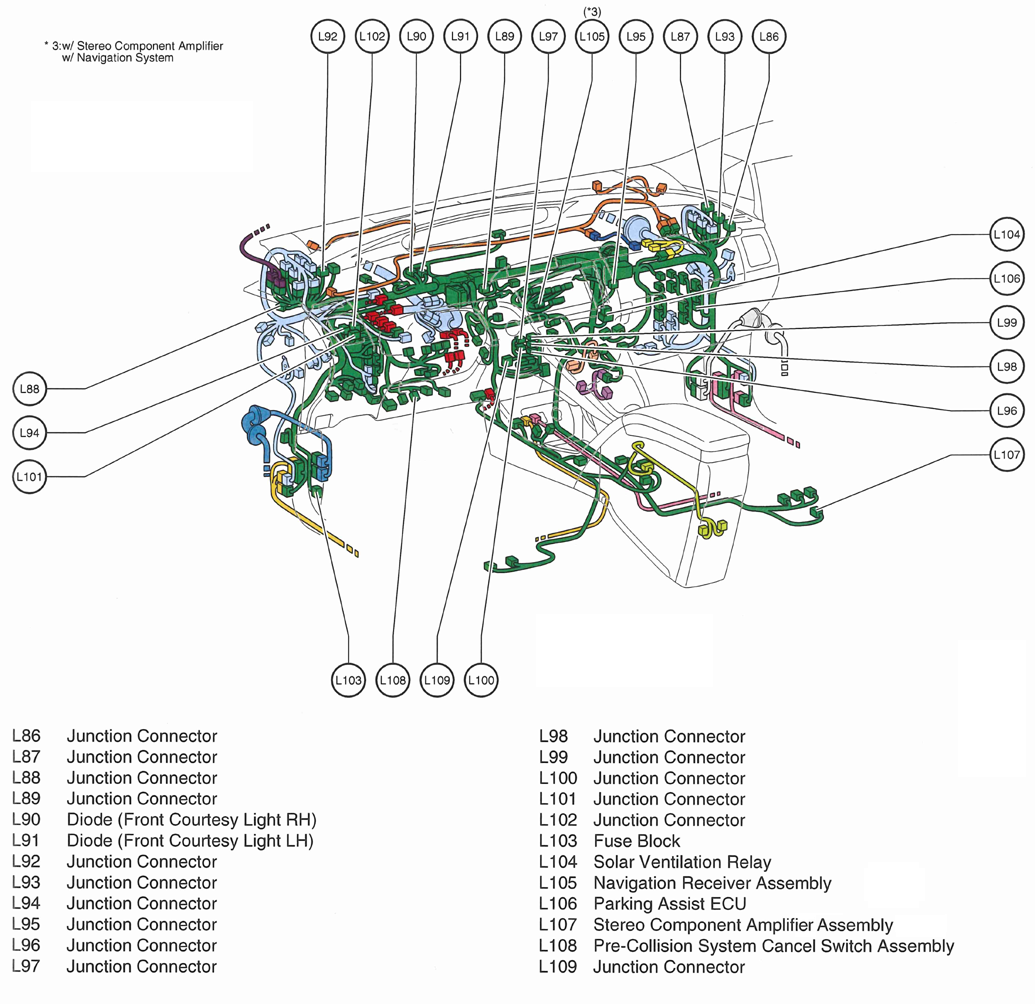

Fig 16: Dash & Center Console

G00475493

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

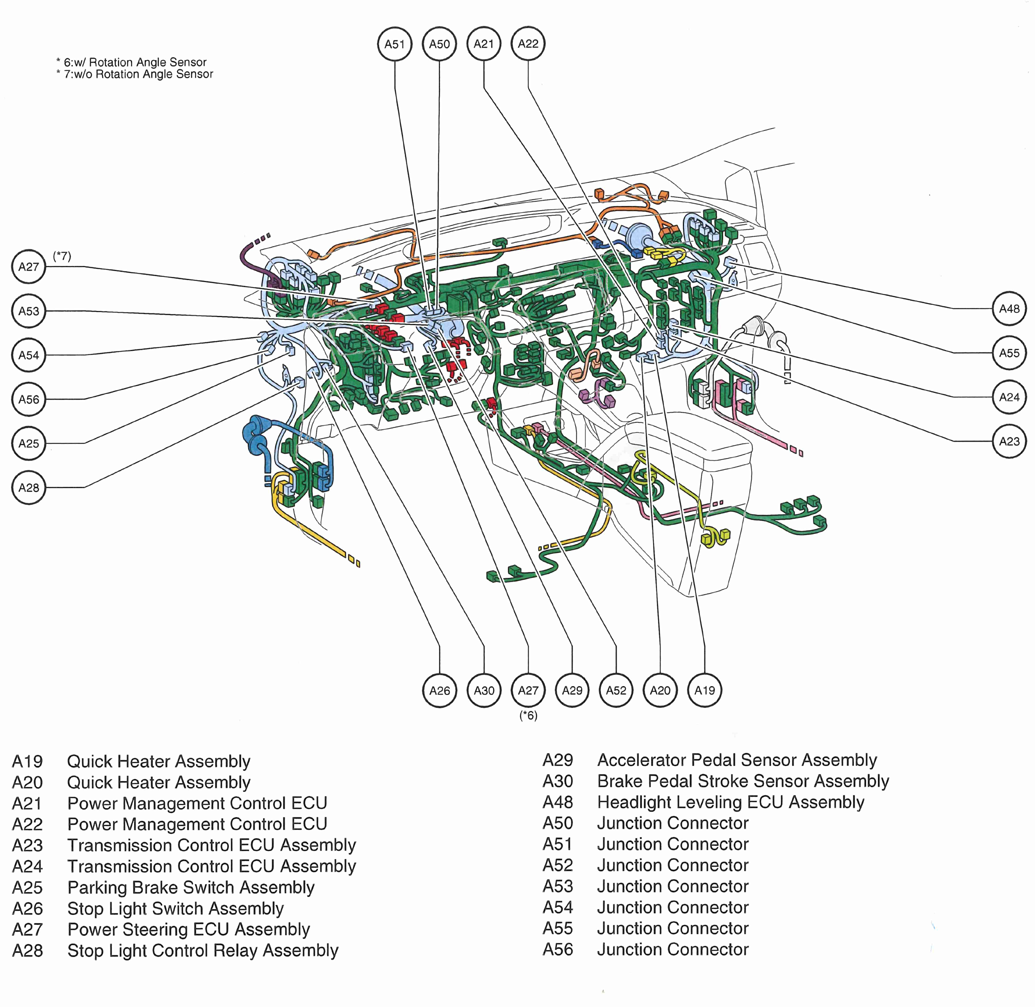

Fig 17: Dash & Center Console

G00475494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

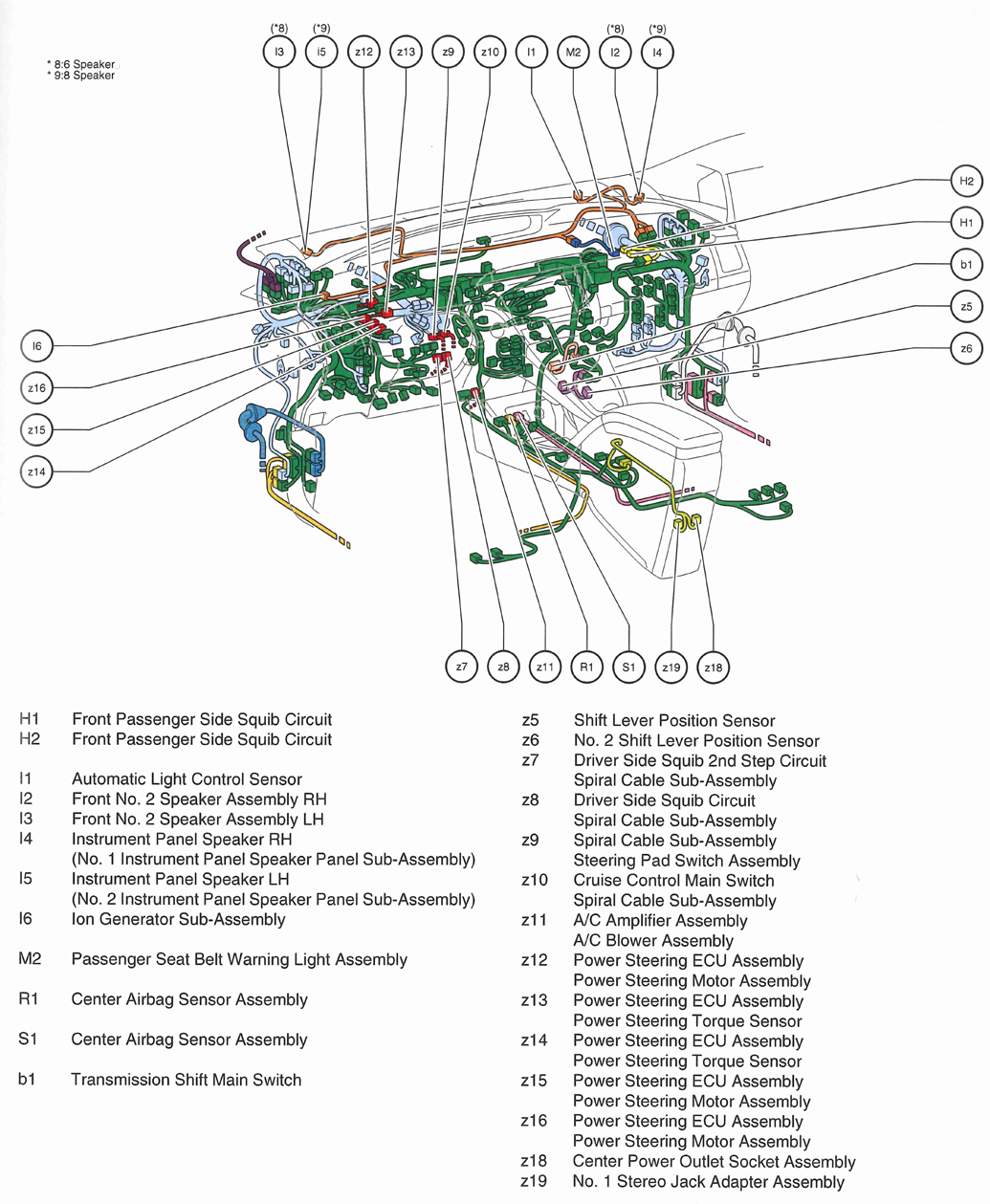

Fig 18: Dash & Center Console

G00475495

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

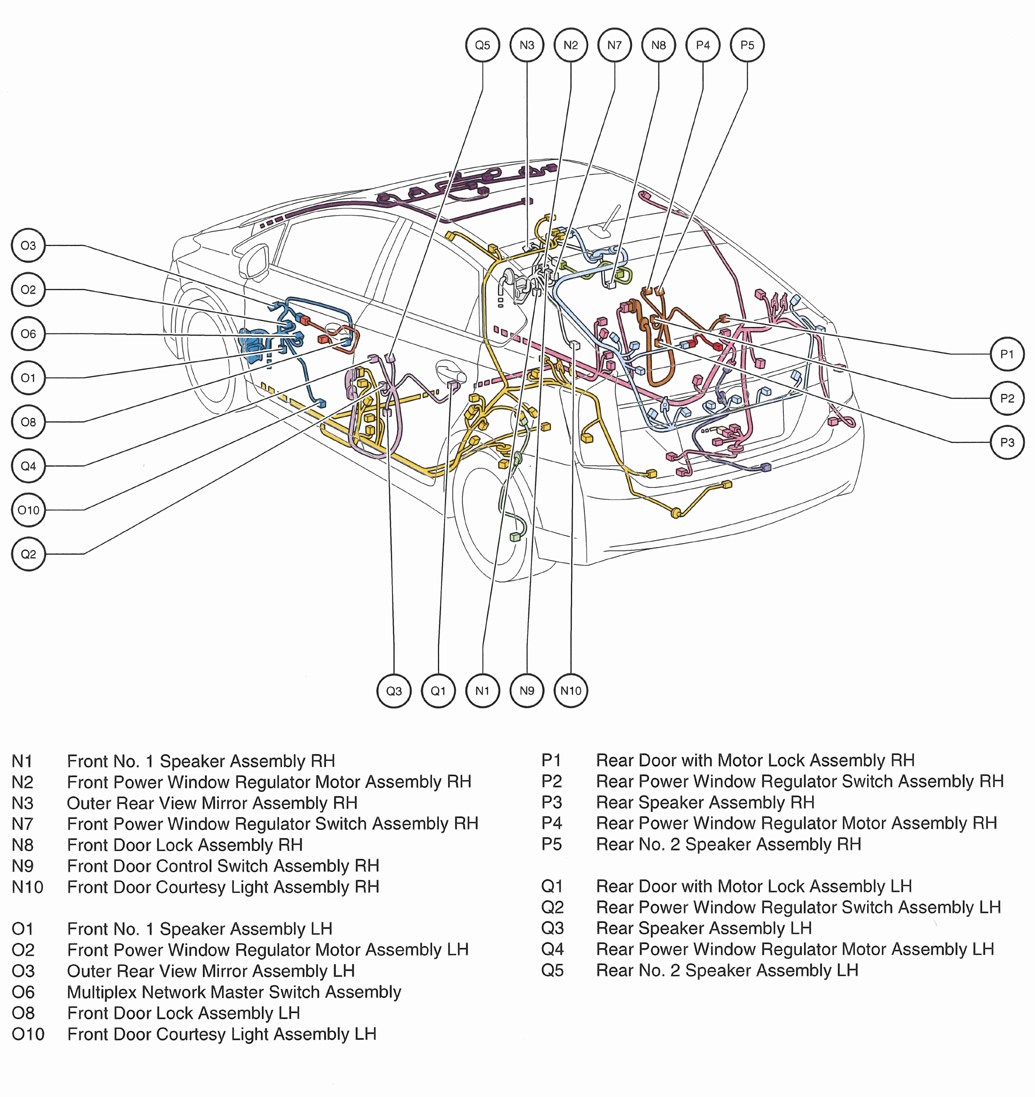

Fig 19: Vehicle Overview

G00475496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

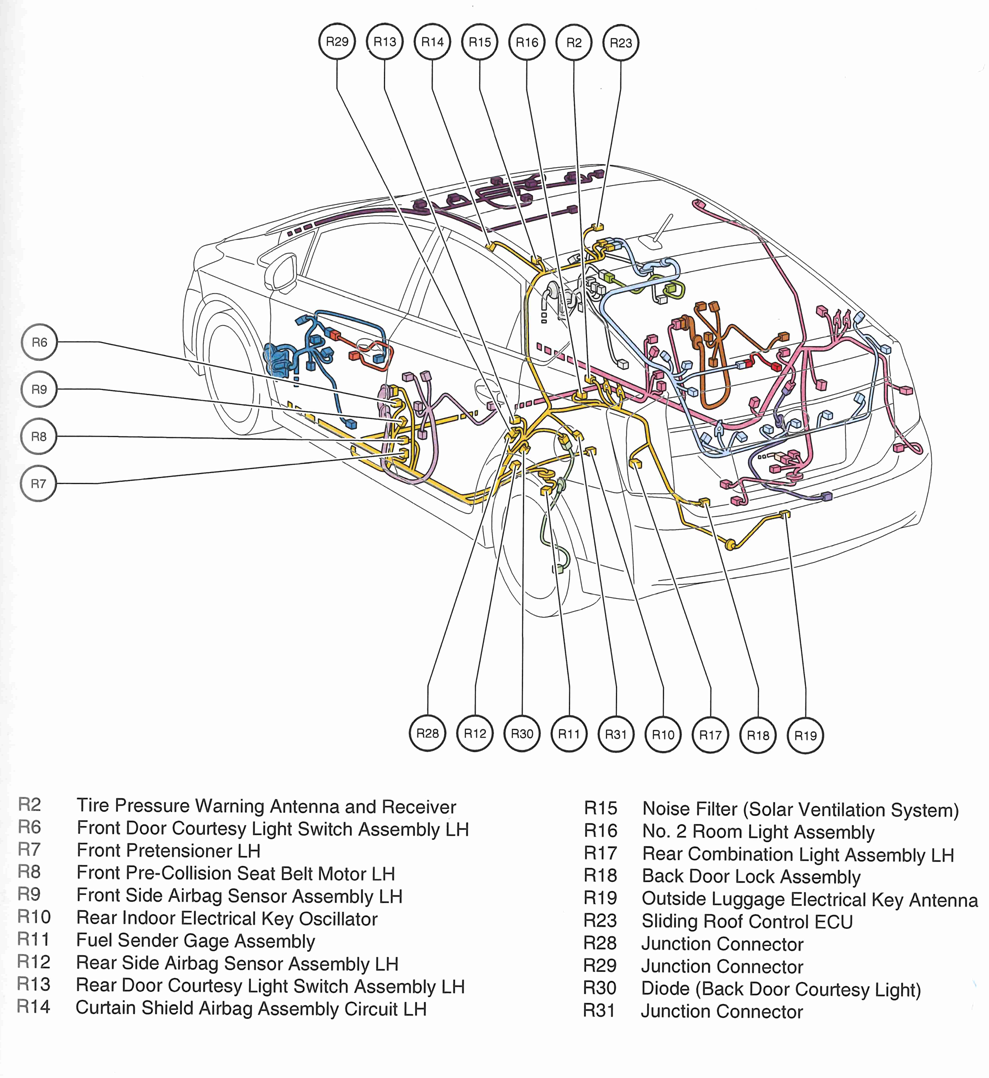

Fig 20: Vehicle Overview

G00475497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

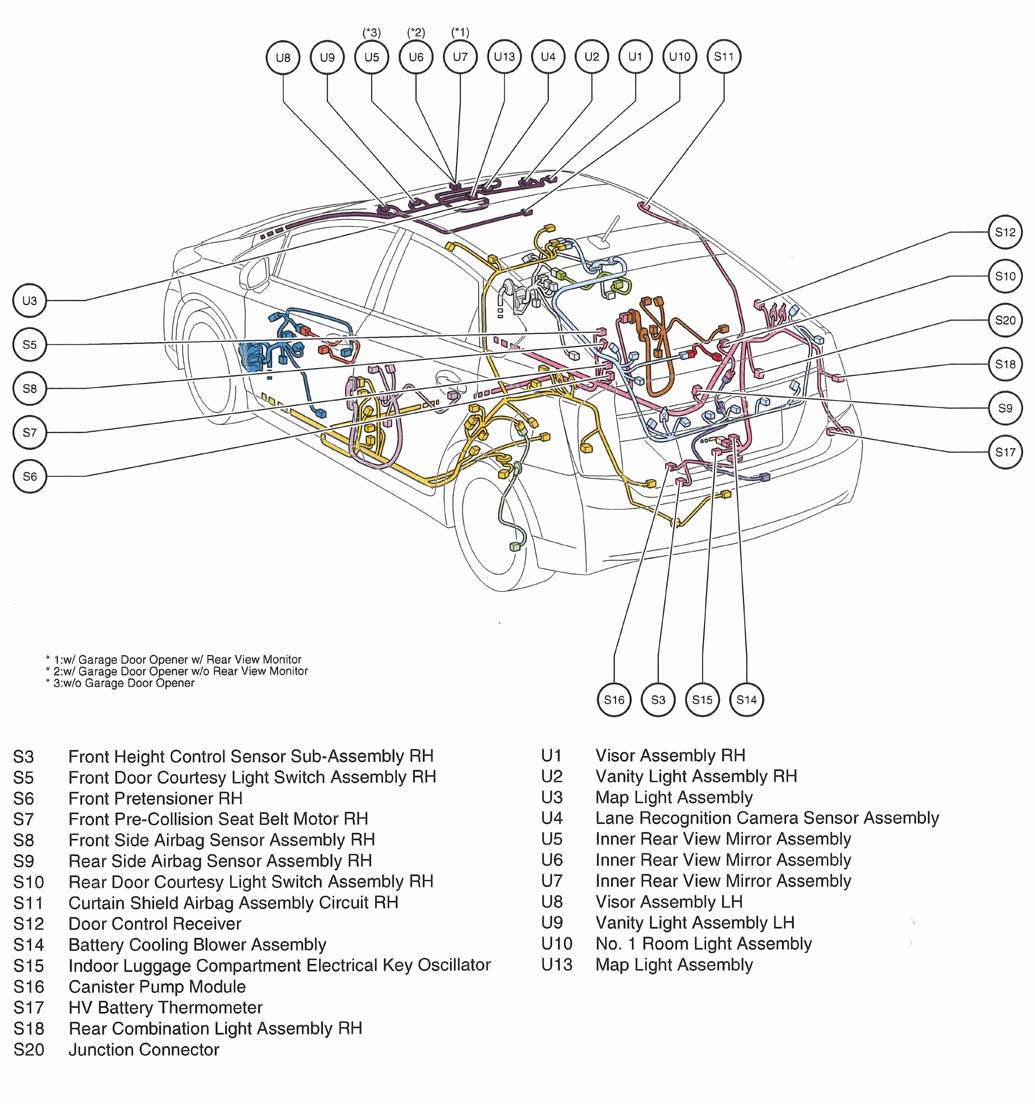

Fig 21: Vehicle Overview

G00475498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

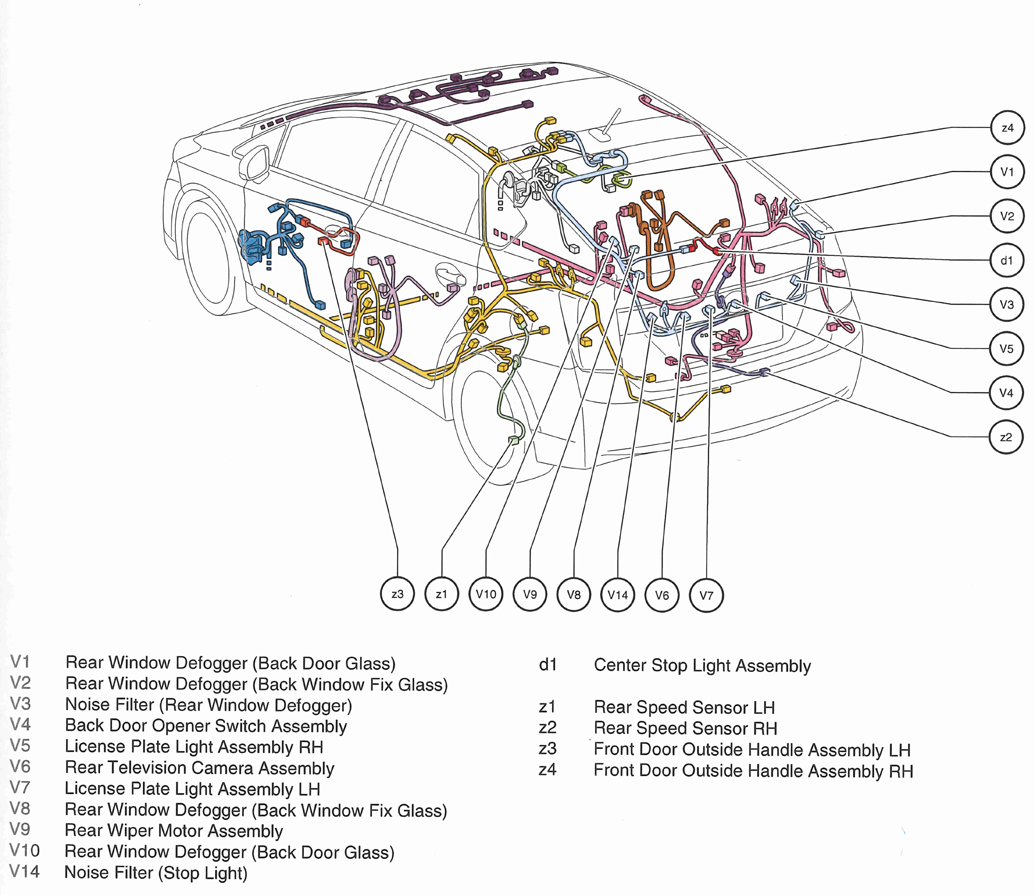

Fig 22: Vehicle Overview

G00475499

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

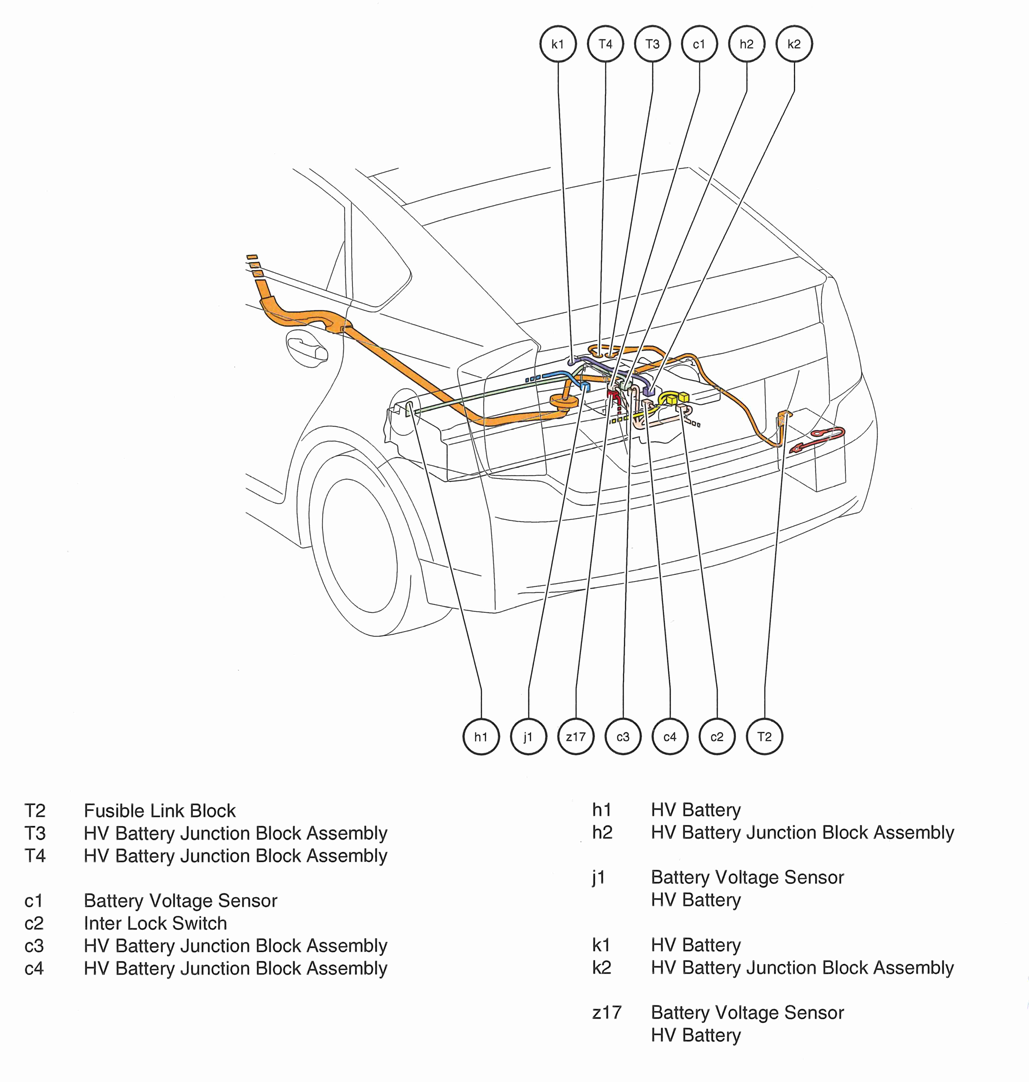

Fig 23: Rear Of Vehicle

G00475500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Seats

G00475501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

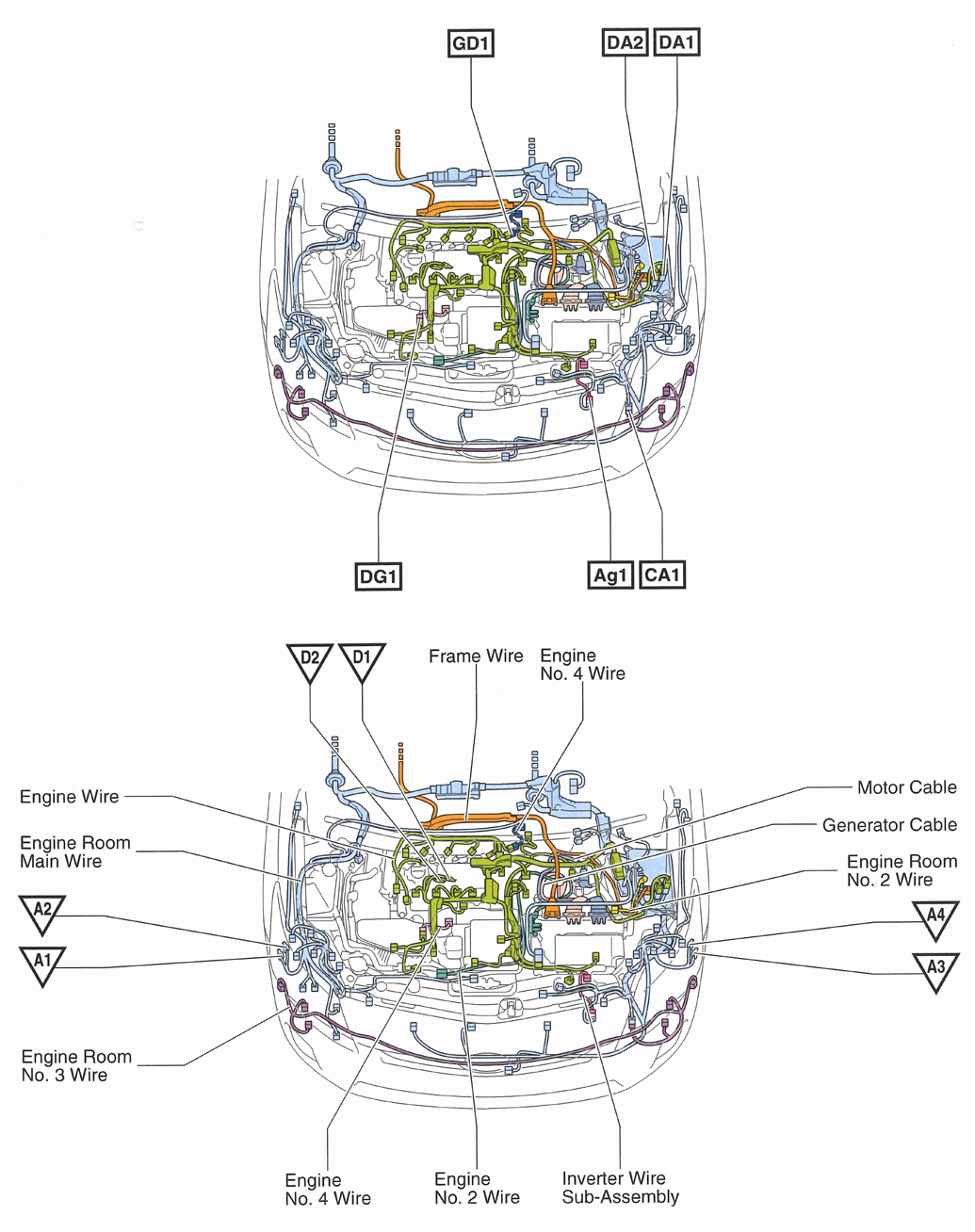

Fig 25: Engine Compartment

G00475502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

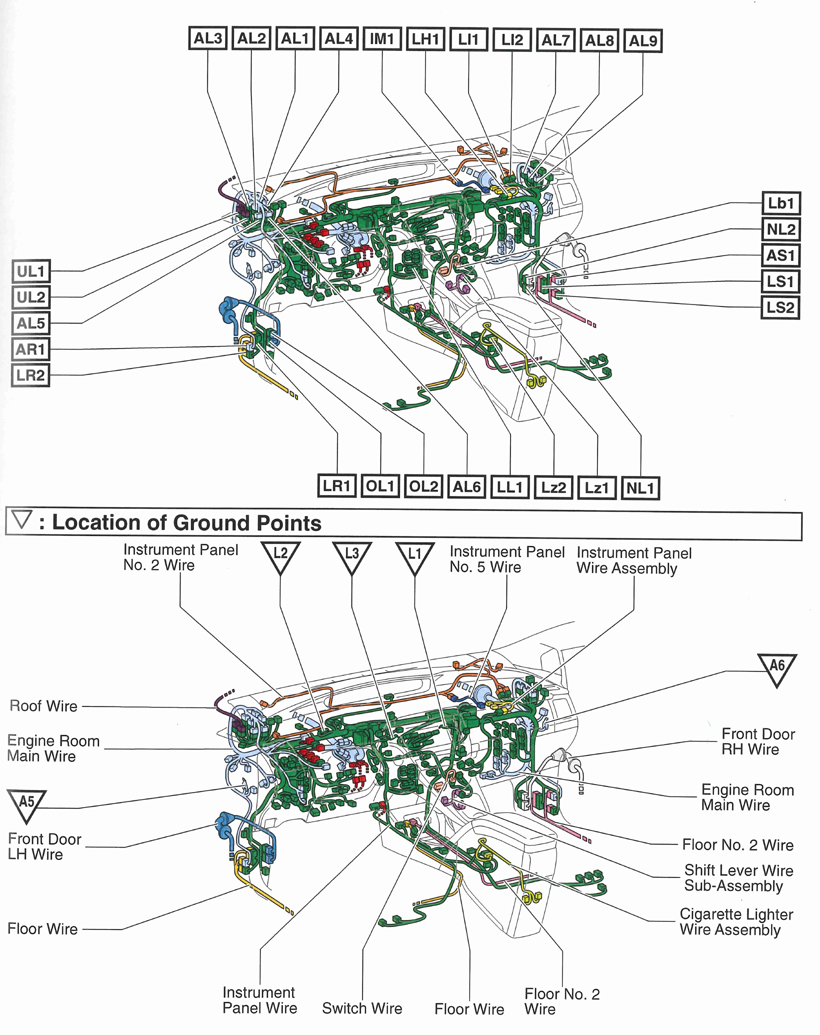

Fig 26: Dash & Center Console

G00475503

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

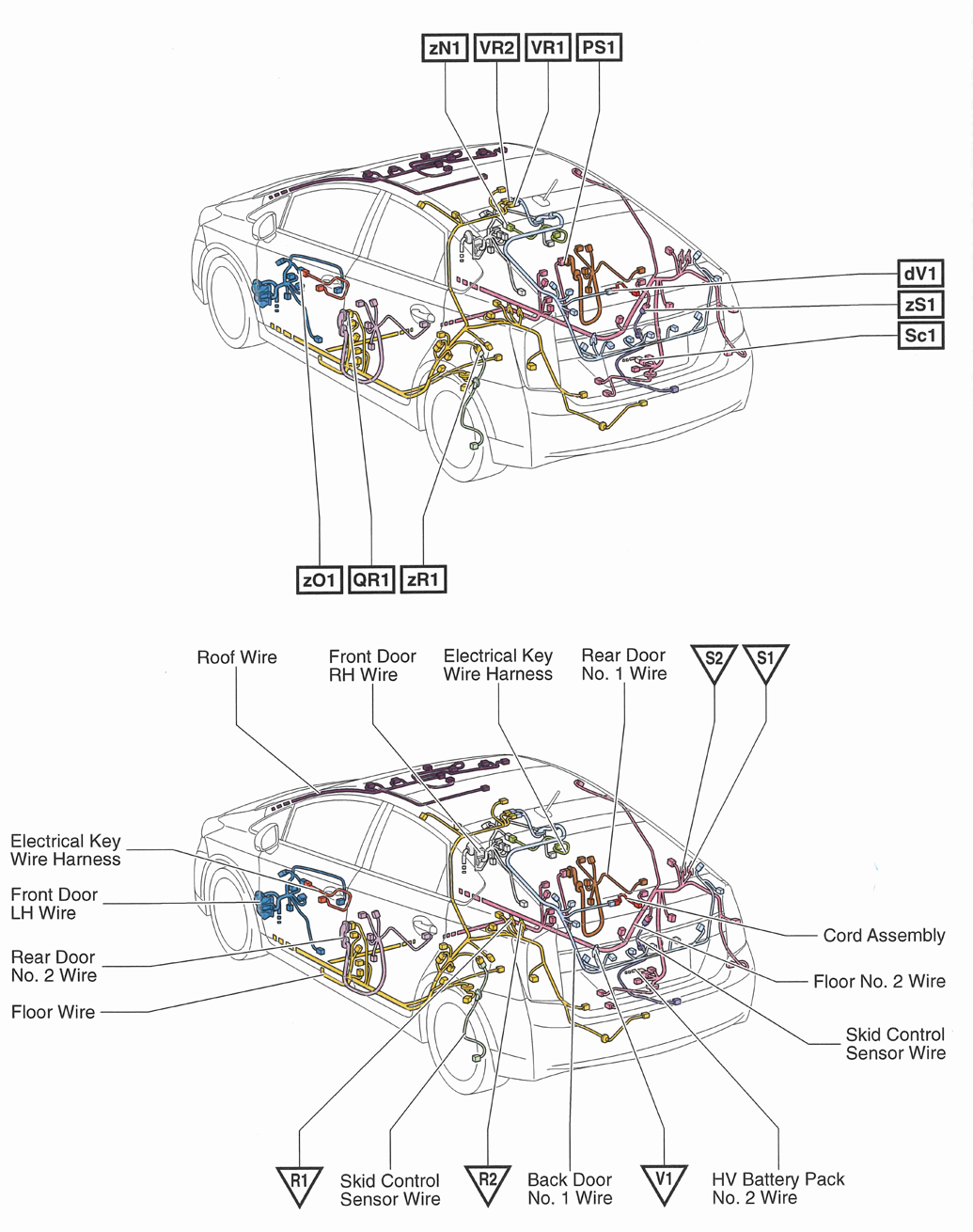

Fig 27: Vehicle Overview

G00475504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

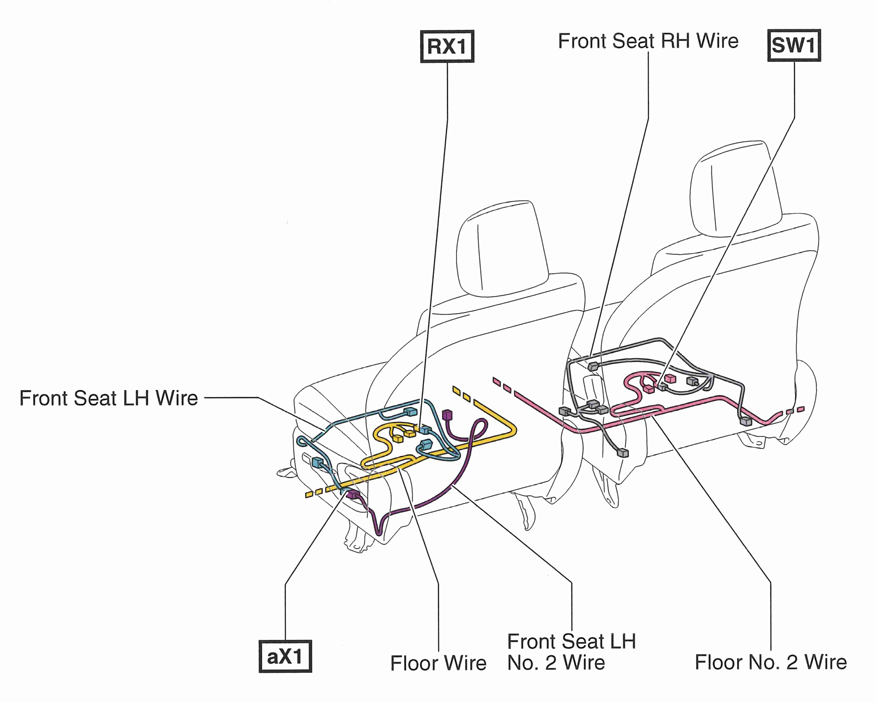

Fig 28: Seats

G00475505

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
