Door Lock Control: Notes

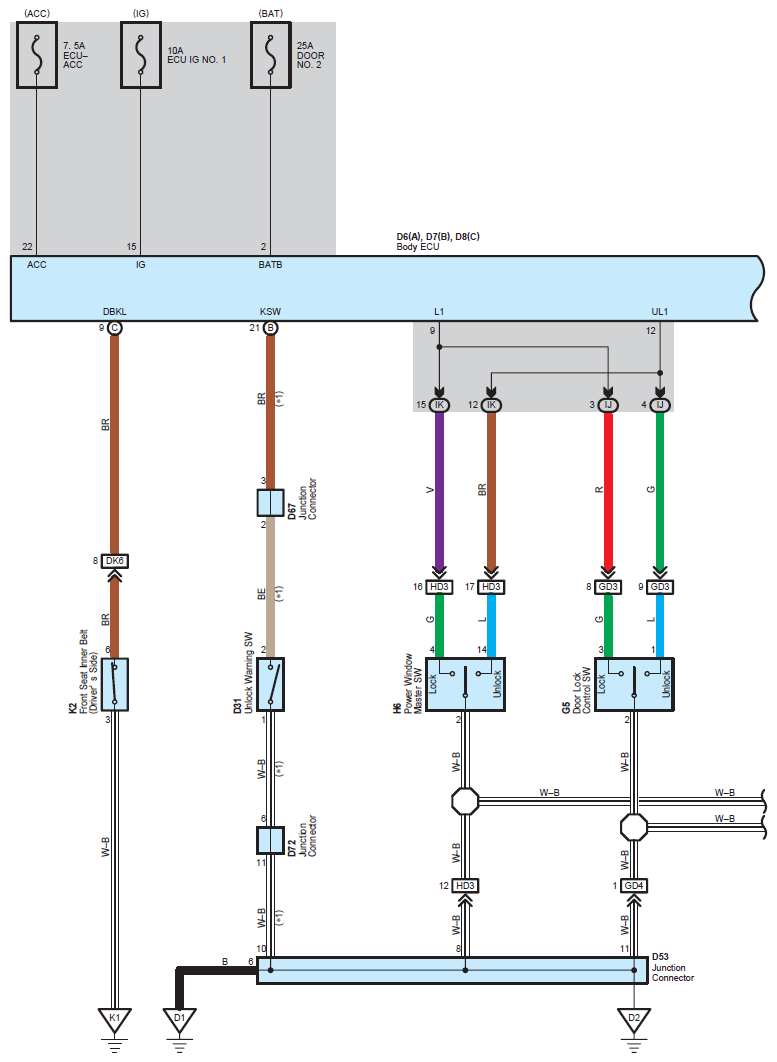

Fig 1: Door Lock Control System Wiring Diagram (1 Of 7)
G07111973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

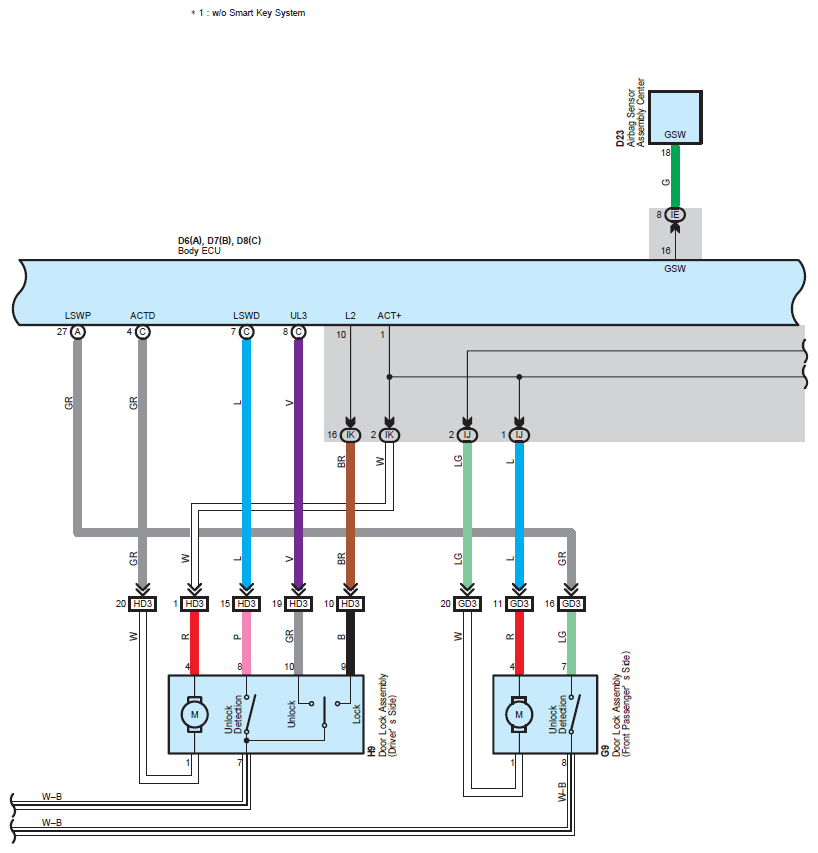

Fig 2: Door Lock Control System Wiring Diagram (2 Of 7)
G07111974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

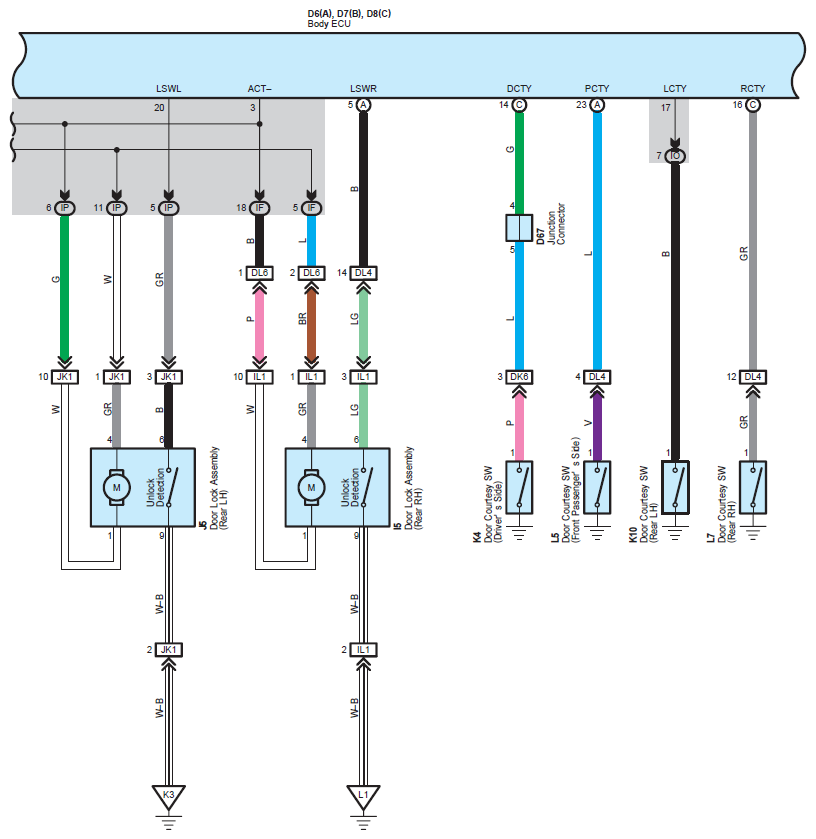

Fig 3: Door Lock Control System Wiring Diagram (3 Of 7)
G07111975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

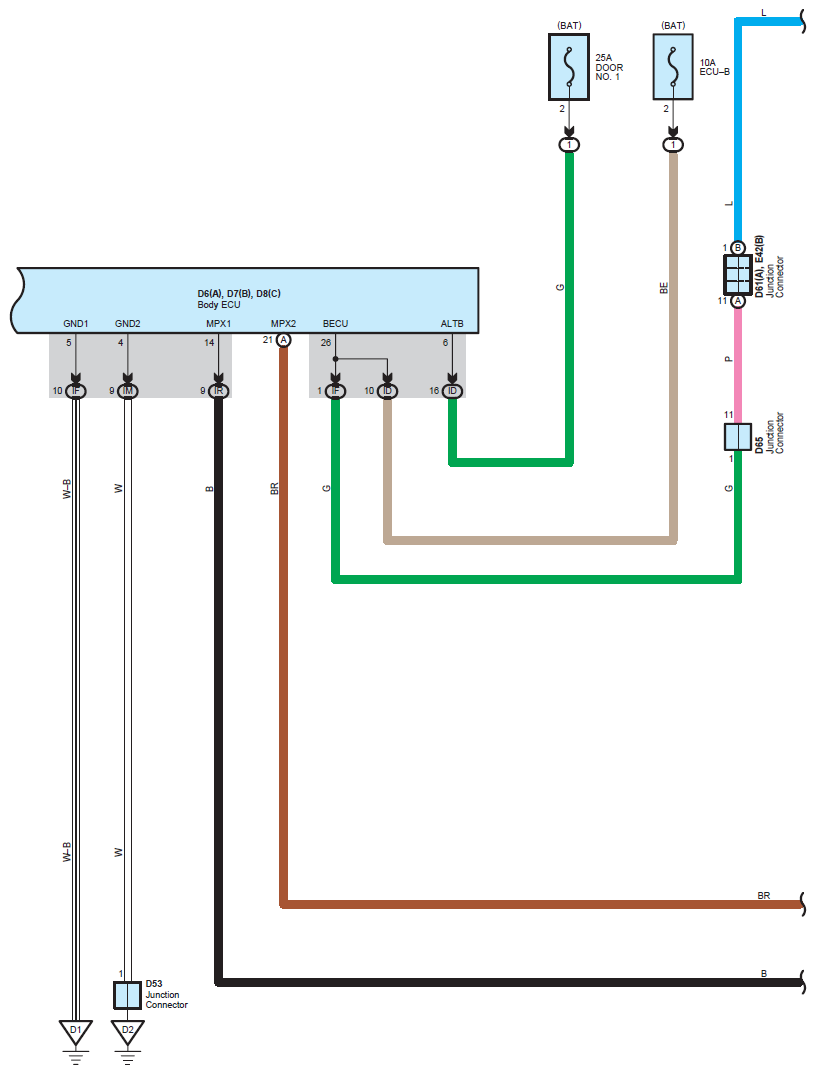

Fig 4: Door Lock Control System Wiring Diagram (4 Of 7)
G07111976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

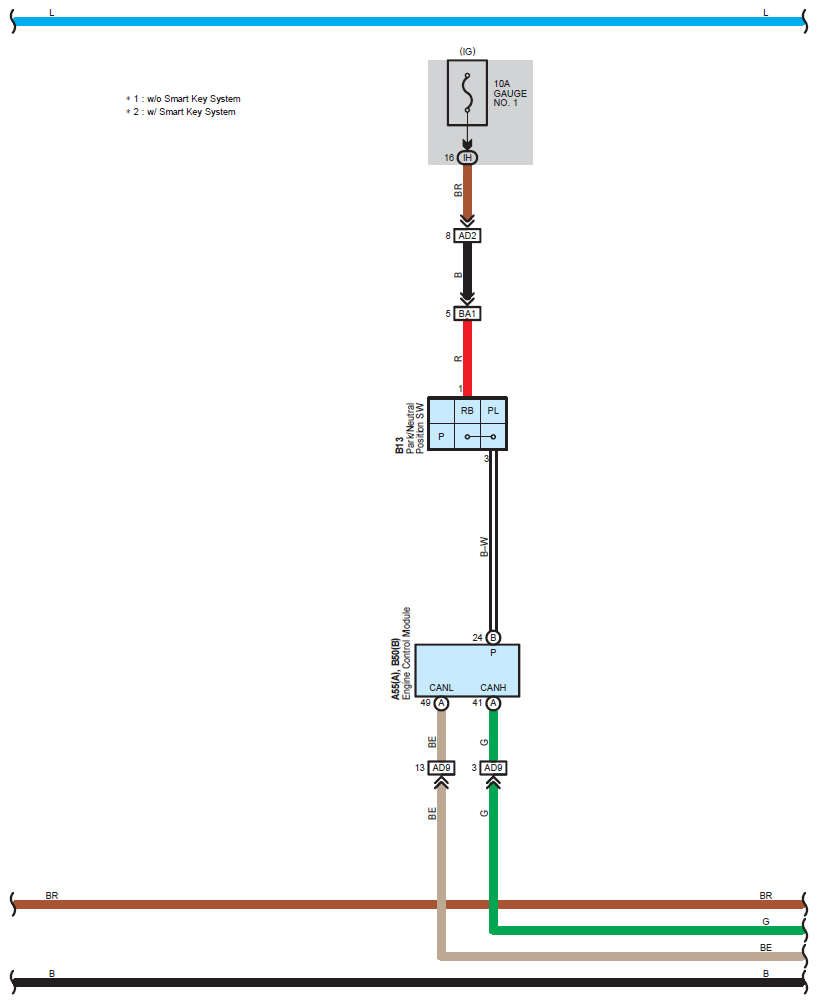

Fig 5: Door Lock Control System Wiring Diagram (5 Of 7)
G07111977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

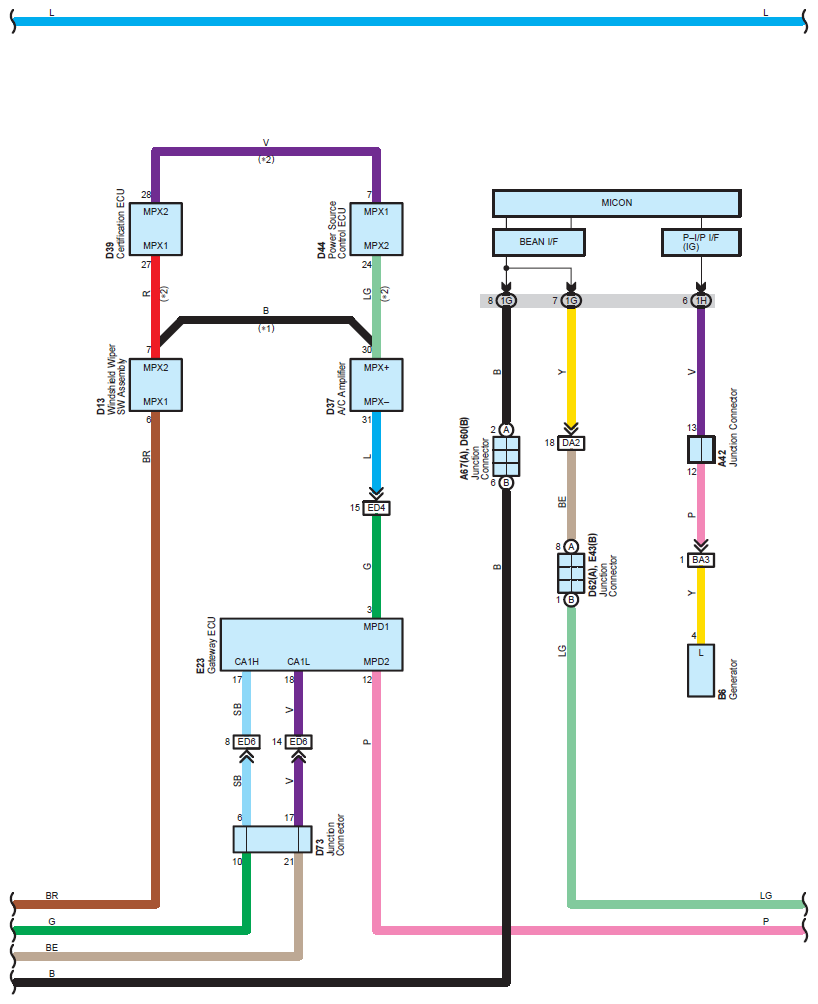

Fig 6: Door Lock Control System Wiring Diagram (6 Of 7)
G07111978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

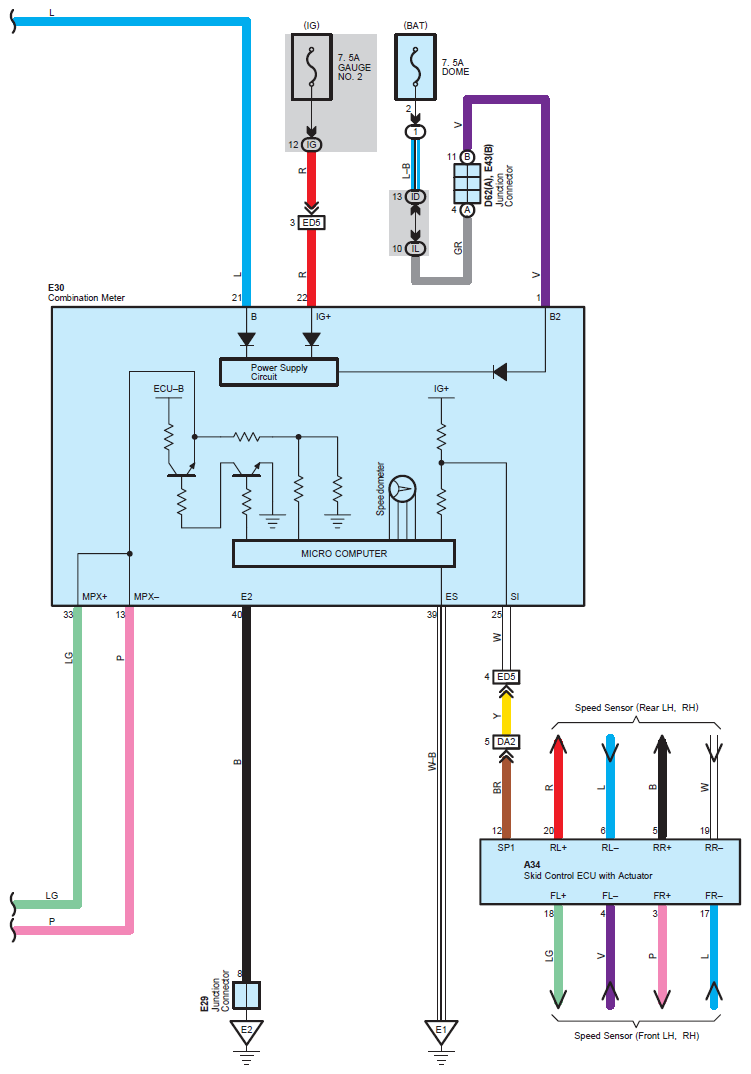

Fig 7: Door Lock Control System Wiring Diagram (7 Of 7)
G07111979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
