Engine Control: Notes

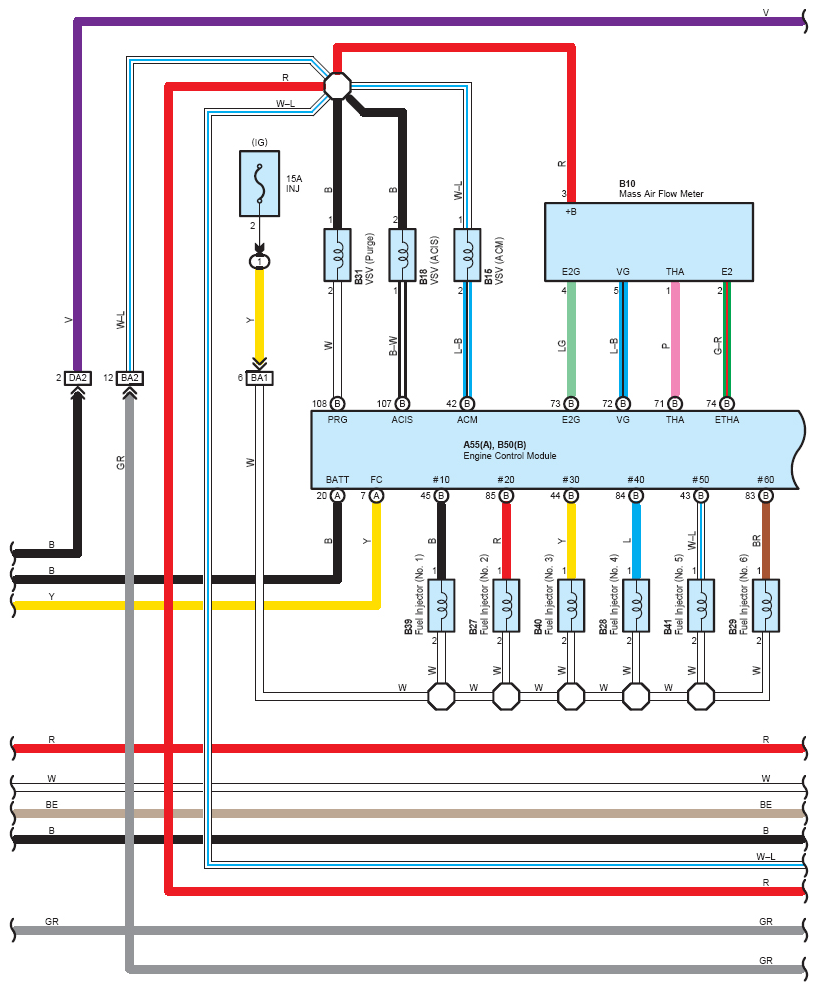

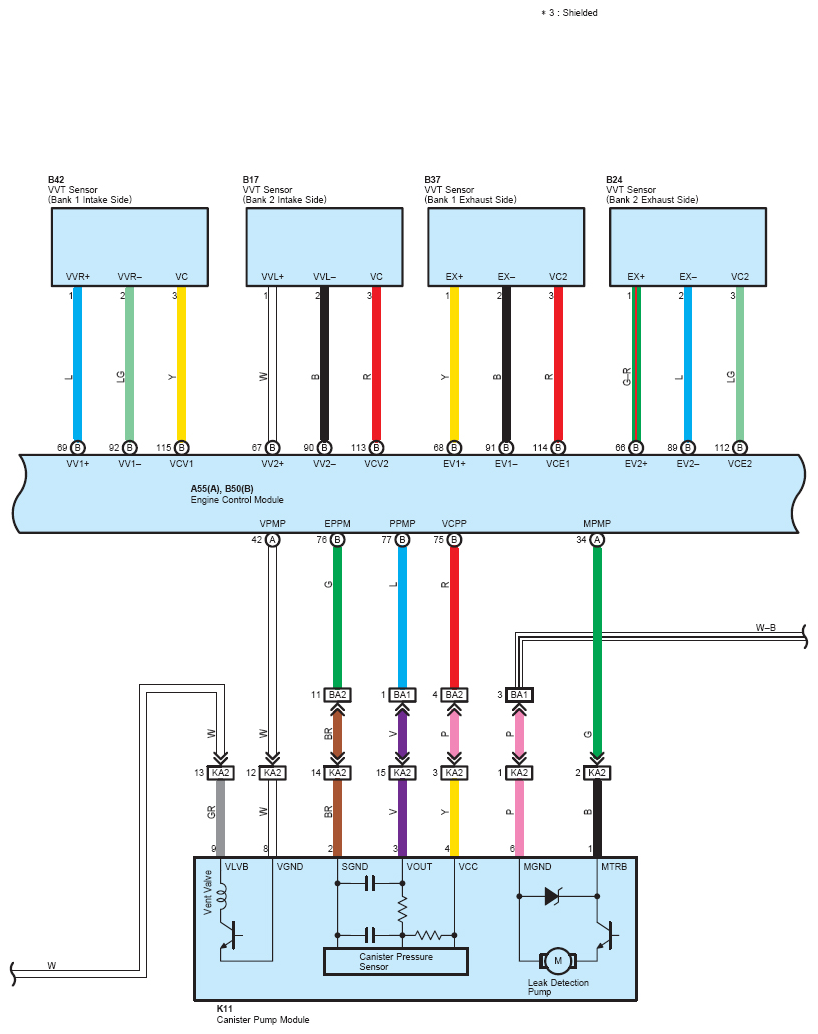

Fig 1: Engine Control System Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

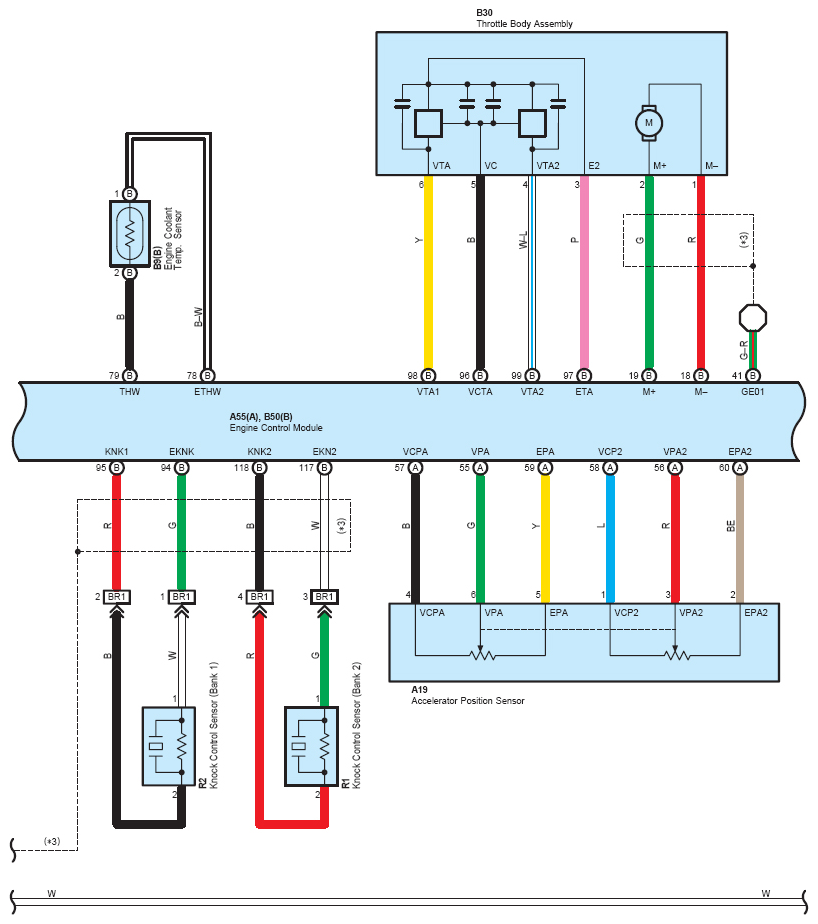

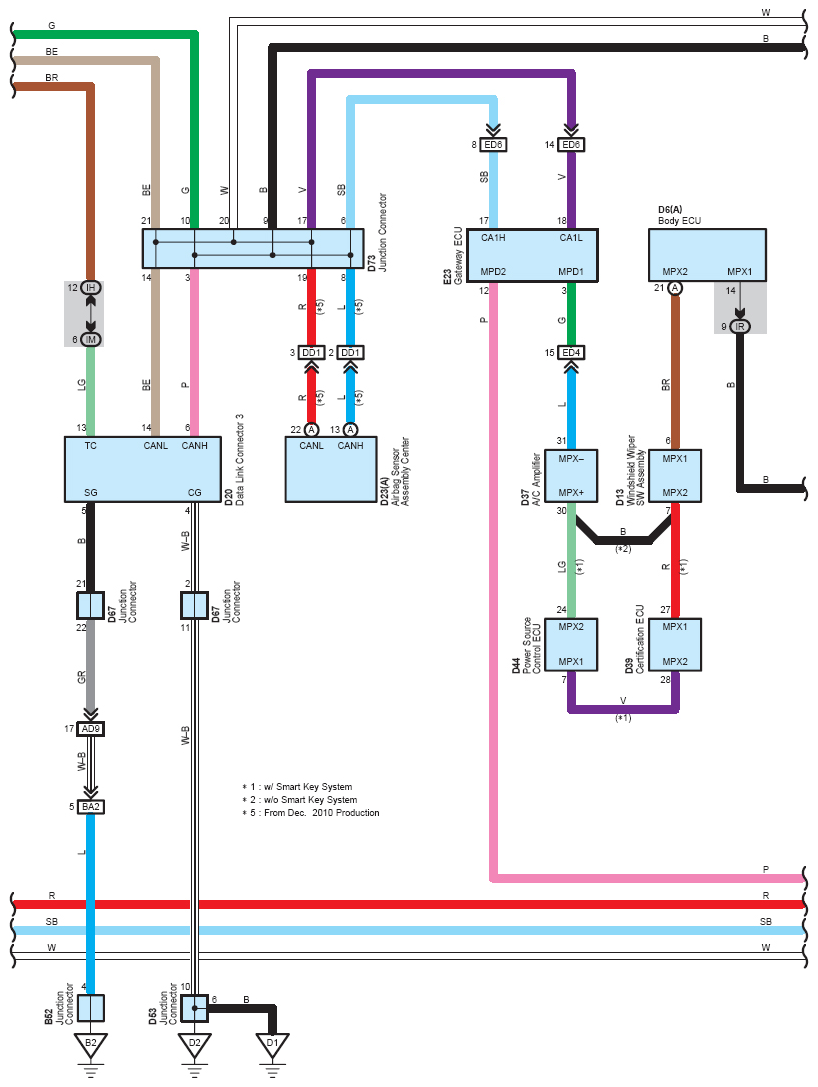

Fig 2: Engine Control System Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

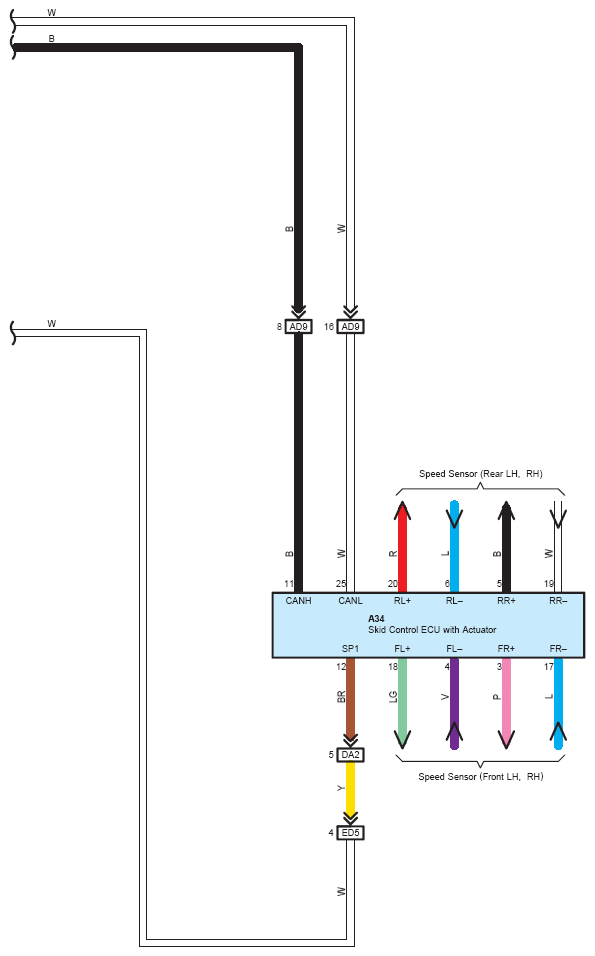

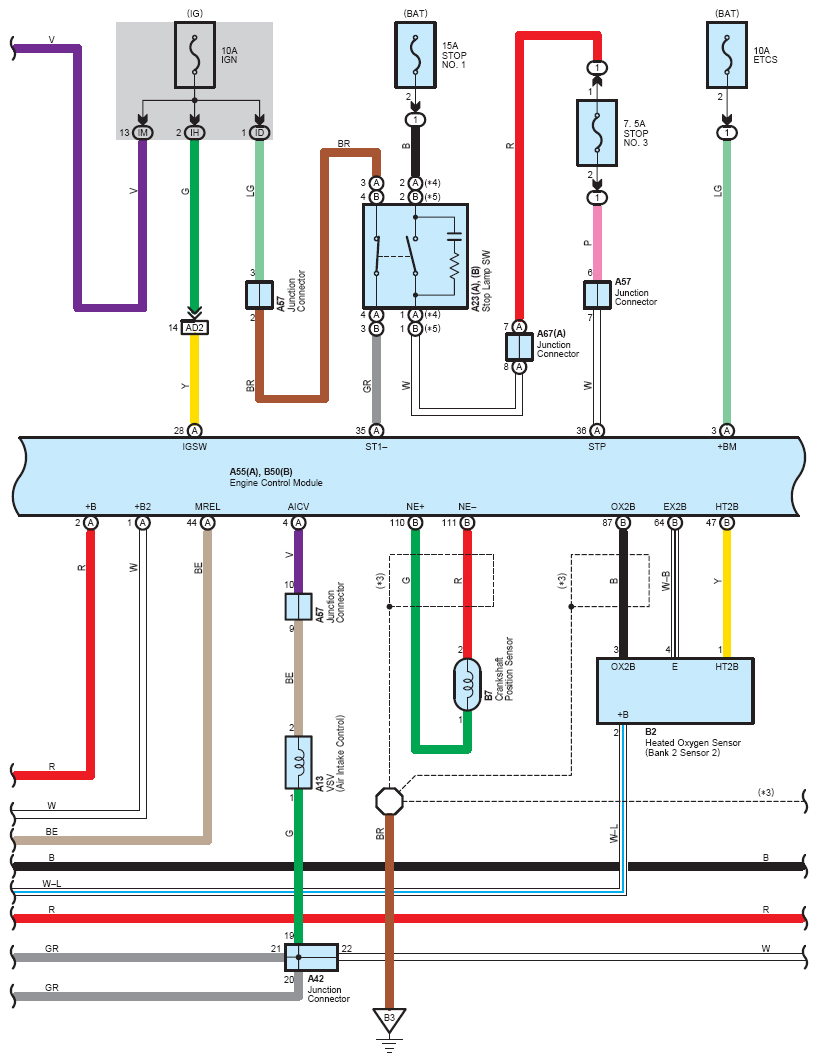

Fig 3: Engine Control System Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

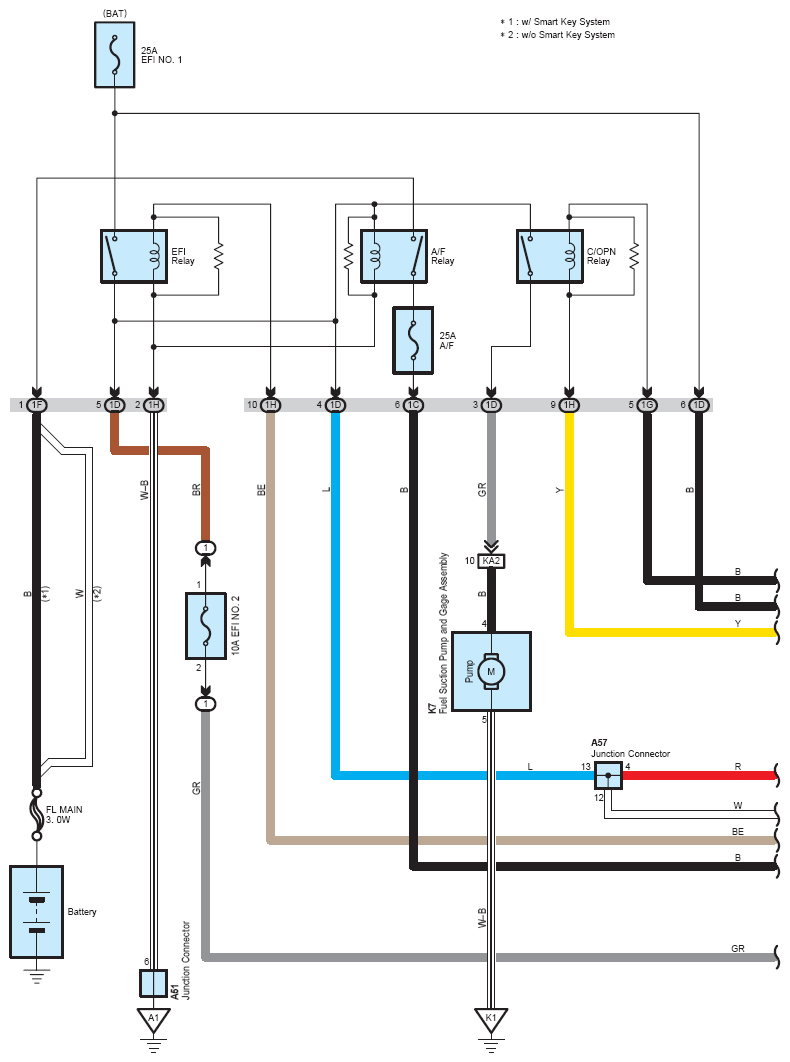

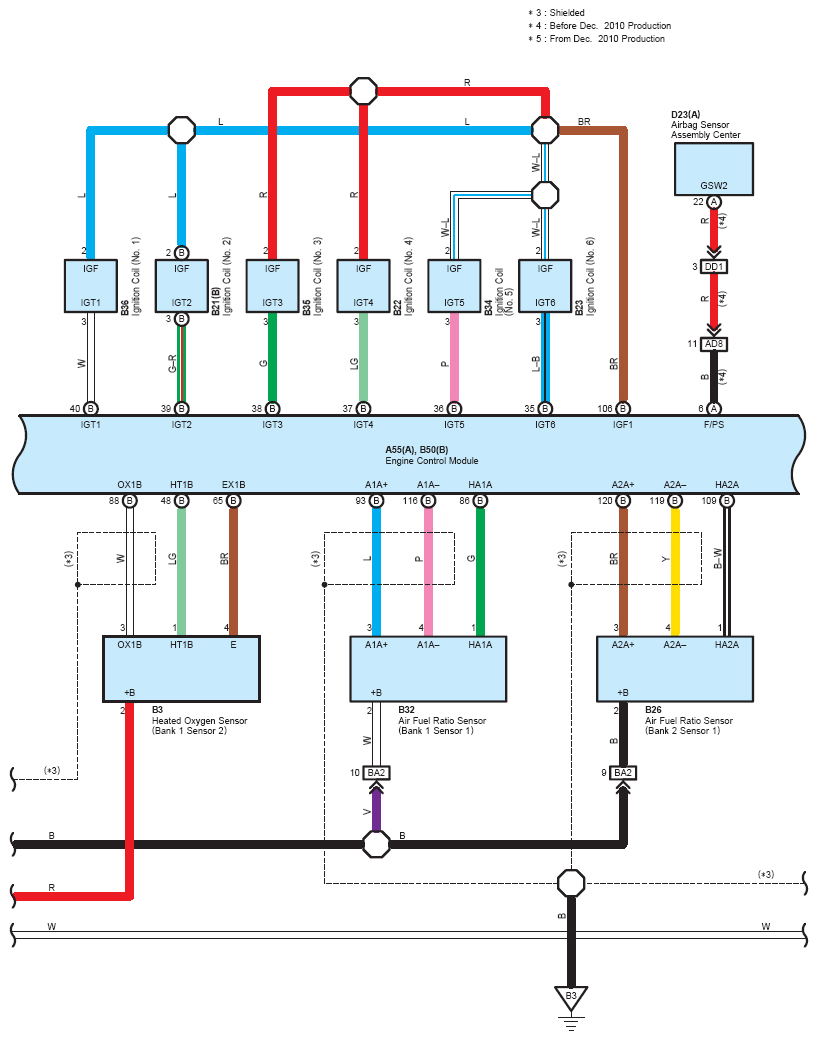

Fig 4: Engine Control System Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

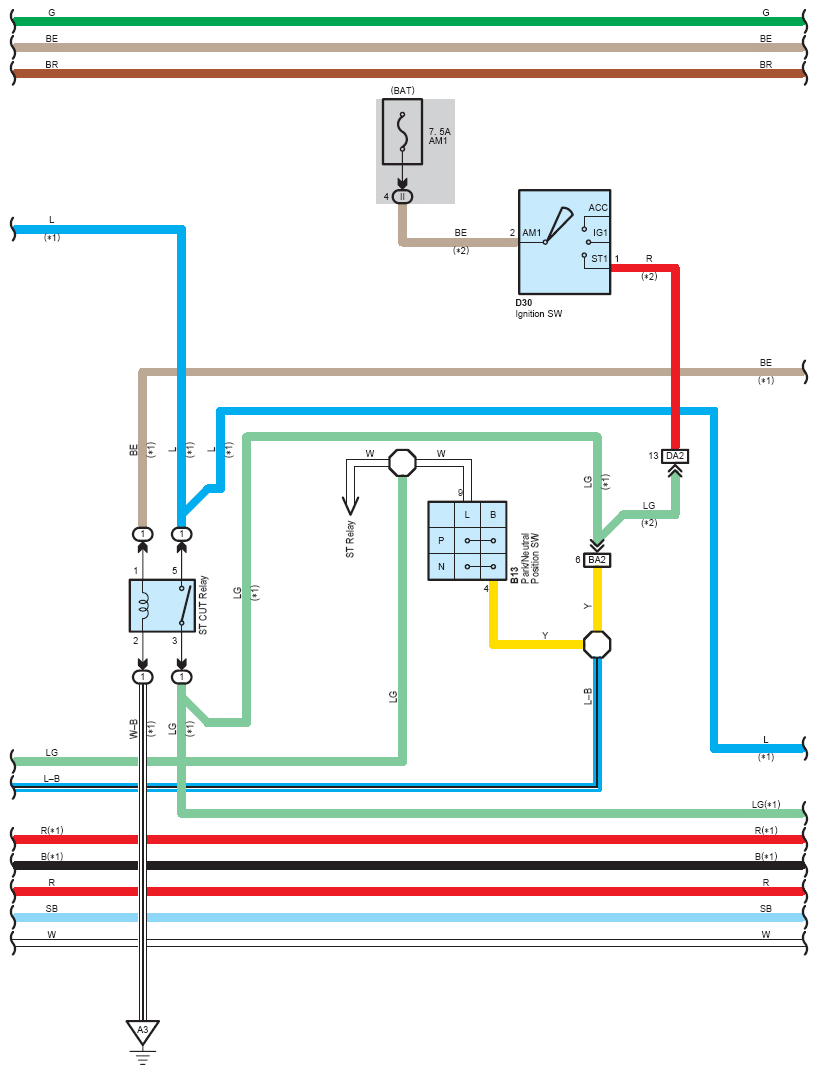

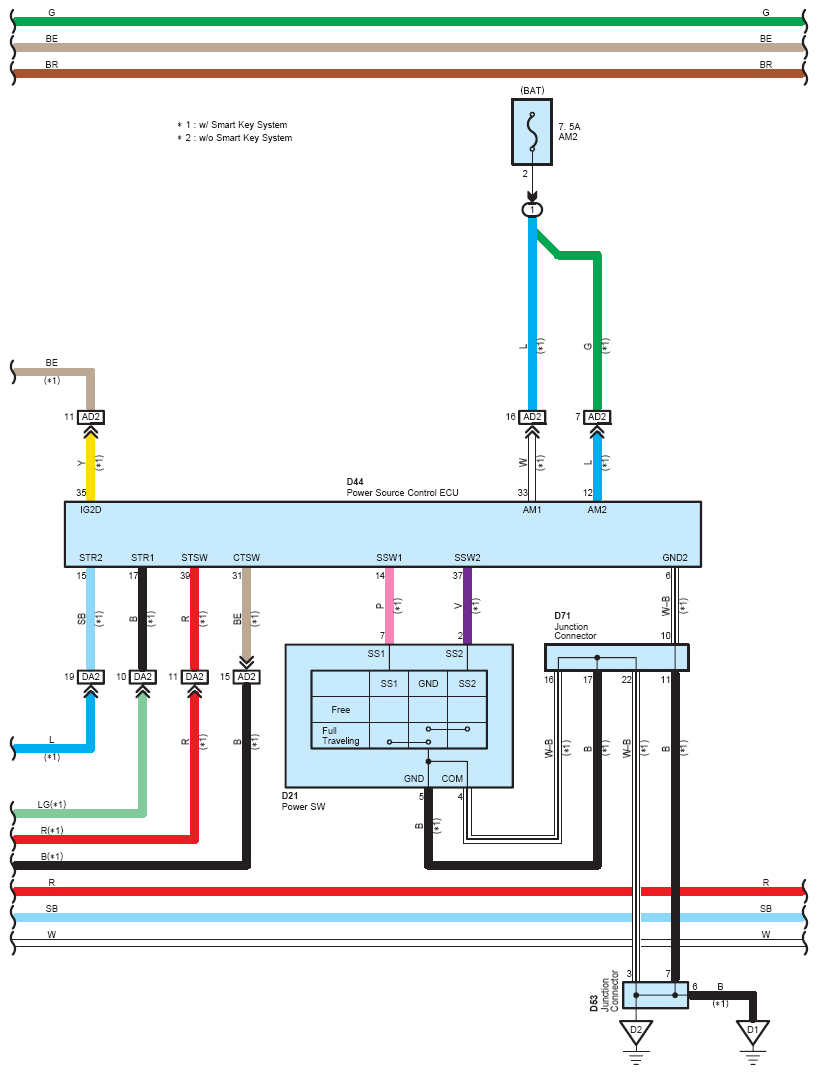

Fig 5: Engine Control System Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

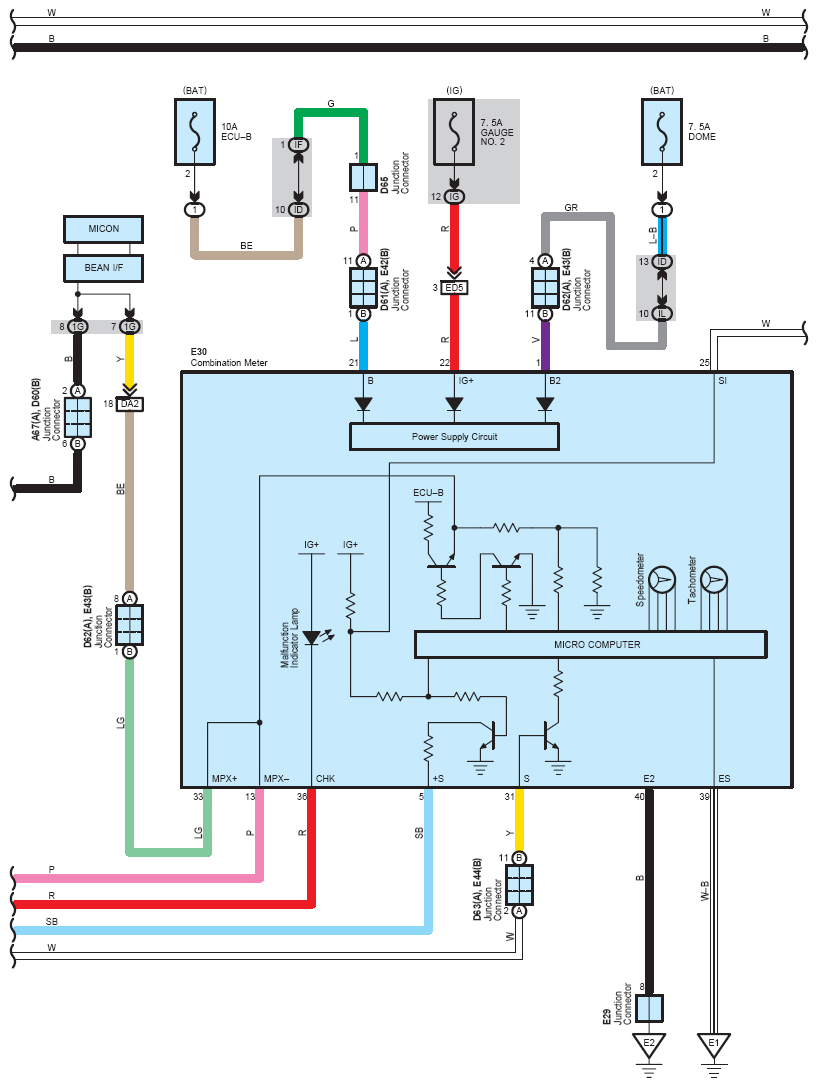

Fig 6: Engine Control System Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

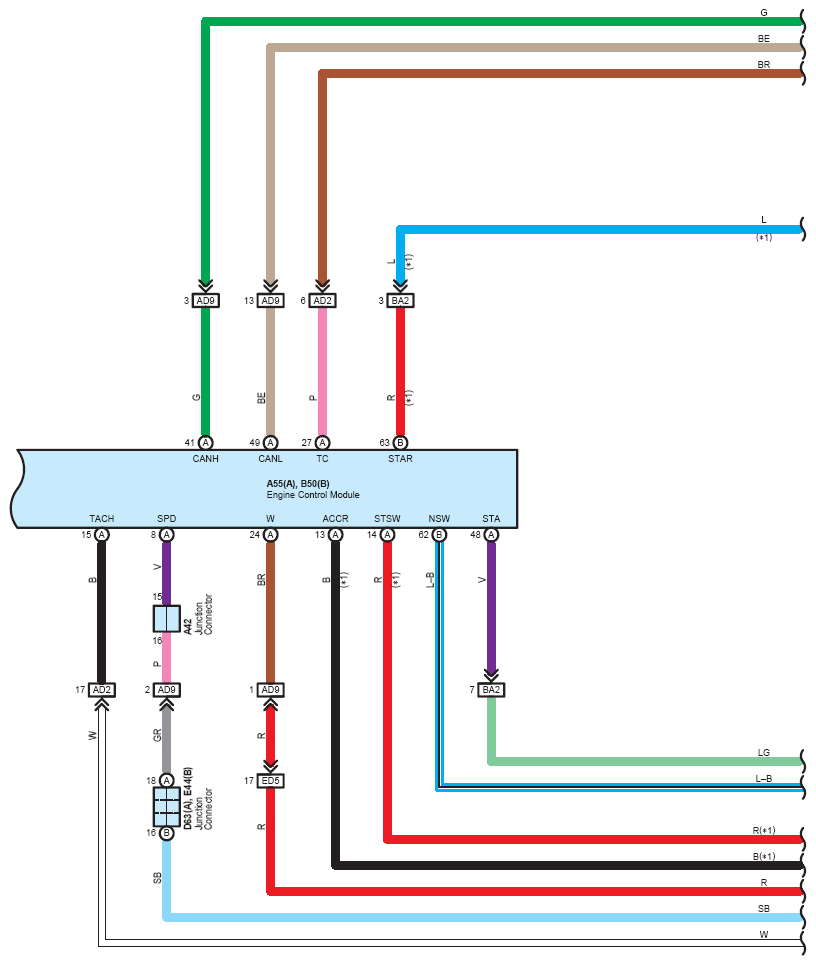

Fig 7: Engine Control System Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

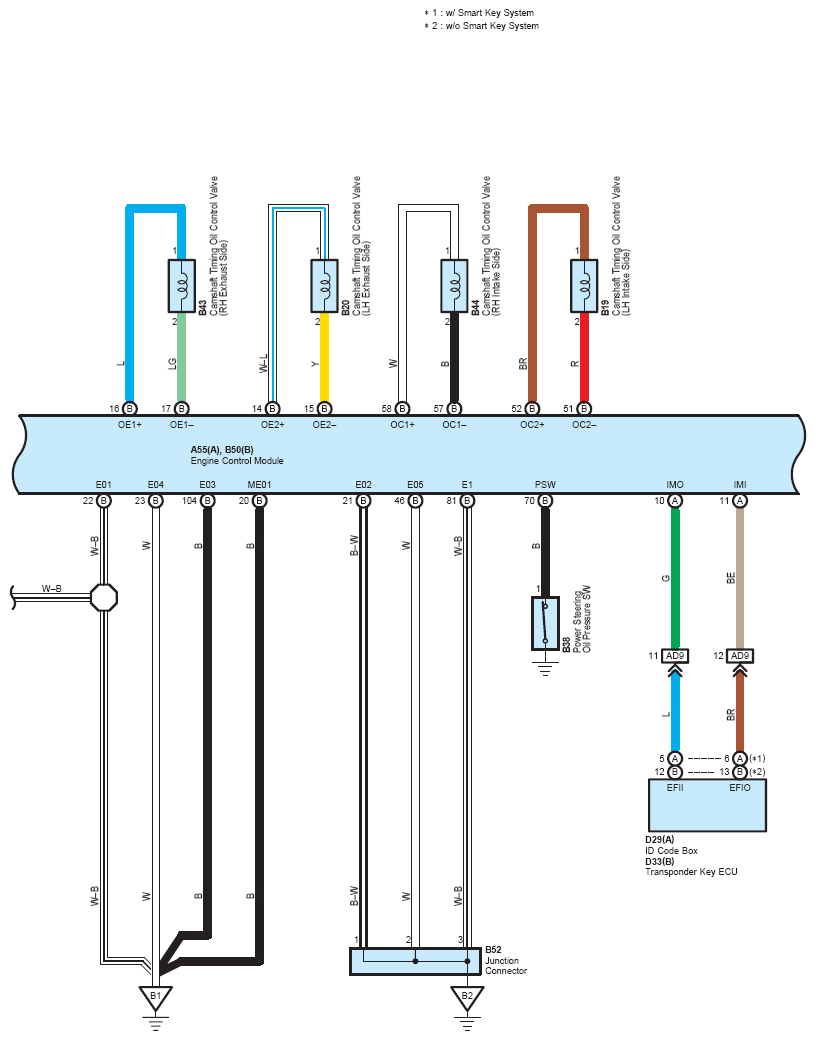

Fig 8: Engine Control System Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Control System Wiring Diagram (9 Of 13)

Fig 10: Engine Control System Wiring Diagram (10 Of 13)

Fig 11: Engine Control System Wiring Diagram (11 Of 13)

Fig 12: Engine Control System Wiring Diagram (12 Of 13)

Fig 13: Engine Control System Wiring Diagram (13 Of 13)
