Light Auto Turn Off System: Notes

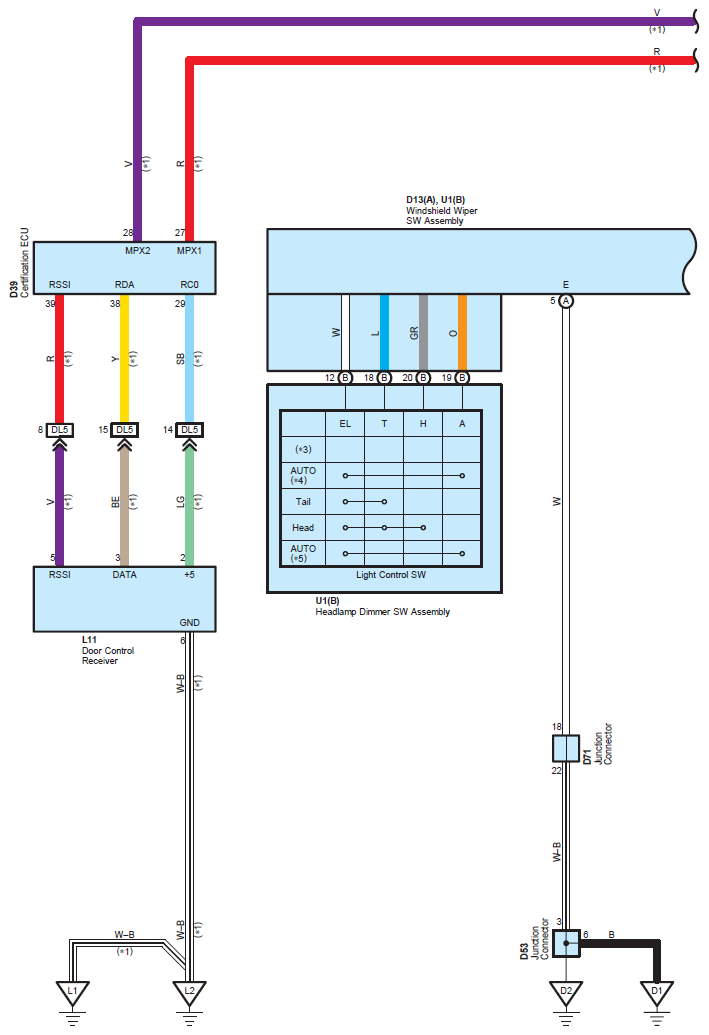

Fig 1: Light Auto Turn Off System Wiring Diagram (1 Of 4)
G07111917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

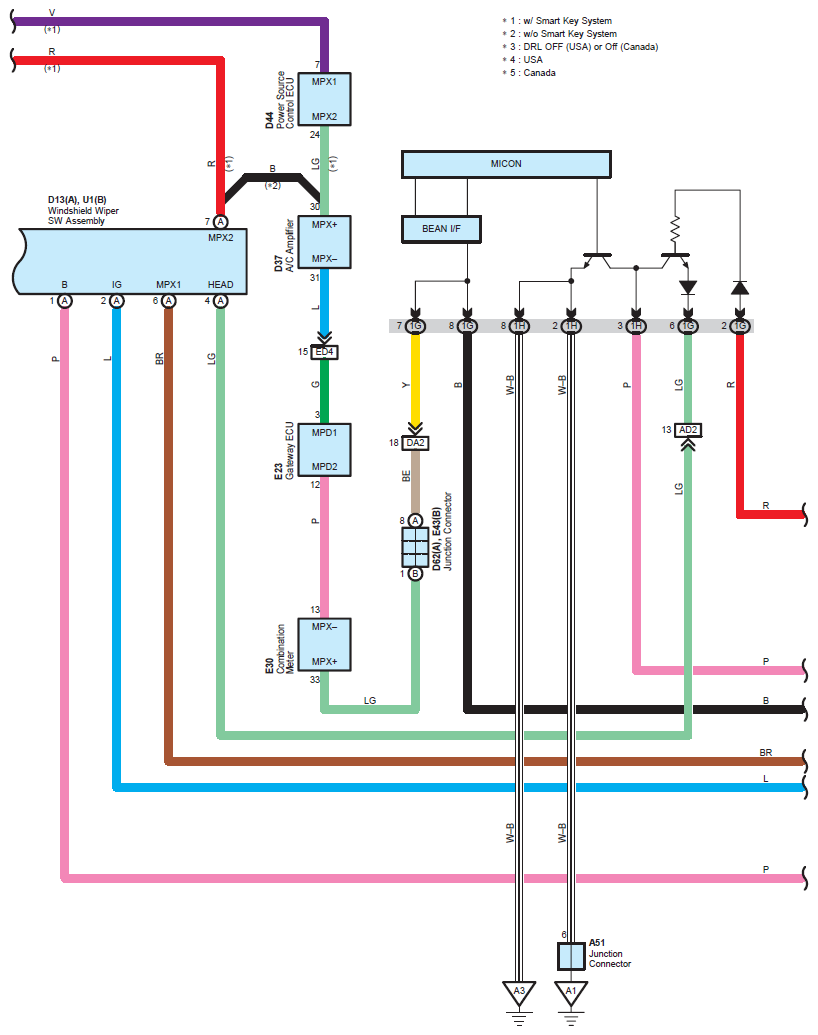

Fig 2: Light Auto Turn Off System Wiring Diagram (2 Of 4)
G07111918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

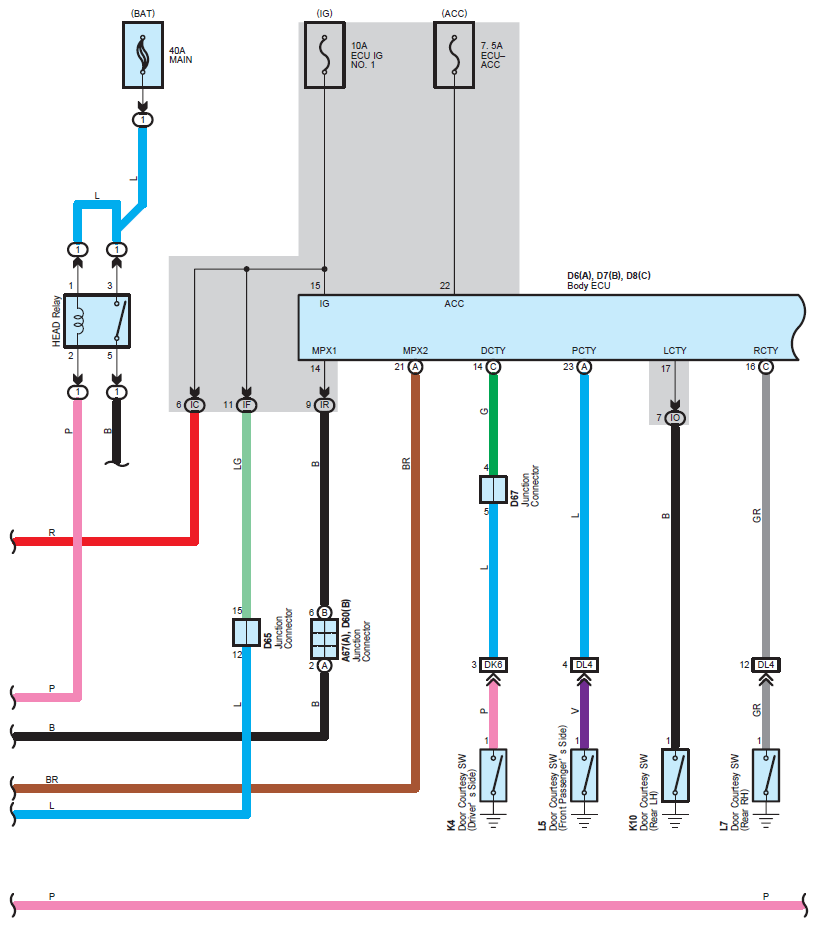

Fig 3: Light Auto Turn Off System Wiring Diagram (3 Of 4)
G07111919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

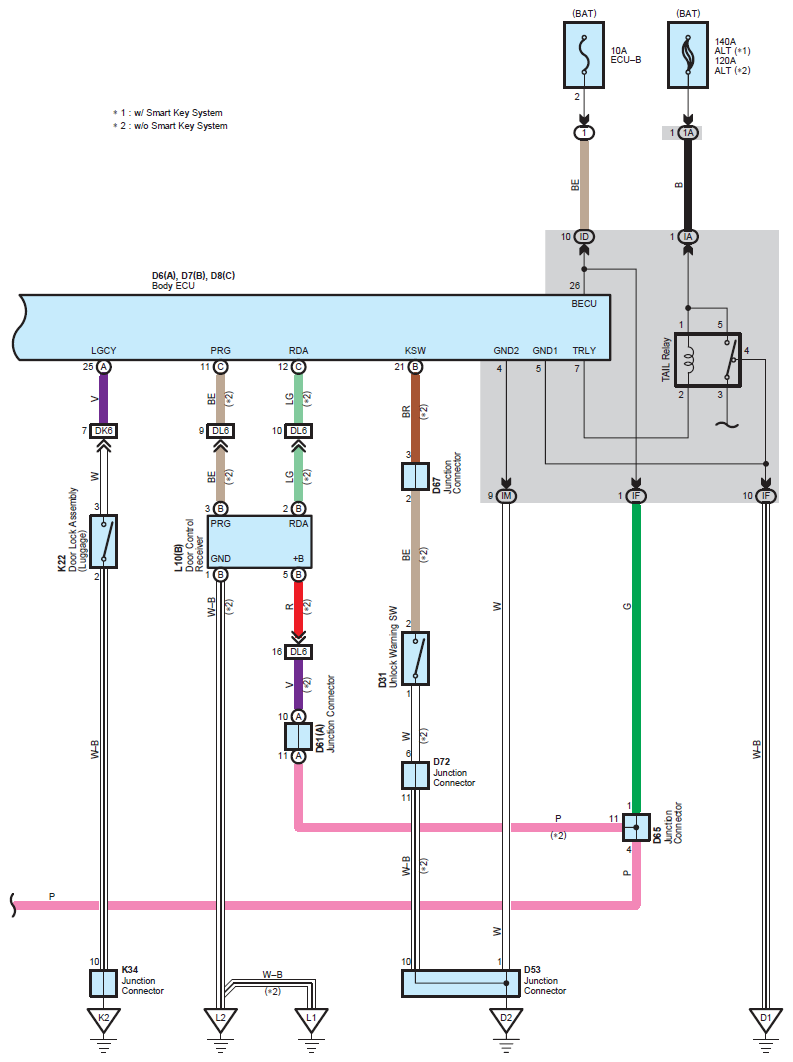

Fig 4: Light Auto Turn Off System Wiring Diagram (4 Of 4)
G07111920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
