Remote Control Mirror (w/Driving Position Memory): Notes

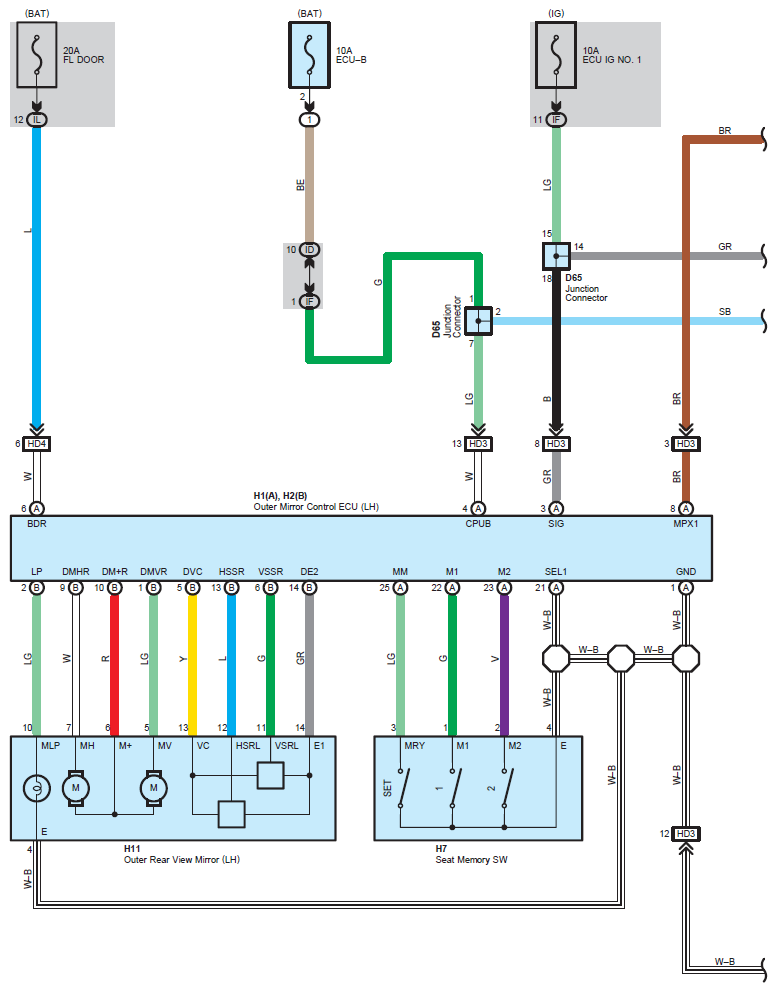

Fig 1: Remote Control Mirror (w/Driving Position Memory) System Wiring Diagram (1 Of 4)
G07112065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

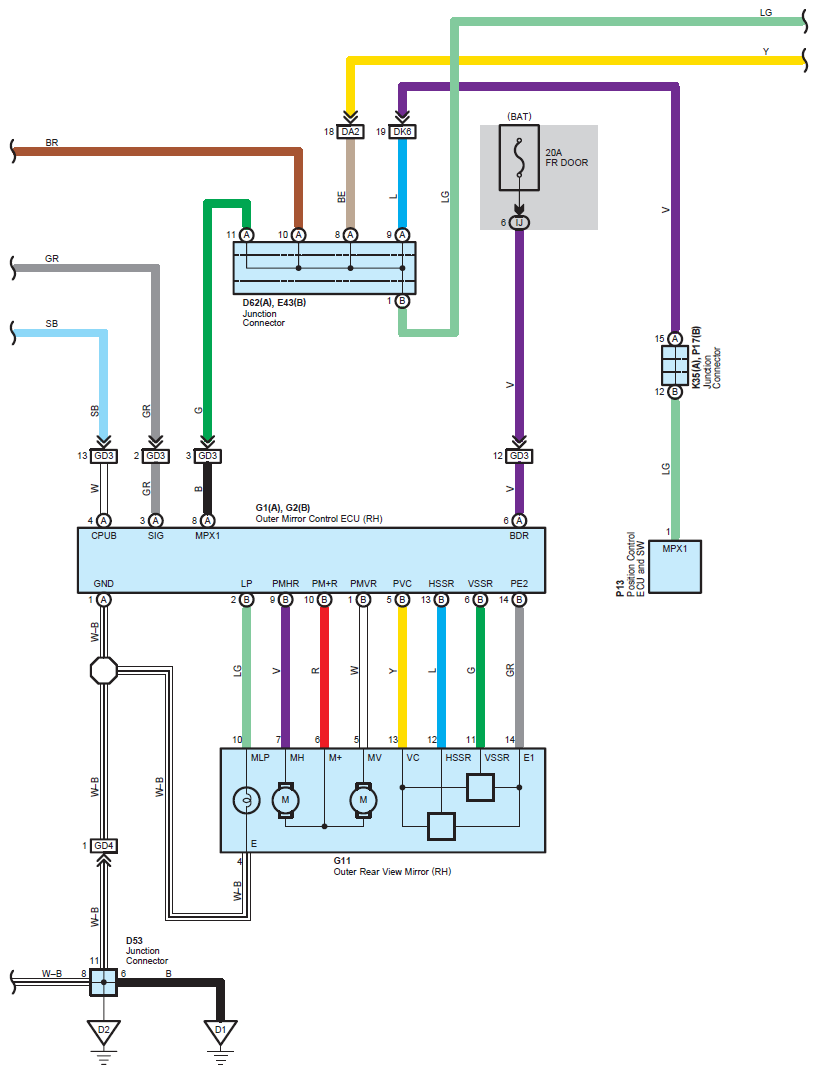

Fig 2: Remote Control Mirror (w/Driving Position Memory) System Wiring Diagram (2 Of 4)
G07112066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

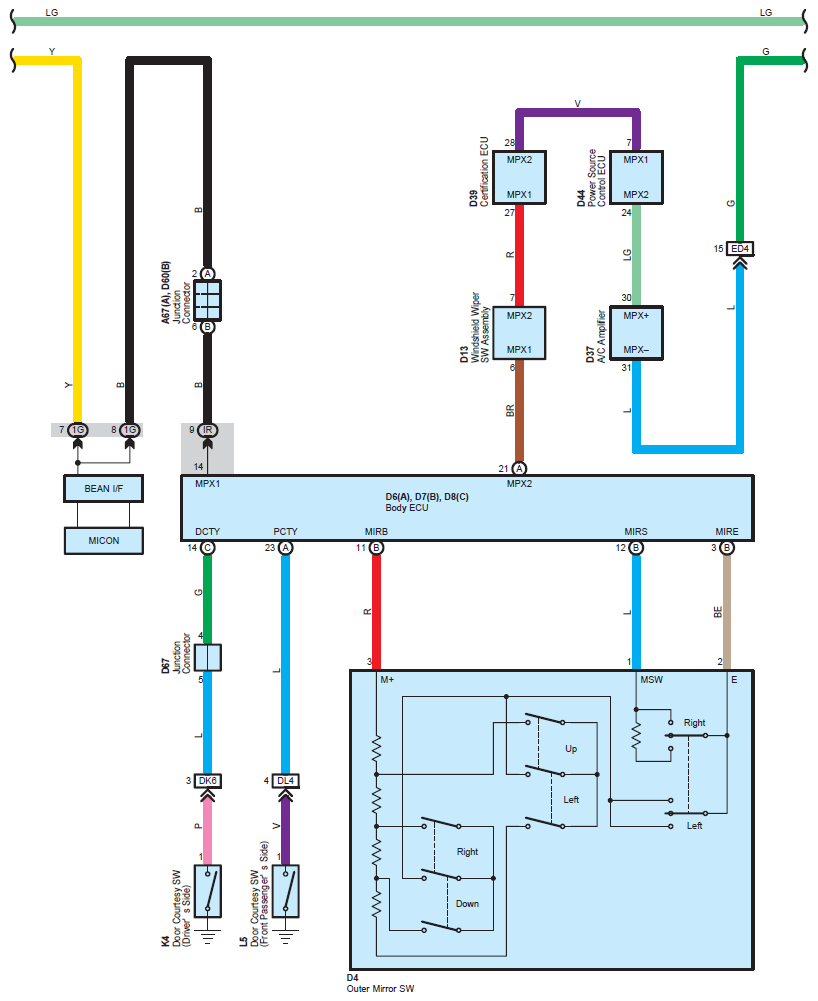

Fig 3: Remote Control Mirror (w/Driving Position Memory) System Wiring Diagram (3 Of 4)
G07112067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

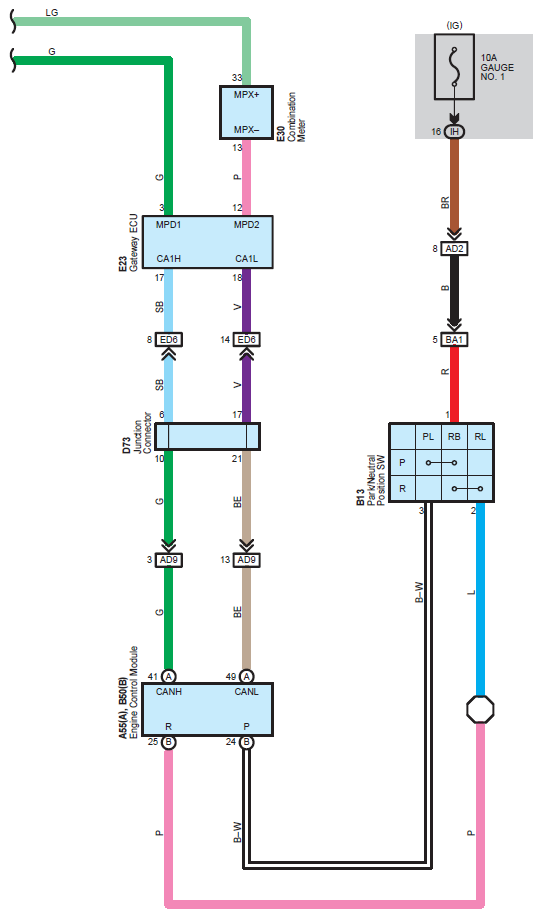

Fig 4: Remote Control Mirror (w/Driving Position Memory) System Wiring Diagram (4 Of 4)
G07112068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
