Wireless Door Lock Control (w/Smart Key System): Notes

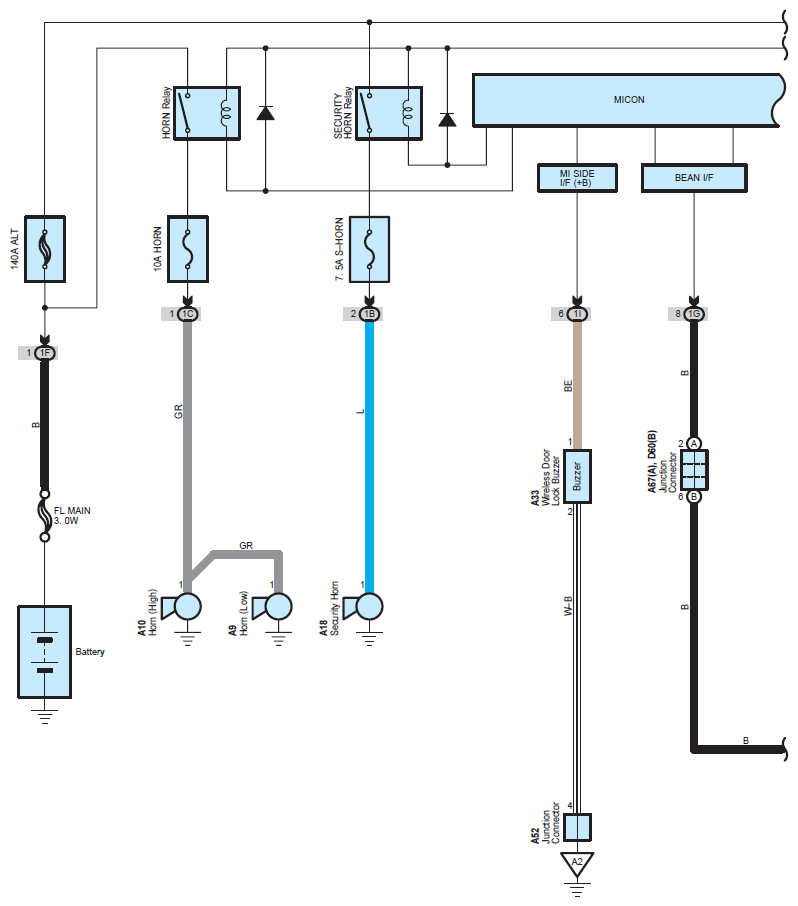

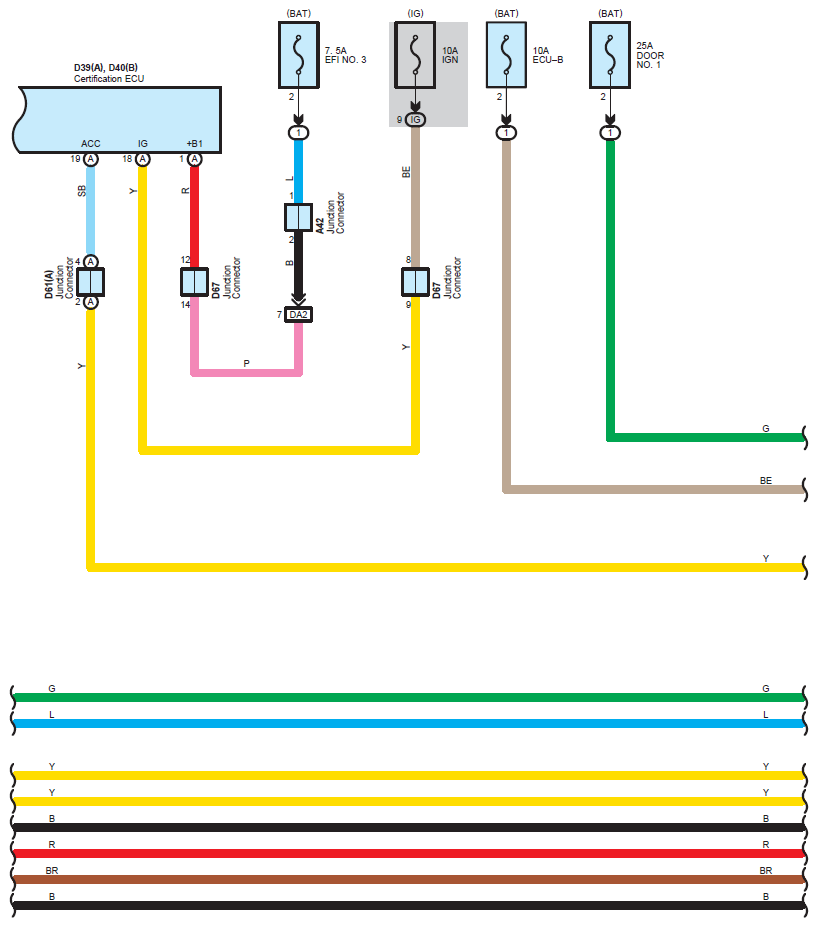

Fig 1: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

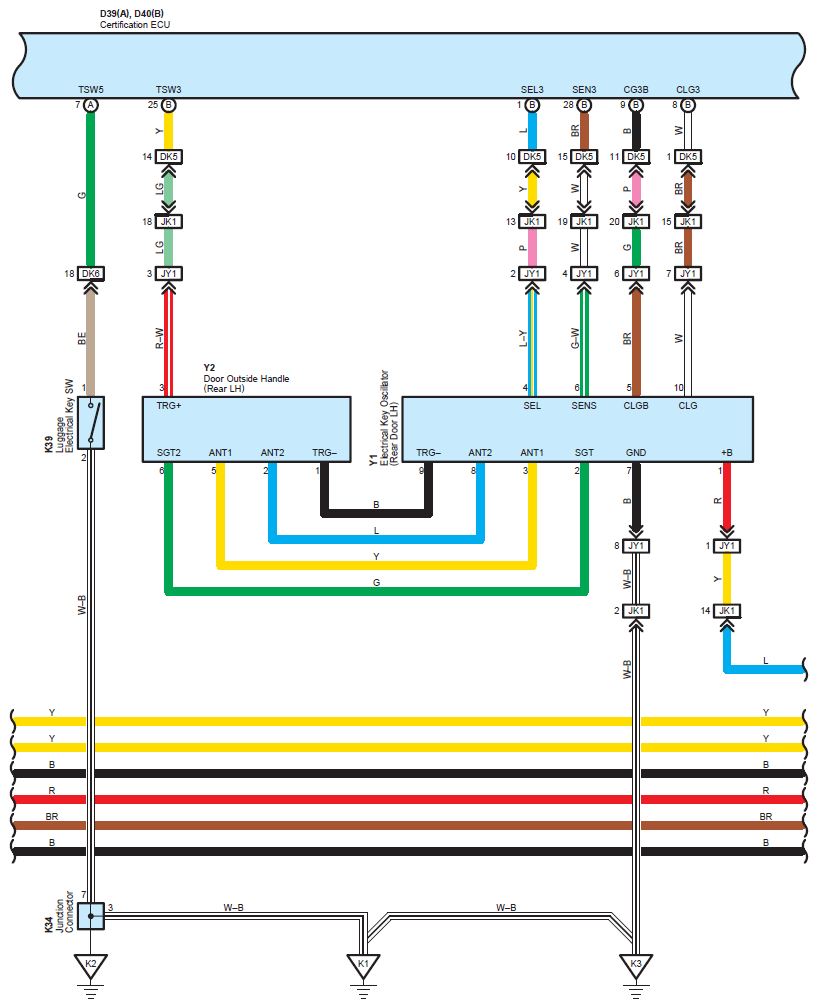

Fig 2: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

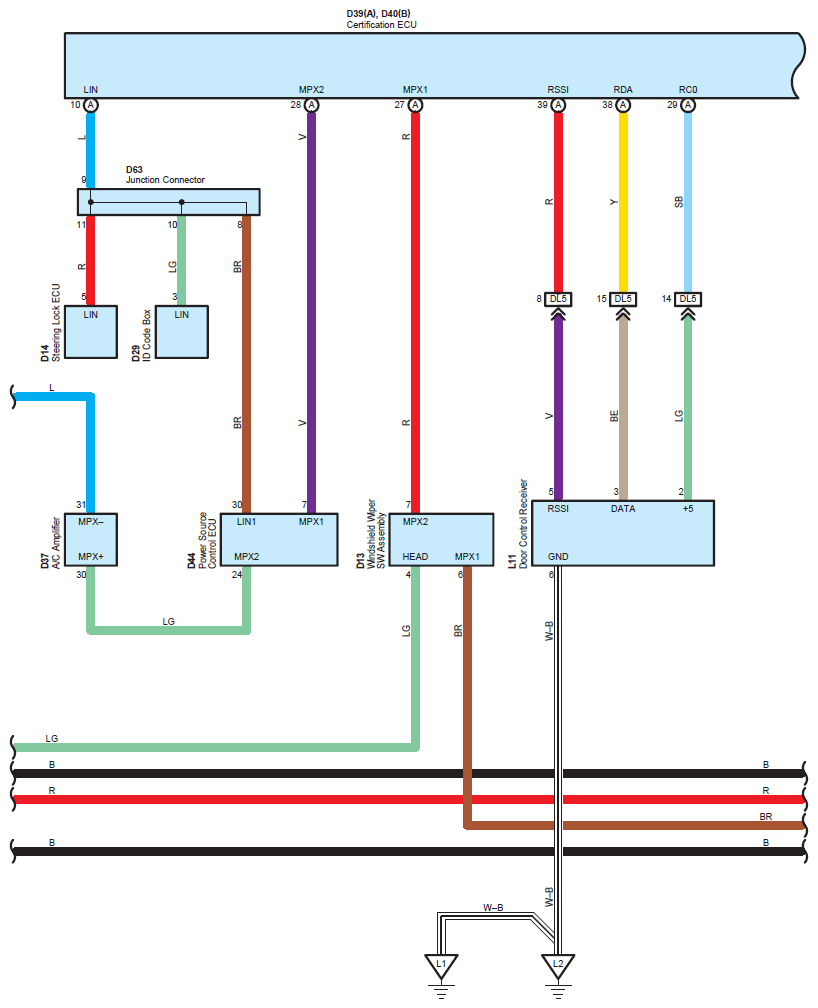

Fig 3: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

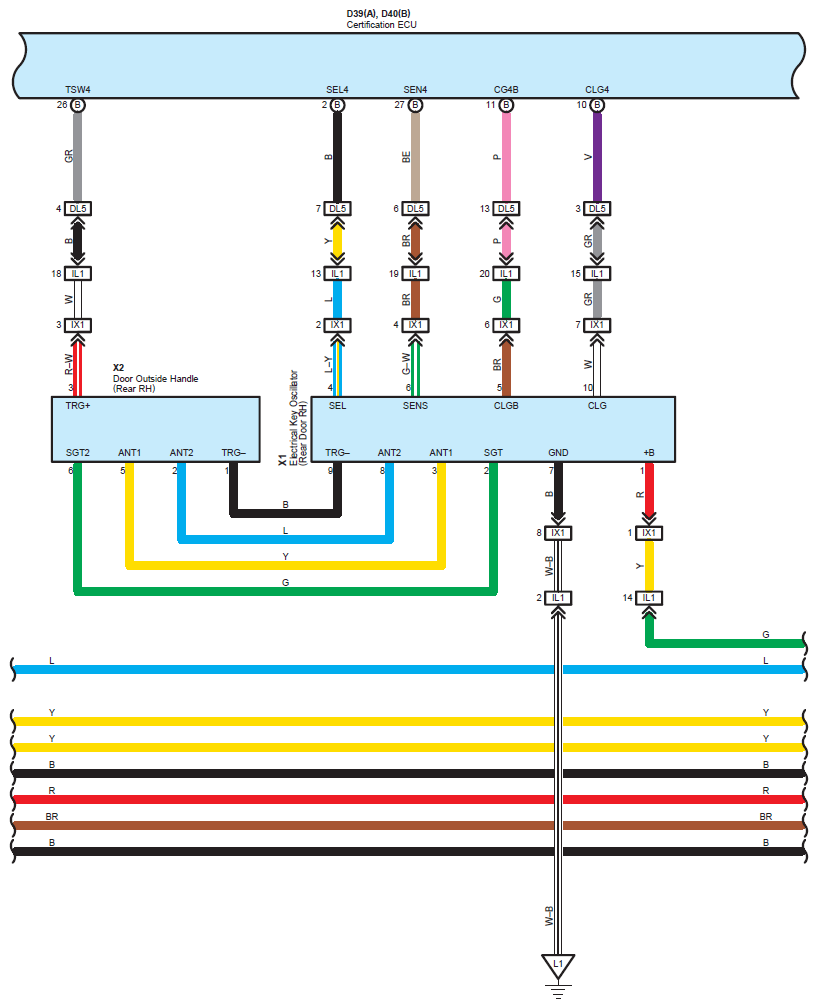

Fig 4: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

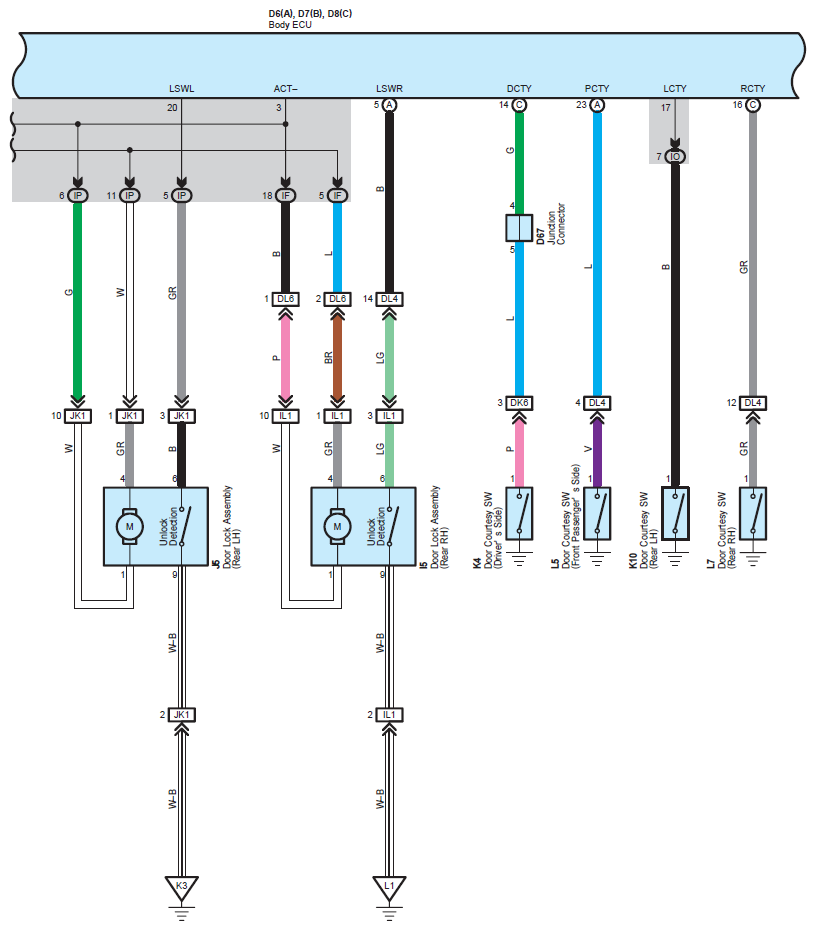

Fig 5: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

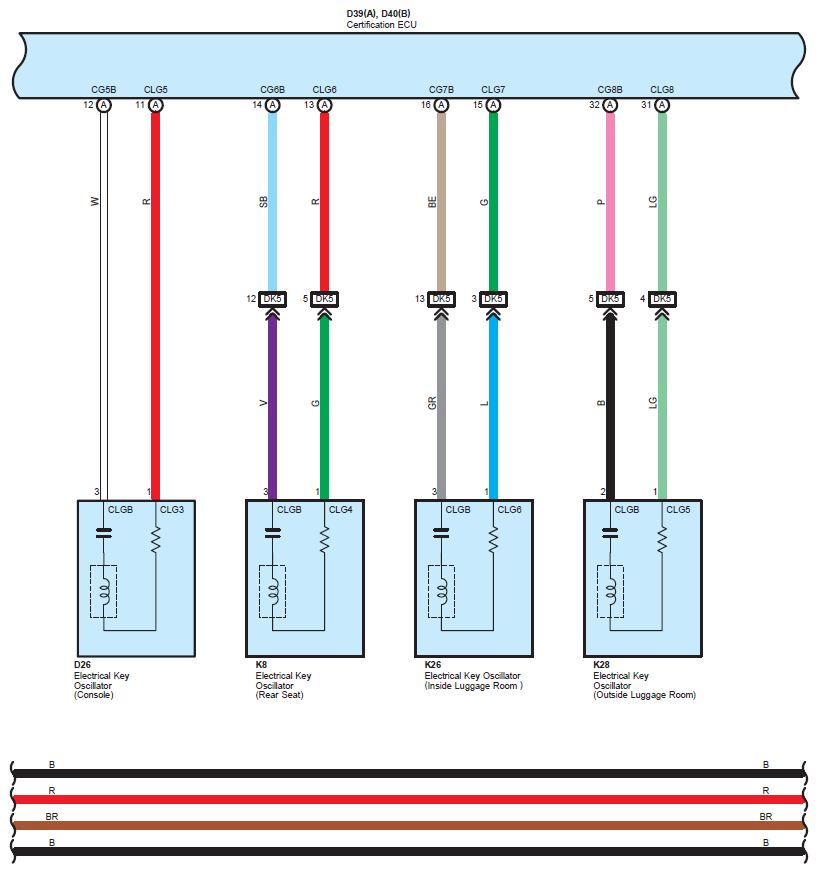

Fig 6: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

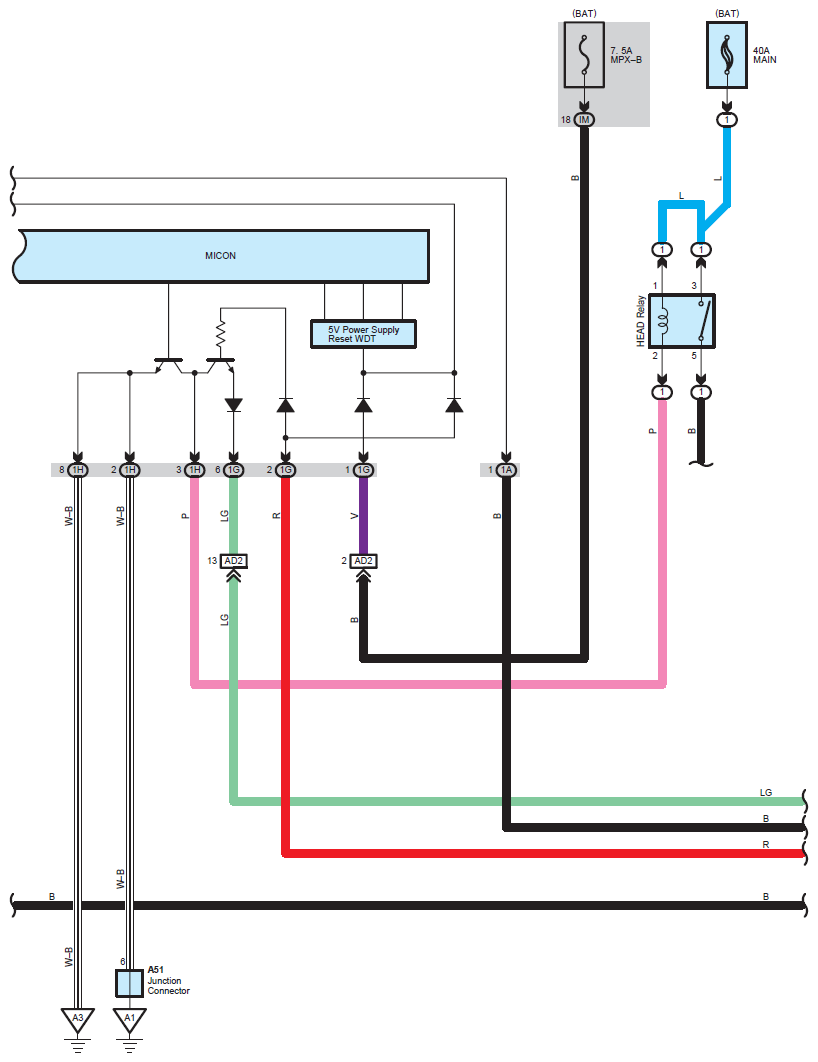

Fig 7: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

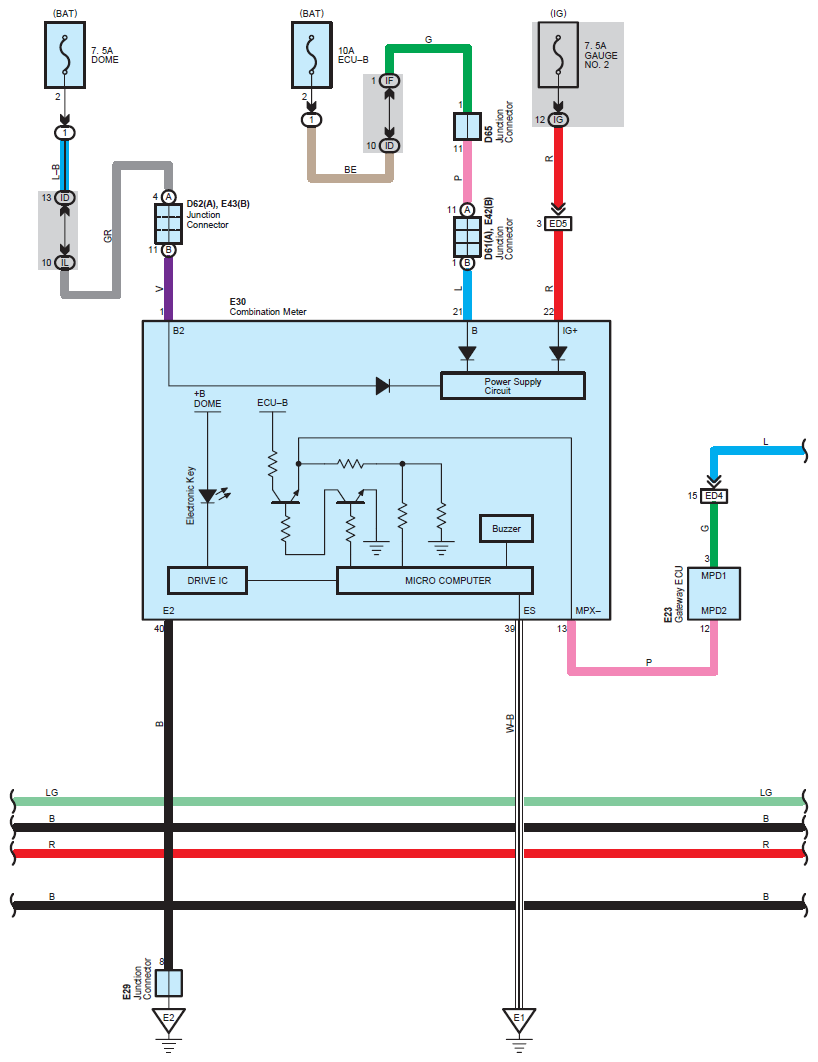

Fig 8: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

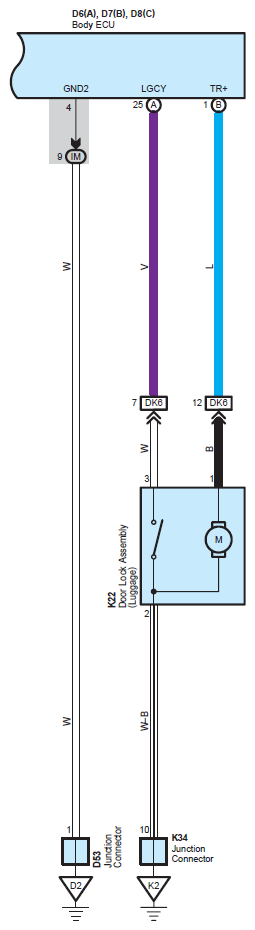

Fig 9: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

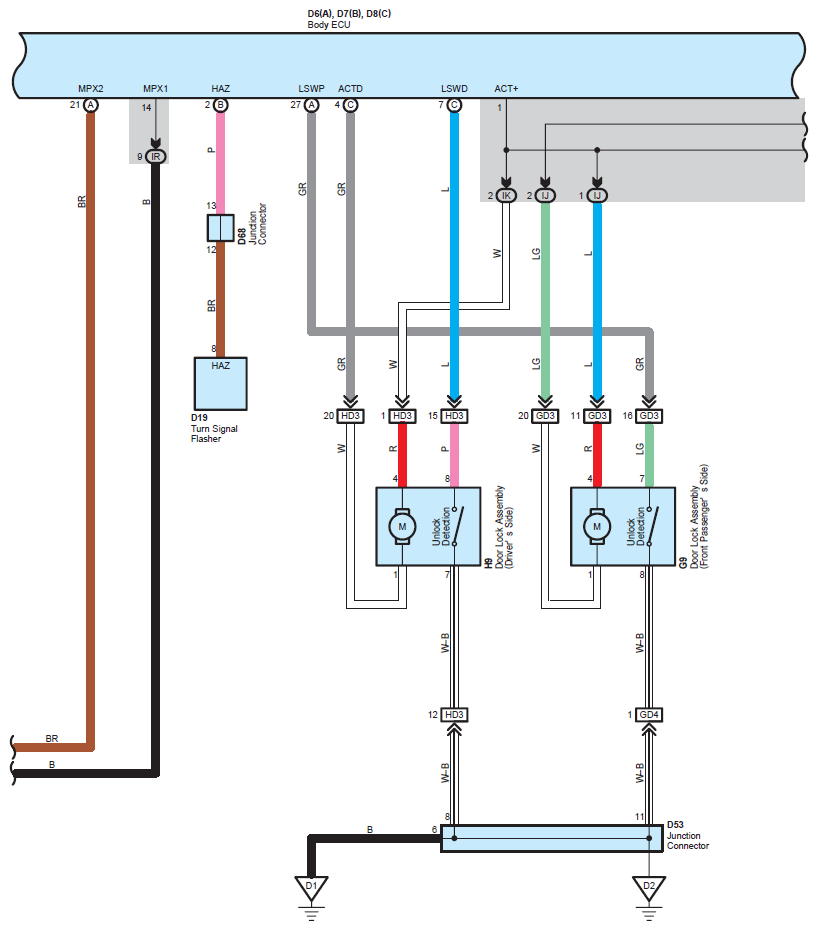

Fig 10: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (10 Of 14)

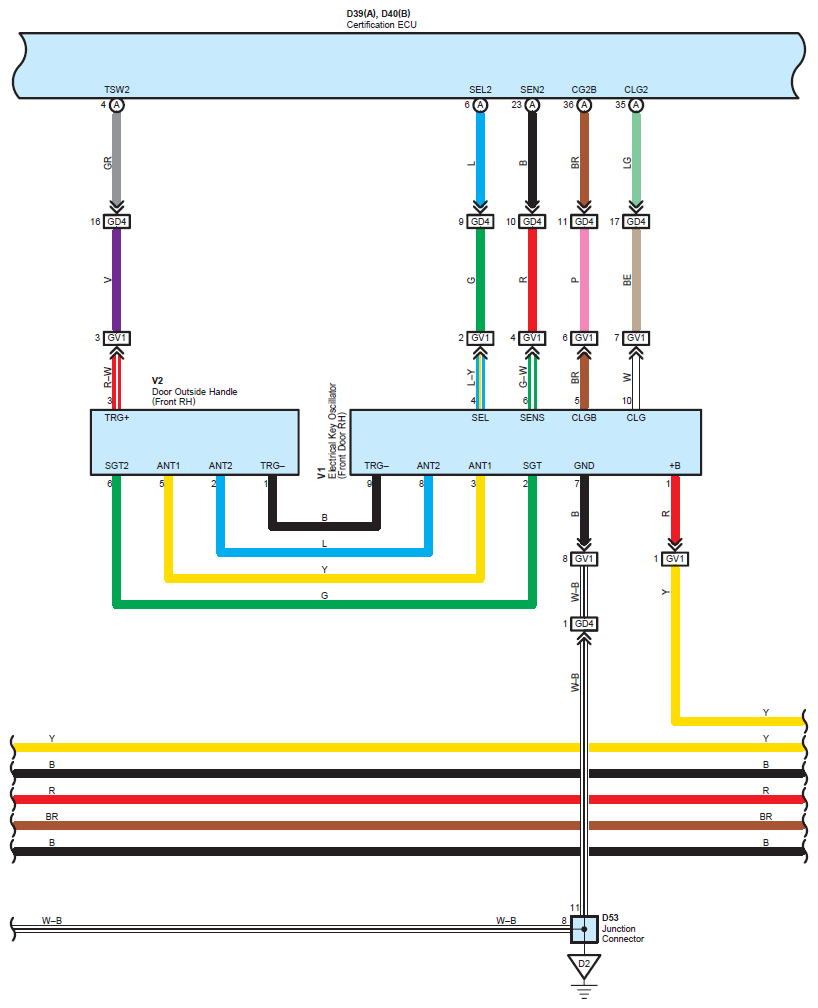

Fig 11: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (11 Of 14)

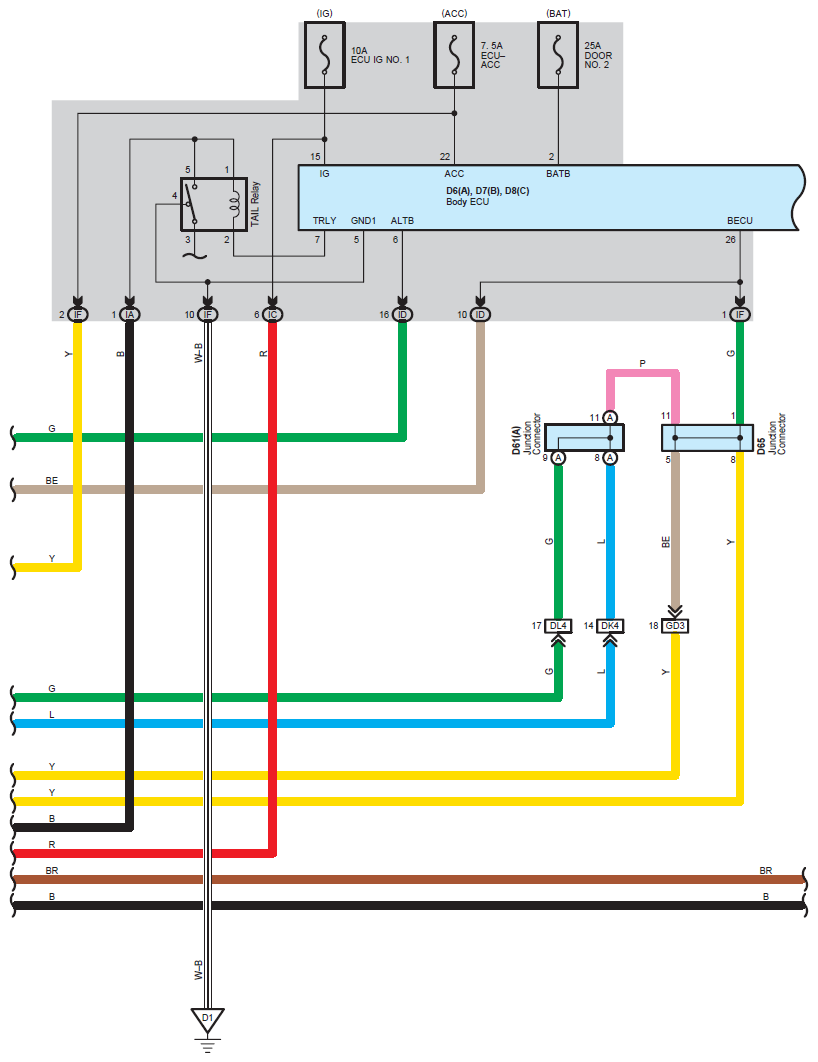

Fig 12: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (12 Of 14)

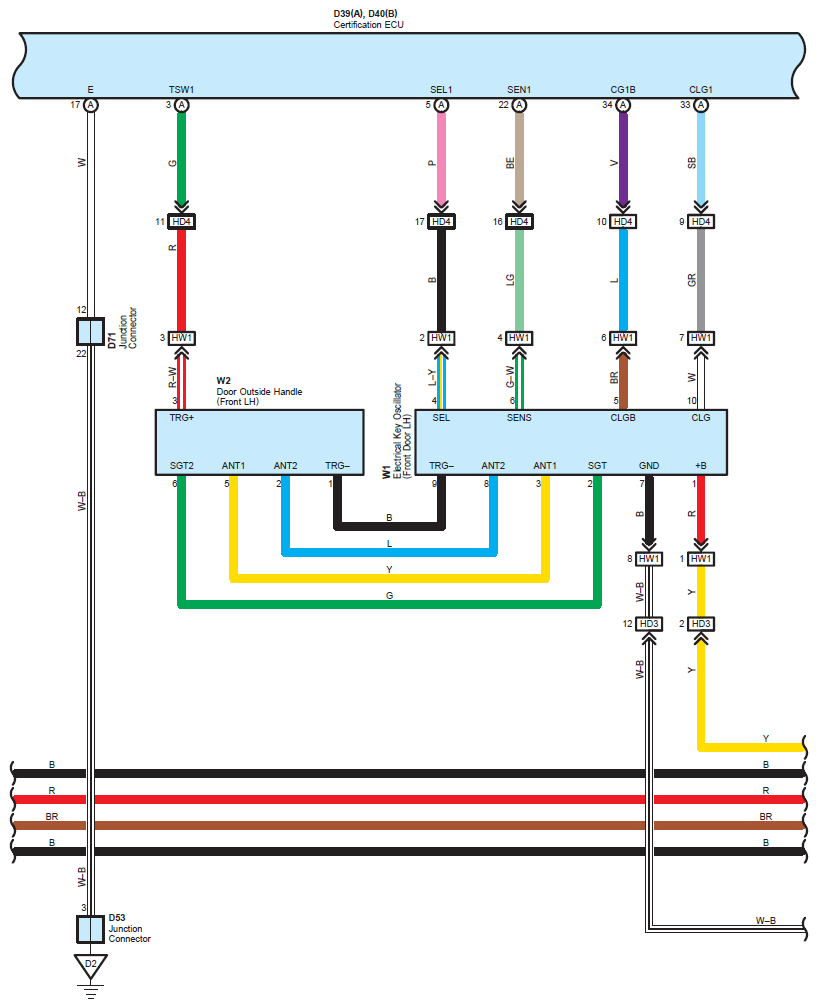

Fig 13: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (13 Of 14)

Fig 14: Wireless Door Lock Control (w/Smart Key System) Wiring Diagram (14 Of 14)
