Door Lock Control (TMC Made): Notes

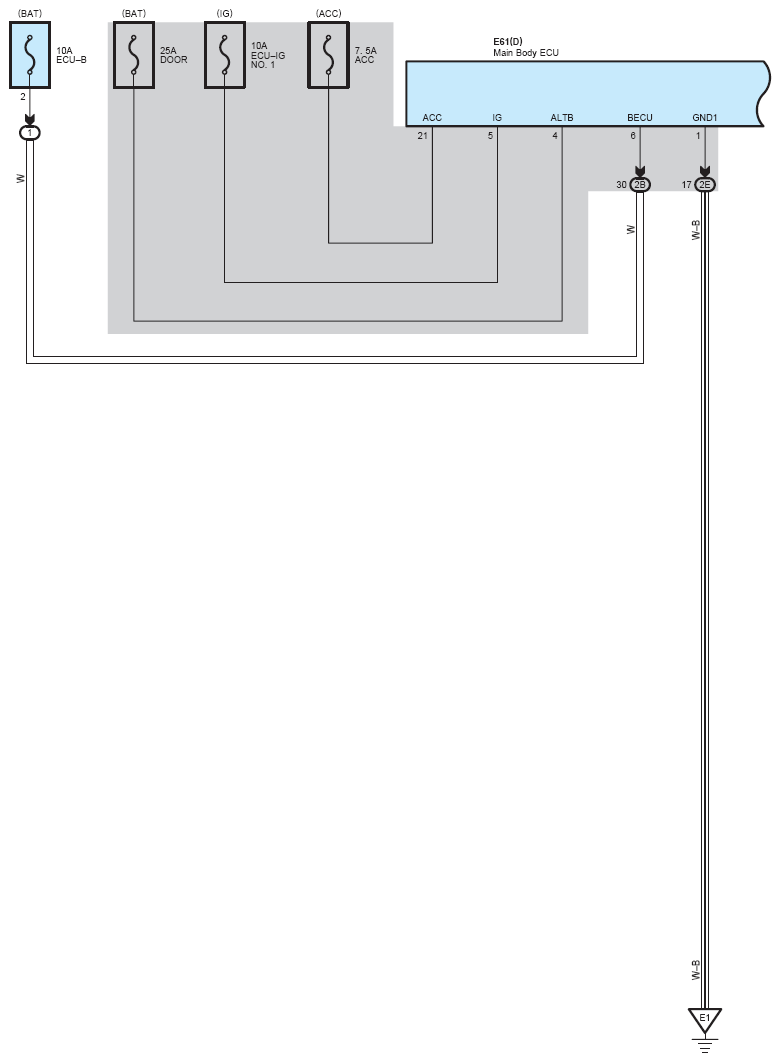

Fig 1: Door Lock Control (TMC Made) System Wiring Diagram (1 Of 4)
G07115042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

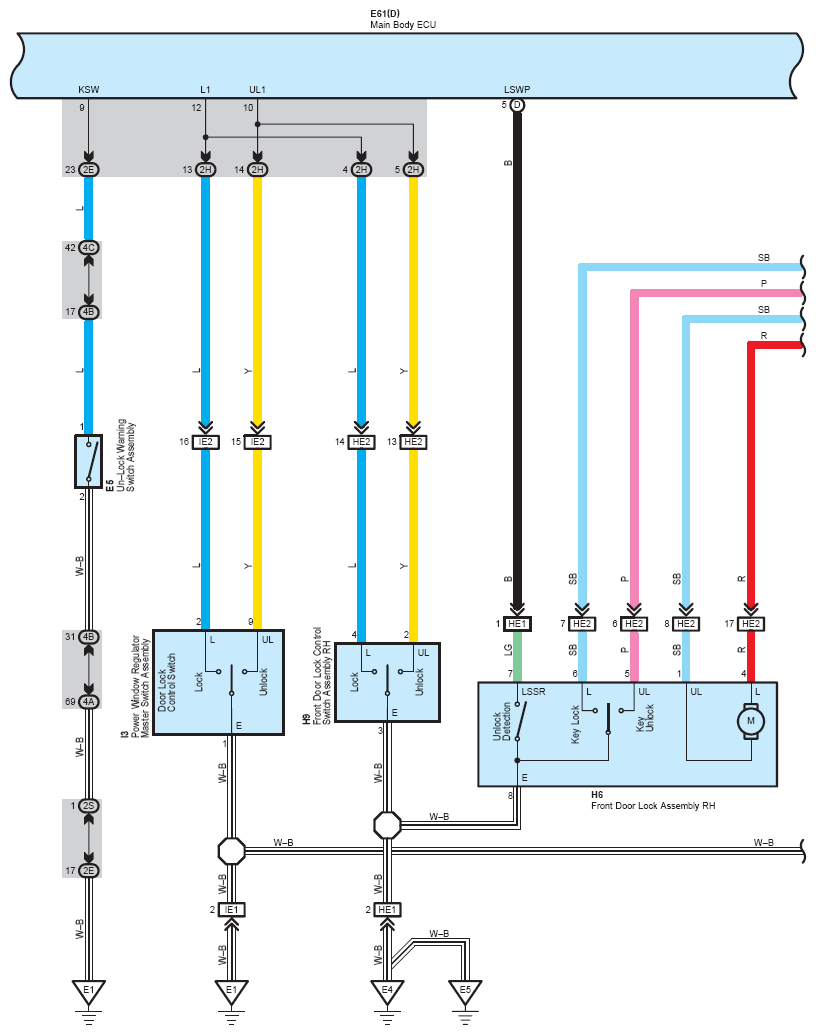

Fig 2: Door Lock Control (TMC Made) System Wiring Diagram (2 Of 4)
G07115043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

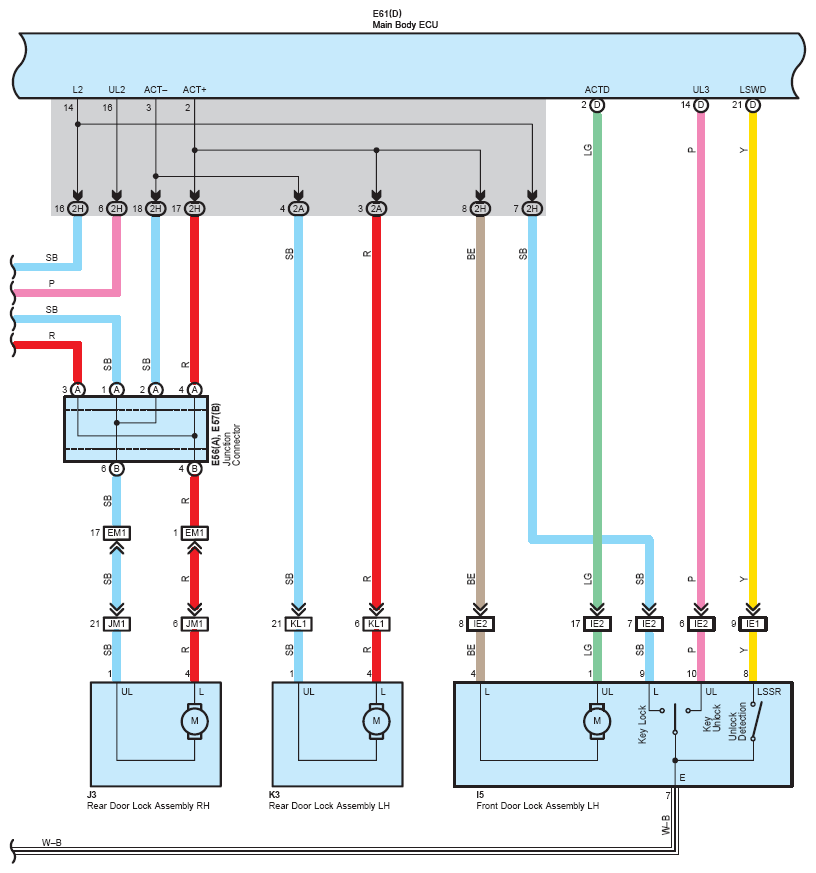

Fig 3: Door Lock Control (TMC Made) System Wiring Diagram (3 Of 4)
G07115044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

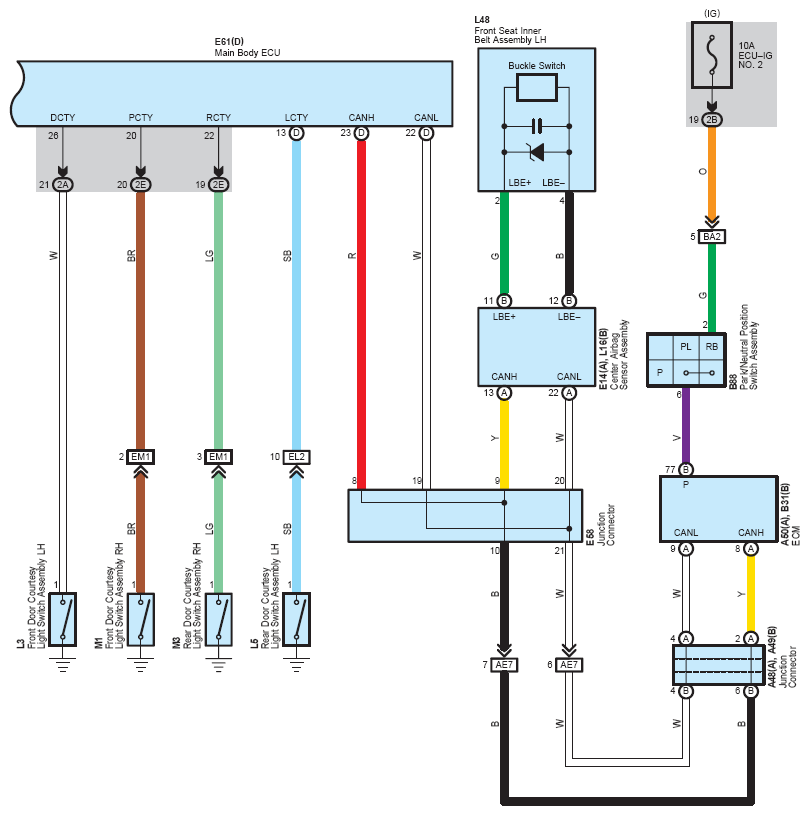

Fig 4: Door Lock Control (TMC Made) System Wiring Diagram (4 Of 4)
G07115045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
