Emission Control System (2ZR-FE) (Inspection)
>>
Emission Control System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

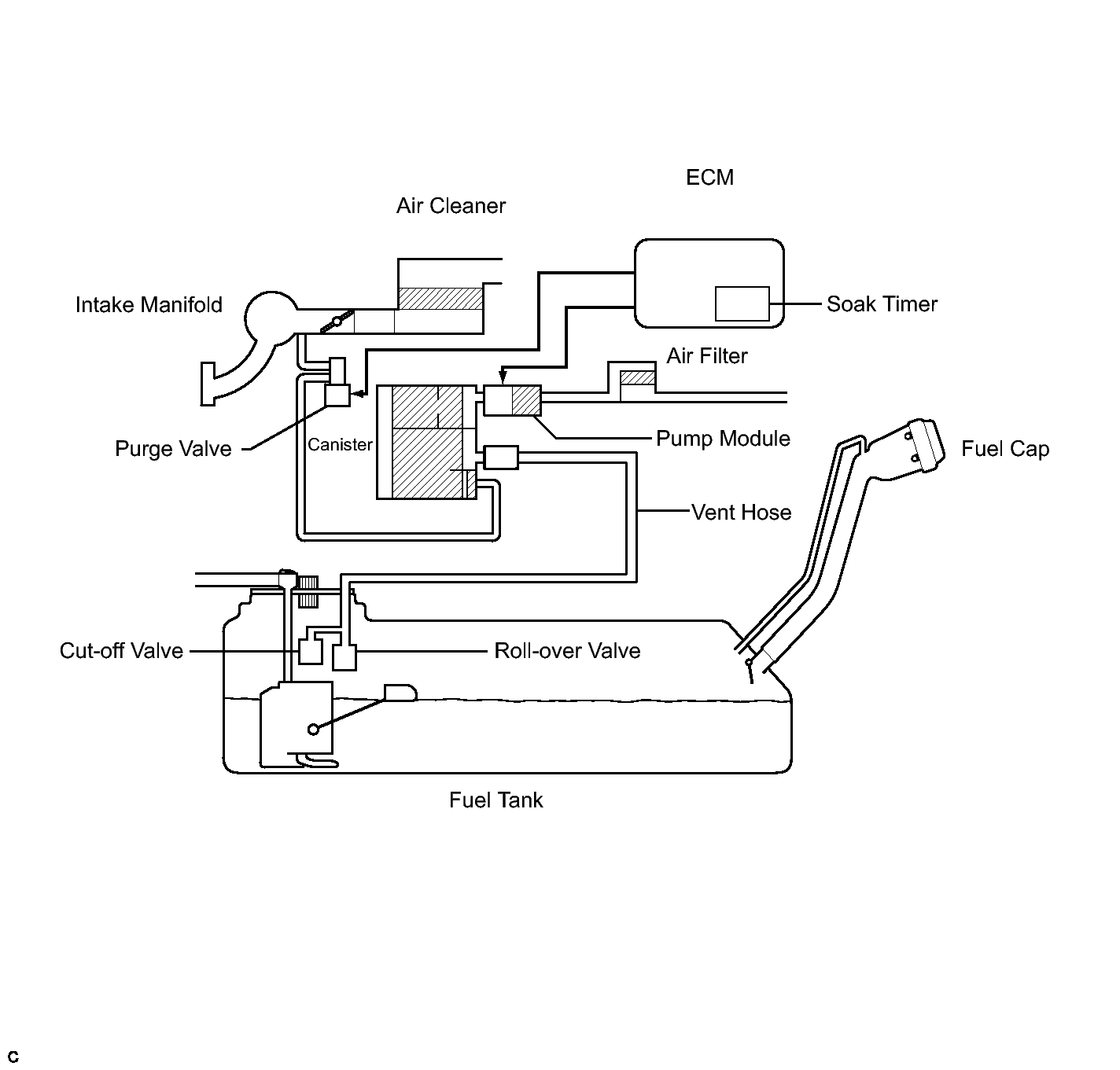

Fig 1: Identifying Emission Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

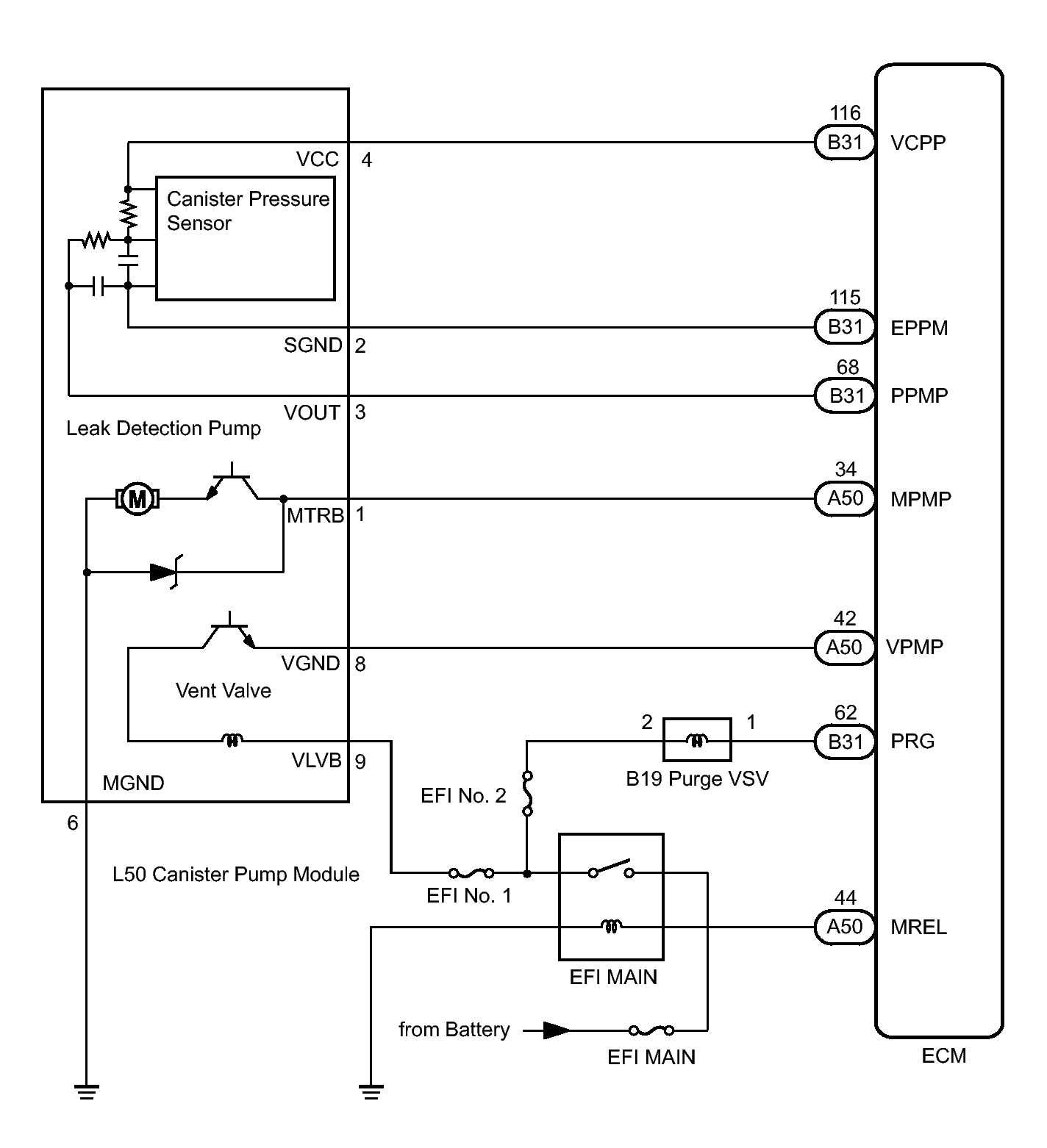

Fig 2: Identifying Emission Control System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
