Power Window Control System: Initialization: Initialization

INITIALIZE POWER WINDOW CONTROL SYSTEM (POWER WINDOW REGULATOR MOTOR ASSEMBLY (ON DRIVER SIDE))
NOTE:
- DTC B2313 will be set if the driver side power window regulator motor assembly is replaced with a new assembly. Clear the DTC after initializing the power window motor.
- Initialization should be made when the vehicle is stationary.
- Be sure to initialize the door glass position memory (pulse sensor) after replacing the driver side power window regulator motor assembly. Without the initialization, the driver door auto up-and-down function, jam protection function and key-off operation will not work.
- Be sure not to tap or give any shock or force to the door glasses during the initialization procedure as the vehicle is learning the door glasses' sliding resistance during initialization.
- After replacing the driver side power window regulator, door glass, or glass adhesive dams, be sure to initialize the door glass position memory (pulse sensor). Otherwise, the jam protection function may work when unnecessary.
If the initialization procedure cannot be completed normally, there may be a malfunction in the Local Interconnect Network (LIN) communication. Check the body multiplex (LIN, Local Interconnect Network) communication system.
1. Inspection procedure

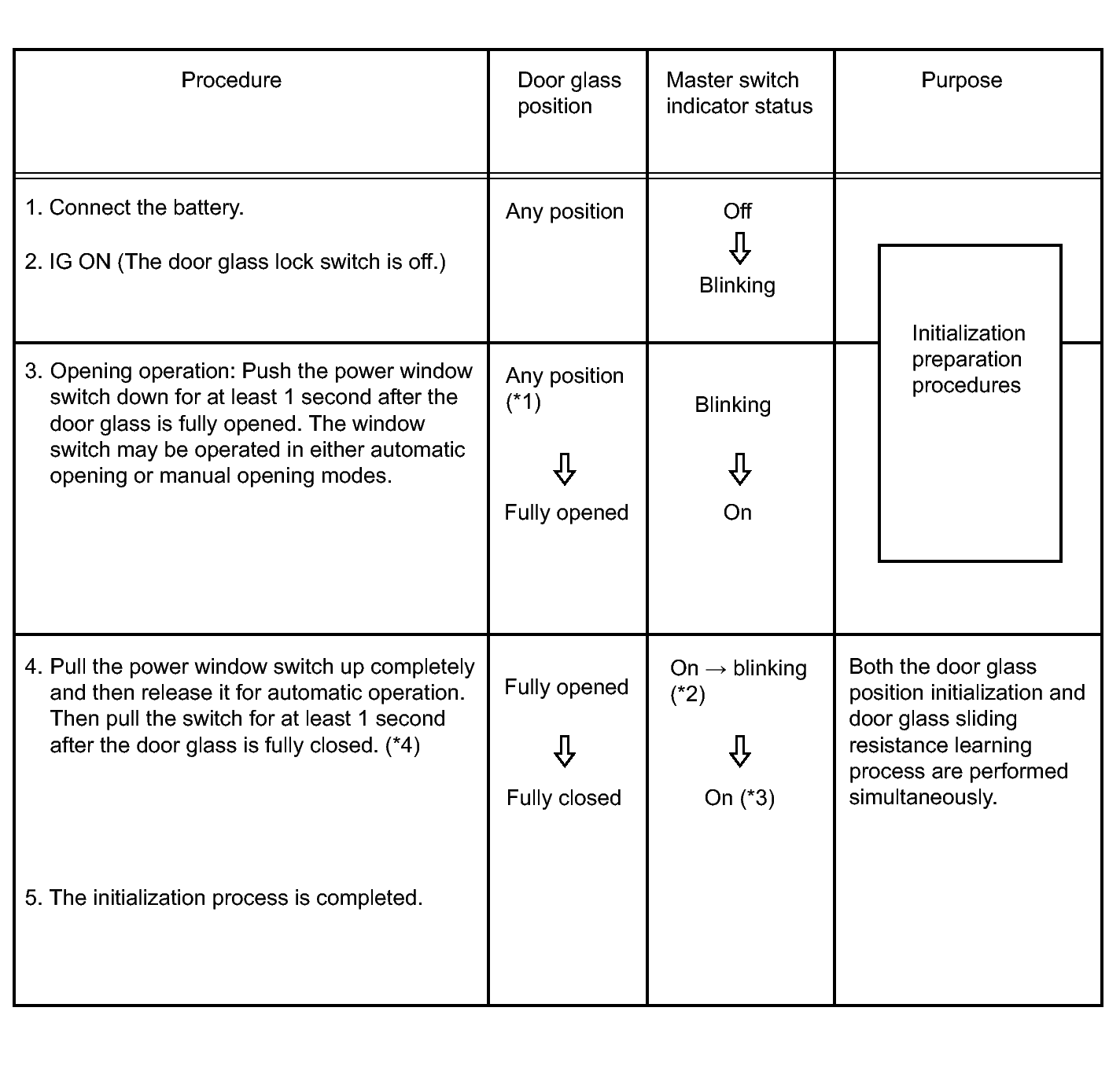

  Fig 1: Initialization Inspection Procedure Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: Even if the door glass has been fully opened before procedure No. 3, it is necessary to press the power window switch down for at least 1 second.
  - *2: As soon as the switch is pulled completely up (Automatic Closing), the master switch indicator starts to blink.
  - *3: If the master switch indicator does not come on after procedure No. 4, restart from procedure No. 3.
  - *4: Allow the automatic operation to continue without stopping until the door glass is fully closed.
  Check the body multiplex (LIN, Local Interconnect Network) system. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .
TO RETURN THE SYSTEM TO THE PRE-INITIALIZED CONDITION
NOTE:
After replacing or reinstalling the driver side power window regulator, door glass, or door glass adhesive dams, be sure to initialize the door glass position memory (pulse sensor). Otherwise, the jam protection function may work when unnecessary.
1. Procedure

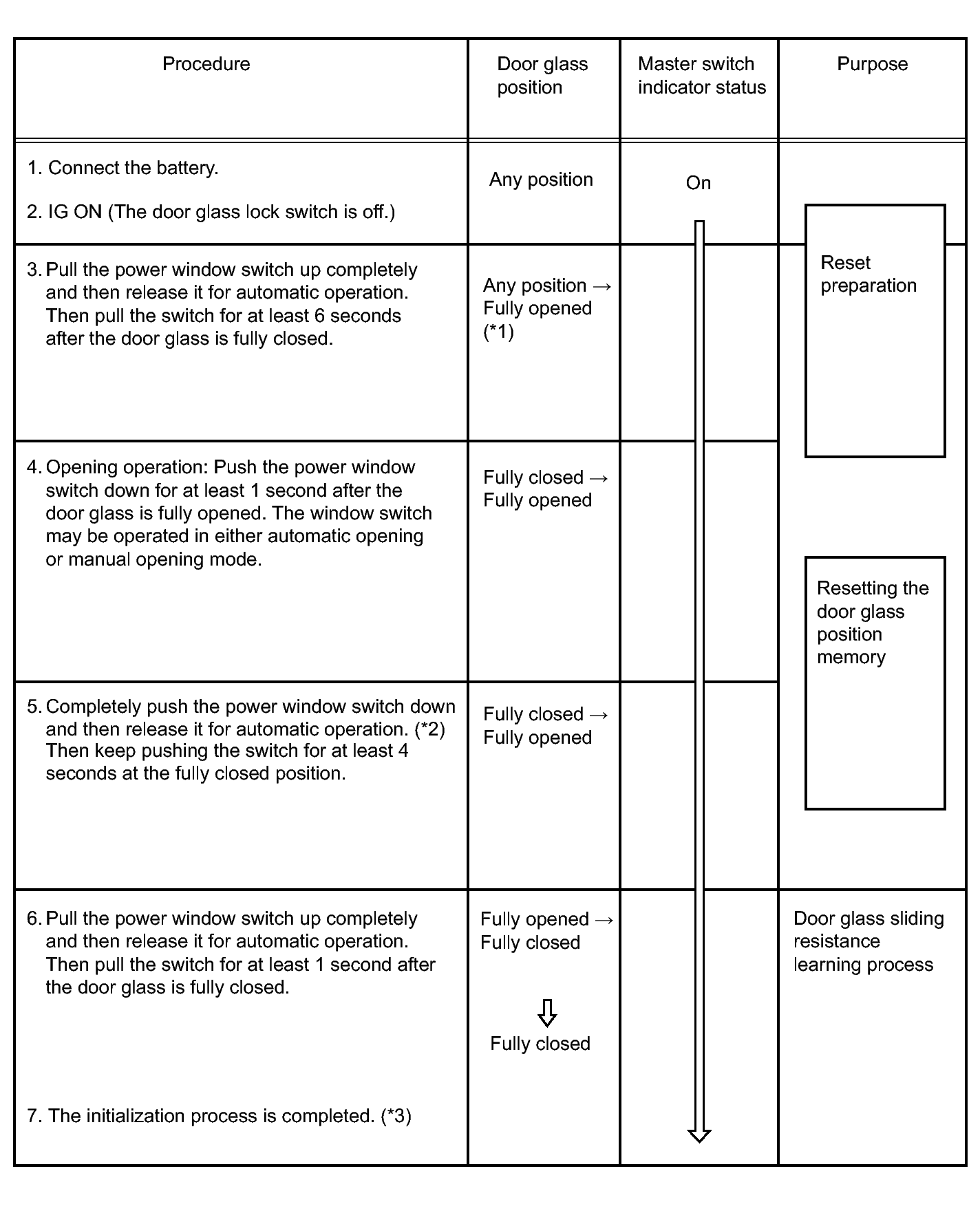

  Fig 2: Pre-Initialized Condition Inspection Procedure
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - *1: Even if the door glass has been fully closed before procedure No. 3, it is necessary to pull the power window switch up for at least 6 seconds while the door glass is fully closed.
  - *2: After completing procedure No. 4, return the door glass switch to its neutral position, then perform automatic opening operation.
  - *3: After completing the whole initialization process, make sure that the door glass fully closes with the automatic closing operation.
  - If the initialization procedure cannot be completed normally, there may be a malfunction in the Local Interconnect Network (LIN) communication. Check the body multiplex (LIN, Local Interconnect Network) communication system. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .
