Integration Relay: Components: Illustration

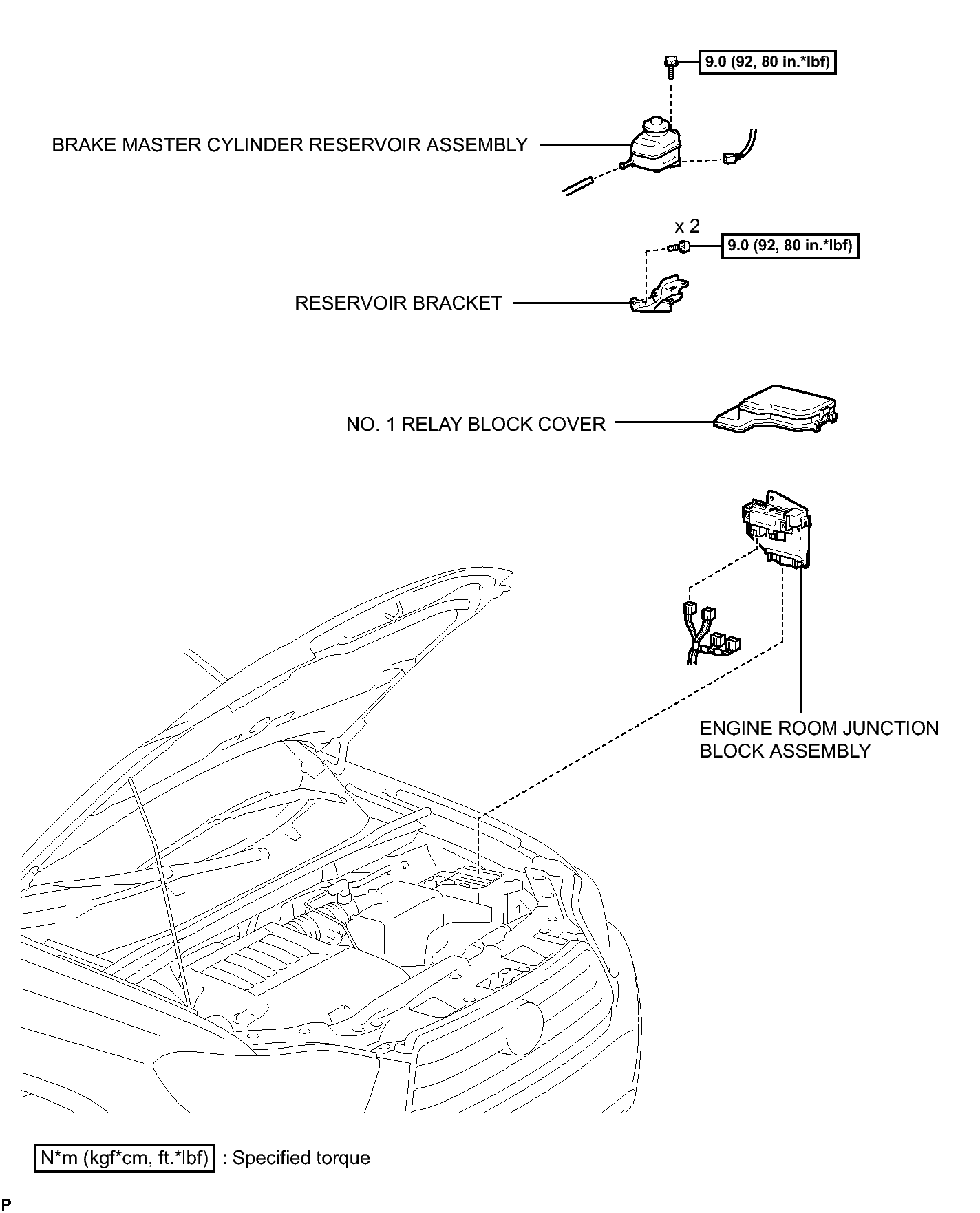

Fig 1: Identifying Integration Relay Replacement Components With Torque Specifications
GTY177973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
