Parts Location: Illustration

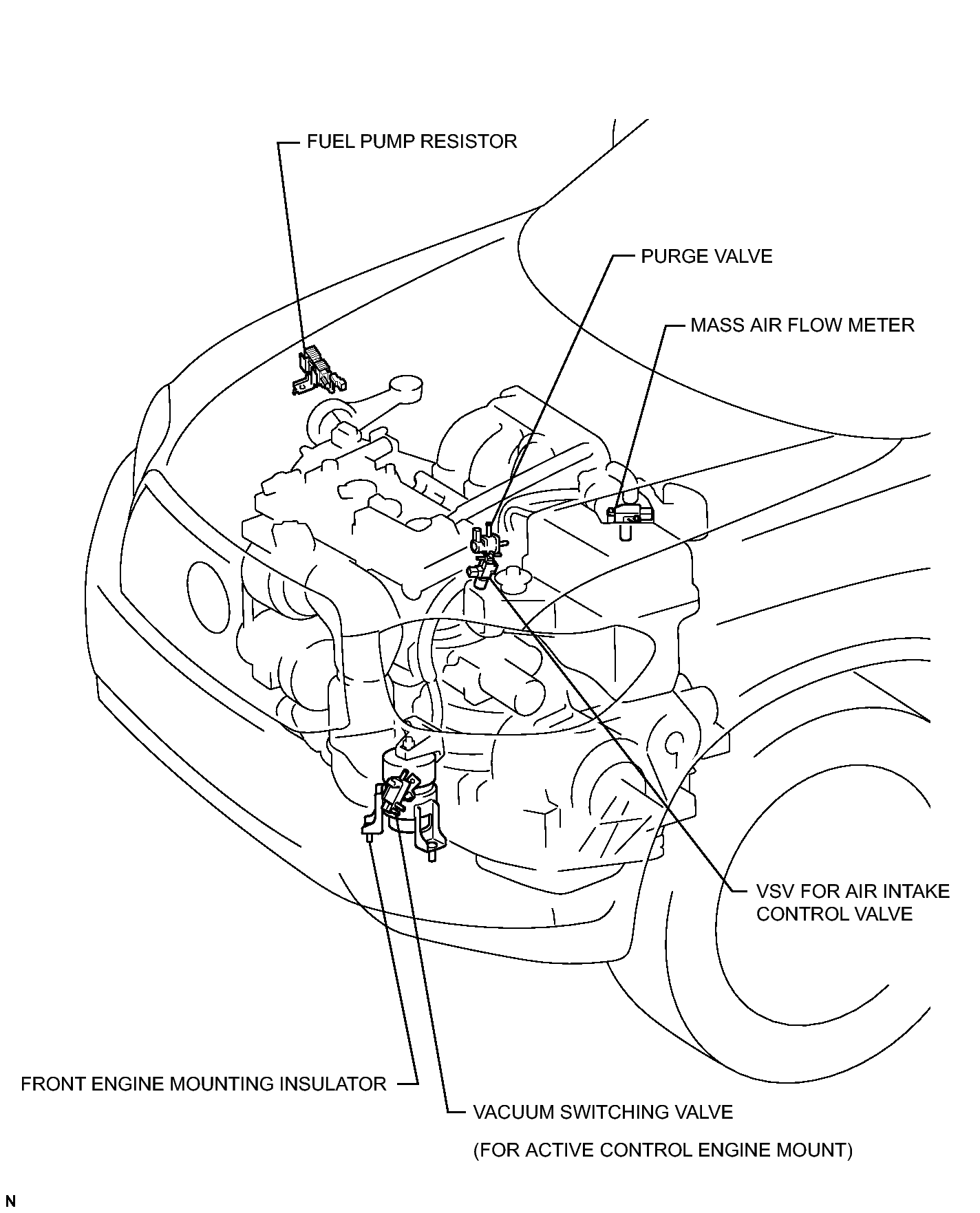

Fig 1: SFI System Components Location (1 Of 5)

GTY343566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

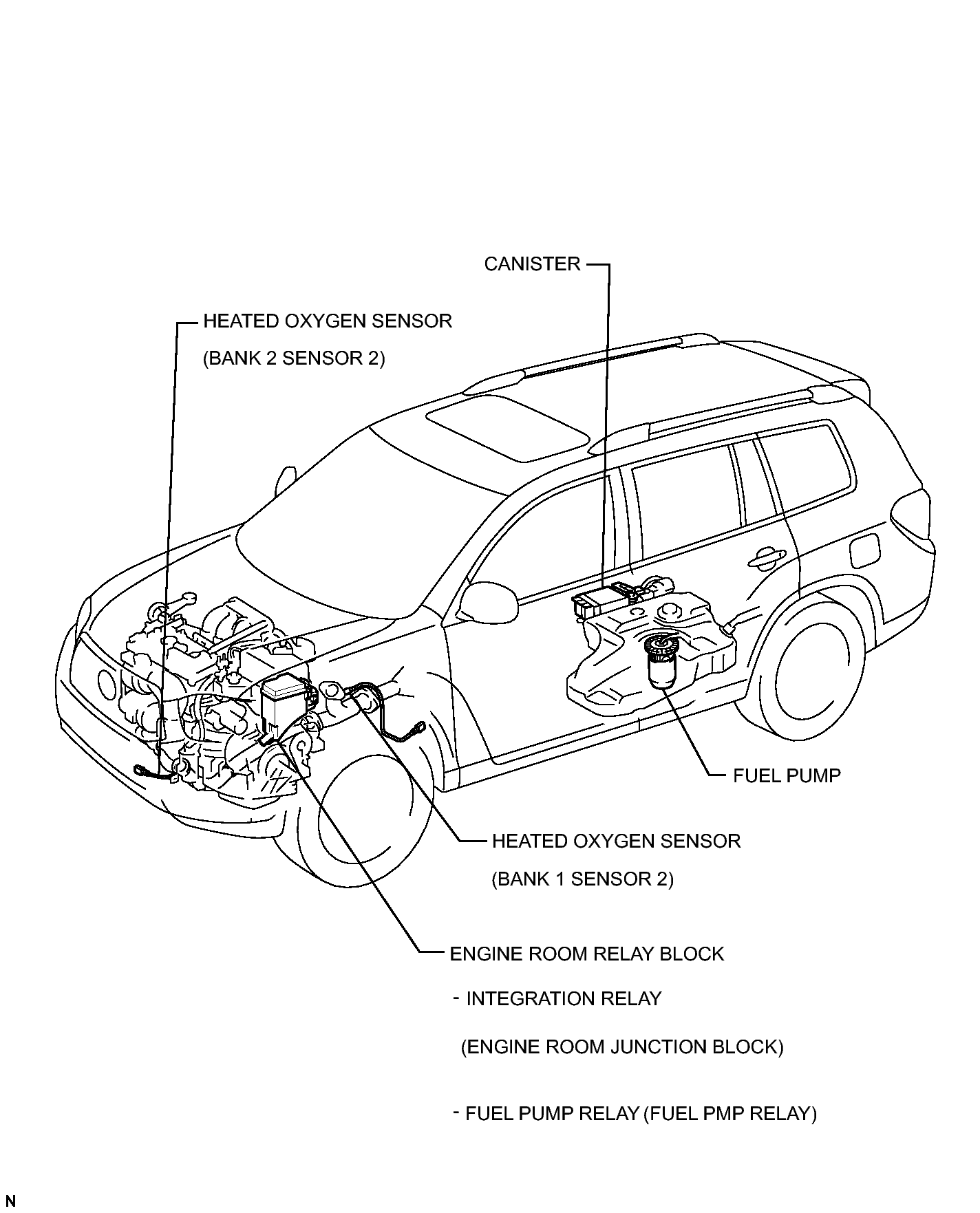

Fig 1: SFI System Components Location (2 Of 5)

GTY335804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

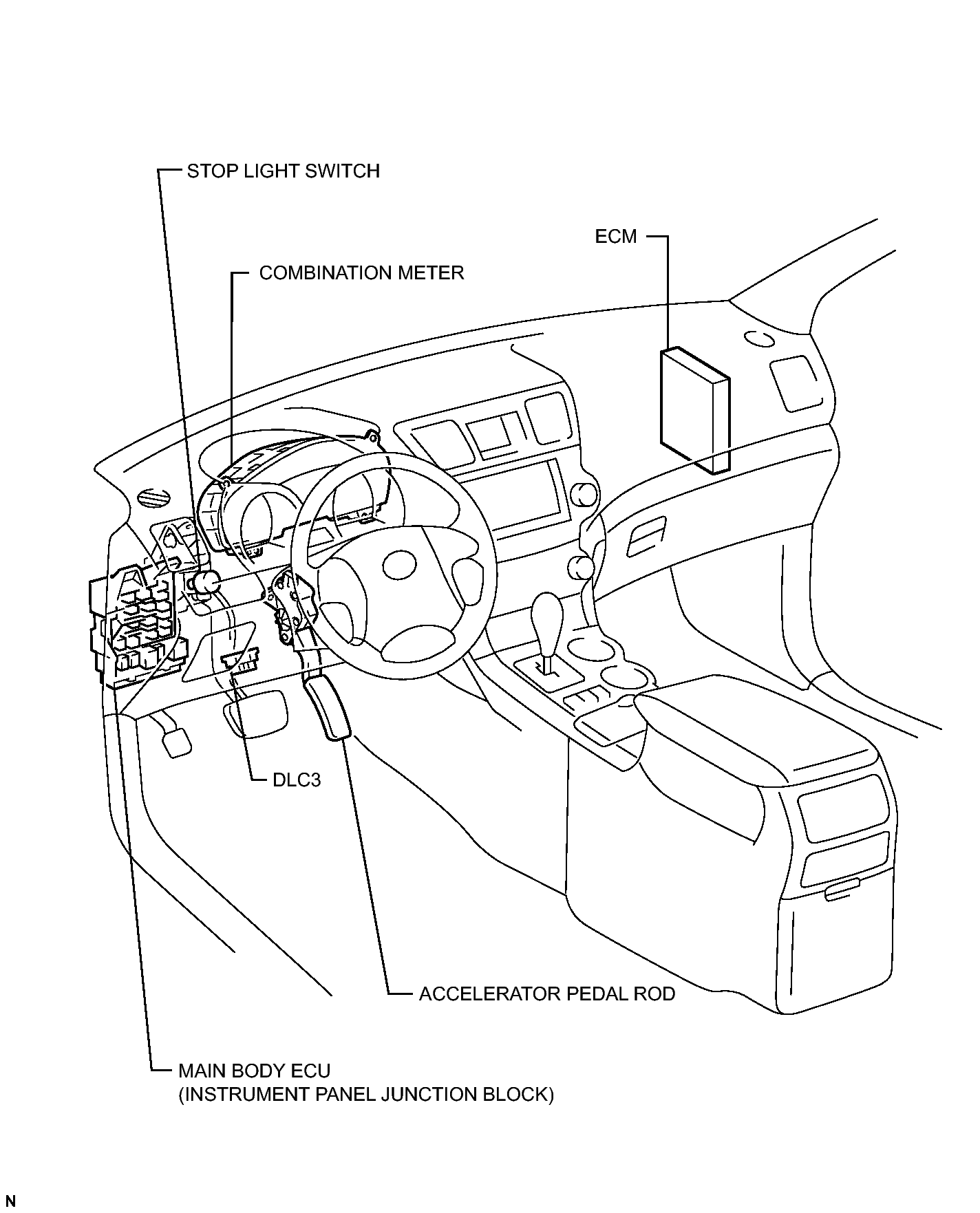

Fig 1: SFI System Components Location (3 Of 5)

GTY193830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

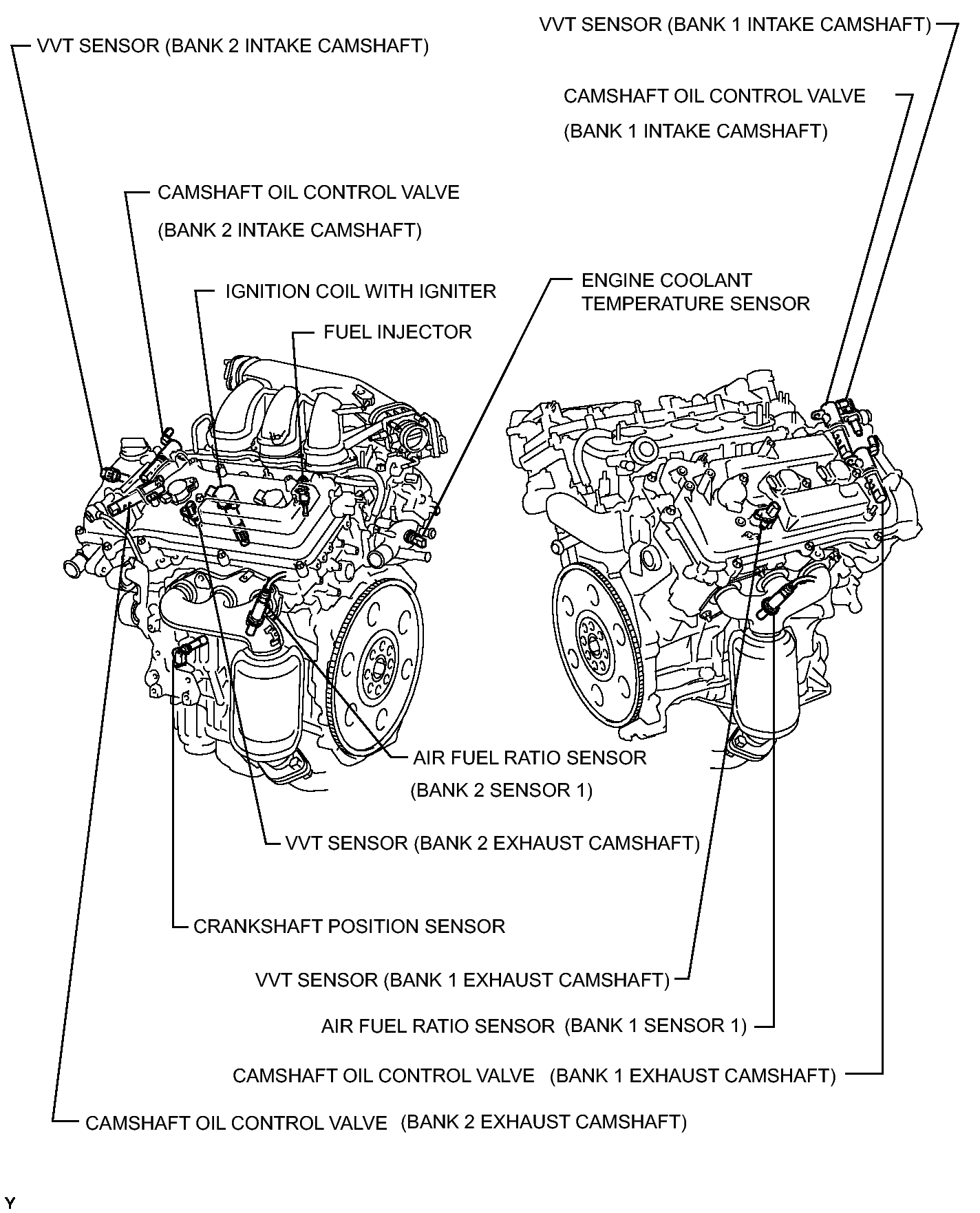

Fig 1: SFI System Components Location (4 Of 5)

GTY326815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

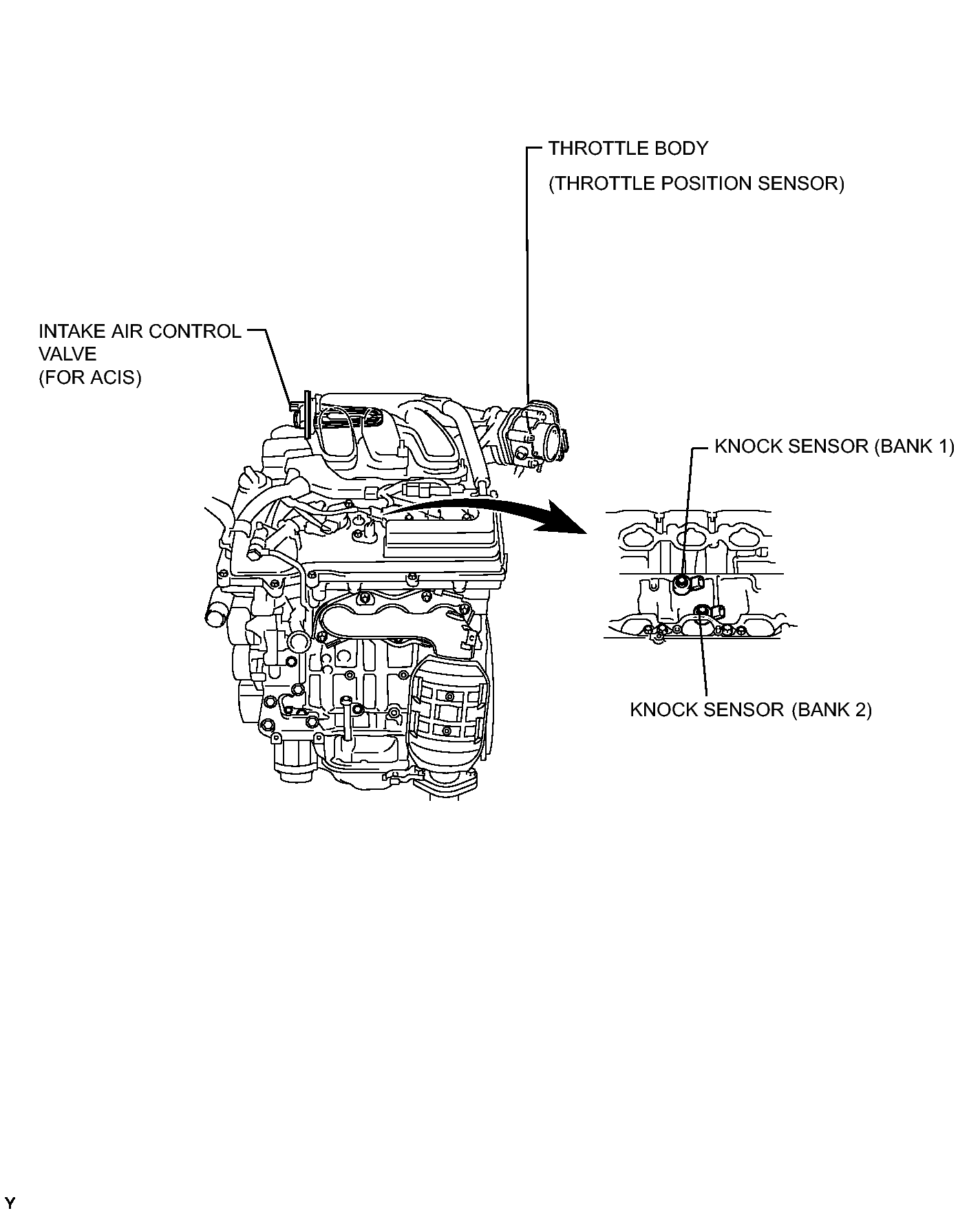

Fig 1: SFI System Components Location (5 Of 5)

GTY341966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
