Torque Specifications





SPECIFICATIONS: BRAKE (REAR): TORQUE SPECIFICATIONS

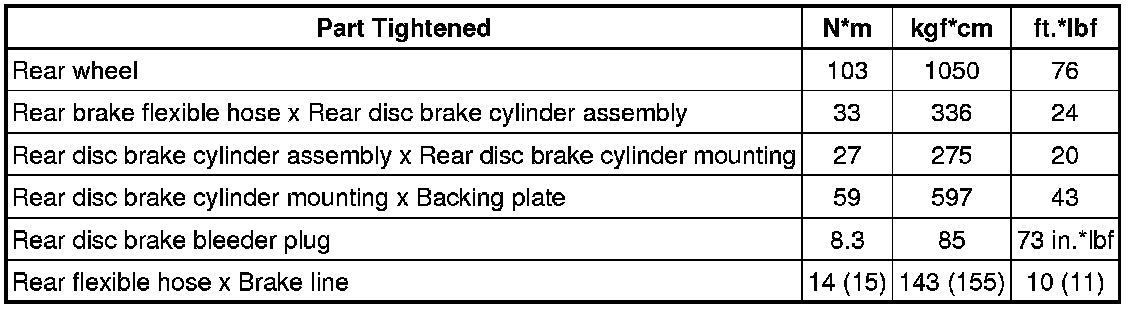

Double Wishbone Type Suspension

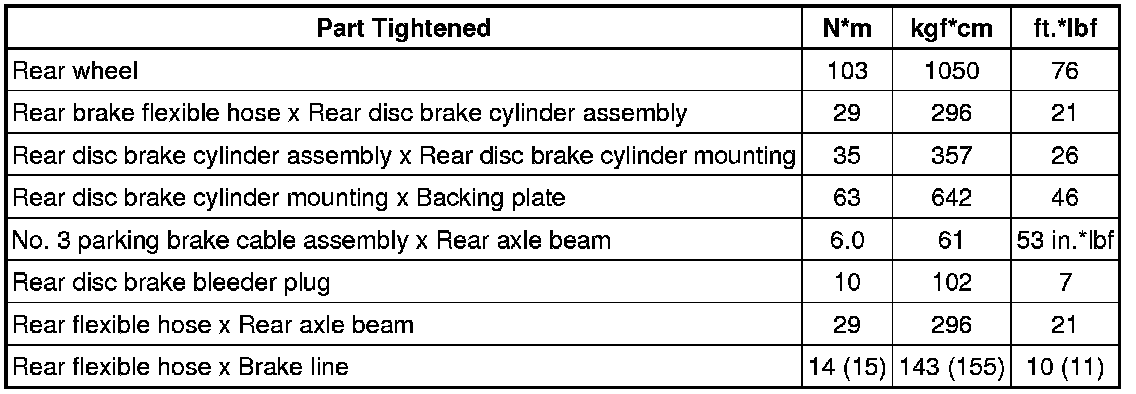

Torsion Beam Type Suspension






(): For use without a union nut wrench
