Remote Up / Down Function does not Operate: Wiring Diagram

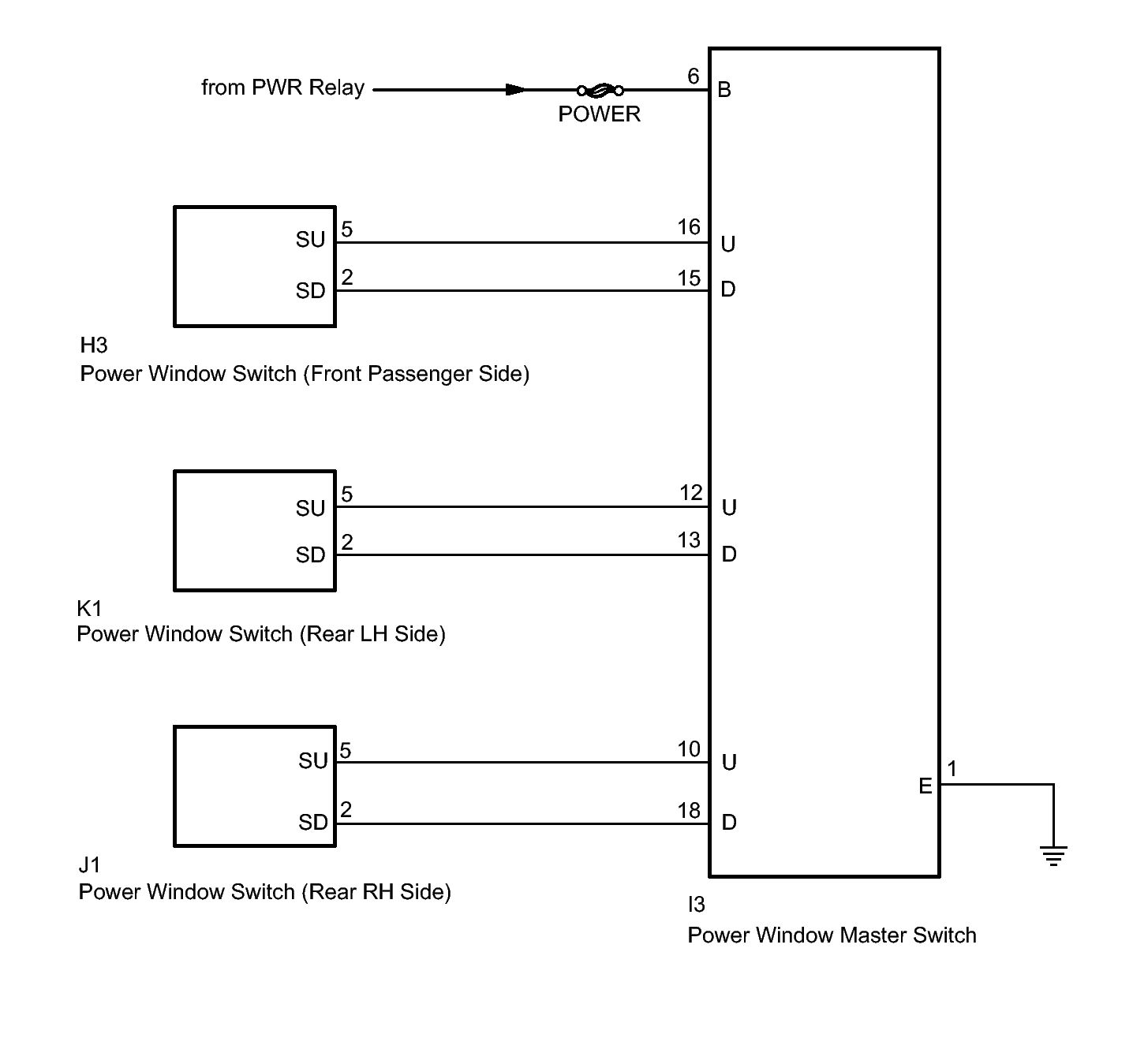

Fig 1: Identifying Remote Up / Down Circuit Diagram
GTY291700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
