Door Lock Control (TMC Made): Notes

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

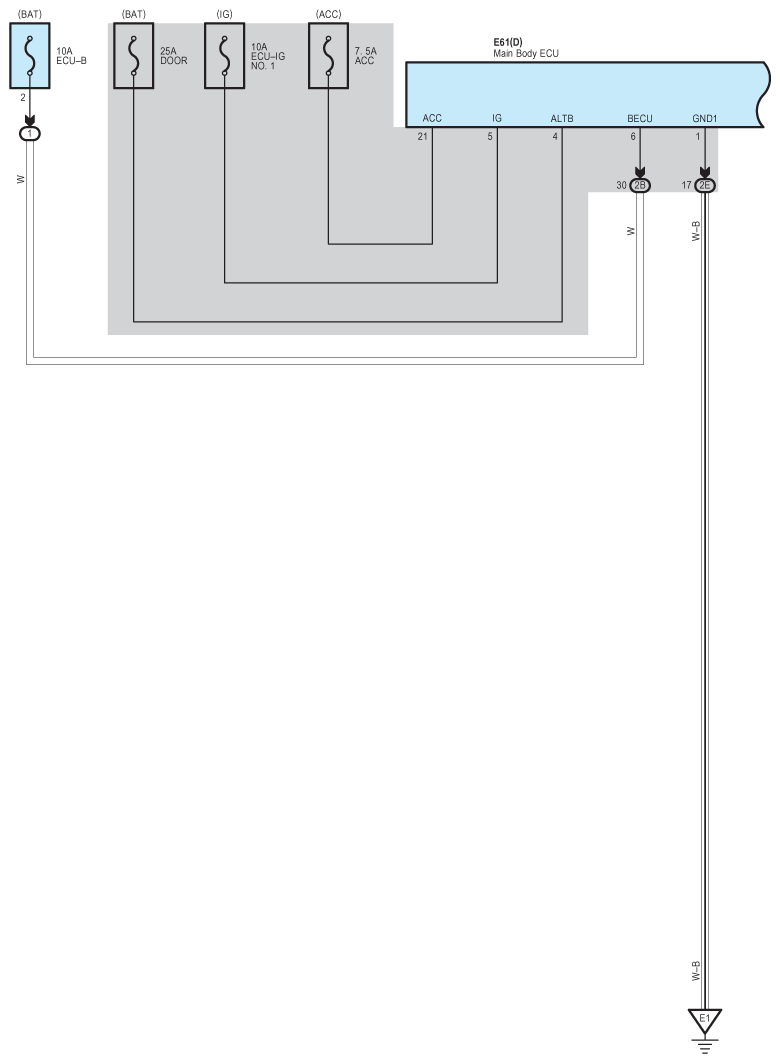

Fig 1: Door Lock Control System Wiring Diagram (TMC Made; 1 Of 4)
G08842795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

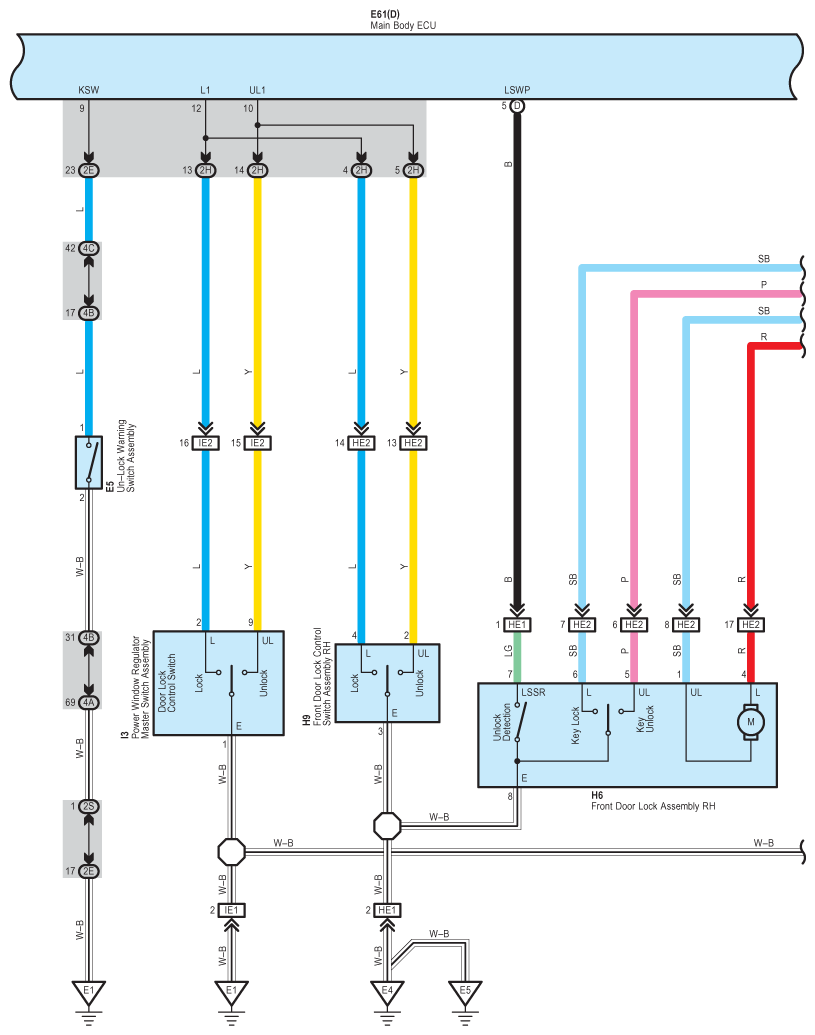

Fig 2: Door Lock Control System Wiring Diagram (TMC Made; 2 Of 4)
G08842796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

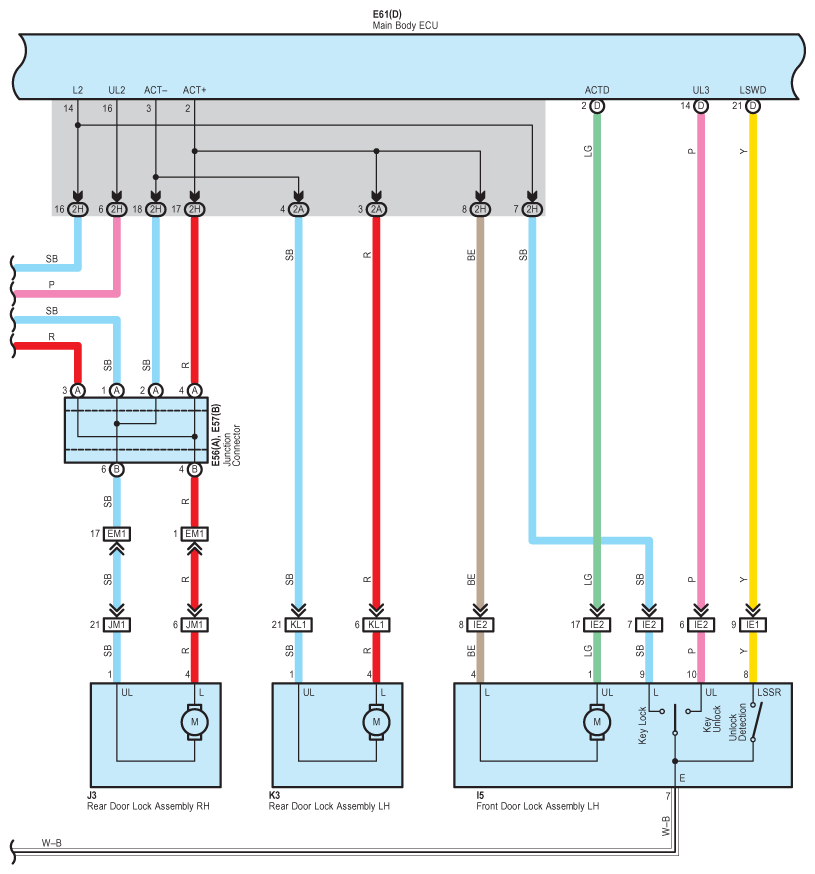

Fig 3: Door Lock Control System Wiring Diagram (TMC Made; 3 Of 4)
G08842797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

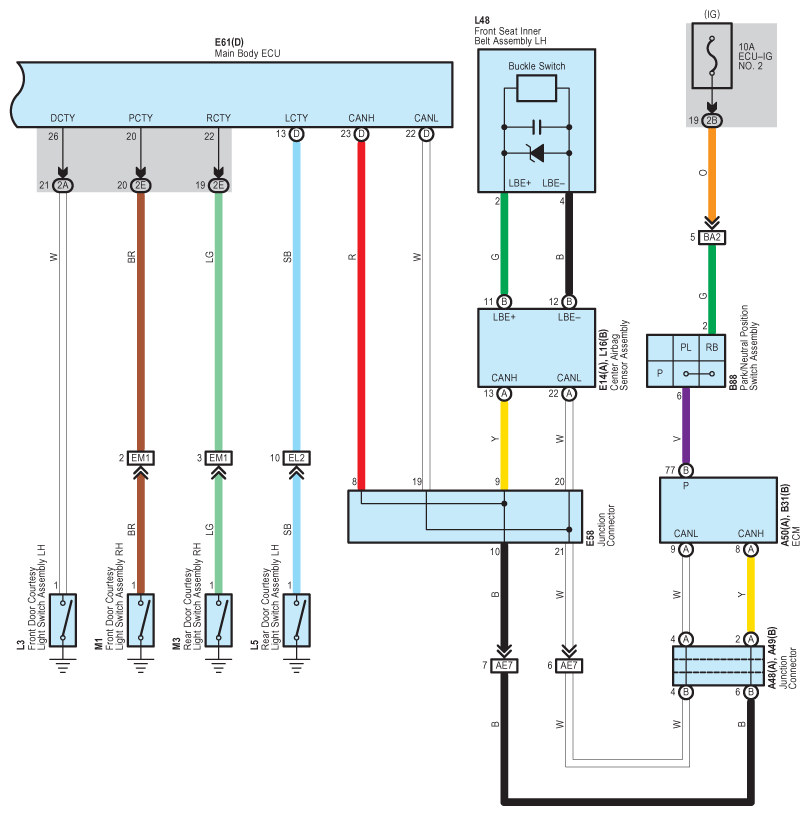

Fig 4: Door Lock Control System Wiring Diagram (TMC Made; 4 Of 4)
G08842798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
