Headlight (w/ Daytime Running Light) (TMC Made): Notes
WARNING:
This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

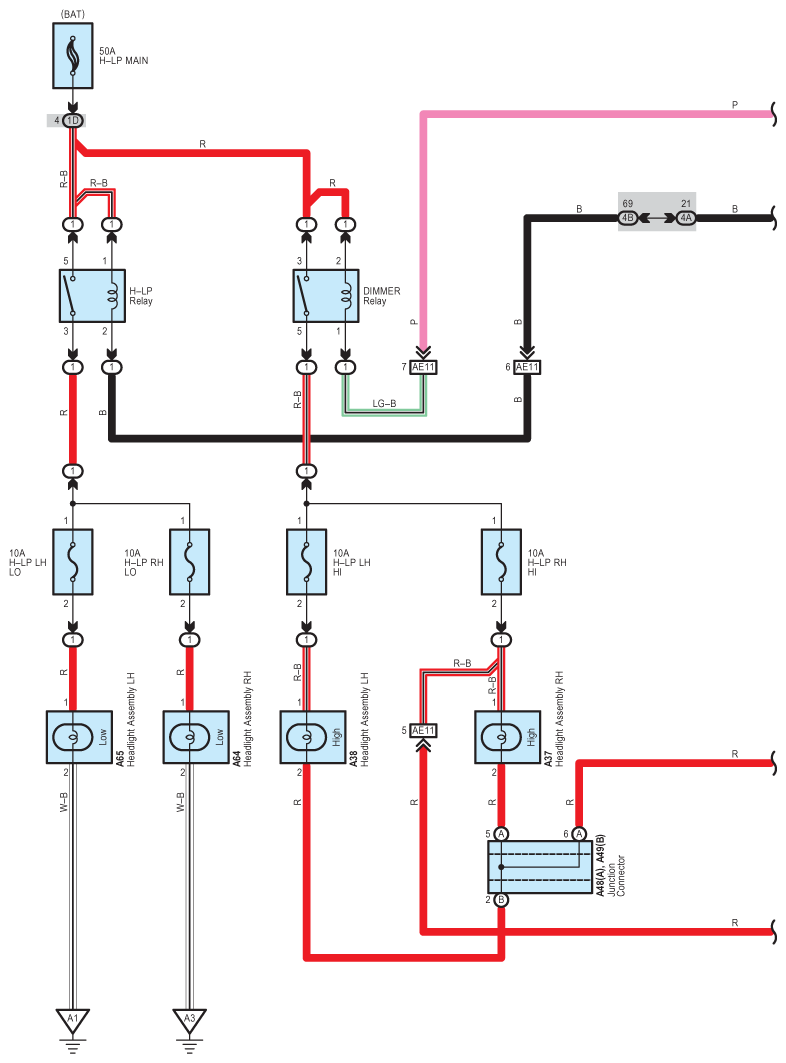

Fig 1: Headlight (W/ Daytime Running Light) System Wiring Diagram (TMC Made; 1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

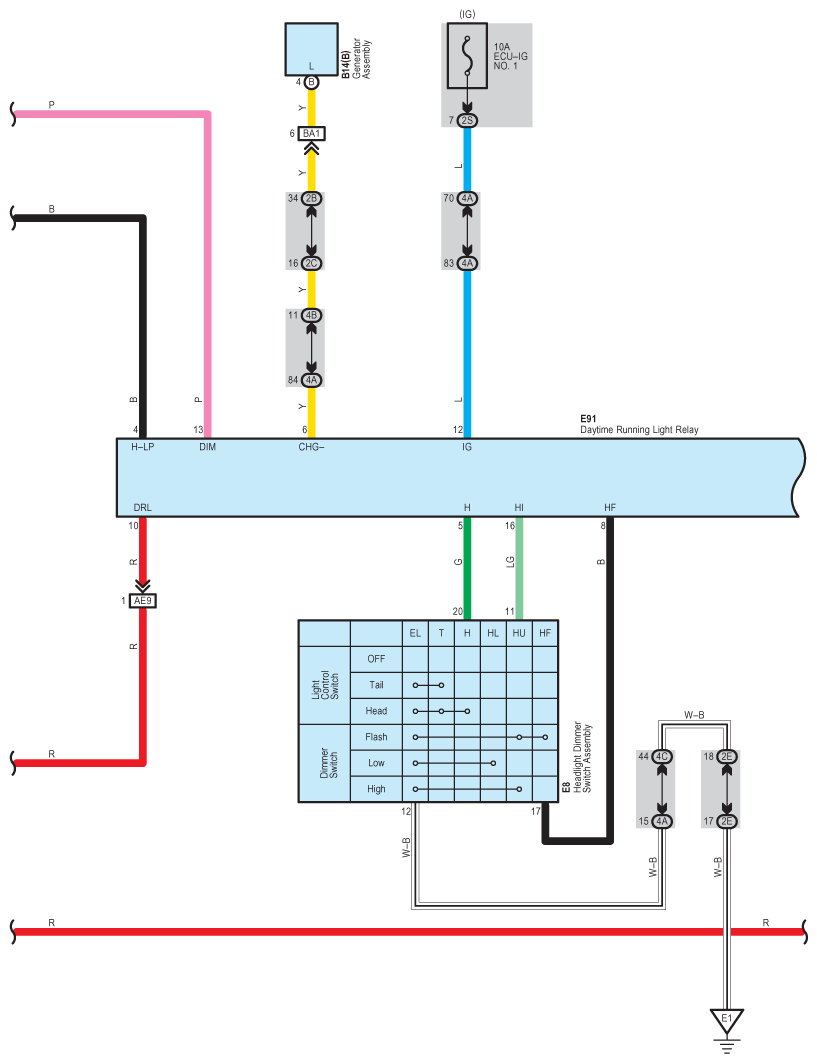

Fig 2: Headlight (W/ Daytime Running Light) System Wiring Diagram (TMC Made; 2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

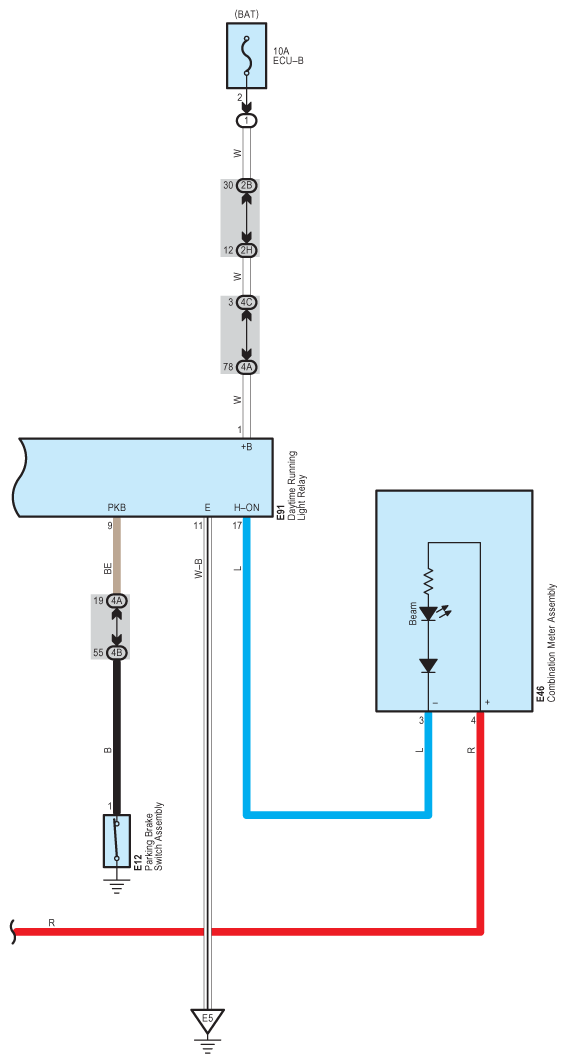

Fig 3: Headlight (W/ Daytime Running Light) System Wiring Diagram (TMC Made; 3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
