FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): Inspection: Inspection

  1. INSPECT OCCUPANT CLASSIFICATION SENSOR
    1. Measure the resistance according to the value(s) in the table below.

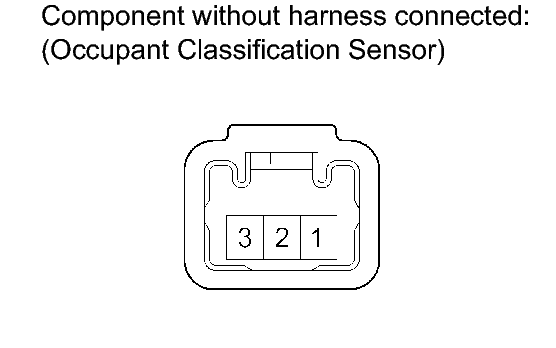

      Fig 1: Identifying Occupant Classification Sensor Connector Terminals
      GTY120274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 3 The passenger seat is occupied Below 100 Ω
      1 - 3 The passenger seat is not occupied Below 1 MΩ
