DTC U0122: Lost Communication with Vehicle Dynamics Control Module; DTC U0123: Lost Communication with Yaw Rate Sensor Module; DTC U0131: Lost Communication with Power Steering Control Module; DTC U1104: Lost Communication with Driving Support ECU: Wiring Diagram

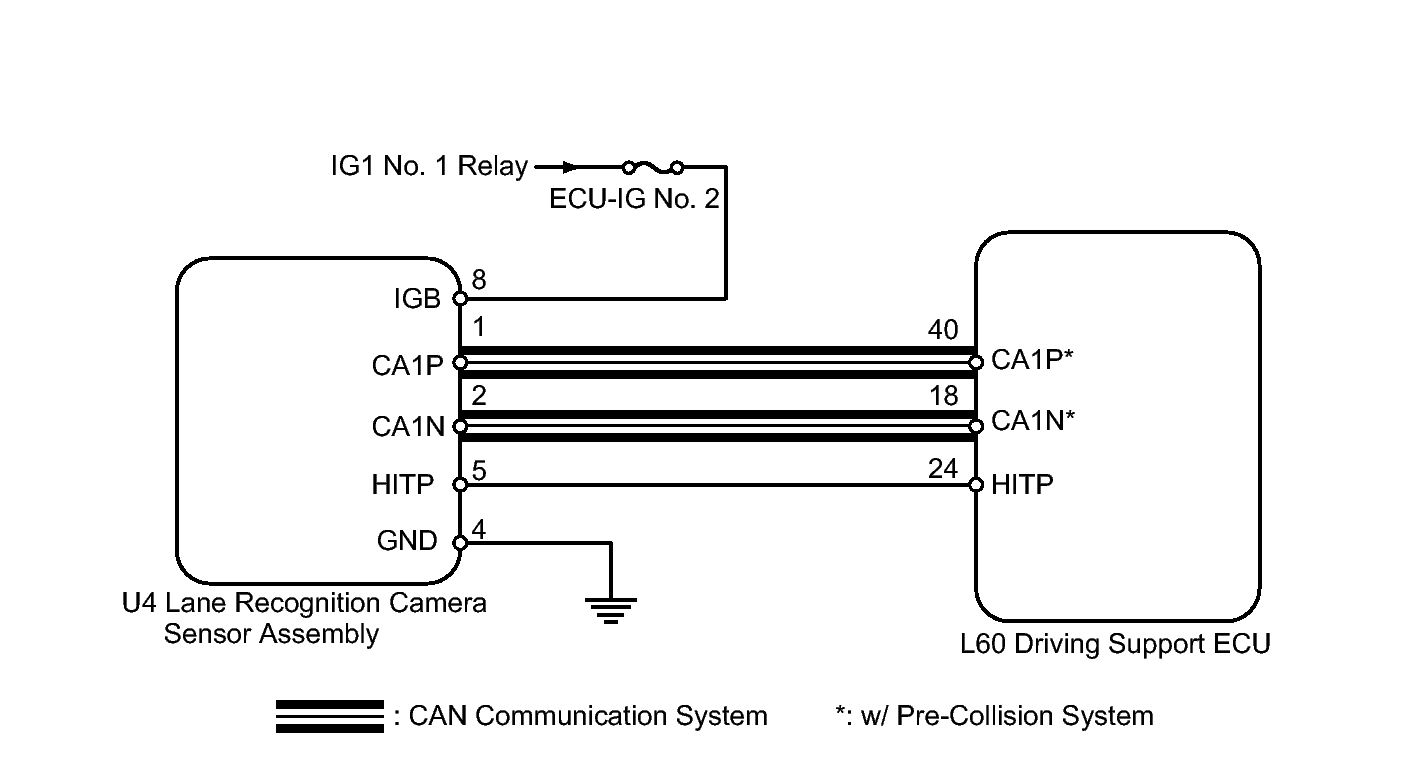

Fig 1: Identifying Lane Recognition Camera Sensor Assembly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
