DTC B1783: Rear Occupant Classification Sensor RH Circuit Malfunction
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B1783: Rear Occupant Classification Sensor RH Circuit Malfunction: Wiring Diagram

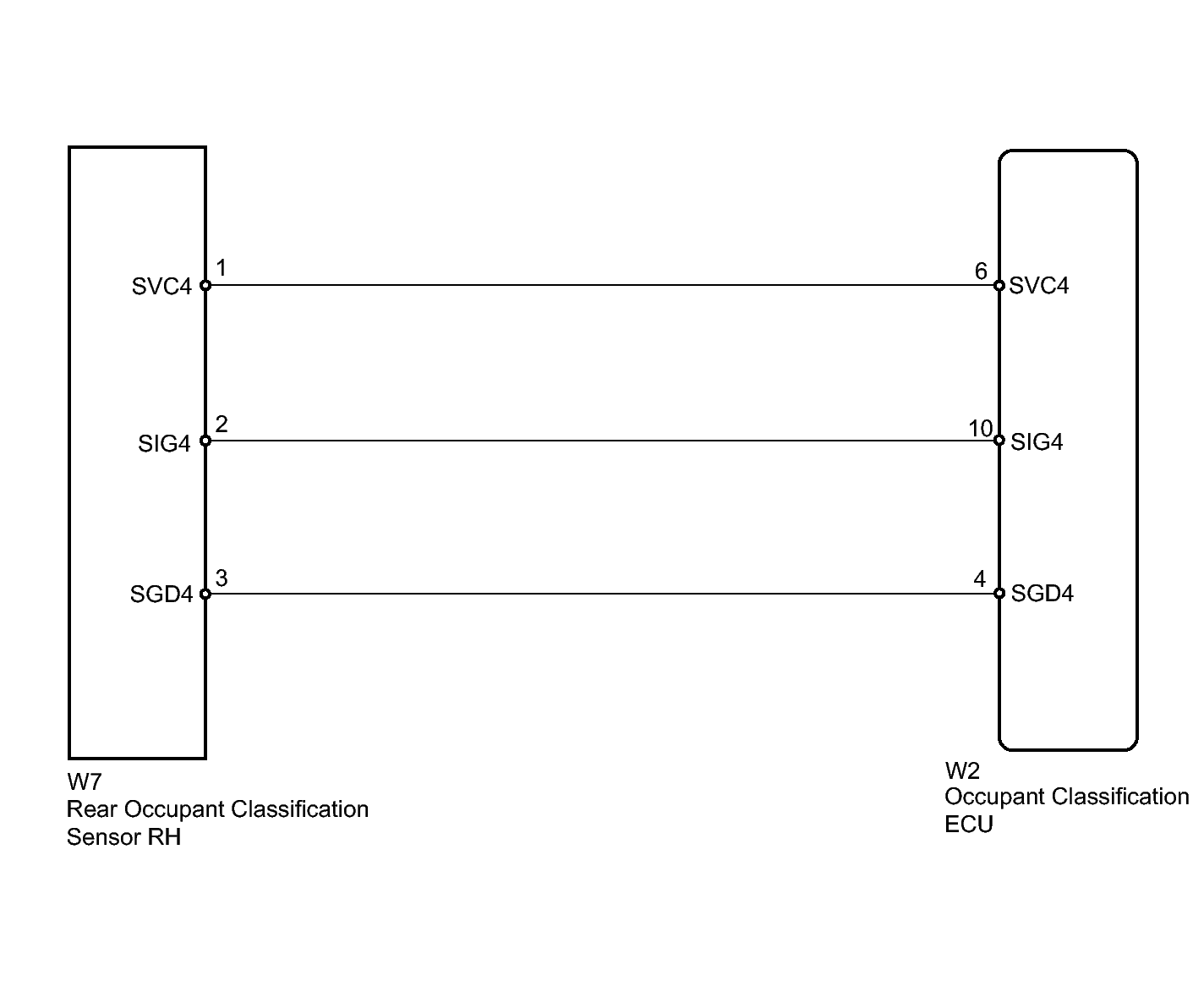

Fig 1: Rear Occupant Classification Sensor RH - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
