Heated Oxygen Sensor: Inspection: Inspection
- INSPECT HEATED OXYGEN SENSOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION

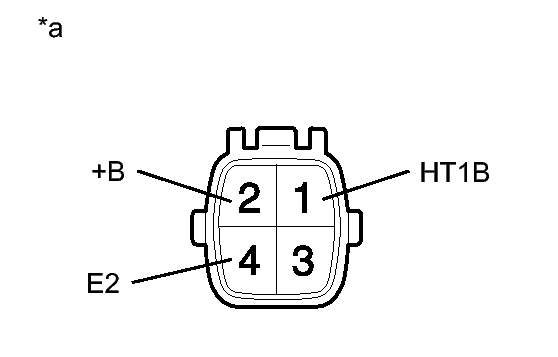

| *a |
Component without harness connected
(Heated Oxygen Sensor) |
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| 1 (HT1B) - 2 (+B) |
20°C (68°F) |
11 to 16 Ω |
| 1 (HT1B) - 4 (E2) |
- |
10 kΩ or higher |
If the result is not as specified, replace the heated oxygen sensor.
