Section 119 (Smart Key System (For Entry Function) (Plug-In) (Diagnostic Codes & Symptom Tests))
>>
SMART KEY SYSTEM (for Entry Function)
>>
Symptom Tests
>>
Front Passenger Side Door Entry Unlock Function does not Operate
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Passenger Side Door Entry Unlock Function does not Operate: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

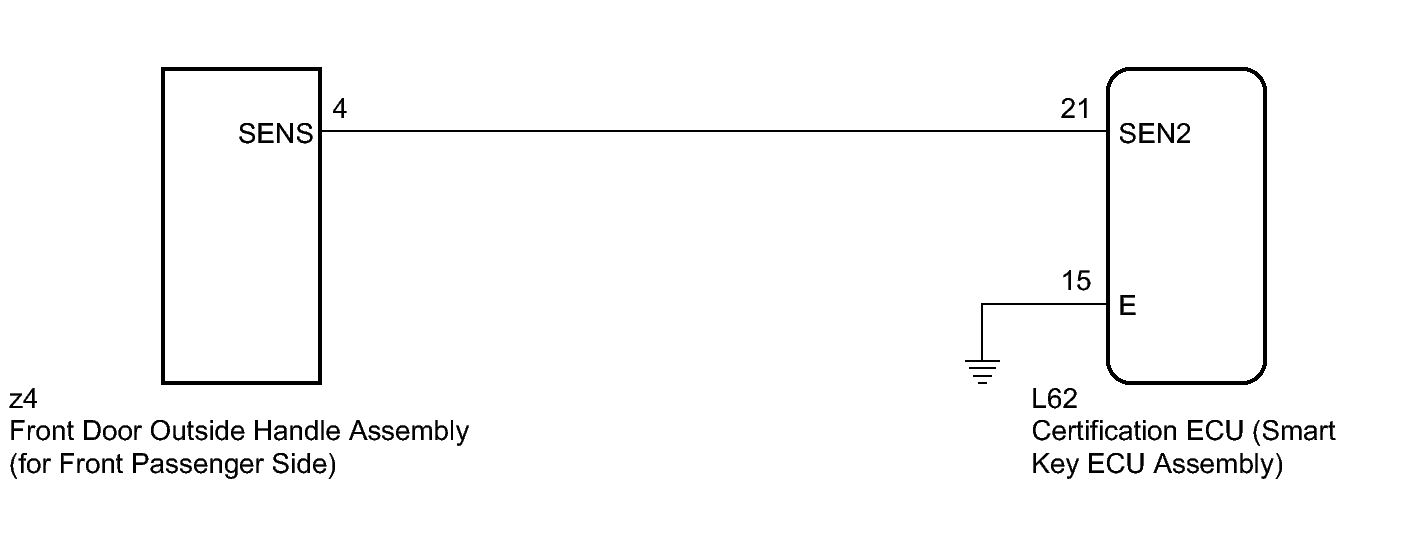

Fig 1: Identifying Front Passenger Side Door Entry Unlock Function Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
