Room Oscillator does not Recognize Key: Procedure

1. Check that entry lock and unlock functions can be operated at each door. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .

   OK

   Entry lock and unlock functions operate normally.

NG → See step   19

OK: Go to next step

1. Remove the battery of the key. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .
2. With the brake pedal depressed, touch the power switch while facing the logo side of the key to the power switch.
   Fig 1: Holding Key Close To Power Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When operating the power switch, check whether the power source mode changes.

   OK

   Power source mode changes.

   HINT:

   • When the key cannot be verified even though it is within the specified range, the hybrid vehicle control system start check can be performed by removing the transmitter battery from the key and holding the transmitter close to the power switch.
   • When performing the check, if the power source mode changes, there is a problem with key certification inside the cabin.

NG → See step   17

OK: Go to next step

1. Install the battery to the key. Refer to REPLACEMENT .
2. Bring the key near the No. 1 indoor electrical key antenna assembly (for front floor), and check that the hybrid vehicle control system can be started.
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the No. 1 indoor electrical key antenna assembly (for front floor), communication is not possible.

3. Bring the key near the No. 2 indoor electrical key antenna assembly (for center floor), and check that the hybrid vehicle control system can be started.
   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the No. 2 indoor electrical key antenna assembly (for center floor), communication is not possible.

4. Bring the key near the No. 3 indoor electrical key antenna assembly (for rear floor), and check that the hybrid vehicle control system can be started*.

   *: If the customize setting for Ignition Available Area is not set All, the hybrid vehicle control system will not start. Before performing this inspection, check that All has been selected. Refer to CUSTOMIZE PARAMETERS .

   NOTE:

   If the key is brought within 0.2 m (0.656 ft.) of the No. 3 indoor electrical key antenna assembly (for rear floor), communication is not possible.

   HINT:

   • When the key is brought near the indoor electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the operation is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   OK

   The hybrid vehicle control system starts.

NG → See step   4

OK → AFFECTED BY WAVE INTERFERENCE

1. Diagnostic mode inspection (No. 1 indoor electrical key antenna assembly (for front floor))
   Fig 2: Identifying Electrical Key Diagnostic Mode Inspection Points

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the power switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Key / Utility / Key Communication Check / Overhead + Front Room.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      • Place the key on the driver or front passenger seat cushion.
      • If the buzzer sounds, it can be determined that the No. 1 indoor electrical key antenna assemblies are operating normally.
2. Diagnostic mode inspection (No. 2 indoor electrical key antenna assembly (for center floor))
   Fig 3: Identifying Electrical Key Diagnostic Mode Inspection Points (Center Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the power switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Key / Utility / Key Communication Check / Overhead + Rear Room.
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      • Place the key on the rear seat cushion.
      • If the buzzer sounds, it can be determined that the No. 2 indoor electrical key antenna assemblies are operating normally.
3. Diagnostic mode inspection (No. 3 indoor electrical key antenna assembly (for rear floor))
   Fig 4: Identifying Electrical Key Diagnostic Mode Inspection Points (Rear Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Connect the Techstream to the DLC3.
   2. Turn the power switch on (IG).
   3. Turn the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Key / Utility / Key Communication Check / Overhead + Back Door (inside).
   5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

      HINT:

      • Place the key on the luggage area.
      • If the buzzer sounds, it can be determined that the No. 3 indoor electrical key antenna assemblies are operating normally.

      Result

      Result	Proceed to
      Wireless door lock buzzer does not sound only for No. 1 indoor electrical key antenna assembly (for front floor).	A
      Wireless door lock buzzer does not sound only for No. 2 indoor electrical key antenna assembly (for center floor).	B
      Wireless door lock buzzer does not sound only for No. 3 indoor electrical key antenna assembly (for rear floor).	C
      Wireless door lock buzzer sounds for all indoor electrical key antennas.	D

B → See step   9

C → See step   13

D → See step   18

A: Go to next step

1. Disconnect the certification ECU (smart key ECU assembly) connector.
2. Disconnect the No. 1 indoor electrical key antenna assembly (for front floor) connector.

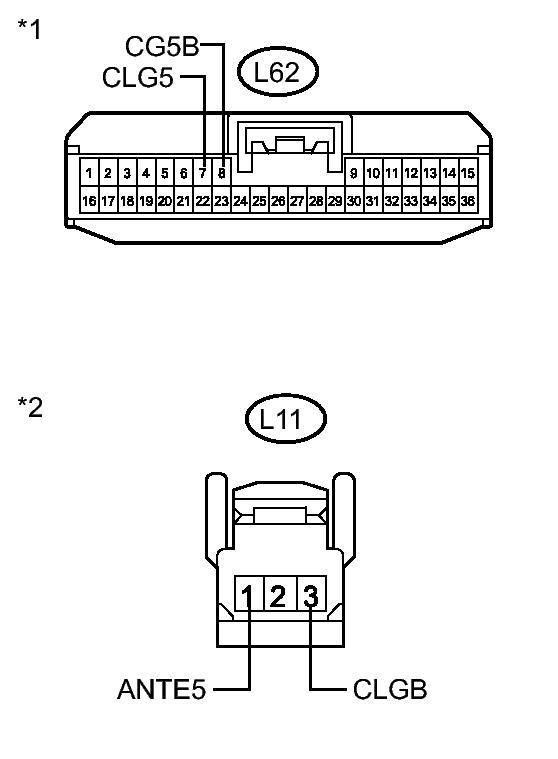

   Fig 5: Identifying L62 & L11 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L62-7 (CLG5) - L11-1 (ANTE5)	Always	Below 1 Ω
   L62-8 (CG5B) - L11-3 (CLGB)	Always	Below 1 Ω
   L62-7 (CLG5) - Body ground	Always	10 kΩ or higher
   L62-8 (CG5B) - Body ground	Always	10 kΩ or higher
   L11-1 (ANTE5) - Body ground	Always	10 kΩ or higher
   L11-3 (CLGB) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))
   *2	Front view of wire harness connector (to No. 1 Indoor Electrical Key Antenna Assembly (for Front Floor))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the certification ECU (smart key ECU assembly) connector.

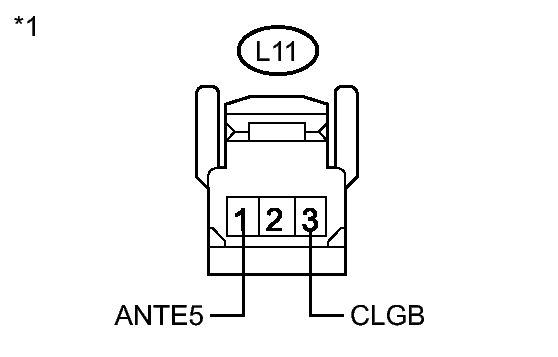

   Fig 6: Inspecting L11 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check for pulses according to the value(s) in the table below.

   Standard

   Tester Connection	Condition	Specified Condition
   L11-1 (ANTE5) - L11-3 (CLGB)	Power switch off All doors closed Key not in cabin Door outside handle assembly (lock sensor) not touched	No pulse generation
   L11-1 (ANTE5) - L11-3 (CLGB)	Power switch off All doors closed Key not in cabin Door outside handle assembly (lock sensor) touched	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to No. 1 Indoor Electrical Key Antenna Assembly (for Front Floor))

NG → See step   18

OK: Go to next step

1. Replace the No. 1 indoor electrical key antenna assembly (for front floor. Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Utility / Key Communication Check / Overhead + Front Room.
5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
   Fig 7: Identifying Electrical Key Diagnostic Mode Inspection Points

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Wireless door lock buzzer sounds.

   HINT:

   • Place the key on the driver or front passenger seat cushion.
   • If the buzzer sounds, it can be determined that the No. 1 indoor electrical key antenna assemblies are operating normally.

NG → See step   18

OK → END (NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY WAS DEFECTIVE)

1. Disconnect the certification ECU (smart key ECU assembly) connector.
2. Disconnect the No. 2 indoor electrical key antenna assembly (for center floor) connector.

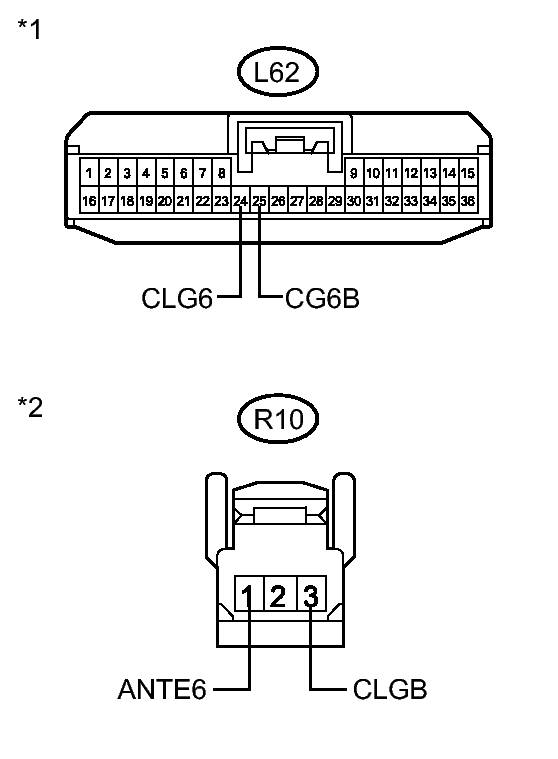

   Fig 8: Checking L62 & R10 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L62-24 (CLG6) - R10-1 (ANTE6)	Always	Below 1 Ω
   L62-25 (CG6B) - R10-3 (CLGB)	Always	Below 1 Ω
   L62-24 (CLG6) - Body ground	Always	10 kΩ or higher
   L62-25 (CG6B) - Body ground	Always	10 kΩ or higher
   R10-1 (ANTE6) - Body ground	Always	10 kΩ or higher
   R10-3 (CLGB) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))
   *2	Front view of wire harness connector (to No. 2 Indoor Electrical Key Antenna Assembly (for Center Floor))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the certification ECU (smart key ECU assembly) connector.

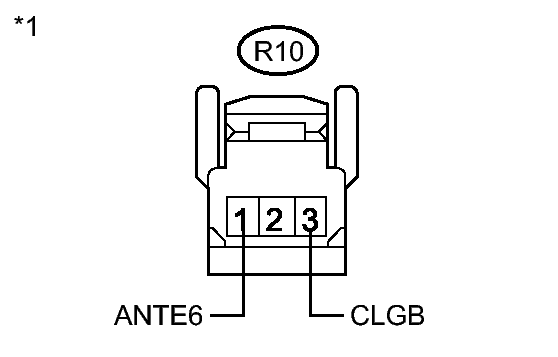

   Fig 9: Inspecting R10 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check for pulses according to the value(s) in the table below.

   Standard

   Tester Connection	Condition	Specified Condition
   R10-1 (ANTE6) - R10-3 (CLGB)	Power switch off All doors closed Key not in cabin Door outside handle assembly (lock sensor) not touched	No pulse generation
   R10-1 (ANTE6) - R10-3 (CLGB)	Power switch off All doors closed Key not in cabin Door outside handle assembly (lock sensor) touched	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to No. 2 Indoor Electrical Key Antenna Assembly (for Center Floor))

NG → See step   18

OK: Go to next step

1. Replace the No. 2 indoor electrical key antenna assembly (for center floor). Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Utility / Key Communication Check / Overhead + Rear Room.
5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
   Fig 10: Identifying Electrical Key Diagnostic Mode Inspection Points (Center Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Wireless door lock buzzer sounds.

   HINT:

   • Place the key on the driver or front passenger seat cushion.
   • If the buzzer sounds, it can be determined that the No. 2 indoor electrical key antenna assemblies are operating normally.

NG → See step   18

OK → END (NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY WAS DEFECTIVE)

1. Disconnect the certification ECU (smart key ECU assembly) connector.
2. Disconnect the No. 3 indoor electrical key antenna assembly (for rear floor) connector.

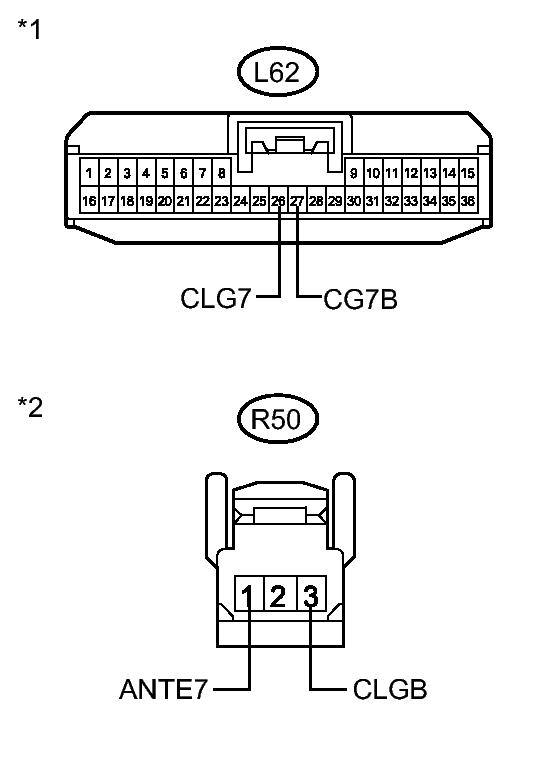

   Fig 11: Checking L62 & R50 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L62-26 (CLG7) - R50-1 (ANTE7)	Always	Below 1 Ω
   L62-27 (CG7B) - R50-3 (CLGB)	Always	Below 1 Ω
   L62-26 (CLG7) - Body ground	Always	10 kΩ or higher
   L62-27 (CG7B) - Body ground	Always	10 kΩ or higher
   R50-1 (ANTE7) - Body ground	Always	10 kΩ or higher
   R50-3 (CLGB) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))
   *2	Front view of wire harness connector (to No. 3 Indoor Electrical Key Antenna Assembly (for Rear Floor))

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the certification ECU (smart key ECU assembly) connector.

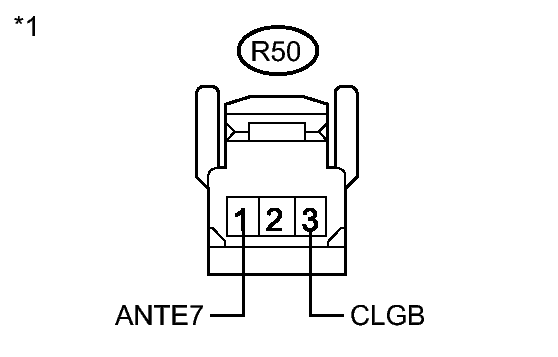

   Fig 12: Inspecting R50 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check for pulses according to the value(s) in the table below.

   Standard

   Tester Connection	Condition	Specified Condition
   R50-1 (ANTE7) - R50-3 (CLGB)	Power switch off All doors closed Key not in cabin Door outside handle assembly (lock sensor) not touched	No pulse generation
   R50-1 (ANTE7) - R50-3 (CLGB)	Power switch off All doors closed Key not in cabin Door outside handle assembly (lock sensor) touched	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to No. 3 Indoor Electrical Key Antenna Assembly (for Rear Floor))

NG → See step   18

OK: Go to next step

1. Replace the No. 3 indoor electrical key antenna assembly (for rear floor). Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Key / Utility / Key Communication Check / Overhead + Back Door (inside).
5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
   Fig 13: Identifying Electrical Key Diagnostic Mode Inspection Points (Rear Floor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Wireless door lock buzzer sounds.

   HINT:

   • Place the key on the driver or front passenger seat cushion.
   • If the buzzer sounds, it can be determined that the No. 3 indoor electrical key antenna assemblies are operating normally.

NG → See step   18

OK → END (NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY WAS DEFECTIVE)
