Room Oscillator does not Recognize Key: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

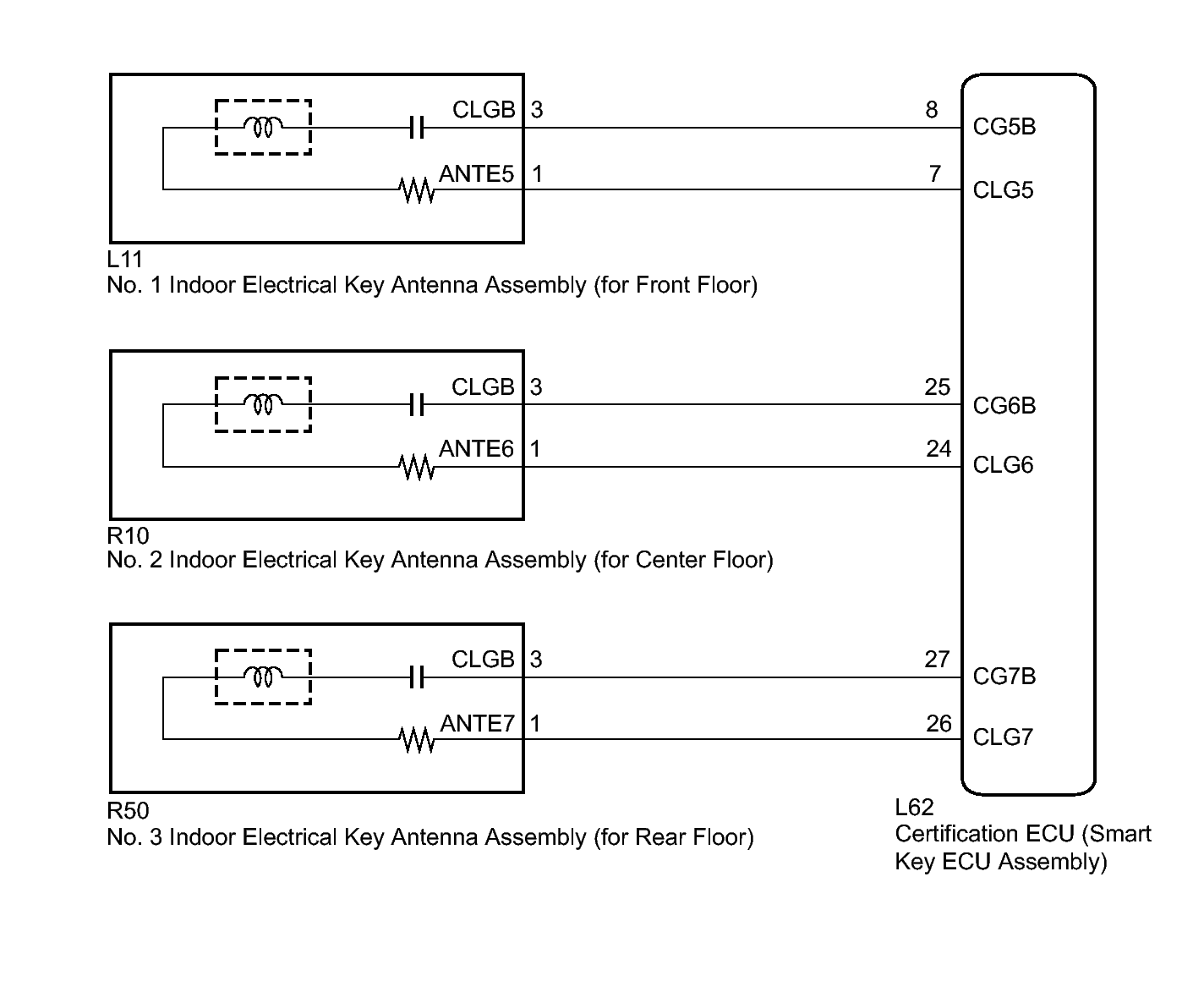

Fig 1: Identifying Indoor Electrical Key Antenna Circuit Diagram
GTY333136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
