Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER (w/ Smart Key System): REMOVAL

1. REMOVE TRANSMITTER BATTERY

NOTICE:
Take extra care when handling these precision electronic components.

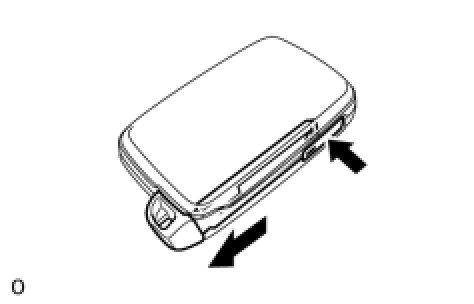

(a) Push the release hook knob and extract the emergency key.

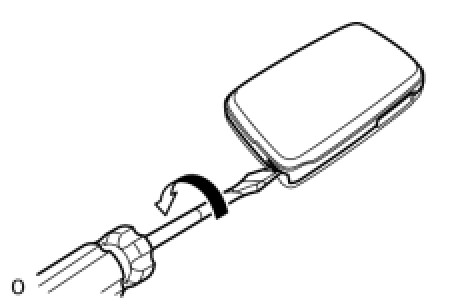

(b) Insert a precision screwdriver into the gap, and turn the screwdriver to detach the transmitter housing cover.





HINT
Tape the screwdriver tip before use.

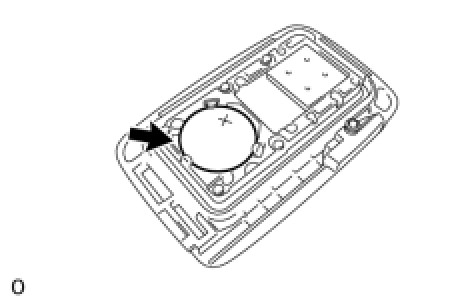

(c) Remove the battery (lithium battery: CR1632).





NOTICE:
* When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.
* Do not push the terminals with your finger.
* Do not forcibly pry up the battery. The terminals may be damaged.
* Do not touch the battery with wet hands. Water may cause rust.
* Do not touch or move any components inside the transmitter. It may interfere with proper operation.
