Removal

DOOR LOCK: DOOR CONTROL TRANSMITTER (w/o Smart Key System): REMOVAL

1. REMOVE TRANSMITTER HOUSING COVER

NOTICE:
Take extra care when handling these precision electronic components.

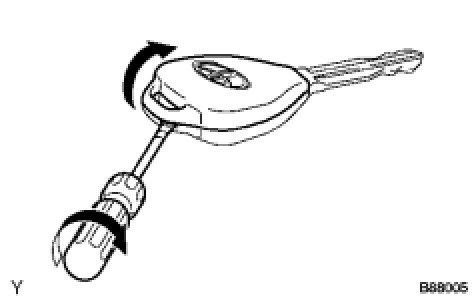

(a) Twist the screwdriver in the direction of the arrow mark in the illustration, and open the transmitter housing cover.





NOTICE:
Do not forcibly pry the cover.

HINT
Tape the screwdriver tip before use.

2. REMOVE DOOR CONTROL TRANSMITTER MODULE

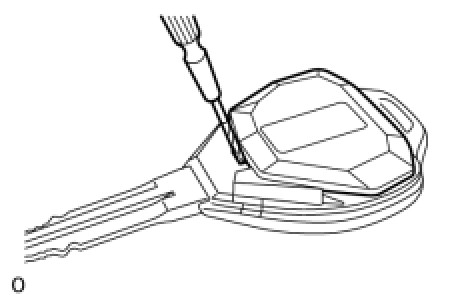

(a) Using a precision screwdriver, remove the door control transmitter module.





NOTICE:
When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the door control transmitter module set from being damaged.

HINT
Tape the screwdriver tip before use.
