Rear Wheel Alignment

SUSPENSION: REAR WHEEL ALIGNMENT: ADJUSTMENT

1. INSPECT TIRE

(a) Inspect the tire Component Tests and General Diagnostics.

2. MEASURE VEHICLE HEIGHT

(a) Measure the vehicle height Front Wheel Alignment.

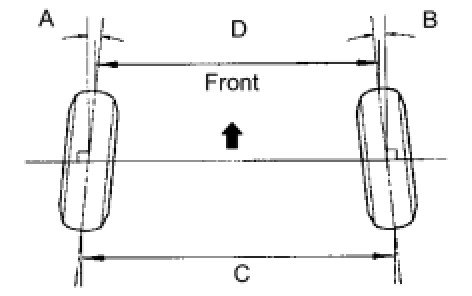

3. INSPECT TOE-IN





Standard toe-in:





* If the toe-in is not within the specified range, inspect the suspension parts and replace them if necessary.

4. ADJUST TOE-IN





(a) Loosen the toe adjust cam nut.

(b) Turn the adjust cams by an equal amount to adjust the toe-in.





Standard toe-in:





HINT
* Try to adjust the toe-in to the center value.
* The toe-in will change by approximately 3.6 mm (0.142 in.) for each gradation of the cam.

(c) Tighten the toe adjust cam nut.





Torque : 120 Nm (1224 kgf-cm, 89 ft-lbf)

5. INSPECT CAMBER

(a) Install the camber-caster-kingpin gauge or set the vehicle on the wheel alignment tester.

(b) Inspect the camber.

Standard camber:





HINT
* *: w/ 3rd seat
* Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
